Leica LAS X ID Modules Cleanliness Analysis Software

Overview

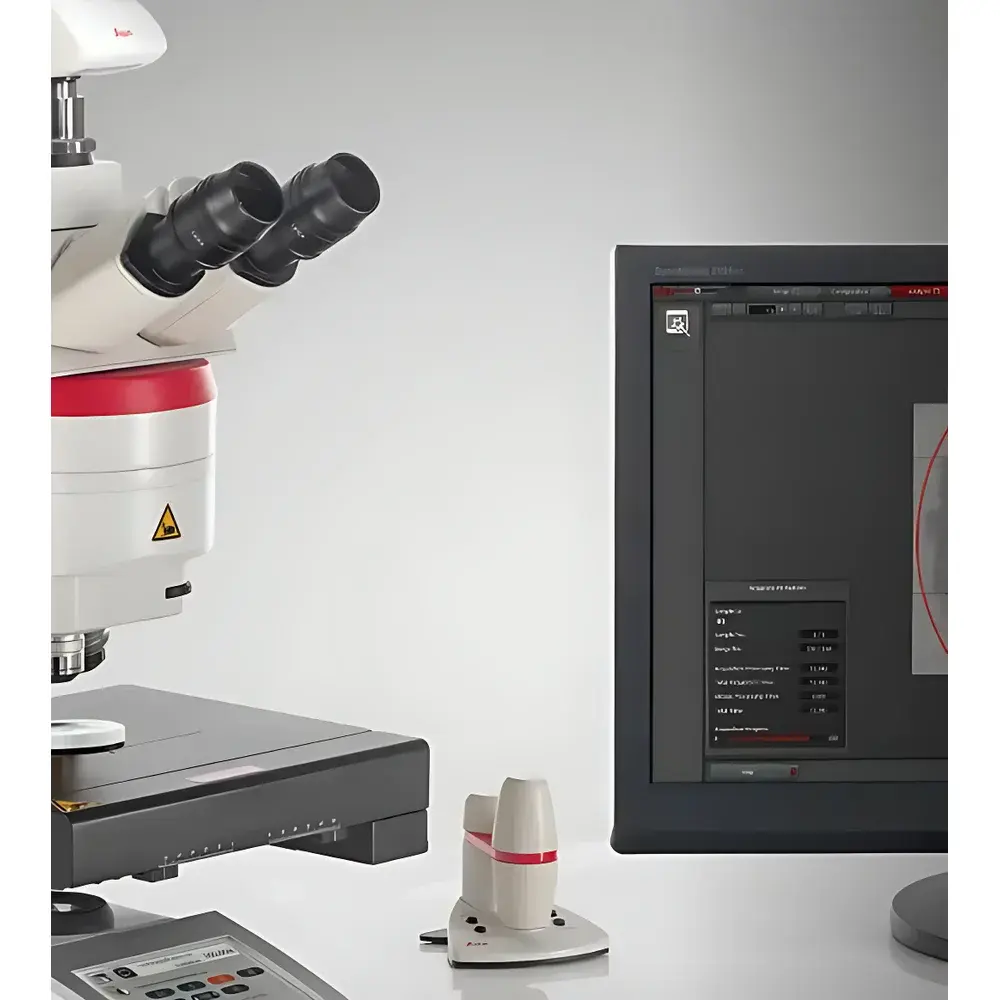

Leica LAS X ID Modules is a dedicated software platform engineered for automated, standardized, and traceable technical cleanliness analysis in optical microscopy workflows. Built as an integrated module within the Leica LAS X ecosystem, it enables quantitative particle detection, classification, and chemical identification—specifically optimized for compliance with ISO 16232, VDA 19.1/19.2, and SAE AS4059 standards. The software operates in conjunction with Leica’s motorized upright or inverted microscopes equipped with high-resolution digital cameras and optional Laser-Induced Breakdown Spectroscopy (LIBS) modules. Its core analytical principle combines automated brightfield/darkfield image acquisition, morphological particle segmentation (length, width, area, aspect ratio, circularity), height estimation via focus stacking, and—when paired with LIBS—elemental fingerprinting of individual contaminants without physical transfer to secondary instruments such as SEM-EDS.

Key Features

• Fully automated multi-filter batch processing: Analyze up to 12 filters per batch with independent particle classification rules (e.g., size thresholds, shape criteria, intensity masks) applied per filter.
• Integrated LIBS spectral matching engine: Compares acquired emission spectra against embedded reference libraries (metals, oxides, polymers, salts); displays match quality scores (0–100%) for each particle, with auto-highlighting of high-confidence identifications.
• Focus-stacking enabled 3D height profiling: Quantifies particle elevation above substrate surface—critical for assessing embedment risk and mechanical interference potential.
• Configurable, user-defined reporting templates: Generate PDF/Excel reports compliant with ISO 16232 Annex D, including particle count per size class, total contamination mass estimation (via calibrated pixel-to-µm² conversion), and LIBS-derived elemental composition summaries.
• GLP/GMP-ready audit trail: Logs all user actions, parameter changes, calibration events, and report generations with timestamps and operator IDs—fully compatible with FDA 21 CFR Part 11 requirements when deployed on validated systems.
• Dynamic interactive filter map: Real-time overlay of detected particles onto stitched macro-images; click any particle to view full morphological data, spectral plot, and match confidence metrics.

Sample Compatibility & Compliance

The LAS X ID Modules supports standard technical cleanliness sampling protocols using membrane filters (e.g., polycarbonate, mixed cellulose ester) with pore sizes from 0.45 µm to 5.0 µm. It accommodates filters up to 90 mm diameter mounted on Leica’s precision filter holders. All measurement routines adhere to the procedural rigor defined in ISO 16232-10 (microscopic analysis), VDA 19.2 (automated evaluation), and ASTM E2971 (LIBS validation guidelines). Calibration is performed using NIST-traceable stage micrometers and certified particle reference standards (e.g., Duke Scientific monodisperse latex spheres). Software validation documentation—including IQ/OQ protocols—is available upon request for regulated manufacturing environments.

Software & Data Management

Deployed as a Windows-based application (64-bit, Windows 10/11 LTS), LAS X ID Modules integrates natively with Leica’s LAS X Core platform. Data storage follows hierarchical project-folder architecture with version-controlled configuration files (.lasxidcfg), ensuring reproducibility across instruments and operators. Raw images, particle tables (CSV/SQLite), and LIBS spectra (ASCII .spc format) are stored separately for long-term archival and third-party reanalysis. Role-based access control (RBAC) supports multi-user labs: administrators manage system settings and libraries; analysts execute measurements; reviewers approve reports. Export functions support LIMS integration via HL7 or custom API hooks. All spectral libraries are editable and expandable—users may import proprietary reference spectra or update elemental databases in accordance with internal QA specifications.

Applications

• Automotive powertrain component validation (fuel injectors, hydraulic valves, transmission parts)
• Aerospace hydraulic and pneumatic system certification (actuators, servo valves, filter housings)
• Medical device manufacturing (implantable pumps, surgical instrument assemblies)
• Electronics assembly cleanliness verification (connectors, MEMS packaging, battery cell components)
• R&D process optimization: Correlating cleaning process parameters (ultrasonic frequency, solvent type, dwell time) with residual particle profiles and chemistry

FAQ

Is LAS X ID Modules compatible with non-Leica microscopes?
No. The software requires hardware-level synchronization with Leica motorized stages, autofocus units, and illumination controllers. It does not support third-party microscope interfaces.
Can particle height be measured without LIBS?
Yes. Height profiling via focus stacking is fully functional without LIBS hardware. LIBS adds elemental identification only.
Does the software support multi-language UI?
Yes. English, German, Japanese, Chinese (Simplified), and French language packs are included and selectable at runtime.
How is measurement uncertainty quantified?
Uncertainty budgets follow ISO/IEC Guide 98-3 (GUM), incorporating contributions from optical magnification calibration, pixel size error, focus step repeatability, and LIBS signal-to-noise ratio. Typical expanded uncertainty (k=2) for particle length is ±1.2 µm at 20× magnification.
Can historical data be migrated from older Leica Cleanliness Expert versions?
Yes. A dedicated migration utility converts legacy .cleandb and .libdb files into the current SQLite schema while preserving metadata, classification rules, and spectral matches.
