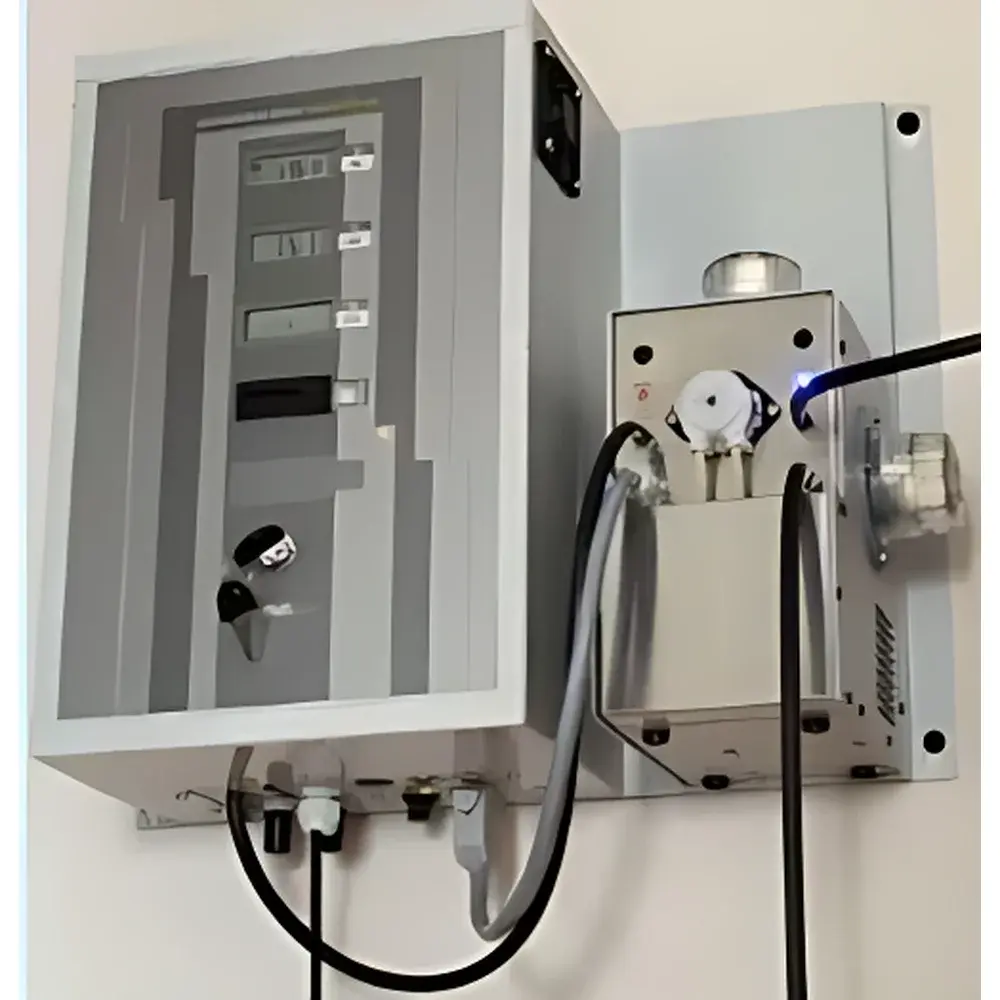

maMoS-100 Fixed (Online) Nitrous Oxide (N₂O) Monitor

Overview

The maMoS-100 Fixed (Online) Nitrous Oxide (N₂O) Monitor is an industrial-grade, microprocessor-controlled continuous emission monitoring system engineered for reliable, long-term N₂O concentration measurement in fixed-site environmental and process applications. Utilizing dual-spectrum detection architecture—supporting either electrochemical or non-dispersive infrared (NDIR) sensing technologies—the instrument delivers high reproducibility and low-drift performance under varying ambient conditions. Its core measurement principle for N₂O relies on NDIR absorption spectroscopy at characteristic wavelengths (e.g., ~4.5 µm), enabling selective, interference-resistant quantification of nitrous oxide in gas streams with minimal cross-sensitivity to CO₂, CH₄, or H₂O vapor. Designed for unattended operation in demanding environments—including biogas upgrading plants, cement kiln stacks, municipal wastewater treatment off-gas lines, and agricultural greenhouse climate control systems—the maMoS-100 integrates a thermoelectrically cooled sample conditioning system (including particulate filtration, condensate removal via peristaltic pump, and dew point suppression), ensuring stable signal integrity across humidity ranges from 5% to 95% RH (non-condensing). The unit operates on 24 V AC power (≈8 W), features IP54-rated ABS enclosure, and complies with IEC 61000-6-2/6-4 electromagnetic compatibility standards.

Key Features

• Modular dual-channel architecture: Supports up to two independent gas sensors—electrochemical (for O₂, CO, NO, NO₂, SO₂, H₂S, Cl₂, H₂) or NDIR (for CO, CO₂, CH₄, N₂O)—in a single housing
• Factory-calibrated sensors: Electrochemical cells are pre-calibrated and aged prior to shipment; field replacement requires no recalibration procedure. NDIR sensors are inherently drift-stable and require no periodic zero/span adjustment
• Automated dual-phase measurement cycle: Fully programmable zero-gas and measurement phases, each with independent timing (2–32 s averaging window)
• Integrated sample conditioning: Peltier-cooled dryer, hydrophobic particulate filter, and condensate-peristaltic pump ensure consistent sample dew point < 5 °C
• Robust sampling system: Diaphragm pump (1.5 L/min flow rate), temperature-compensated electronics, and pressure-tolerant gas path design
• Flexible analog & digital interfaces: 4–20 mA and 0–10 V linear outputs per channel; RS232 TTL-level serial interface for real-time data logging and remote configuration
• Configurable dry-contact relays: Two user-programmable alarm contacts per channel, supporting fail-safe or latching logic

Sample Compatibility & Compliance

The maMoS-100 is validated for continuous monitoring of N₂O in complex industrial gas matrices, including biogas (CH₄/CO₂/H₂S/O₂), flue gas (CO/NOₓ/SO₂), and ambient air streams. Its NDIR sensor for N₂O (0–500 ppm range, 1 ppm resolution, ±3% rel. or ±5 ppm abs. accuracy) meets the analytical requirements of ISO 14064-3 Annex B for GHG verification and supports compliance reporting under EU ETS and EPA GHGRP Subpart I. For electrochemical channels, cross-interference testing per EN 14625 confirms <±2% signal deviation from target gases under co-existing concentrations typical in combustion and fermentation processes. The instrument’s hardware architecture adheres to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD) and is suitable for installation in Zone 2 hazardous locations when paired with appropriate barrier-certified accessories. All firmware and calibration records maintain audit trails compatible with GLP and ISO/IEC 17025 laboratory quality management systems.

Software & Data Management

Data acquisition and configuration are managed via ASCII command protocol over RS232, enabling seamless integration into SCADA, DCS, or custom Python/Node-RED-based monitoring platforms. Each channel supports timestamped output of raw sensor voltage, temperature-compensated concentration, status flags (e.g., “filter clogged”, “condensate full”, “sensor fault”), and diagnostic codes. Optional PC software (Windows-compatible) provides graphical trend visualization, alarm event logging, and export to CSV/Excel formats compliant with FDA 21 CFR Part 11 requirements (when used with electronic signature-enabled host systems). Firmware updates are performed via serial upload; version history and calibration timestamps are retained in non-volatile memory for regulatory traceability.

Applications

• Biogas quality control: Real-time N₂O, CH₄, CO₂, O₂, and H₂S monitoring during anaerobic digestion and upgrading
• Cement and glass manufacturing: Stack emissions monitoring for N₂O and NOₓ as part of Tier 2 GHG inventories
• Municipal wastewater treatment: Off-gas N₂O tracking from activated sludge and denitrification basins
• Agricultural greenhouse climate systems: Precision N₂O and CO₂ dosing feedback control
• Incineration facilities: Post-combustion N₂O verification in compliance with BAT conclusions (BREF Waste Incineration)
• Ambient air quality networks: Urban background N₂O monitoring (0–500 ppm range) aligned with EEA Air Quality Directive reporting

FAQ

What is the typical response time (T90) for N₂O measurement using the NDIR sensor?
The T90 response time for the N₂O channel is ≤15 seconds under standard sampling conditions (25 °C, 1 atm, 1.5 L/min flow).
Can the maMoS-100 be deployed outdoors without additional shelter?
It is rated IP54 and designed for indoor or protected outdoor enclosures; direct exposure to rain, snow, or sustained UV is not recommended.
Is the instrument suitable for use in explosive atmospheres?
The base unit is not ATEX-certified; however, it may be installed in Zone 2 areas when connected via intrinsically safe barriers and certified sampling lines.
How often does the NDIR sensor require recalibration?
None—NDIR sensors are factory-calibrated and exhibit negligible drift; annual functional verification against certified span gas is recommended for QA/QC.
Does the device support Modbus RTU or other industrial protocols?
No native Modbus support; RS232 ASCII protocol is standard—Modbus conversion requires external gateway hardware.
