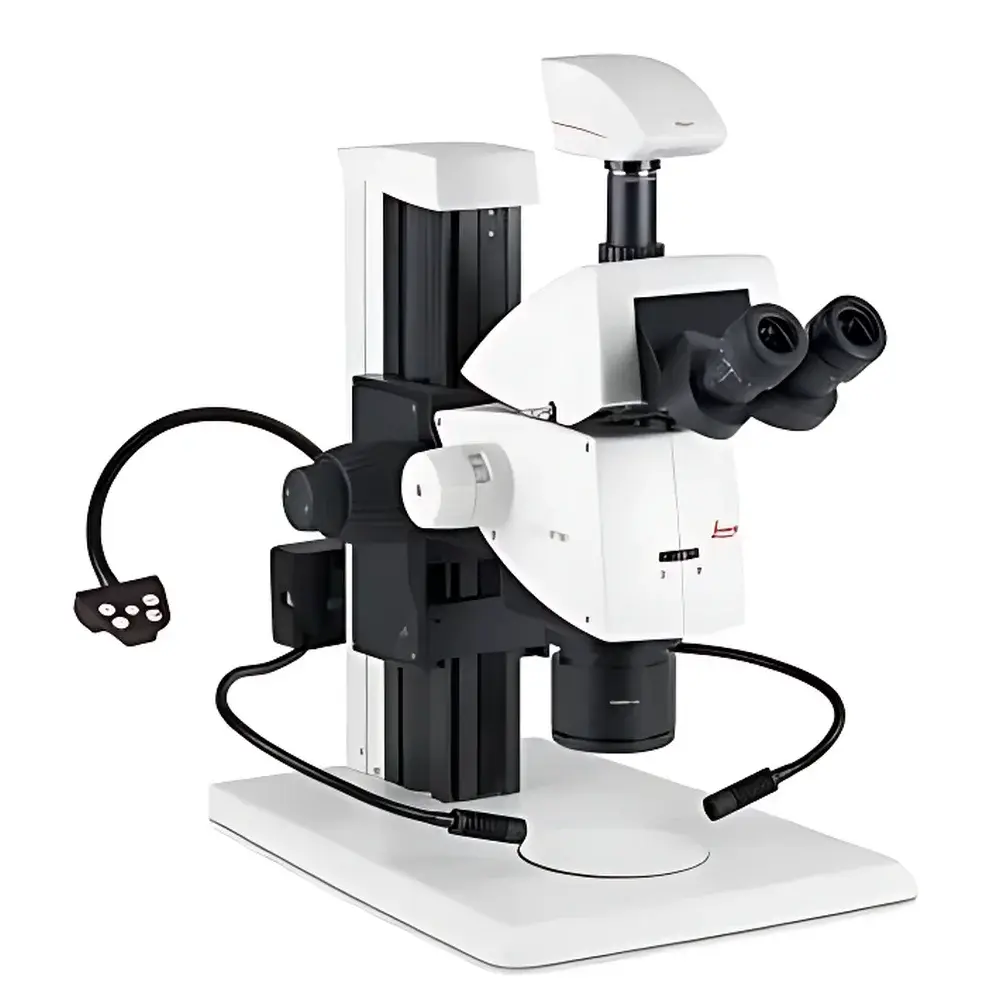

Leica LED5000 SLI Stereo Microscope Illuminator

Overview

The Leica LED5000 SLI is a high-performance, modular incident illumination system engineered specifically for stereo microscopes in research, quality assurance, and industrial inspection environments. It operates on the principle of adjustable oblique incident lighting—leveraging dual independently articulable gooseneck arms equipped with high-color-rendering-index (CRI >90) white LEDs (6,000 K correlated color temperature) to deliver precise, shadow-controlled illumination across complex three-dimensional specimens. Unlike conventional ring lights or fixed-angle illuminators, the LED5000 SLI enables dynamic contrast modulation by repositioning the LED emitters along variable incidence angles—from near-vertical (for low-contrast, uniform surface illumination) to shallow grazing angles (for enhanced edge definition, texture revelation, and topographic contrast). Its mechanical architecture is optimized for integration with Leica’s M125, M165 C, and M205 C stereo microscope platforms, supporting both manual workflows and automated imaging pipelines under GLP/GMP-compliant laboratory conditions.

Key Features

• Dual 500 mm articulated gooseneck arms with precision-damped joints, enabling stable, repeatable positioning without drift or sagging over time
• Integrated tactile control unit mounted directly on the base—eliminates external power supplies, footswitches, or wall-mounted dimmers, reducing cable clutter and improving benchtop ergonomics
• Removable matte acrylic diffuser for glare suppression on reflective or polished surfaces (e.g., metallographic samples, PCBs, coated optics)
• CAN bus interface compliant with Leica’s ecosystem—enables seamless daisy-chaining with complementary modules such as the LED5000 RL (reflected light) or CXI (coaxial illumination) units
• Full digital control via Leica Application Suite (LAS X) v3.7+, supporting scheduled illumination protocols, intensity ramping, and audit-trail logging per FDA 21 CFR Part 11 requirements
• Thermally stabilized LED driver architecture ensuring <±0.5% intensity drift over 8-hour continuous operation at ambient 25 °C

Sample Compatibility & Compliance

The LED5000 SLI is validated for use with non-hazardous solid specimens across materials science, electronics manufacturing, life sciences (gross morphology), and forensic documentation. It supports ISO 10993-5 cytotoxicity assessment sample staging and ASTM E2912-20 guidelines for optical inspection of machined components. The system meets IEC 61000-6-3 (EMI emission) and IEC 61000-6-1 (immunity) standards, and carries CE marking under the EU Medical Device Regulation (MDR) Annex XVI for non-invasive diagnostic support equipment. No laser classification applies; all emissions fall within Class 1 LED safety limits per IEC 62471.

Software & Data Management

When paired with LAS X software, the LED5000 SLI becomes part of a traceable imaging workflow: illumination parameters (intensity %, arm angle presets, diffuser state) are embedded into TIFF and JPEG metadata headers. Configuration files (.lasxconfig) can be version-controlled and deployed across multiple workstations. Audit trails record user ID, timestamp, parameter changes, and session duration—fully compatible with electronic lab notebook (ELN) integrations and internal QA documentation systems. Remote firmware updates are delivered via secure HTTPS channels with SHA-256 signature verification.

Applications

• Metallurgical inspection: Revealing grain boundaries, porosity, and machining marks through controlled oblique illumination
• Electronics QA: Detecting solder joint voids, component misalignment, and conformal coating defects on glossy substrates
• Museum conservation: Non-contact examination of pigment layer stratigraphy and varnish degradation without UV exposure
• Pharmaceutical packaging inspection: Verifying embossed batch codes and seal integrity on blister foils
• Entomology and botany: Capturing fine setae, cuticular microstructures, and epidermal cell patterns in intact specimens

FAQ

Can the LED5000 SLI be used with non-Leica stereo microscopes?
Yes—mechanical mounting is achieved via standard M6 threaded posts; however, full CAN bus functionality and LAS X integration require Leica-specific hardware handshaking.
Is the diffuser motorized or manually installed?
The standard configuration includes a manually inserted/removable diffuser; motorized actuation is available as an optional upgrade (Order Code: LED5000-SLI-DIFF-MOT).
Does the system support programmable illumination sequences?
Yes—LAS X allows creation of multi-step illumination macros (e.g., “Low-Angle → Diffused → High-Angle”) triggered by keyboard shortcuts or hardware buttons.
What is the expected lifetime of the LED modules?
Rated L70 lifetime exceeds 50,000 hours at nominal drive current, with gradual lumen depreciation rather than catastrophic failure.
How is thermal management handled during extended use?
Passive aluminum heat sinks integrated into each gooseneck base, coupled with intelligent PWM-driven current regulation, maintain junction temperatures below 65 °C under continuous 100% output.
