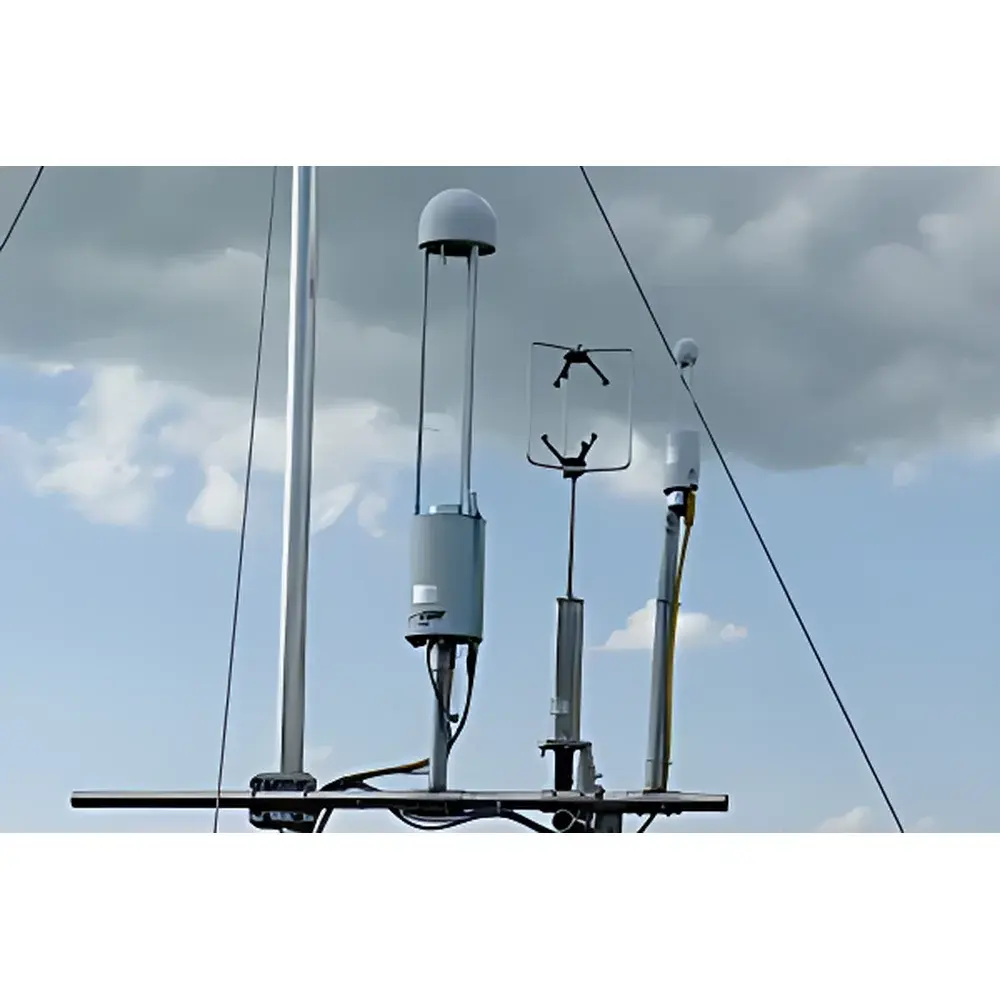

LI-COR LI-7700 Open-Path CH₄/CO₂/H₂O Eddy Covariance Flux Analyzer System

Overview

The LI-COR LI-7700 Open-Path CH₄/CO₂/H₂O Eddy Covariance Flux Analyzer System is a field-deployable, high-temporal-resolution gas flux measurement platform engineered for long-term, autonomous operation in remote ecological and atmospheric research sites. It implements the eddy covariance (EC) method—a micrometeorological technique that quantifies vertical turbulent exchange of trace gases between ecosystems and the atmosphere—by synchronously measuring high-frequency (≥10 Hz) three-dimensional wind velocity (via co-located ultrasonic anemometry) and scalar concentrations of methane (CH₄), carbon dioxide (CO₂), and water vapor (H₂O). Unlike closed-path systems, the LI-7700 employs true open-path infrared absorption spectroscopy for CH₄ detection at 1.65 µm, eliminating sampling lines, pumps, and associated artifacts such as pressure drop, adsorption/desorption hysteresis, and transport time lag. Its optical path remains unobstructed and self-cleaning via integrated piezoelectric wipers, ensuring stable spectral transmission under dusty or humid conditions typical of wetlands, tundra, agricultural fields, and forest canopies.

Key Features

• First commercially available open-path CH₄ analyzer optimized for eddy covariance applications, validated across diverse biomes including peatlands, rice paddies, and permafrost margins.
• Co-registered measurement geometry: LI-7700 CH₄ analyzer and LI-7500RS CO₂/H₂O analyzer share identical optical path lengths and spatial collocation, minimizing spatial decorrelation error in flux computation.
• Thermally stabilized optical bench with active temperature control (±0.1 °C) ensures long-term stability of interference filters and detector responsivity—critical for sub-ppb CH₄ precision over seasonal deployments.
• Low-power architecture (<12 W system-wide under nominal operation) enables solar-battery hybrid power solutions, supporting multi-year unattended operation in off-grid locations.
• No moving parts in the gas sensing path; no consumables, calibration gases, or internal sample conditioning required during standard operation.
• Integrated SmartFlux® module runs EddyPro® firmware on-board, performing real-time flux computation—including coordinate rotation, spike detection, Webb-Pearman-Leuning (WPL) correction, and spectral attenuation compensation—without reliance on post-hoc desktop processing.

Sample Compatibility & Compliance

The LI-7700 system is designed for continuous, in situ atmospheric monitoring above natural and managed ecosystems. It complies with internationally recognized standards governing eddy covariance data quality and traceability, including the FLUXNET Quality Control Flagging Protocol v3.0 and the ICOS Ecosystem Thematic Centre’s Level 1–2 data processing guidelines. Raw data output conforms to the GHG (.ghg) file format—an open, metadata-rich binary structure containing synchronized timestamps, instrument diagnostics, raw digital counts, and georeferenced site descriptors. All firmware and software components support audit-trail logging per FDA 21 CFR Part 11 requirements when deployed in regulated environmental monitoring contexts (e.g., carbon credit verification, national greenhouse gas inventories). The system meets IEC 60529 IP65 ingress protection specifications and operates reliably across humidity ranges from 0–100% RH (non-condensing) and ambient temperatures from −25 to +45 °C.

Software & Data Management

EddyPro®—LI-COR’s open-source, peer-reviewed eddy covariance data processing engine—is available in two deployment modes: EddyPro® Field Edition (embedded within SmartFlux® hardware) and EddyPro® Desktop Edition (Windows/macOS). Both versions implement standardized flux partitioning, gap-filling algorithms (e.g., marginal distribution sampling), and uncertainty propagation frameworks aligned with the AmeriFlux Metadata Standard. FluxSuite®, a cloud-based monitoring dashboard, provides secure HTTPS access to real-time instrument health metrics (e.g., signal-to-noise ratio, window transmittance, battery voltage), automated alerting via SMS/email upon threshold breaches, and centralized management of multi-site networks. All data transfers use TLS 1.2+ encryption; raw .ghg files are stored locally on industrial-grade USB 3.0 flash media with write-cycle endurance >100,000 cycles.

Applications

This system supports quantitative investigation of biogeochemical cycling dynamics across terrestrial and aquatic interfaces. Primary application domains include: quantification of CH₄ emissions from rice agriculture and boreal wetlands; evaluation of CO₂ sequestration efficiency in afforestation projects; validation of satellite-based atmospheric column retrievals (e.g., TROPOMI, GOSAT); assessment of land-use change impacts on net ecosystem exchange (NEE); and integration with soil chamber networks for multi-scale process attribution. Its low maintenance burden and robustness make it suitable for inclusion in national flux observation infrastructures such as NEON (USA), ICOS (Europe), and OzFlux (Australia).

FAQ

What distinguishes the LI-7700 from closed-path CH₄ analyzers in eddy covariance setups?
The LI-7700 eliminates inlet tubing, pumps, and dryers—removing sources of memory effects, spectral damping, and calibration drift. Its open-path design preserves high-frequency turbulence spectra essential for accurate flux estimation.
Can the LI-7700 be used without the LI-7500RS?
No. The LI-7700 must be deployed alongside a co-located LI-7500RS (or LI-7500A) to provide synchronized CO₂/H₂O concentration time series required for complete EC flux closure.
Is EddyPro® software included with purchase?
Yes—both EddyPro® Field Edition (pre-installed on SmartFlux®) and EddyPro® Desktop Edition (downloadable license) are provided at no additional cost.
Does the system support remote firmware updates?
Yes, over cellular (LTE-M/NB-IoT) or satellite uplink via FluxSuite®-managed OTA (over-the-air) update protocols compliant with IEC 62443-3-3 security profiles.
How frequently does the optical window cleaning cycle activate?
The piezoelectric wiper engages automatically every 30 minutes under normal conditions, or triggered by real-time transmittance monitoring if signal degradation exceeds user-defined thresholds.
