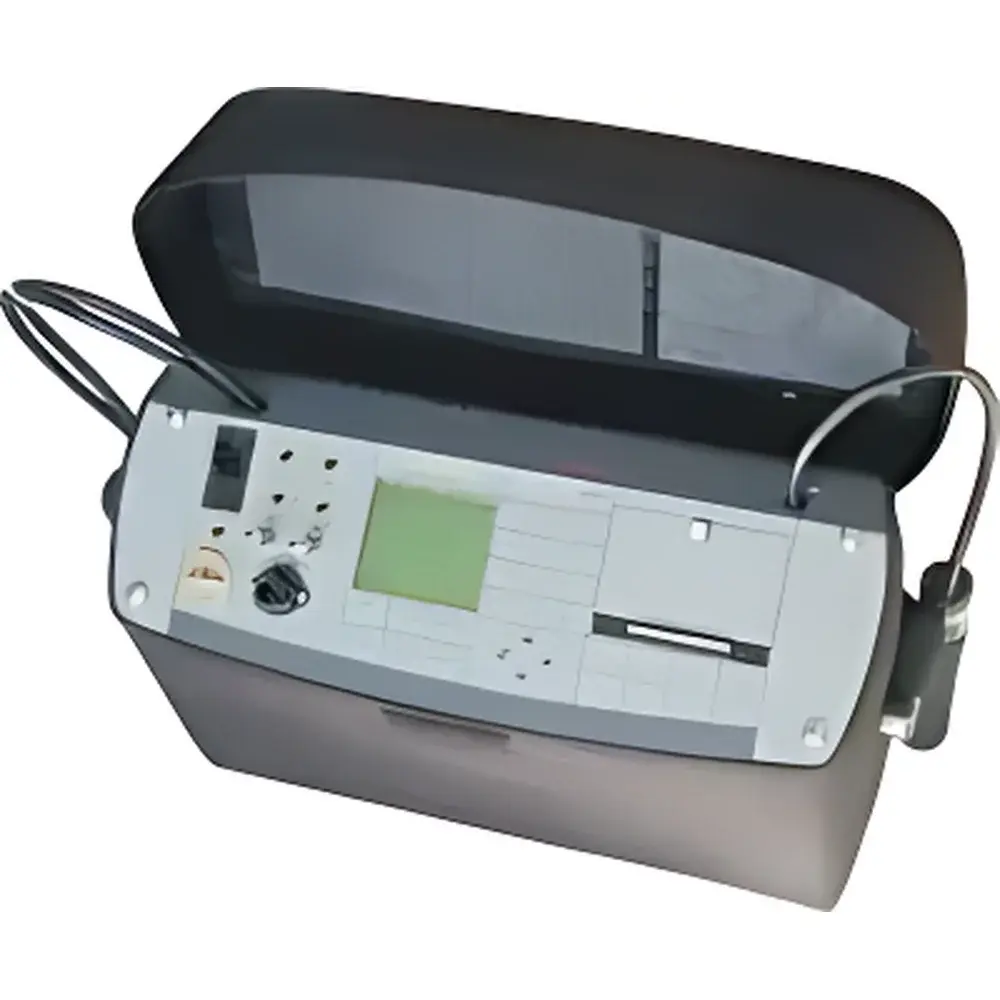

Madur GA40Tplus Flue Gas Analyzer

Overview

The Madur GA40Tplus Flue Gas Analyzer is a field-deployable, high-integrity continuous emission monitoring system engineered for regulatory-compliant flue gas analysis in industrial combustion processes. It operates on dual-sensor architecture—combining electrochemical detection for reactive gases (O₂, CO, NO, NO₂, SO₂, H₂S, Cl₂, H₂) and non-dispersive infrared (NDIR) spectroscopy for CO₂ and CH₄—ensuring selective, interference-compensated quantification under dynamic stack conditions. Designed for long-term unattended operation in boiler service, thermal oil heaters, incinerators, and CHP units, the GA40Tplus integrates active condensate management via a high-efficiency refrigerative cold trap and heated sampling line (up to 180 °C), preventing water vapor-induced sensor drift and line clogging. Its measurement methodology adheres to principles defined in EN 15267-3, EN 14181, and ISO 12039 for stationary source emissions, supporting both volumetric concentration (vol%) and mass concentration (mg/Nm³) reporting with stoichiometric correction for O₂ dilution and combustion efficiency parameters.

Key Features

• Modular sensor architecture supporting up to eight simultaneous gas channels: six electrochemical cells (field-replaceable, individually calibrated) and two NDIR modules (CO₂ and CH₄), each with temperature and cross-sensitivity compensation algorithms.
• Dual-mode analog I/O: six configurable inputs (±20 V, ±20 mA, thermocouple types J/K/S/R/B, RTD Pt-100/Pt-500/KTY) and two optional analog outputs (4–20 mA) for integration into plant DCS or SCADA systems.
• Intelligent sampling system featuring electronically regulated diaphragm pump (90 L/h), automatic zero calibration (O₂/CO₂ initiated at power-on or manually during operation), and programmable purge cycles to protect CO sensor from over-range exposure via air backflush.
• Real-time graphical display with user-selectable time axes (“fast” = 1–60 s/div, “normal” = 1–60 min/div), manual/auto scaling of Y-axis (16 parameter combinations), and black-level adjustable LCD (128×112 pixels, 75×64 mm active area).
• Onboard data management: 1024-point continuous logging distributed across ten independent databases; 30-report memory with customizable header (site ID, operator, date/time stamp); timestamped average values (user-defined averaging period: 10 s to 60 min).
• Fuel-specific combustion engine: preloaded database of 22 standard fuels (e.g., natural gas, light fuel oil, biomass pellets) with editable stoichiometric coefficients; supports addition of 10 custom fuels with tailored H/C/O/N ratios and lower heating value (LHV) definitions.

Sample Compatibility & Compliance

The GA40Tplus accommodates flue gas streams with temperatures up to 1000 °C (via external thermocouple T1/T3), particulate loadings typical of coal-, oil-, and gas-fired systems, and condensable fractions managed by its integrated Peltier-cooled condensate separator (dew point ≤5 °C). It meets EU Directive 2010/75/EU (IED) requirements for periodic verification and QA/QC procedures under EN 14181 Level 1–3. All gas concentration outputs are traceable to NIST-certified standards, and the instrument supports audit-ready documentation per ISO/IEC 17025:2017 and EPA Method 3A/6C/7E compliance frameworks. Optional Bacharach smoke number (SN) module enables automated opacity assessment per ASTM D2156 and DIN 51400.

Software & Data Management

Data acquisition and configuration are handled via embedded firmware with password-protected access levels (operator, technician, administrator). RS232C serial interface enables bidirectional communication with PC-based software (Madur GA-Soft v4.x) for report generation, trend analysis, and remote calibration validation. All stored measurements include metadata: sensor ID, calibration date, ambient pressure (hPa/mmH₂O/inH₂O), temperature unit (°C/°F), decimal separator preference, and user-defined emission reference conditions (e.g., 3% O₂ dry basis). Audit trail functionality logs all parameter changes, zero/span events, and firmware updates with timestamps and operator IDs—supporting GLP/GMP-aligned record retention and FDA 21 CFR Part 11 compliance when used with validated software extensions.

Applications

• Periodic stack testing for environmental permit compliance (e.g., EPA Title V, UK PPC, German BImSchG).
• Combustion optimization in industrial boilers, kilns, and furnaces through real-time λ (excess air), η (efficiency), and SL (flue gas loss) calculation.
• Commissioning and troubleshooting of low-NOₓ burners, SCR/SNCR systems, and desulfurization units via multi-gas correlation analysis.
• Mobile emission audits conducted by environmental consultancies and regulatory agencies requiring portable, CE-marked CEMS-grade instrumentation.
• Academic and R&D laboratories studying fuel substitution effects (e.g., biogas blending, hydrogen co-firing) on pollutant formation kinetics.

FAQ

What gas species can the GA40Tplus measure simultaneously?
It measures up to eight gases concurrently: O₂, CO, NO, NO₂, SO₂, H₂S, Cl₂, and H₂ via electrochemical sensors; CO₂ and CH₄ via optional NDIR modules. Additional parameters include flue gas temperature (T_gas), ambient temperature (T_amb), differential pressure, flow velocity (with Pitot tube), and Bacharach smoke number.
How does the instrument handle moisture interference in hot, wet flue gas?
The integrated Peltier-cooled condensate separator maintains sample dew point below 5 °C while the heated sampling probe (180 °C max) prevents condensation upstream of the cold trap. This two-stage approach ensures stable sensor response and eliminates aqueous-phase interference with electrochemical cell electrolytes.
Is the GA40Tplus suitable for unattended long-term monitoring?
Yes—its robust mechanical design, sealed electronics housing (IP54), internal battery backup (6 h runtime), and programmable duty cycle (measurement/purge/zero intervals) enable 72+ hour autonomous operation when deployed with external power and data logger.
Can measurement units and reporting formats be customized for regional regulatory requirements?
Yes—users may select pressure units (hPa, mmH₂O, inH₂O), temperature scales (°C/°F), decimal notation (dot/comma), date format (DD/MM/YYYY or MM/DD/YYYY), and emission basis (dry/wet, O₂ reference %) directly from the instrument menu.
Does the device support third-party calibration verification protocols?
Yes—the open calibration menu displays raw sensor signals, cross-sensitivity coefficients, and span gas response factors. All calibration events—including zero, span, and bump tests—are timestamped and exportable as CSV files for external QA review and regulatory submission.
