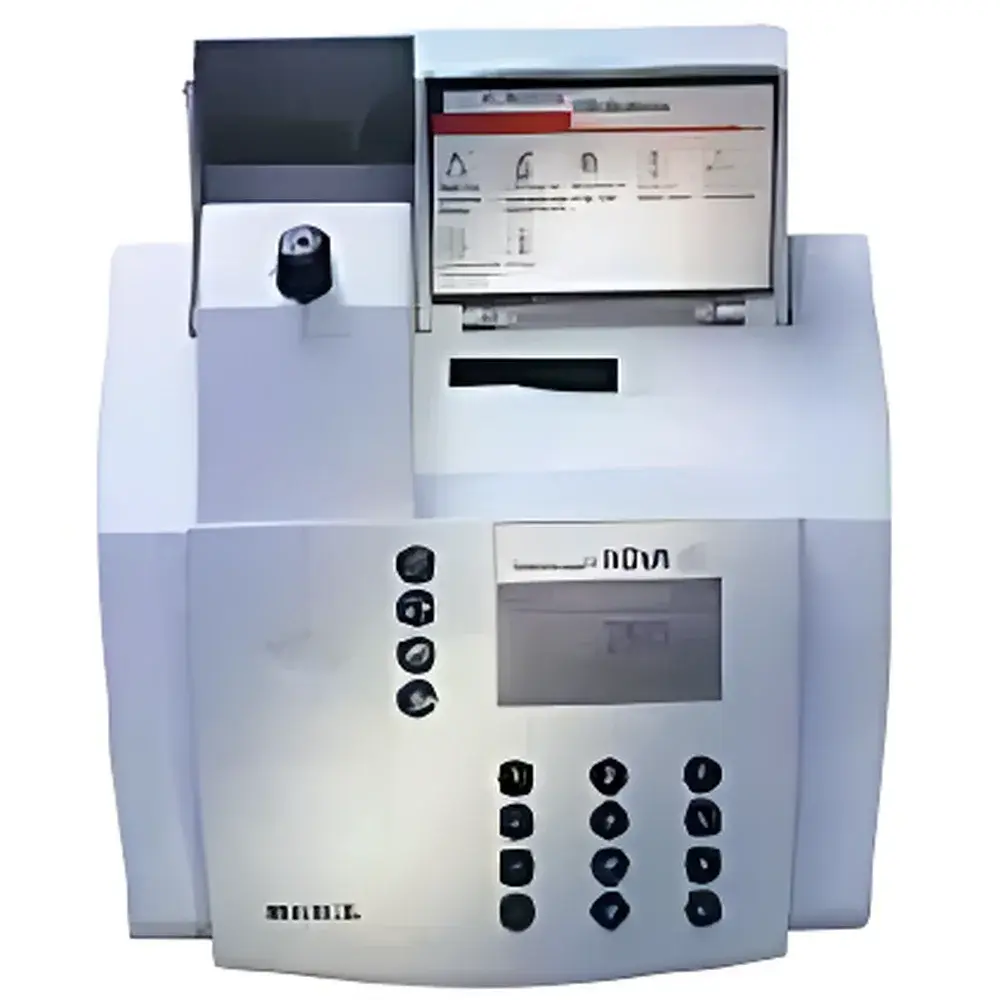

Millipore NOVA 60 Multi-Parameter Water Quality Analyzer

Overview

The Millipore NOVA 60 Multi-Parameter Water Quality Analyzer is an engineered photometric platform designed for reliable, field-deployable and semi-automated analysis of critical water quality parameters in environmental monitoring, wastewater treatment, drinking water distribution, and industrial effluent compliance applications. It operates on the principle of absorbance-based spectrophotometry, utilizing a solid-state, temperature-compensated LED light source array spanning 240–820 nm across 12 discrete wavelengths. This architecture ensures high reproducibility and minimal drift under variable ambient conditions—essential for unattended or mobile deployment. Unlike benchtop laboratory spectrophotometers, the NOVA 60 integrates method-specific calibration curves, reagent compatibility logic, and standardized reaction protocols directly into its firmware, enabling direct concentration readouts without manual calculation. Its design aligns with foundational principles outlined in ISO 7027 (turbidity), ISO 6060 (COD), ISO 11908 (ammonia-nitrogen), and EPA Method 351.2 (total cyanide), supporting traceable, auditable measurements in regulated environments.

Key Features

• 12-wavelength programmable LED optical system with automatic wavelength selection based on selected test method
• 126 built-in analytical procedures compliant with international standard methods—including 50 distinct water quality parameters
• Direct digital readout of concentration units (mg/L, µg/L, pH, %T, AU) with auto-ranging and dynamic dilution guidance
• Robust optical path design featuring waterproof sample chamber, 16 mm tube and 10/20/50 mm cuvette compatibility
• Onboard data logging for up to 1000 measurements with timestamp, operator ID, and method version tracking
• Reagent-agnostic interface supporting both economical bulk reagent kits and single-use sealed vials (e.g., COD, TN, TP)
• Low-power operation via 9 V alkaline battery (≥40 h continuous use) with auto-shutdown and low-battery warning
• IP65-rated enclosure with operating range of 0–40 °C and 30–90 % RH non-condensing humidity

Sample Compatibility & Compliance

The NOVA 60 accommodates a broad spectrum of aqueous matrices—including raw surface water, treated potable water, activated sludge supernatant, landfill leachate, and industrial process streams—provided turbidity remains below 100 NTU and suspended solids are minimized via filtration or centrifugation prior to analysis. All onboard methods adhere to recognized regulatory frameworks: COD determination follows ISO 6060 and APHA Standard Methods 5220 D; ammonia-nitrogen quantification conforms to ISO 11908 and EPA Method 350.1; total cyanide analysis implements ISO 6703-2 and ASTM D7511; heavy metal detection (e.g., Cr, Cu, Ni, Pb, Zn) utilizes colorimetric complexation chemistry validated per ISO 11969. The instrument supports GLP/GMP-aligned workflows through audit-trail-capable data export (CSV via USB), user-accessible method versioning, and configurable operator authentication levels.

Software & Data Management

Data acquisition and reporting are managed through the embedded firmware interface, which provides real-time display of absorbance spectra, kinetic reaction progress, and endpoint stability assessment. Measurement history is stored with metadata including date/time stamp, selected wavelength, calibration status, and reagent lot number (if entered manually). Export is supported via USB 2.0 to standard FAT32-formatted drives in comma-separated value (CSV) format, compatible with LIMS integration and statistical process control (SPC) software. Firmware updates are performed via magnetic programming cards—eliminating dependency on proprietary software or PC connectivity—and preserve all user-defined settings and calibration records. No cloud connectivity or remote telemetry is implemented, ensuring full data sovereignty and alignment with ITAR and GDPR-compliant operational policies.

Applications

• Regulatory compliance monitoring for municipal wastewater discharge permits (e.g., NPDES, EU Urban Wastewater Treatment Directive)
• Routine QA/QC in drinking water production facilities—particularly for disinfectant residual (free/total chlorine, ozone), ammonia breakthrough, and phosphate dosing verification
• Industrial pretreatment verification at textile, electroplating, and food processing plants subject to heavy metal and cyanide limits
• Field-based environmental impact assessments requiring rapid, on-site screening of COD, TN, TP, and BOD surrogates
• Educational laboratories conducting standardized water analysis experiments per APHA, ASTM, and ISO curricula
• Emergency response teams assessing post-event contamination (e.g., cyanide spills, nitrate leaching after flooding)

FAQ

Is the NOVA 60 certified for regulatory reporting under US EPA or EU WFD requirements?
The NOVA 60 is not an EPA- or EU-certified analyzer in standalone configuration; however, its implemented methods (e.g., COD per ISO 6060, NH₄-N per ISO 11908) are accepted by national accreditation bodies when operated within defined scope, calibrated against traceable standards, and documented per ISO/IEC 17025 requirements.
Can the instrument measure dissolved oxygen or conductivity?
No—the NOVA 60 is a dedicated photometric analyzer and does not incorporate electrochemical or conductometric sensors. Dissolved oxygen and conductivity require complementary instrumentation.
What reagent formats are supported for COD analysis?
Both powder-based reagent kits (requiring acid digestion) and pre-filled, sealed vials (e.g., Merck Spectroquant® or Hach TNT series) are compatible, provided they conform to the 605 nm wavelength and specified reaction time profiles.
Does the device support multi-point calibration or only factory defaults?
Users may perform custom calibration using NIST-traceable standard solutions across the full measurement range for any parameter; calibration curves are saved per method and retained through power cycles.
Is firmware upgrade capability limited to authorized service centers?
No—upgrades are performed in-field using magnetically encoded programming cards supplied by Millipore, enabling immediate access to newly validated methods without hardware modification or third-party intervention.
