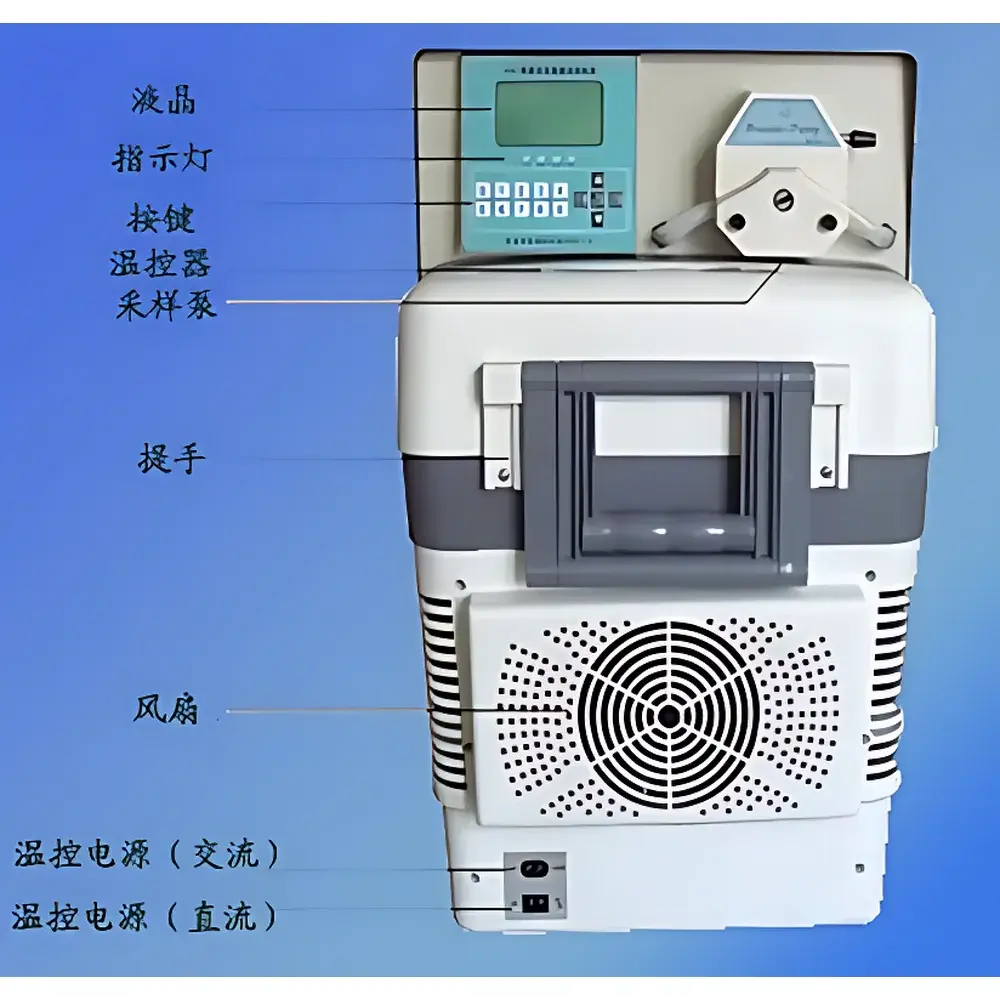

PTB-2012 Portable Multi-Mode Refrigerated Water Sampler
| [Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PTB-2012 |
| Instrument Type | Portable Refrigerated Water Sampler |
| Sampling Volume | 5–1000 mL per bottle |
| Flow Range | 0–40 m³/s |
| Liquid Level Range | 1–5 m (configurable) |
| Suction Lift | 8 m vertical |
| Clock Accuracy | ≤0.1% |
| Insulation Resistance | >50 MΩ |
| Bottle Capacity | 12 × 1000 mL |
| Input Signals | 4–20 mA, RS232/RS485 |
| Continuous Operation | >3000 h per charge cycle |
| Power Supply | AC 220 V / DC 12 V (rechargeable internal & external batteries) |
| Operating Temperature | −20 °C to +60 °C |
| Sampling Accuracy | ≤±5% |
| Flow Measurement Error | 1–5% (dependent on weir/flume type) |
| Sampling Interval | 1–240 min |
| Horizontal Sampling Distance | ≥50 m |
| Tubing Air-Tightness | ≤−0.05 MPa |
| Refrigerated Chamber Stability | ±2 °C |
| Single-Bottle Volume Range | 500–1000 mL |
| Sampling Modes | Time-based, Flow-proportional, Equal-ratio, Volume-triggered, Level-triggered |
| Sample Distribution | Individual-bottle or Composite sampling |
| Dimensions | 550 × 350 × 560 mm |
| Weight | ~10 kg] |
Overview
The PTB-2012 Portable Multi-Mode Refrigerated Water Sampler is an integrated environmental monitoring instrument engineered for autonomous, high-fidelity water sampling in diverse field conditions. Designed in strict compliance with HJ/T 372–2007 — the Chinese national technical specification for automatic water samplers — it combines real-time flow quantification with programmable, temperature-controlled sample acquisition. Its core architecture integrates dual-CPU control, multi-stage optical isolation, and modular firmware, ensuring electromagnetic compatibility and operational resilience in electrically noisy environments such as wastewater outfalls, stormwater overflows, and riverine monitoring stations. Unlike basic grab samplers, the PTB-2012 implements dynamic sampling logic: it synchronizes pump actuation with flow velocity or liquid level signals (via submersible pressure transducers or ultrasonic sensors), enabling true proportional sampling across variable discharge regimes. The built-in refrigerated chamber maintains samples at a stable +2 °C ±2 °C throughout transport and interim storage — a critical requirement for preserving volatile organic compounds (VOCs), nutrients (e.g., NH₄⁺, NO₃⁻), and microbial integrity prior to laboratory analysis per ISO 5667-3 and EPA Method 1664.
Key Features
- Dual-CPU embedded control system with optically isolated I/O interfaces, minimizing signal interference and enhancing long-term reliability in industrial or remote deployment scenarios.
- Configurable flow integration support for standard hydraulic structures: triangular weirs, rectangular weirs, Parshall flumes, Palmer-Bowlus flumes, and broad-crested weirs — each calibrated per ISO 4051 and ASTM D5388.
- High-stability peristaltic pump driven by micro-stepping hybrid stepper motor, delivering consistent aspiration up to 8 m vertical lift and ≥50 m horizontal tubing reach without priming loss.

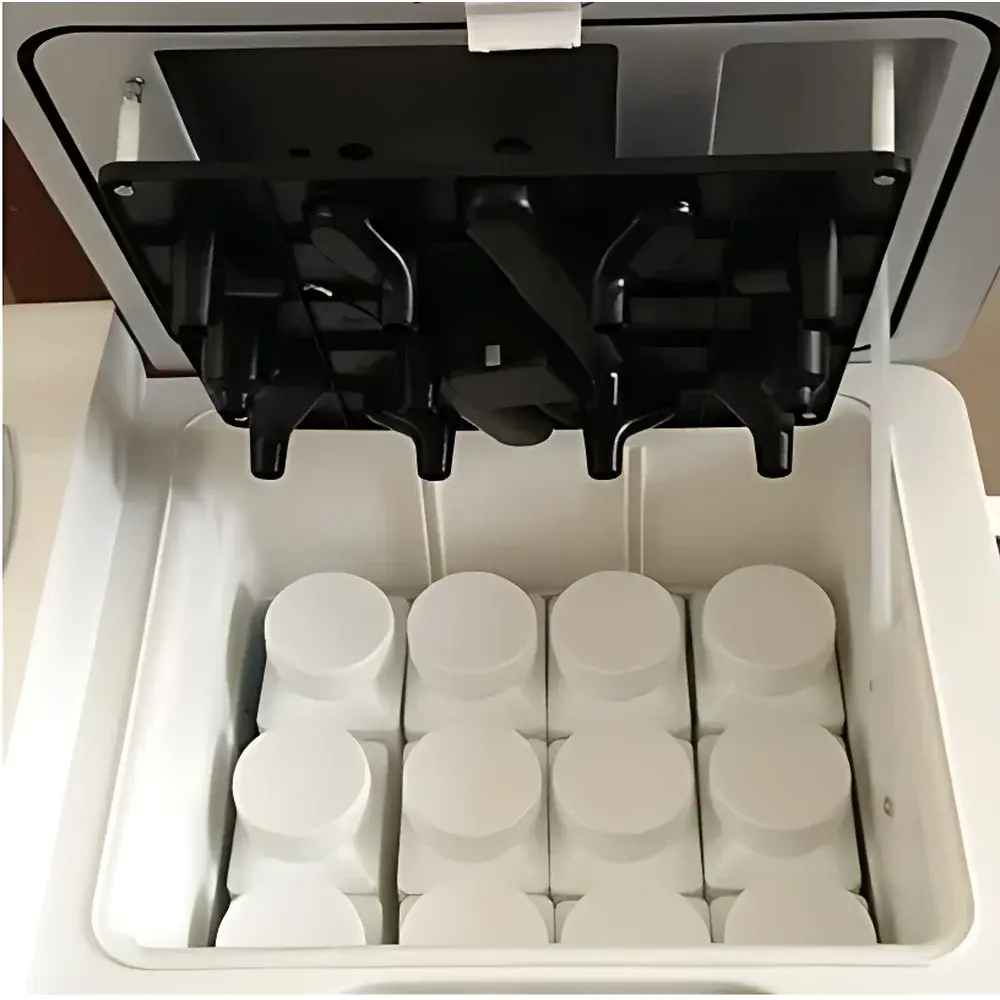

- Optically encoded mechanical distribution arm ensures repeatable positioning accuracy across all 12 sample bottles (1000 mL capacity each), supporting both discrete and composite sampling protocols.
- Backlit monochrome LCD interface with password-protected configuration access and auto-dimming function, optimized for glove-compatible operation under low-light field conditions.
- Non-volatile memory stores ≥10,000 sampling events with timestamps, flow rates, level readings, and battery status — compliant with GLP data traceability requirements.
- Integrated dual-power architecture: mains-powered operation (AC 220 V) with seamless switchover to internal/external rechargeable 12 V DC battery packs, rated for >2500 sampling cycles per full charge.
Sample Compatibility & Compliance
The PTB-2012 accommodates aqueous matrices ranging from raw sewage and industrial effluents to surface water and groundwater. Its chemically inert fluid path — comprising FDA-compliant silicone tubing and polypropylene sample bottles — prevents analyte adsorption or leaching during transfer. Refrigeration performance adheres to ISO 5667-3 Annex A for cold-chain preservation of microbiological and nutrient parameters. All electrical components meet IP65 ingress protection standards; insulation resistance exceeds 50 MΩ at 500 V DC, satisfying IEC 61000-6-2 immunity and IEC 61000-6-4 emission criteria. Device firmware supports audit trail logging for regulatory submissions under China’s MEP Order No. 39 and aligns with foundational principles of US EPA SW-846 Chapter One and EU WFD (2000/60/EC) monitoring program design.
Software & Data Management
Field configuration and historical data retrieval are executed via RS232/RS485 serial interface using vendor-supplied PC software compatible with Windows 10/11. Data exports are structured in CSV format with ISO 8601 timestamps and SI-unit annotations (m³/s, m, mL), facilitating direct import into LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager) or statistical tools (R, Python pandas). Remote triggering is supported through Modbus RTU protocol, enabling integration with SCADA systems or telemetry hubs for unattended operation in watershed-wide networks. All configuration changes and sampling logs include user ID, timestamp, and CRC-16 checksum validation — fulfilling basic ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) data integrity expectations.
Applications
- Regulatory compliance monitoring at municipal wastewater treatment plant (WWTP) discharge points per GB 18918–2002.
- Time-series profiling of nutrient loading in agricultural runoff channels during storm events.
- Baseline characterization of groundwater quality near landfill leachate collection systems.
- Multi-point sampling campaigns across reservoirs or estuarine transects where thermal stabilization prevents diurnal degradation of labile analytes.
- Emergency response deployments following chemical spills, where rapid deployment and cold-chain integrity reduce analytical uncertainty in VOC quantification.
FAQ
Does the PTB-2012 support integration with third-party flow meters?
Yes — it accepts analog 4–20 mA current loop inputs and digital RS485 Modbus RTU signals from certified external flow meters, including magnetic, ultrasonic, and Doppler units.
What is the maximum allowable ambient humidity for continuous outdoor operation?
The unit is rated for operation at up to 95% relative humidity (non-condensing), verified per IEC 60068-2-30 testing protocols.
Can sampling intervals be adjusted remotely after initial deployment?
Yes — parameter reconfiguration is possible via serial command set or optional GSM/GPRS telemetry module (sold separately), requiring no physical access to the device.
Is the refrigeration system powered independently of the sampling pump?
Yes — the cooling module operates continuously on its dedicated power circuit, maintaining chamber temperature even during pump idle periods or battery-only operation.
Are calibration certificates traceable to national metrology institutes available?
Factory calibration reports include traceability to CNAS-accredited laboratories (certificate number provided per unit); on-site verification kits for flow and temperature are optionally available.
