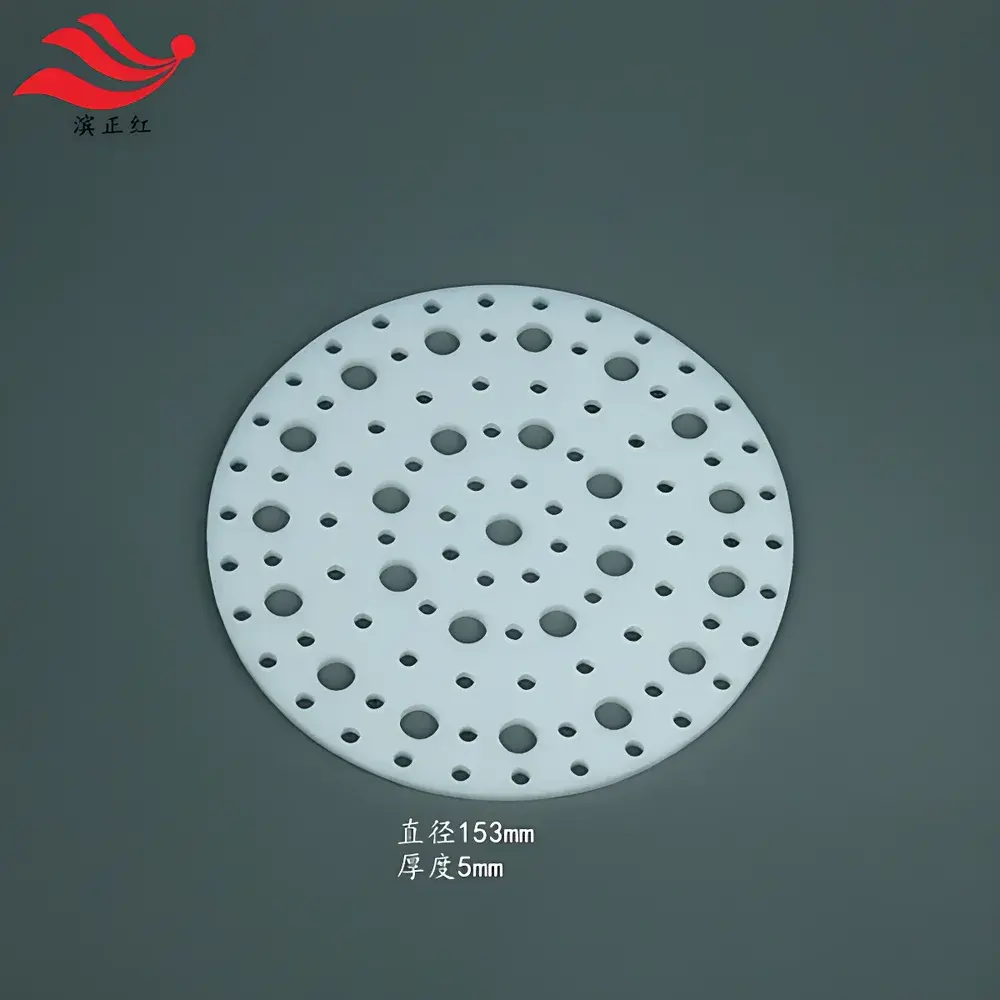

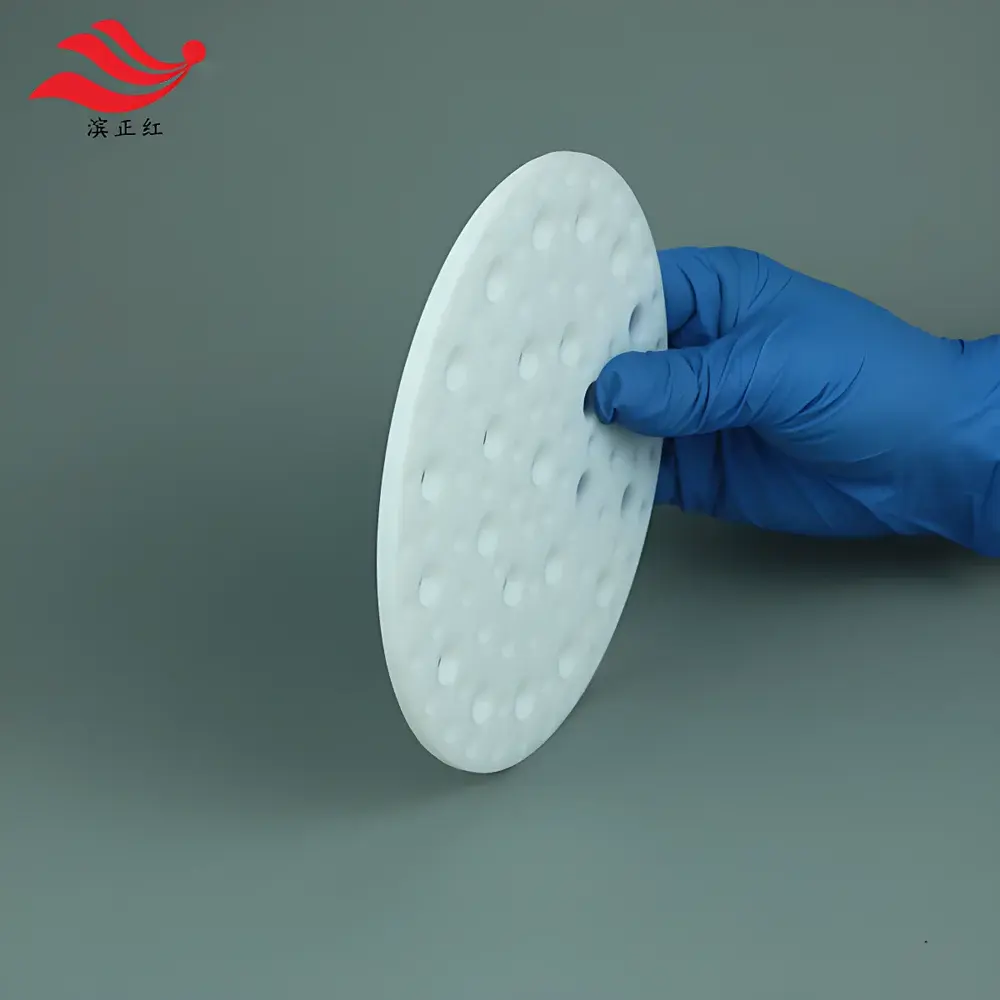

PTFE Baffle Plate – Custom-Cut Corrosion-Resistant Perforated PTFE Spacer Disc

Overview

Binzhenghong’s custom-engineered PTFE baffle plates are precision-machined polytetrafluoroethylene (PTFE) spacer discs designed for controlled fluid dynamics, vapor barrier management, and chemical isolation in aggressive process environments. Constructed from virgin, unfilled PTFE resin meeting ASTM D4894 and ISO 12086-2 specifications, these baffles leverage the inherent inertness, low surface energy, and exceptional thermal stability (–200 °C to +260 °C continuous service) of PTFE to maintain structural integrity and dimensional stability under prolonged exposure to strong acids, alkalis, halogens, organic solvents, and oxidizing agents. Unlike molded or extruded alternatives, each disc is CNC-machined to order—ensuring tight tolerances on outer diameter (OD), inner diameter (ID), thickness, and perforation geometry—making them suitable for integration into laboratory reactors, corrosion-resistant piping spools, electrochemical cells, and pharmaceutical-grade containment systems where metallic or composite alternatives risk contamination or degradation.

Key Features

• Material Purity: Fabricated from 100% virgin, non-recycled PTFE with ≤0.01% extractables per USP particulate testing protocols.
• Custom Geometry: Fully configurable OD (from 10 mm to 500 mm), thickness (1.5 mm to 25 mm), and hole pattern—including round, slotted, or staggered arrays—with positional tolerance ±0.05 mm.
• Surface Integrity: Machined with diamond-coated tooling to minimize subsurface stress and preserve native hydrophobicity; Ra ≤0.8 µm as-measured per ISO 4287.
• Thermal & Dimensional Stability: Coefficient of linear expansion: 1.1 × 10⁻⁴ K⁻¹; minimal cold flow under static load (<0.5% creep at 23 °C, 5 MPa, 1000 h).
• Non-Conductive & Non-Magnetic: Volume resistivity >10¹⁸ Ω·cm; ideal for applications requiring electrical isolation or MRI-compatible hardware integration.

Sample Compatibility & Compliance

These PTFE baffle plates are routinely deployed in GMP-compliant bioreactor manifolds, ASTM G128-19 corrosion test fixtures, and ISO 15184-2021 coating adhesion test assemblies. They exhibit full compatibility with Class I–III solvents per NFPA 30, show no detectable leachables in ICH Q5C stability studies (28-day aqueous/organic extraction at 40 °C), and comply with FDA 21 CFR §177.1550 for repeated-use food-contact surfaces. Certificates of Conformance (CoC) and material traceability documentation—including resin lot number, melt flow index (MFI), and ash content (<0.005%)—are provided with every shipment. Optional third-party certification to EN 10204 3.1 is available upon request.

Software & Data Management

As a passive mechanical component, the PTFE baffle plate requires no embedded firmware, drivers, or software interface. However, Binzhenghong provides comprehensive digital manufacturing records—including CAD drawings (STEP/IGES), GD&T annotations per ASME Y14.5–2018, and metrology reports generated from Zeiss Contura G2 RDS coordinate measuring machine (CMM) validation—delivered via secure encrypted portal. All design files adhere to ISO 10303-21 (STEP AP242) standards for seamless integration into PLM systems such as Siemens Teamcenter or PTC Windchill. Revision-controlled documentation supports audit readiness for ISO 9001:2015 and ISO 13485:2016 quality management system requirements.

Applications

• Chemical process engineering: Flow distribution in Hastelloy-lined scrubbers and glass-lined reactors.
• Electrochemistry: Separator spacers in PEM fuel cell stack assemblies and lithium-ion battery electrolyte test cells.
• Pharmaceutical manufacturing: Sterile barrier elements in single-use bioprocessing bags and WFI distribution loop divert valves.
• Analytical instrumentation: Sample compartment baffles in FTIR gas cells and high-temperature TGA sample holders.
• Environmental testing: Humidity control partitions in ASTM D4329 UV-weathering chambers and salt spray cabinets (ASTM B117).

FAQ

Can these PTFE baffles be sterilized using autoclaving?
Yes—they withstand standard steam sterilization cycles (121 °C, 15 psi, 20 min) without warping or loss of mechanical integrity. Repeated cycles (>50) may induce minor surface oxidation; for critical aseptic applications, gamma irradiation (25–40 kGy) is recommended.
Do you offer filled-PTFE variants (e.g., glass-, carbon-, or bronze-filled)?
No—this product line uses only unfilled, homopolymer PTFE to guarantee maximum chemical resistance and purity. Filled grades are available under separate part numbers (DB-FILL series) with documented trade-offs in permeability and extractables.
What is the lead time for a custom order with tight GD&T requirements?
Standard lead time is 12–15 working days from approved drawing release. Expedited production (7–10 days) is available with priority scheduling and prepayment.
Is post-machining annealing performed?
Yes—each disc undergoes a controlled 4-hour annealing cycle at 120 °C in nitrogen atmosphere to relieve internal stresses induced during CNC milling, minimizing long-term dimensional drift.
Can you supply test reports for specific chemical resistance (e.g., 98% H₂SO₄ at 80 °C)?
Yes—custom immersion testing per ASTM D543 is available; typical turnaround is 14 days. Standard chemical resistance data per DuPont Teflon® PTFE Technical Bulletin TB-101 is included in the base datasheet.
