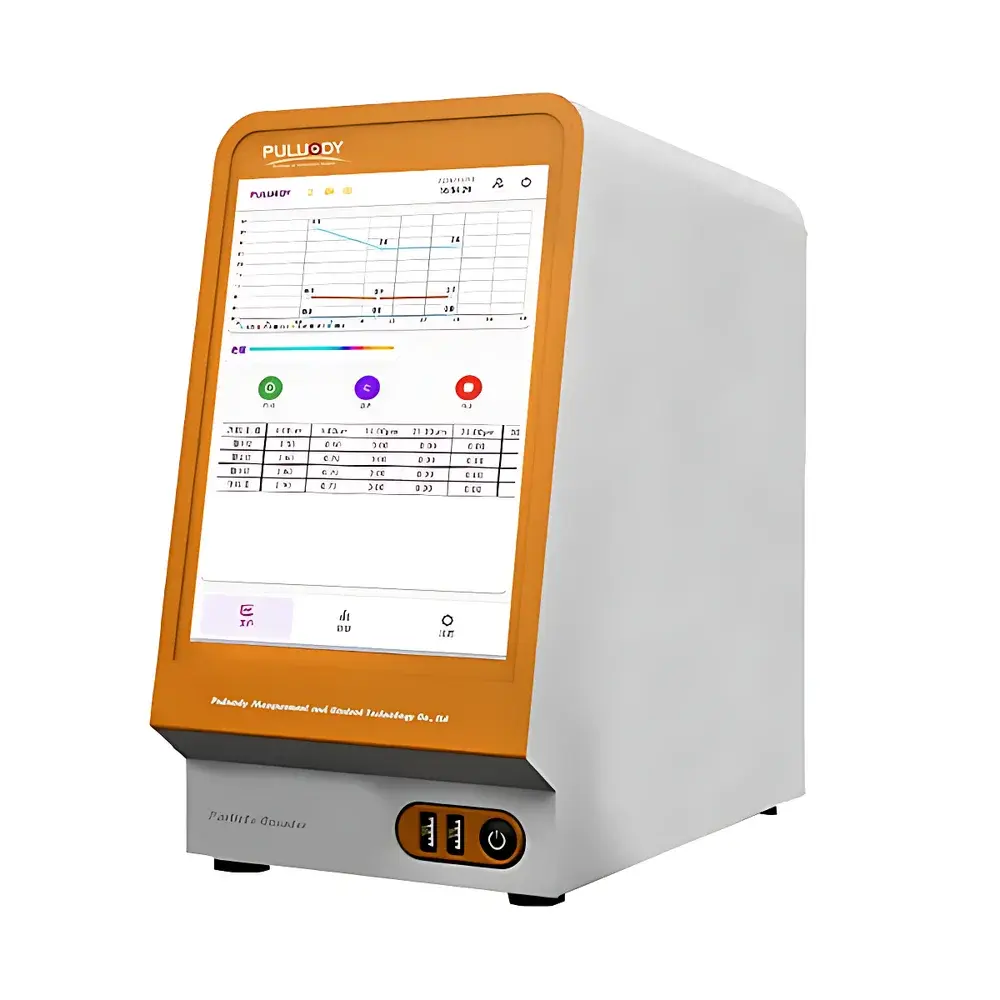

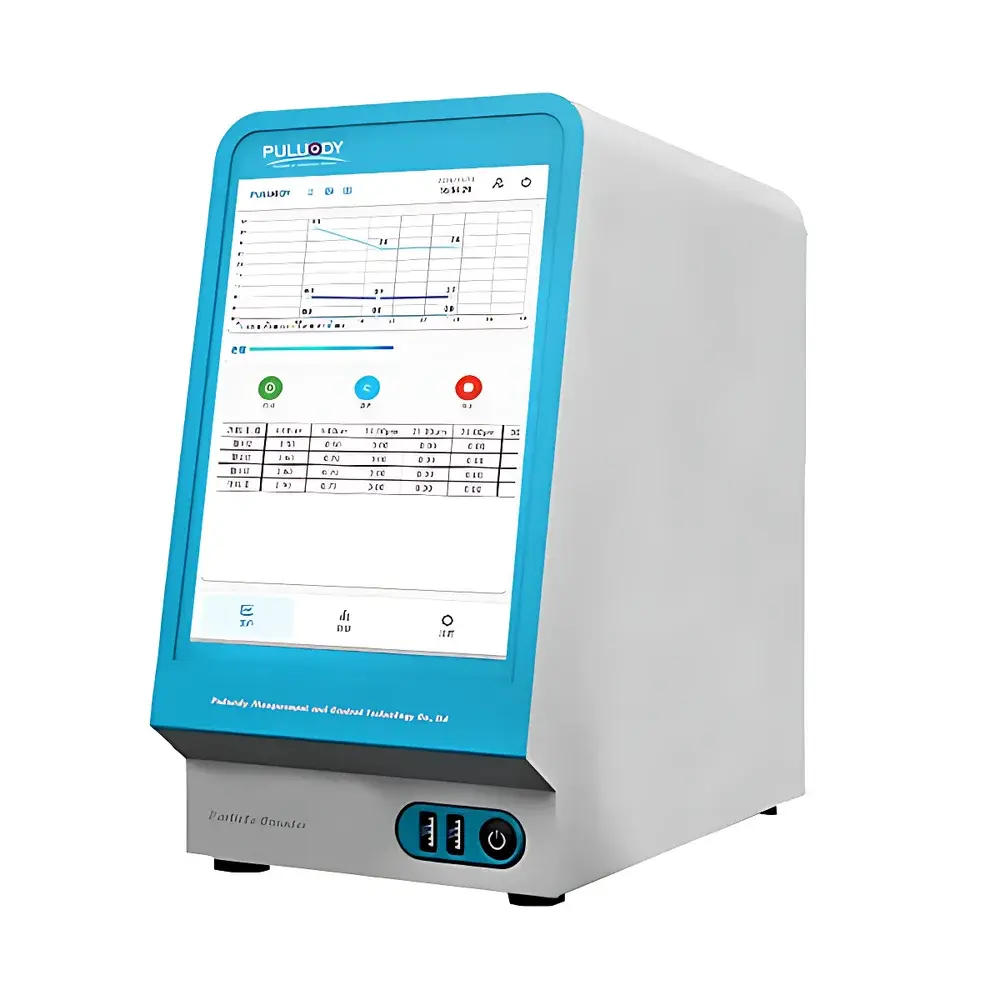

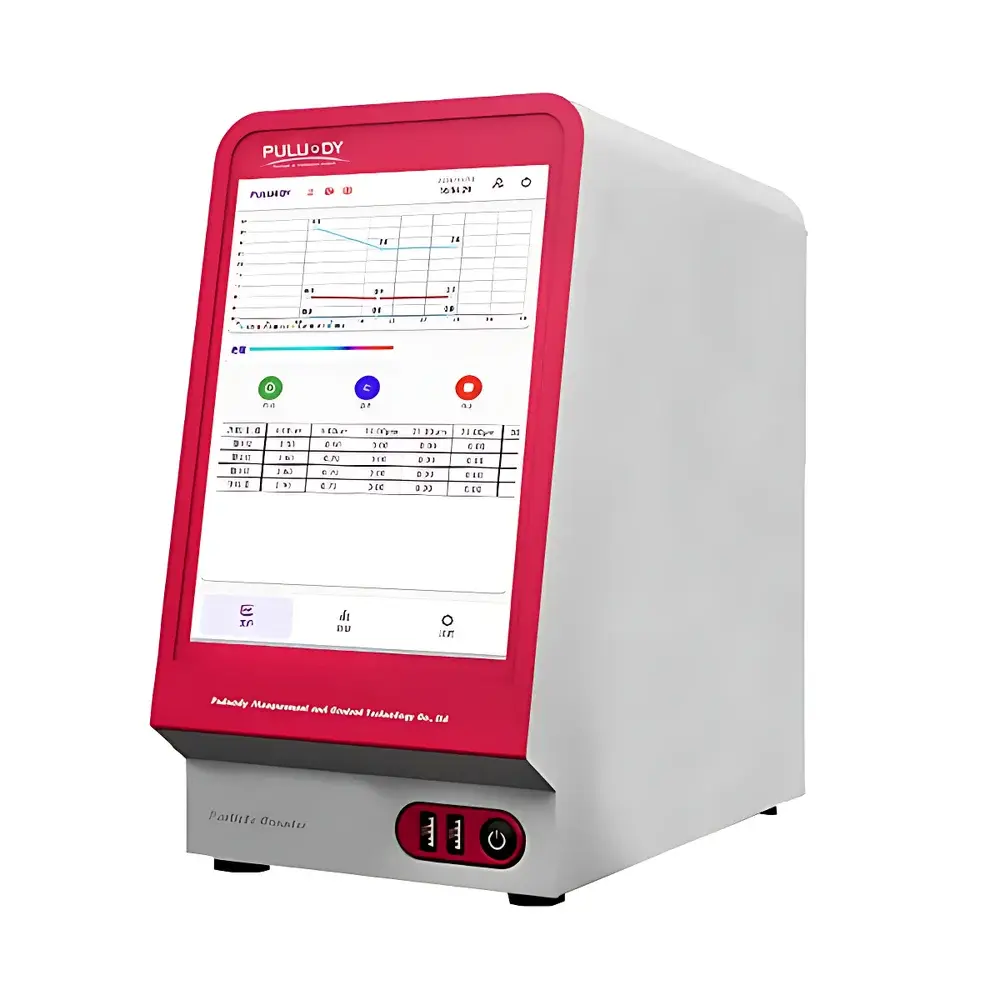

PULUODY PYX-2A-1 Sterile Medical Device Primary Packaging Insoluble Particle Analyzer

Overview

The PULUODY PYX-2A-1 Sterile Medical Device Primary Packaging Insoluble Particle Analyzer is a regulatory-compliant optical particle counter engineered for precise, repeatable quantification of insoluble particulate matter in critical pharmaceutical and medical device packaging applications. Designed in strict alignment with pharmacopoeial standards—including USP , USP , EP 2.9.19, JP 6.07, and ChP 0903—the instrument implements the light obscuration (LO) principle as mandated by global regulatory frameworks. In this method, a laminar stream of sample fluid passes through a precision-machined flow cell bounded by optical-grade quartz windows. Two collimated laser beams—orthogonally aligned and independently stabilized—interrogate the sample path. As particles traverse the beam, they induce transient reductions in detected light intensity proportional to their projected cross-sectional area. The dual-laser architecture enhances signal-to-noise ratio, minimizes coincidence error at high concentrations, and improves discrimination of low-contrast particles (e.g., silicone oil droplets, cellulose fibers, or polymer fragments) commonly encountered in primary packaging extracts and extractables/leachables studies.

Key Features

• 8th-generation dual-laser narrow-beam sensor with real-time beam stabilization and thermal drift compensation for long-term measurement integrity
• Configurable channel resolution: 16 default size bins (per USP reporting requirements), scalable up to 1096 user-defined thresholds for granular distribution analysis
• Programmable sampling volume (0.2–50 mL) with gravimetric verification capability for audit-ready traceability
• Independent flow control system ensuring ±0.5% volumetric accuracy across 5–100 mL/min range, validated per ISO 21501-4 Annex B
• Integrated air bubble detection and automatic purge cycle to prevent false-positive counts from entrained gas
• CE-marked enclosure with IP20-rated electronics; designed for Class A/B cleanroom-adjacent operation and GMP-aligned environmental qualification

Sample Compatibility & Compliance

The PYX-2A-1 supports aqueous and organic solvent-based extracts from sterile medical device primary packaging—including Tyvek® pouches, blister foils, glass vials with rubber stoppers, plastic syringes, IV bags, and filter membranes. It accommodates rinse solutions per ISO 11607-1:2019 Annex D and extract preparation protocols aligned with ISO 10993-12. All hardware and firmware comply with IEC 61000-4 electromagnetic compatibility standards and meet essential requirements of the EU Medical Device Regulation (MDR 2017/745) Annex I for analytical instrumentation used in biocompatibility assessment. Data output formats support 21 CFR Part 11-compliant electronic records when paired with validated PULUODY LabManager™ software (v5.2+).

Software & Data Management

PULUODY LabManager™ software provides full audit trail functionality—including user login logs, parameter change history, raw pulse data export (CSV/BIN), and PDF report generation with embedded metadata (operator ID, timestamp, calibration certificate ID, instrument serial number). Reports conform to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and include statistical summaries (mean particle count per mL, % particles >10 µm and >25 µm, cumulative distribution curves). Raw data files are cryptographically hashed and stored with SHA-256 checksums to ensure integrity during archival or regulatory submission.

Applications

• Verification of particulate cleanliness for ISO 11607-compliant sterile barrier systems prior to sterilization validation
• Quantitative assessment of filter efficiency in terminal sterilization processes (e.g., 0.22 µm PVDF filters used in final fill lines)
• Leachables screening of elastomeric components (e.g., stoppers, plungers) via extract testing per USP
• Particulate release profiling during simulated aging or mechanical stress (e.g., peel force cycling of pouch seals)
• Baseline characterization of purified water (PW) and water-for-injection (WFI) used in packaging line rinsing operations
• Root cause analysis of visible particulates observed during visual inspection of finished devices

FAQ

Does the PYX-2A-1 require daily recalibration?

No—sensor baseline stability is verified weekly using NIST-traceable polystyrene latex (PSL) reference standards (e.g., 5.00 ± 0.12 µm and 25.0 ± 0.6 µm). Full calibration is performed annually or after sensor replacement.
Can it analyze viscous extracts such as silicone oil suspensions?

Yes—when diluted to kinematic viscosity <15 cSt and filtered through a 5 µm pre-filter, the instrument maintains counting accuracy per ISO 21501-4 Clause 7.3.
Is method transfer supported between different PYX-2A units?

Yes—inter-instrument reproducibility is maintained within ±3.2% RSD (n=6) for identical samples when operated under identical SOPs and calibrated with matched PSL standards.
How is carryover addressed during sequential high-load samples?

The system executes an automated 60-second high-flow flush (100 mL/min) with ultrapure water between runs, followed by background noise verification (<0.5 particles/mL in blank run).
Does it support integration with LIMS or MES platforms?

Yes—via ASTM E1482-compliant HL7 v2.5 or CSV over SFTP interfaces; API documentation available under NDA.
