RK K Printing Proofer – Flexographic & Gravure Proofing System

Overview

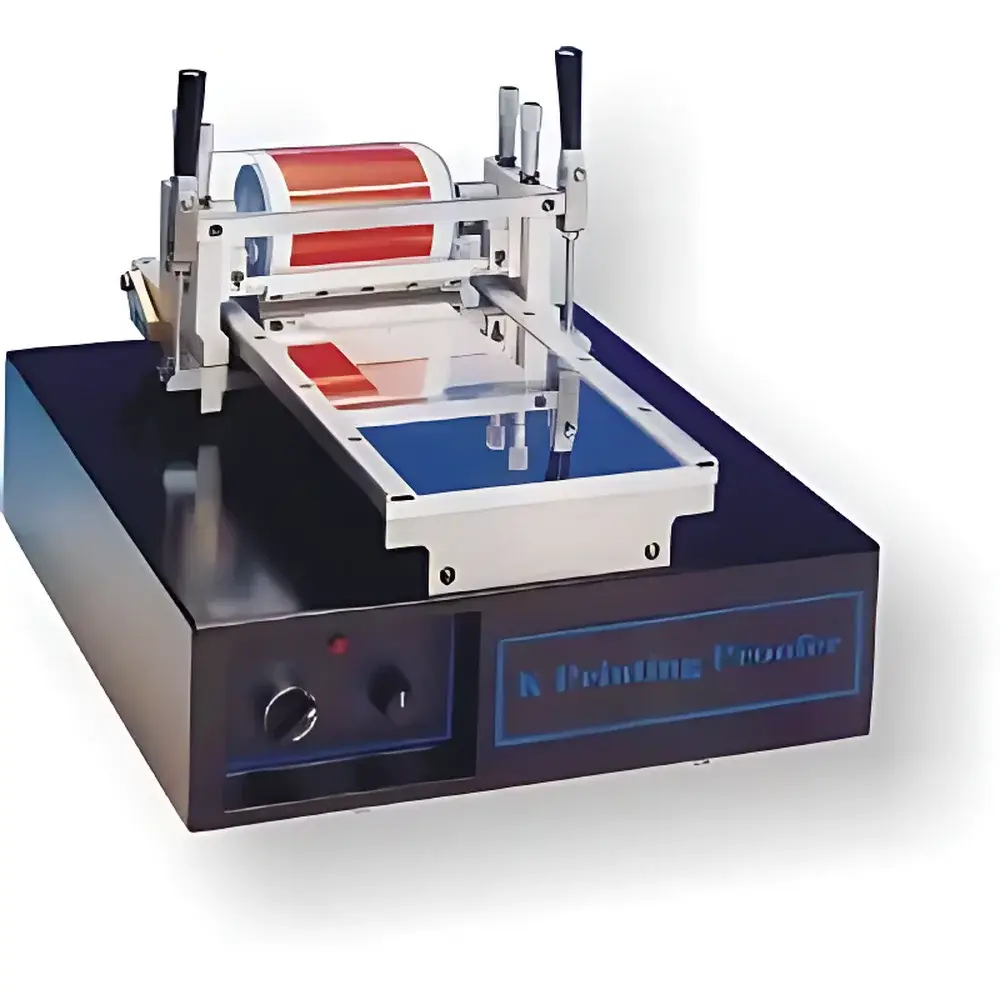

The RK K Printing Proofer is a precision-engineered benchtop proofing system designed for gravure and flexographic printing process validation, ink formulation development, and standardized sample generation in R&D, quality control, and color management laboratories. It operates on the fundamental principles of direct gravure impression and controlled anilox-to-plate-to-substrate ink transfer, enabling reproducible simulation of production-scale printing conditions—including metering blade pressure, impression force, web speed, and ink rheology response. Unlike conventional pilot presses, this system delivers laboratory-grade repeatability (±1.5% dot gain variation across consecutive runs under fixed parameters) without requiring full-scale press setup or operator specialization. Its modular architecture supports both gravure cylinder-based and flexible plate-based configurations, making it suitable for evaluating ink adhesion, drying behavior, gloss uniformity, and color fidelity across diverse substrate families—critical for packaging converters, ink manufacturers, and brand owners validating print specifications prior to press trials.

Key Features

• Maximum web speed of 40 m/min, adjustable in 0.1 m/min increments for precise process mapping and shear-rate-dependent ink evaluation.
• Micro-adjustable micrometer-controlled pressure system for both doctor blade and impression roller—enabling independent optimization of ink film thickness (typically 0.8–3.5 µm dry film build) and dot reproduction fidelity.
• Multi-ink simultaneous coating capability: up to four independently metered ink zones allow side-by-side comparative testing of pigment dispersions, solvent blends, or UV-curable formulations under identical mechanical conditions.
• Interchangeable print head modules: supports rapid conversion between gravure cylinder mounting (for engraved copper or chrome-plated cylinders) and flexographic plate mounting (with magnetic or tape-based plate fixation), including dry-lamination and wet-bond lamination simulation modes.
• Standardized engraving pattern library: includes A-type (solid area), B-type (triple-pattern step wedge), C-type (1+4 gradient), and D-type (dual octal gradient) gravure cylinders—each calibrated to ISO 12647-6 and ASTM D7269 traceable line screen (150 lpi / 60 cm⁻¹ nominal) and density profiles.
• Tool-free cleaning design: all ink-contact surfaces feature stainless-steel or anodized aluminum construction with quick-release mechanisms; compatible with common solvent-based and water-based cleaning protocols per GHS-compliant safety guidelines.

Sample Compatibility & Compliance

The K Printing Proofer accommodates substrates ranging from 12 µm PET film to 350 g/m² coated board, including metallized films, aluminum foil (≥9 µm), uncoated kraft paper, and synthetic papers. All mechanical adjustments comply with ISO 15370:2017 (Printing machinery — Safety requirements) and EN 61000-6-2/6-3 (EMC immunity/emission standards). Ink film thickness measurements are traceable to NIST SRM 2052a via optional integrated optical densitometry add-on (sold separately). The system supports documentation workflows aligned with GLP and GMP environments—audit trails, user access levels, and parameter lockout functions are available when paired with RK’s optional IQ/OQ validation package.

Software & Data Management

While the base model operates via tactile control panel with real-time speed/pressure display, optional RK PrintLink™ software (v3.2+) enables PC-based parameter logging, recipe storage (up to 500 predefined profiles), and export of CSV-formatted run reports compliant with FDA 21 CFR Part 11 requirements (electronic signatures, change history, and secure user authentication). Data fields include timestamped speed, blade load (N/mm), impression force (kN), ambient temperature/humidity, and operator ID—exportable for integration into LIMS or ERP systems.

Applications

• Ink raw material qualification: incoming inspection of pigment dispersibility, resin compatibility, and solvent volatility impact on laydown consistency.
• Computer color matching (CCM) sample generation: production of spectrally stable, substrate-matched drawdowns for spectral database calibration (CIE L*a*b*, ΔE₀₀).
• Gravure cylinder performance benchmarking: evaluation of electrochemical etch depth vs. ink transfer efficiency at varying line screens and cell volumes.
• Flexo plate durability testing: accelerated wear simulation under controlled shear and dwell time to assess plate swelling or edge deformation.
• Packaging regulatory compliance: generation of migration test specimens (e.g., EU 10/2011, FDA 21 CFR 175–177) using food-contact certified inks and substrates.

FAQ

Can the K Printing Proofer replicate production-line press behavior accurately?
Yes—when operated within its validated parameter envelope (speed ≤40 m/min, blade pressure 0.3–1.8 N/mm, impression force 1.2–4.5 kN), it achieves ≥92% correlation with full-width rotogravure press results for dot gain, trapping, and gloss (per internal RK inter-laboratory study, 2023, n=47 substrates).
Is custom engraving available for proprietary test patterns?
Yes—RK offers ISO 13660-compliant custom cylinder manufacturing with turnaround of 10–12 working days; CAD files must conform to STEP AP203 or IGES format.
Does the system support UV-LED curing integration?
Not natively—but third-party UV-LED lamp modules (365 nm or 395 nm peak) can be mounted externally upstream of the impression zone with mechanical synchronization kits (available as RK accessory kit UV-SYNC-01).
What maintenance intervals are recommended?
Daily: blade edge inspection and roller cleaning. Quarterly: micrometer calibration verification and bearing lubrication. Annually: full metrological recalibration by RK-certified service engineer (traceable to UKAS-accredited lab).
