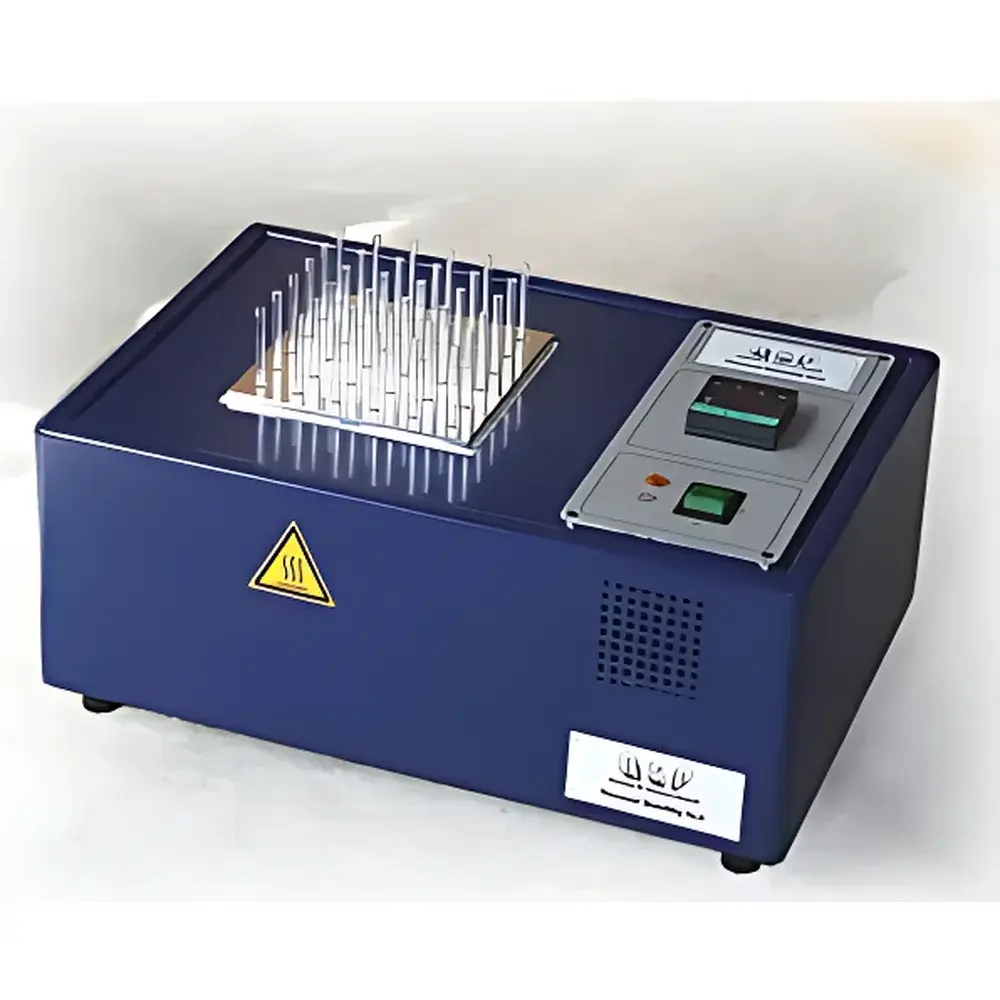

R&P PVC Thermal Stability Analyzer

Overview

The R&P PVC Thermal Stability Analyzer is a purpose-built benchtop instrument engineered for the standardized assessment of thermal degradation onset in polyvinyl chloride (PVC) compounds and related chlorinated polymers. It operates on the principle of controlled isothermal or programmed heating of PVC specimens in inert atmosphere (typically nitrogen-purged test tubes), where dehydrochlorination initiates measurable color changes in indicator papers placed adjacent to the sample. This method directly correlates with the material’s inherent resistance to thermal decomposition — a critical quality attribute for cable insulation, building profiles, medical tubing, and other safety-critical PVC applications. Designed and manufactured in Germany, the analyzer complies fully with EN 60811-3-2 (identical to IEC 60811-3-2) and its national harmonized counterpart DIN VDE 0473, ensuring traceable, repeatable, and auditable test results suitable for regulatory submissions, supplier qualification, and internal QC release protocols.

Key Features

• High-precision electric heating block with 32 parallel sample wells (Ø5.2 mm × 60 mm depth), enabling statistically robust batch testing per ASTM D2538 and ISO 182-1 alignment.
• PT100 platinum resistance thermometer integrated into the heating block for real-time, high-stability temperature monitoring at the sample interface.
• Dedicated PID temperature controller housed in a separate enclosure, minimizing thermal interference and supporting stable setpoint maintenance within ±0.2 °C across the full operating range (60–210 °C).
• Dual digital display showing both user-defined setpoint and actual measured block temperature — essential for GLP-compliant documentation and audit readiness.
• Integrated overtemperature cut-off circuitry that automatically de-energizes the heater if the block exceeds the maximum safe limit, fulfilling Machinery Directive 2006/42/EC requirements.
• Modular design accommodating optional automated detection modules: a calibrated RGB imaging system captures time-resolved color evolution of standard EN-compliant indicator papers (e.g., bromothymol blue-impregnated strips), eliminating subjective visual interpretation and supporting 21 CFR Part 11–compliant electronic records.

Sample Compatibility & Compliance

The analyzer accepts standard PVC test specimens prepared as granules, powders, or small extrudates loaded into disposable borosilicate glass tubes (Ø5 mm × 110 mm). Each tube accommodates both the PVC sample and an indicator paper strip positioned above it; HCl gas evolved during thermal stress reacts with the indicator to produce quantifiable chromatic shifts. The instrument’s geometry and thermal uniformity profile have been validated per EN 60811-3-2 Annex A to ensure equivalence with reference laboratory setups. Test reports generated meet ISO/IEC 17025 documentation standards and are admissible in conformity assessments under RoHS, REACH, and CE marking procedures for electrical and construction products.

Software & Data Management

When equipped with the optional automated detection module, the system interfaces via USB or Ethernet with R&P ThermoStab Suite v3.x — a validated Windows-based application supporting user role management, electronic signatures, audit trails, and raw image/data archiving. All measurement metadata (date/time, operator ID, calibration status, environmental conditions) is embedded in each result file. Export formats include CSV, PDF/A-2, and XML for integration into LIMS environments. Software validation documentation (IQ/OQ/PQ protocols) and 21 CFR Part 11 configuration files are provided upon request for regulated laboratories operating under GMP or ISO 13485 frameworks.

Applications

• Quality control of PVC stabilizer packages (e.g., Ca/Zn, organotin, lead-free alternatives) during formulation development and production lot release.
• Comparative evaluation of recycled PVC feedstock thermal integrity prior to reprocessing.
• Accelerated aging studies supporting lifetime prediction models for wire & cable insulation.
• Root cause analysis of premature discoloration or embrittlement in extruded profiles and injection-molded components.
• Supporting technical dossiers for EU Declaration of Conformity under Low Voltage Directive (2014/35/EU) and Construction Products Regulation (EU No. 305/2011).

FAQ

What standards does this instrument directly support?
EN 60811-3-2, IEC 60811-3-2, DIN VDE 0473, and ISO 182-1 — with full hardware and procedural alignment verified by third-party metrology labs in Germany.
Can the instrument be used for non-PVC chlorinated polymers?
Yes — with method adaptation and validation, it has been applied to chlorinated polyethylene (CPE) and chlorosulfonated polyethylene (CSM); however, published protocols and indicator selection must be confirmed per material-specific degradation kinetics.
Is calibration certification included?
Each unit ships with a factory calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt), covering temperature uniformity, accuracy, and timing functionality — valid for 12 months from date of shipment.
What maintenance is required?
Annual verification of PT100 sensor drift and heater block thermal homogeneity is recommended; R&P provides on-site service contracts and certified spare parts (heating blocks, indicator paper holders, tube racks) with documented shelf-life controls.
Does the system support multi-language UI?
The base controller display is English-only; the optional ThermoStab Suite software supports English, German, French, and Spanish language packs — configurable per user profile.
