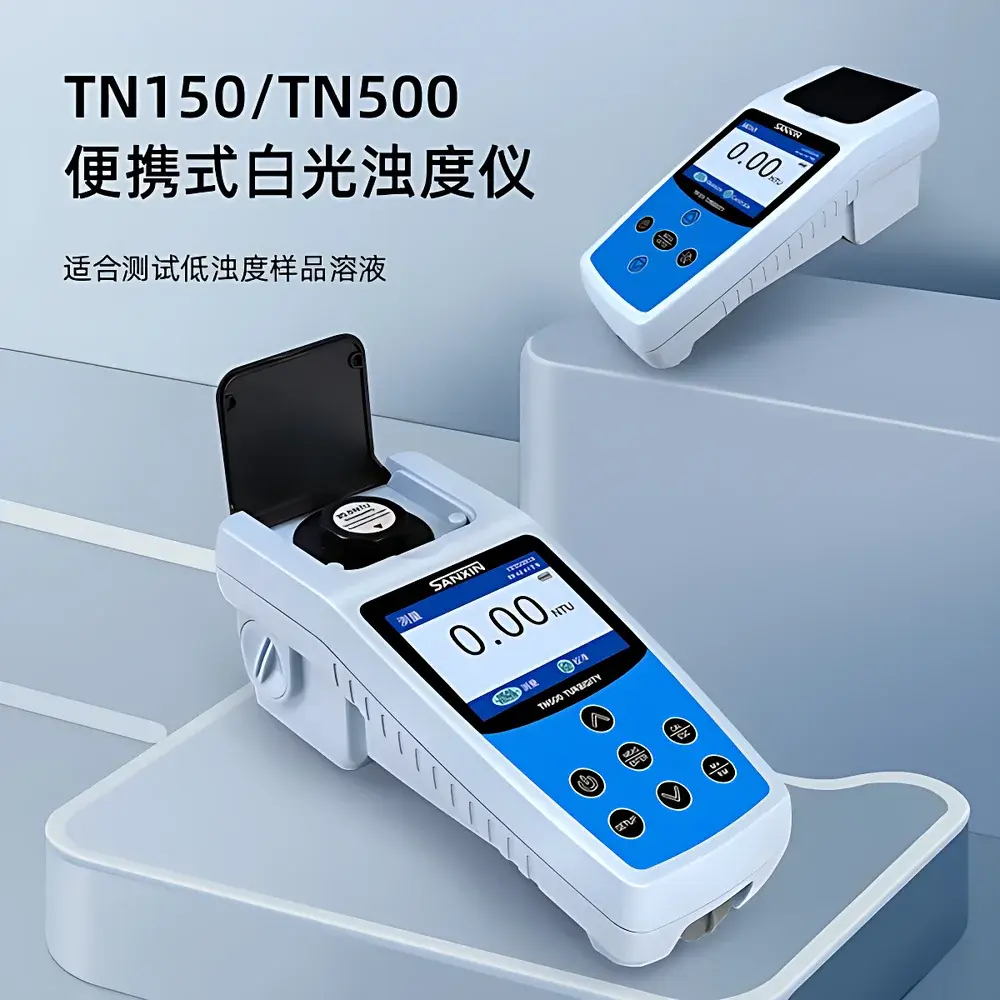

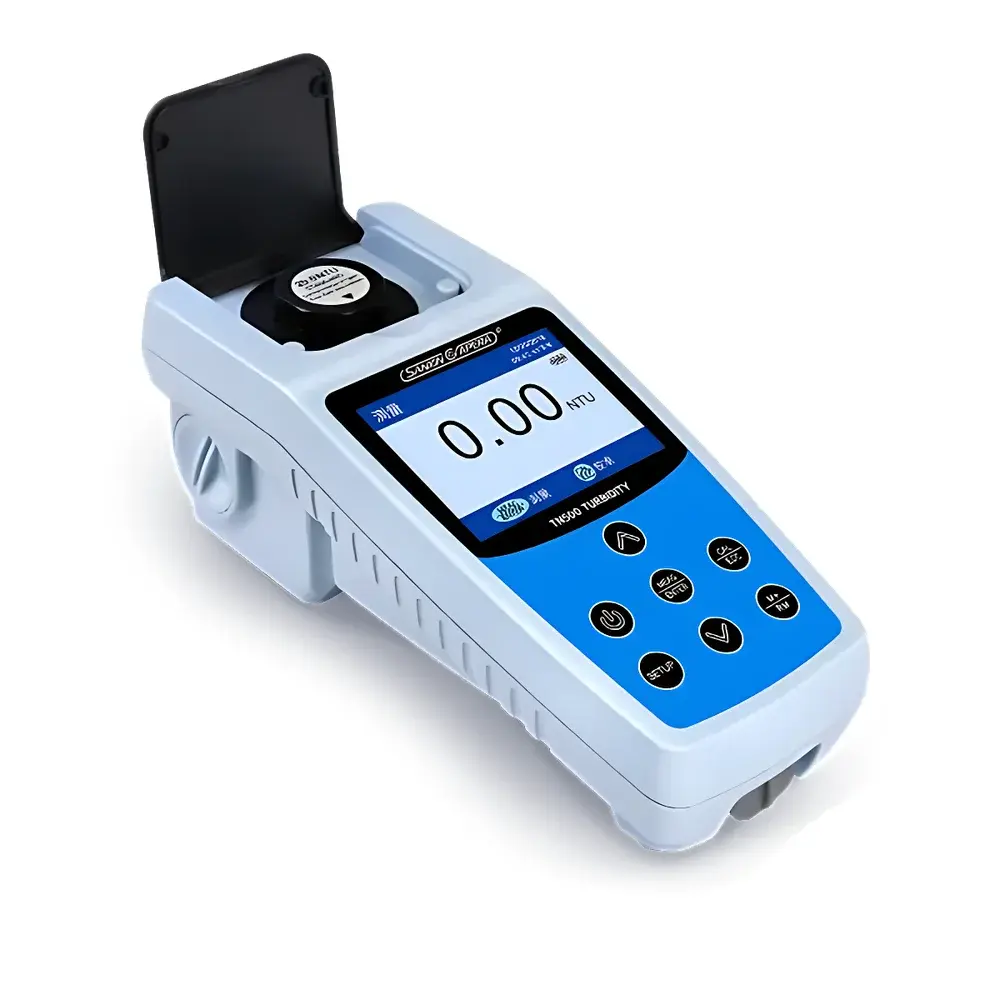

Sanxin TN500 Portable Turbidimeter (White Light, Functional Model)

Overview

The Sanxin TN500 Portable Turbidimeter (White Light, Functional Model) is an EPA 180.1– and HJ 1075–2019–compliant nephelometer engineered for high-reproducibility turbidity measurement in field-deployable and laboratory settings. It employs a calibrated 90° scattered light detection geometry using a stable tungsten-halogen broadband light source (400–600 nm), ensuring compliance with ISO 7027–1:2016 for formazin-equivalent turbidity units (NTU/FNU). Unlike LED-based instruments limited by spectral drift and temperature sensitivity, the TN500’s thermally stabilized filament lamp delivers consistent radiometric output across its operational range (0–50 °C), making it particularly suitable for low-turbidity applications such as drinking water, potable distribution systems, and purified process water where measurement stability at sub-1 NTU levels is critical. Its optical architecture minimizes stray light interference and incorporates zero-point drift compensation algorithms—validated per US EPA guidance—to maintain accuracy during extended field use without recalibration.

Key Features

• Triple-range auto-scaling measurement (0.01–19.99 / 20.0–99.9 / 100–1000 NTU) with dynamic resolution switching (0.01 NTU in low range, 1 NTU in high range)
• TruRead™ real-time statistical mode: captures up to 10 consecutive readings per sample, computes min/max/mean, and stores the full dataset with timestamp and operator ID
• Zero-error alert system with active zero-check verification prior to measurement—essential for regulatory compliance in drinking water monitoring (e.g., WHO Guidelines, US EPA Total Coliform Rule)
• IP67-rated enclosure with reinforced polycarbonate housing, enabling reliable operation in rain, dust, or high-humidity environments (e.g., wastewater lift stations, reservoir intakes)
• Integrated rechargeable lithium-ion power system (3.7 V nominal, 7 V regulated output) supporting >20 hours of continuous operation—fivefold improvement over AA-powered competitors
• TFT color display with intuitive multilingual interface (English, Spanish, Chinese), on-screen calibration prompts, real-time clock, and battery-level indicator
• GLP-compliant data management: 200 measurement records with embedded metadata (date/time, calibration status, range used, operator ID if configured)

Sample Compatibility & Compliance

The TN500 accepts standard Φ25 × 60 mm borosilicate glass sample cells (18 mL volume), compatible with both polymer-based and formazin calibration standards traceable to NIST SRM 2134. Its 90° scattering geometry meets the geometric tolerance requirements of EPA Method 180.1 and HJ 1075–2019 for reporting turbidity in NTU (Nephelometric Turbidity Units) and FNU (Formazin Nephelometric Units). The instrument is validated for use with natural waters, filtered effluents, chlorinated distribution systems, and membrane-treated process streams. All calibration solutions are certified under ASTM D6508 and carry 12-month unopened shelf life at 5–30 °C. The device conforms to ISO 9001:2015 quality management requirements and bears CE marking for EMC and safety (2014/30/EU, 2014/35/EU). It supports audit-ready GLP workflows with full calibration history logging—including date, standard used, deviation, and technician ID—satisfying FDA 21 CFR Part 11 readiness when paired with secure USB data export protocols.

Software & Data Management

Data acquisition and reporting are managed through native firmware with no external software dependency. All measurements and calibration events are stored internally with ISO 8601 timestamps and immutable metadata. USB 2.0 interface enables direct export of CSV-formatted datasets to Windows/macOS/Linux systems for integration into LIMS or QA/QC dashboards. Firmware supports field-upgradable calibration coefficients and language packs via signed USB firmware updates. Audit trails include calibration due dates, last-zero-check result, and battery health diagnostics. Exported files contain column headers compliant with ASTM E2500–22 for analytical instrument data integrity: “Timestamp”, “NTU_Value”, “Range_Code”, “Cal_Std_ID”, “Operator_ID”, “Instrument_SN”.

Applications

• Drinking water quality verification per WHO and national regulatory frameworks (e.g., China’s GB 5749–2022)
• Real-time turbidity monitoring at water treatment plant influent, sedimentation basins, and final disinfection points
• Swimming pool and spa facility compliance checks (EN 15288–1, NSF/ANSI 50)
• Environmental field surveys: river intake monitoring, stormwater runoff assessment, wetland outflow characterization
• Pharmaceutical water system validation (PW, WFI) under USP and EU GMP Annex 1
• Industrial cooling tower and boiler feedwater surveillance per ASTM D4195

FAQ

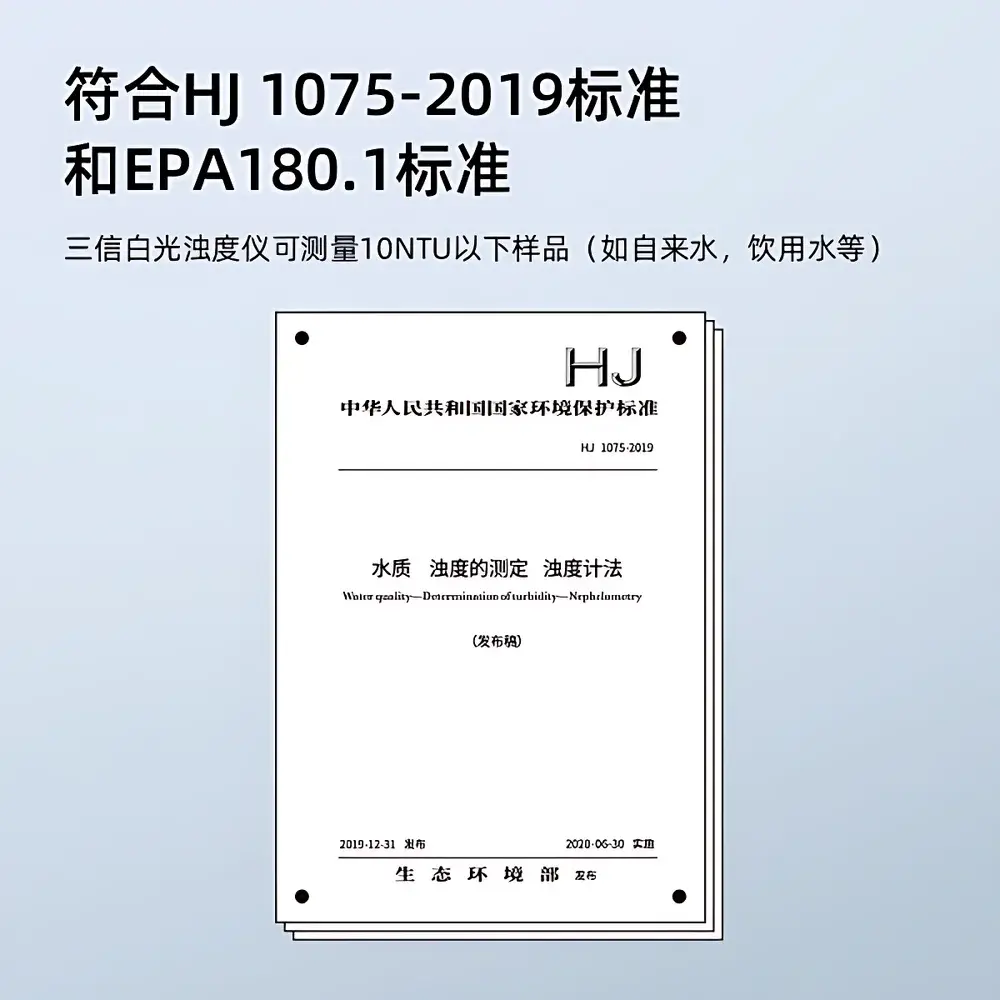

Does the TN500 meet EPA Method 180.1 requirements for regulatory reporting?

Yes—the instrument implements 90° nephelometry with tungsten broadband illumination (400–600 nm), adheres to geometric tolerances defined in EPA 180.1, and supports certified polymer standards traceable to NIST.
Can the TN500 be used for ultralow-turbidity measurements below 0.1 NTU?

It achieves ±0.02 NTU repeatability in the 0.01–19.99 NTU range; however, for sub-0.05 NTU applications (e.g., semiconductor rinse water), a laser-based turbidimeter per ISO 7027–2 is recommended.
Is the calibration solution supplied with the instrument EPA-certified?

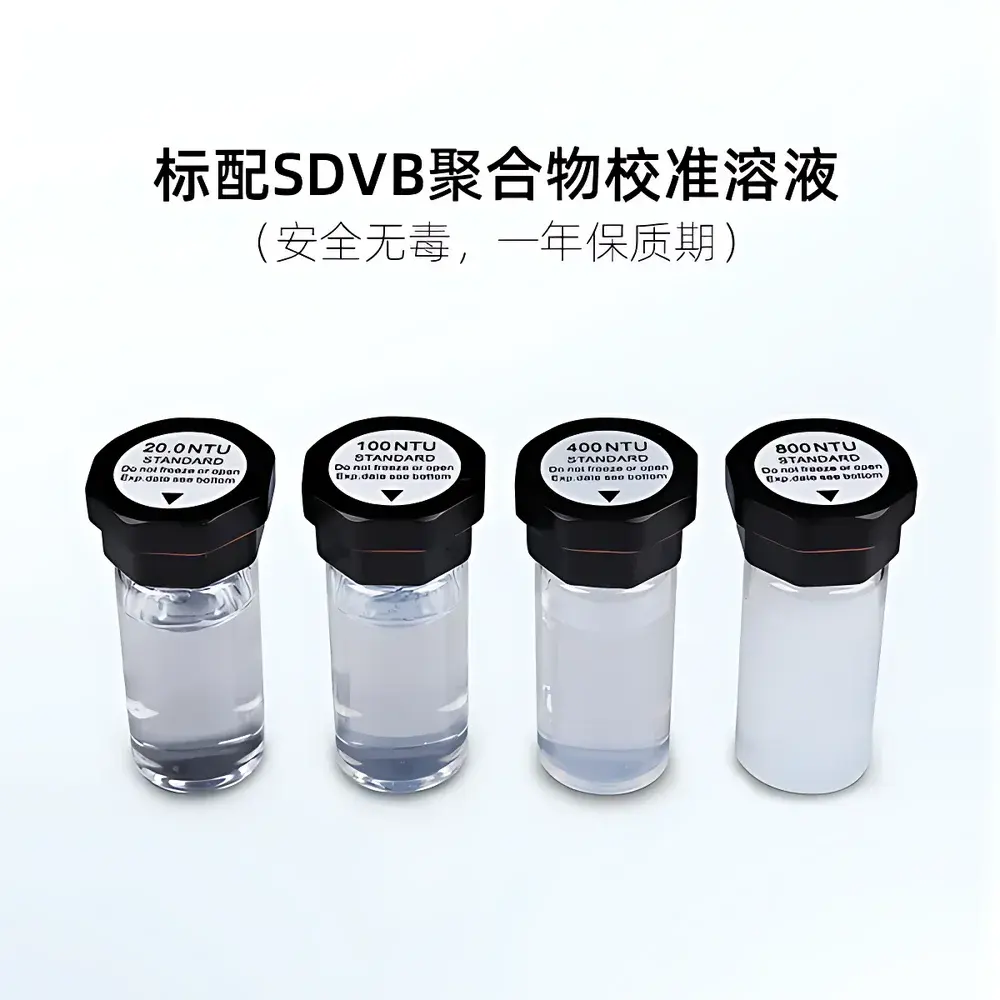

Yes—each kit includes five vials of EPA- and ASTM-certified polymer standards (0, 20, 100, 400, 800 NTU), with CoA documentation and 12-month shelf life.
How does the TruRead™ mode improve measurement reliability for unstable samples?

By capturing sequential readings and computing statistical descriptors (min/max/mean), TruRead mitigates operator-induced variability and accounts for transient floc settling—critical for raw water or coagulation testing.
What is the expected service life of the tungsten lamp?

Rated for ≥5,000 hours of operation; replacement lamps are field-swappable without optical realignment.
