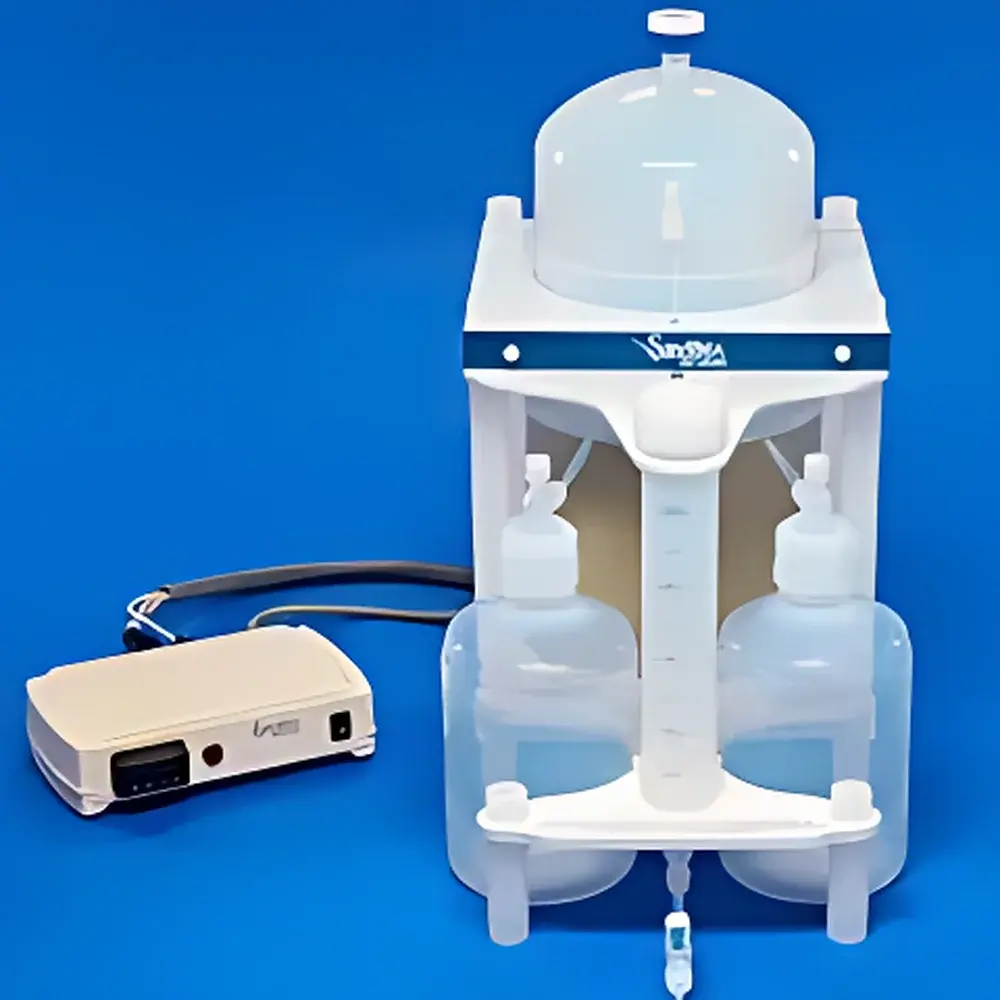

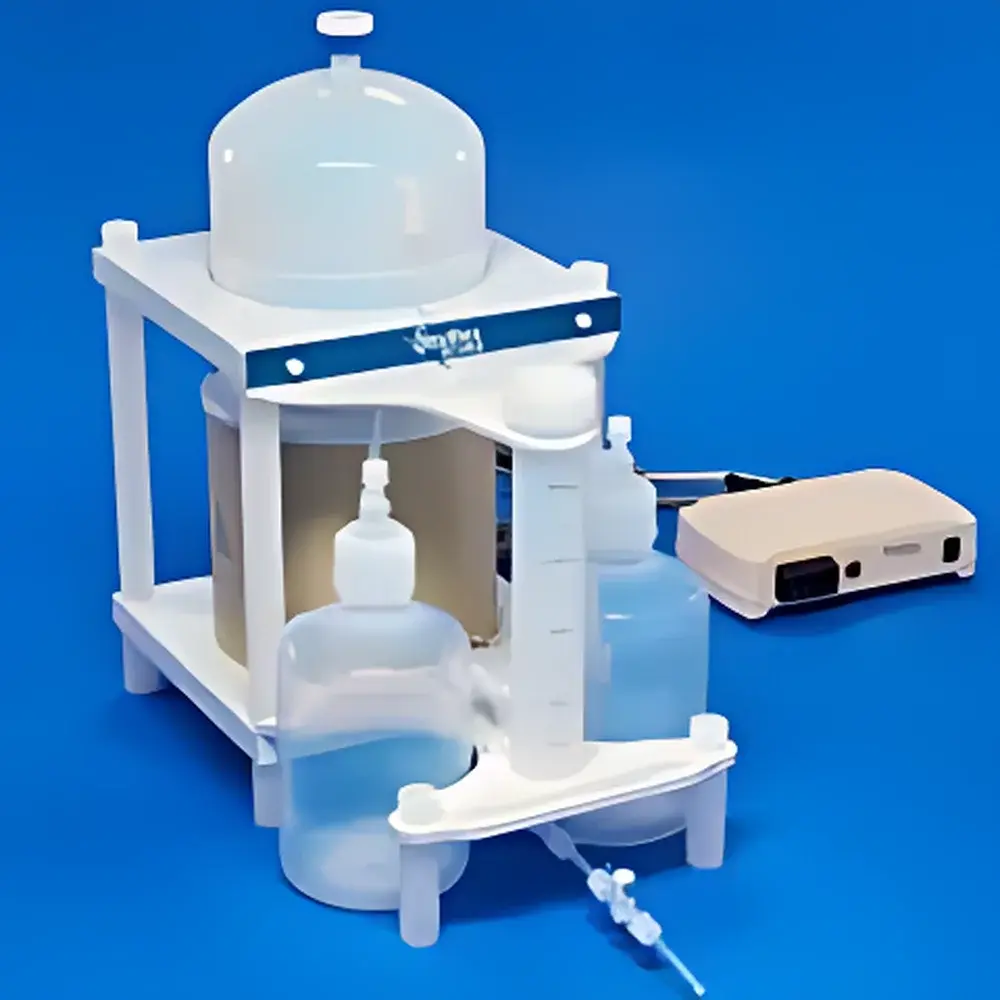

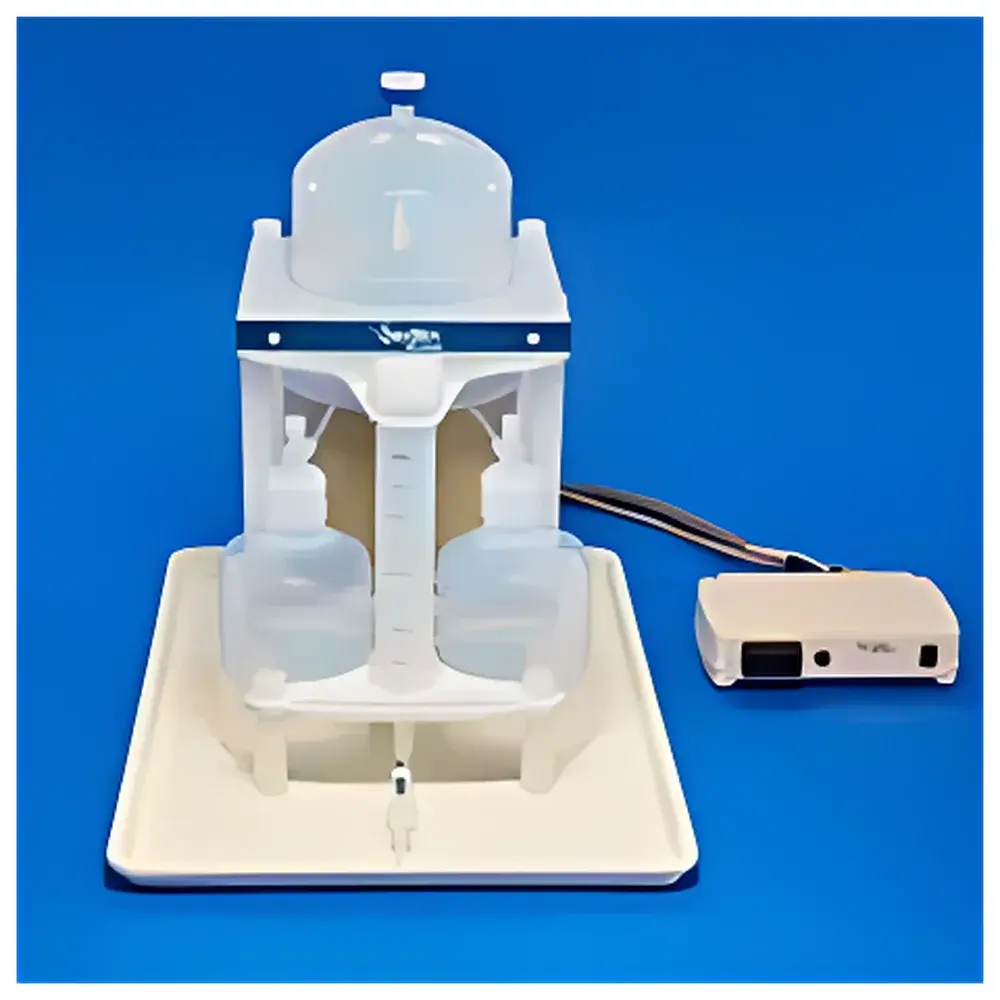

Savillex DST-4000S Sub-Boiling Acid Distillation System

Overview

The Savillex DST-4000S Sub-Boiling Acid Distillation System is a high-purity, benchtop acid purification instrument engineered for trace-metal analysis laboratories requiring ultra-low contamination levels in reagents. Operating on the principle of sub-boiling distillation—where acid is heated gently below its atmospheric boiling point to minimize aerosol entrainment and volatile impurity carryover—the DST-4000S produces ultrapure nitric, hydrochloric, and hydrofluoric acids suitable for ICP-MS, ICP-OES, HR-ICP-MS, and other ultra-trace elemental analysis workflows. Its fully enclosed, vapor-tight design prevents ambient contamination and ensures consistent distillate purity across batch runs. Unlike conventional reflux or boiling-point distillation systems, the DST-4000S eliminates thermal decomposition pathways by maintaining precise temperature control at the liquid–vapor interface, preserving acid integrity while removing metal contaminants (e.g., Al, Cr, Fe, Ni, Pb, U) to sub-ppt levels.

Key Features

• Entirely PFA-wetted path: All fluid-contact components—including evaporator chamber, condenser, collection vessel, and drainage channel—are precision-molded from high-purity, low-extractable PFA fluoropolymer, certified for ≤1 pg/mL blank levels in HNO₃, HCl, and HF.
• Encircling electric heating mantle: Provides uniform, non-contact radiant heating around the PFA evaporator, eliminating hot spots and corrosion-prone external heat sources (e.g., ceramic lamps or metal coils).
• No water cooling required: Patented air-cooled condenser design enables operation without external chillers or tap water, reducing lab infrastructure dependency and improving energy efficiency.
• Intelligent endpoint management: Integrated level-sensing circuitry automatically terminates heating when residual volume drops below 500 mL, preventing dry-run damage and ensuring reproducible 4 L batch capacity.
• Compact footprint: Occupies <0.1 m² (≤1 ft²) inside standard fume hoods—ideal for space-constrained QC/QA labs and cleanroom-adjacent environments.
• Variable temperature control: Digital thermostat allows fine-tuning of heating power (0–100% range) to balance distillation rate (500 mL/24 h nominal) against purity requirements for specific acid matrices.

Sample Compatibility & Compliance

The DST-4000S is validated for sub-boiling purification of concentrated nitric acid (69–70%), hydrochloric acid (37%), and hydrofluoric acid (48–49%)—all commonly used in EPA Method 200.8, ASTM D5673, ISO 17294-2, and USP / sample digestion protocols. Its PFA construction complies with FDA 21 CFR 177.1550 for fluoropolymer food-contact materials and meets GLP/GMP documentation readiness standards. Each unit ships with a Certificate of Conformance, including material traceability to Savillex’s ISO 9001-certified manufacturing facility in Minnesota, USA. No lubricants, adhesives, or secondary seals contact the acid stream—ensuring full compatibility with regulatory audit trails under 21 CFR Part 11 when paired with compliant data logging software.

Software & Data Management

The DST-4000S operates as a standalone analog-controlled system with no embedded firmware or digital interface. Temperature setpoint and on/off status are managed via front-panel potentiometer and illuminated toggle switch. For laboratories requiring electronic recordkeeping, optional third-party USB data loggers (e.g., Omega OM-DAQPRO-5300 series) can be connected to monitor heater voltage and ambient temperature trends over time. All operational parameters—including run duration, start/stop timestamps, and manual setpoint adjustments—are documented manually in lab notebooks per GLP Annex 11 and ISO/IEC 17025 Clause 7.5.1 requirements. Savillex provides a comprehensive SOP template aligned with ISO/IEC 17025 accreditation criteria for method validation and equipment qualification.

Applications

• Preparation of ultrapure calibration standards and matrix-matched blanks for ICP-MS multi-element analysis (e.g., rare earth elements, actinides).
• Purification of digestion acids prior to microwave-assisted closed-vessel digestion of geological, environmental, and biological samples.
• Production of low-background reagents for semiconductor wafer cleaning and photomask etching processes.
• Supporting CLIA-certified clinical toxicology labs performing whole-blood Pb, Cd, and As quantitation by HR-ICP-MS.
• Enabling compliance with EPA SW-846 Method 3052 and ASTM D5673 for trace metal recovery in contaminated soil leachates.

FAQ

Can the DST-4000S purify hydrofluoric acid safely?
Yes. The all-PFA construction is chemically inert to anhydrous and aqueous HF up to 49% concentration at sub-boiling temperatures (typically 110–120 °C for 48% HF), with no risk of PFA degradation or metal leaching.
Is it possible to integrate the DST-4000S into automated acid dispensing workflows?
Not natively—the system lacks solenoid valves or digital I/O ports. However, its gravity-fed distillate outlet (1/4″ PFA tubing port) is compatible with external peristaltic pumps and programmable fraction collectors when installed downstream.
How often does the PFA evaporator require replacement?
Under normal use (≤200 cycles/year with proper acid grade selection), the molded PFA chamber exhibits no measurable wear or performance drift over 5+ years; Savillex recommends visual inspection every 6 months for discoloration or microcracking.
Does the DST-4000S meet ISO 15195:2018 reference material production requirements?
While not a certified reference material producer, the DST-4000S satisfies Clause 6.3.2 (purity control) and Annex C (contamination minimization) of ISO 15195:2018 when operated within validated SOPs and supported by blank testing per ISO Guide 35.
What is the typical blank level achievable for nitric acid?
When using Suprapur®-grade HNO₃ as feedstock and following Savillex-recommended conditioning protocol (3× 1-L pre-distillation), median blanks for Al, Cr, Fe, Ni, and Pb are consistently <0.5 pg/g as measured by sector-field ICP-MS.
