Scentroid SS600 Six-Position Automated Dynamic Olfactometry Platform

Overview

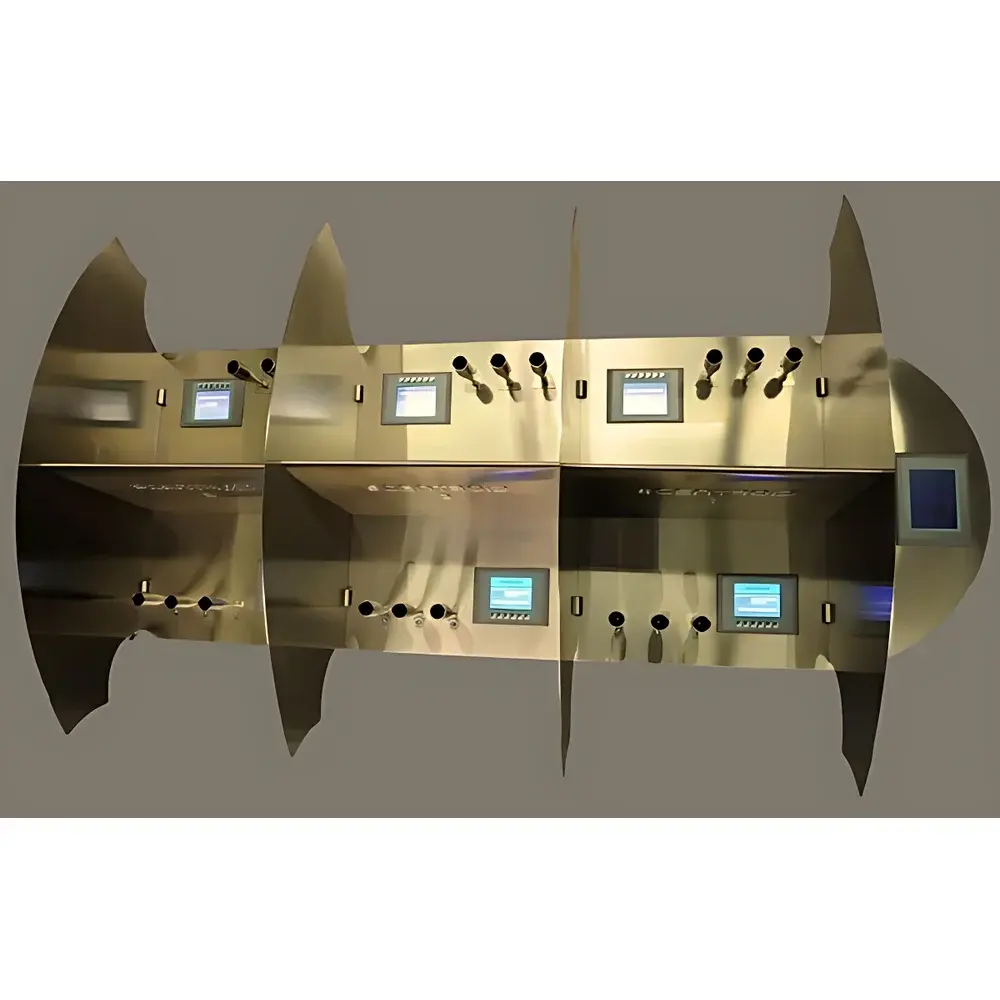

The Scentroid SS600 is a six-position automated dynamic olfactometry platform engineered for high-throughput, standardized odor concentration and intensity assessment in compliance with internationally recognized sensory evaluation protocols. It operates on the principle of dynamic dilution olfactometry—precisely metering ambient or source-emitted air samples into controlled, logarithmically decreasing concentrations using calibrated mass flow controllers (MFCs), then presenting diluted streams to trained human panelists via standardized sniffing ports. This methodology enables quantitative determination of odor concentration (in ou_E/m³), odor intensity (using Stevens’ power law scaling), hedonic tone (pleasantness/unpleasantness), and odor character descriptors—all traceable to ISO 8586:2014 (sensory analysis—general guidance for the selection, training and monitoring of assessors) and foundational psychophysical standards such as ASTM E679–21 (Standard Practice for Determination of Odor and Taste Thresholds by a Forced-Choice Ascending Concentration Series Method). Designed for environmental laboratories, regulatory agencies, and industrial odor management programs, the SS600 integrates hardware-level reproducibility with protocol-driven software logic to ensure audit-ready data integrity.

Key Features

• Six independent, parallel dilution channels enabling simultaneous presentation of up to six concentration levels per test cycle—reducing total analysis time to under 5 minutes per full staircase sequence.
• Industrial-grade control architecture featuring Siemens SIMATIC S7-1200 PLC for deterministic timing, valve actuation, and real-time MFC feedback regulation—ensuring <±1.5% full-scale repeatability across flow ranges from 0.1 to 10 L/min.
• Stainless-steel solenoid valves (316L grade), pressure-regulated clean air supply (±0.02 bar stability), and temperature-compensated thermal mass flow controllers certified to ISO/IEC 17025-accredited calibration intervals.
• Dual-tier touchscreen interface: one 8-inch central HMI for system orchestration and real-time panelist response logging; six dedicated 6-inch touchscreens (one per sniffing station) for blinded stimulus delivery, forced-choice input, and immediate feedback validation.
• Onboard method library with preconfigured routines aligned to GB/T 14675–1993 (Chinese national standard for odor concentration measurement), EN 13725:2003 (European standard for odor concentration determination by dynamic olfactometry), and ASTM E679–21.

Sample Compatibility & Compliance

The SS600 accommodates gaseous samples drawn directly from emission stacks, ambient air monitoring points, biofilter outlets, wastewater treatment headspaces, or laboratory-generated odorant mixtures. Sample introduction requires no chemical derivatization or pre-concentration; it supports both active sampling (via integrated vacuum pump with adjustable suction rate) and passive line connection (0–100 kPa absolute inlet pressure range). All operational parameters—including dilution ratio progression, exposure duration (0.5–5 s), inter-stimulus interval (≥30 s), and panelist response window—are configurable to satisfy GLP-compliant study design requirements. The platform meets mechanical and electrical safety standards per CSA C22.2 No. 61010-1 and IEC 61000-6-3 (EMC emissions), and its software architecture supports 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable audit trails when deployed with validated LIMS integration.

Software & Data Management

The proprietary OlfactoSoft v4.2 application provides role-based access control (administrator, technician, panel leader, assessor), automated pass/fail logic per ASTM/EN thresholds, and real-time statistical convergence monitoring (e.g., binomial confidence interval calculation for detection threshold endpoints). Raw response data are stored in encrypted SQLite databases with SHA-256 hashing; export formats include CSV (for external statistical packages), PDF reports (with embedded digital signatures), and XML schemas compatible with ISO/IEC 17025 documentation frameworks. Audit logs record all parameter changes, user logins, method selections, and calibration events—retained for ≥10 years with optional cloud backup to AWS S3 buckets under HIPAA/FISMA-aligned encryption policies.

Applications

• Regulatory odor compliance testing at municipal wastewater facilities, composting sites, rendering plants, and livestock operations per local air quality ordinances.
• Source identification and dispersion modeling support through quantified odor emission rates (ou_E/s) derived from stack or surface flux measurements.
• Product development validation for odor-masking agents, fragrance formulations, and VOC-abatement technologies under controlled sensory panels.
• Academic research in environmental psychology, olfactory neuroscience, and atmospheric chemistry requiring high-fidelity, human-perception-grounded odor metrics.
• Third-party verification of odor control system performance during commissioning and long-term operational audits.

FAQ

Does the SS600 require certified odor panelists to operate?
Yes—the instrument itself does not replace human olfaction. It strictly facilitates standardized delivery and response capture for panels trained and monitored per ISO 8586 and EN 13725 requirements.
Can the system be integrated with existing laboratory information management systems (LIMS)?
Yes—OlfactoSoft supports HL7 v2.x and ASTM E1467-compliant API interfaces for bidirectional data exchange with major LIMS platforms including LabWare, Thermo Fisher SampleManager, and Agilent OpenLab.
What maintenance schedule is recommended for long-term accuracy?
Mass flow controllers require annual recalibration against NIST-traceable standards; stainless-steel valves and tubing should undergo leak-check verification every 6 months; touchscreen firmware updates are released quarterly via secure OTA channel.
Is remote operation supported for multi-site odor monitoring networks?
Yes—SS600 units can be centrally managed via Scentroid’s CloudOlfacto portal, enabling real-time status monitoring, method push deployment, and aggregated cross-site odor trend analytics without on-site IT infrastructure.
How does the system handle humidity and temperature fluctuations in field-deployed configurations?
Integrated environmental sensors (±0.3°C, ±2% RH accuracy) feed compensation algorithms to MFC control loops; optional heated sample lines and condensate traps are available for high-moisture applications such as landfill gas or anaerobic digester sampling.
