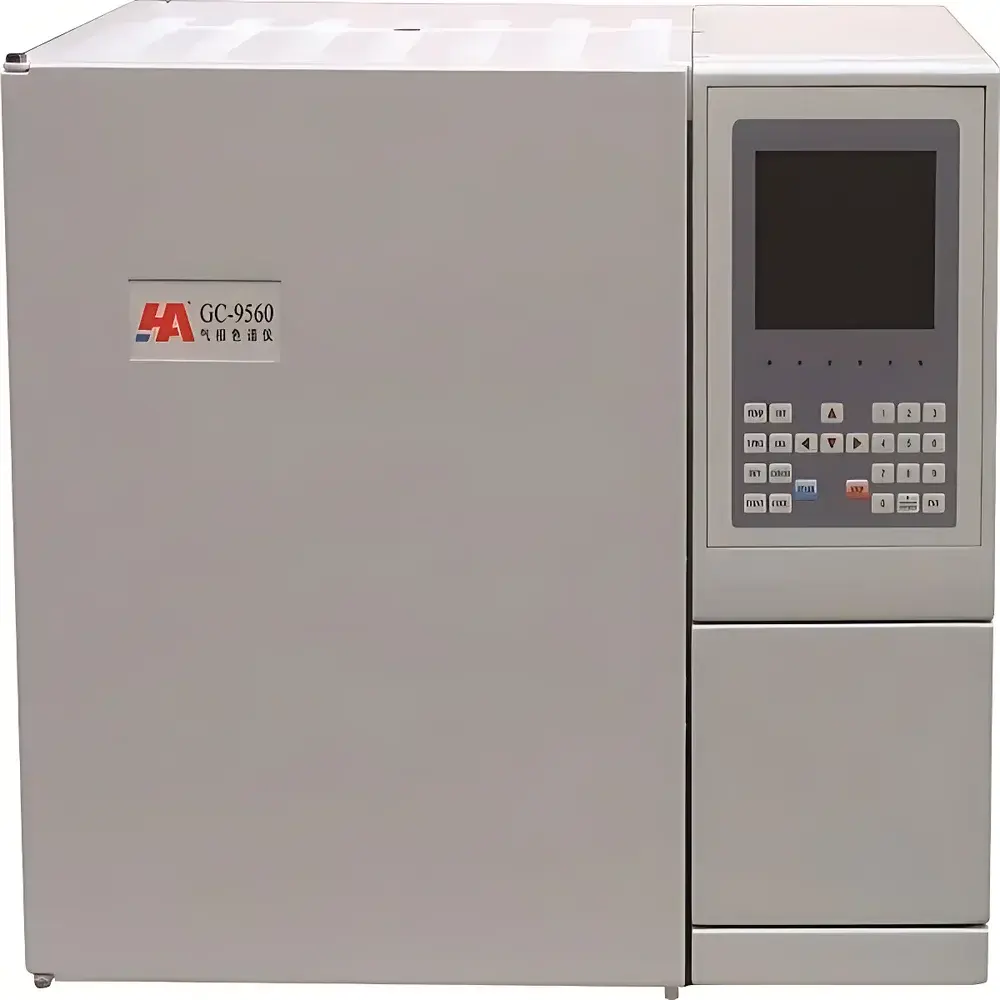

Shanghai Huaai GC-9560-HF Hydrogen Fluoride (HF) Gas Analysis System
| Brand | Huaai |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | Yes |
| Instrument Type | Laboratory Gas Chromatograph |
| Application | High-Purity Fluorine-Containing Gas Analysis |
| Temperature Control Range | Ambient +8°C to 399°C |
| Oven Ramp Rate | 1–40°C/min |
| Oven Cool-Down Rate | ~7 min (from 350°C to 50°C) |
| Carrier Gas Flow Range & Control | 0–500 mL/min |
| Carrier Gas Pressure Range & Control | 0–0.4 MPa |
| Injector Max Operating Temperature | 399°C |
| Injector Pressure Setpoint Range | 0–0.4 MPa |
| Injector Total Flow Setpoint Range | 0–500 mL/min |
| Detector | Dual Corrosion-Resistant Thermal Conductivity Detectors (TCD) |
| Sampling | Negative-Pressure Sampling with 316L Stainless Steel Adsorption Vessel and PTFE-Sealed Valves |
| Valve Type | VICI 1/8" Six-Port and Four-Port Switching Valves |
| Software | PC-Based Bidirectional Remote Control with 6 Programmable Event Outputs for Valve/Pump Sequencing |
| Compliance | Designed for GLP-compliant HF gas analysis in semiconductor, fluoropolymer, and specialty gas manufacturing environments |
Overview
The Shanghai Huaai GC-9560-HF Hydrogen Fluoride (HF) Gas Analysis System is a purpose-built, laboratory-grade gas chromatograph engineered for the safe, precise, and reproducible quantification of trace and major HF concentrations in high-purity fluorine-based process gases—including F₂, NF₃, SF₆, and fluorinated etchants used in semiconductor fabrication, plasma cleaning, and advanced materials synthesis. Unlike general-purpose GC platforms, the GC-9560-HF integrates corrosion-resistant fluidic architecture at every critical interface: from negative-pressure sampling through 316L stainless steel adsorption vessels and PTFE-sealed electromagnetic valves, to dual thermal conductivity detectors (TCDs) with inert surface passivation. Its operational principle relies on isothermal or programmed-temperature gas chromatography using hydrogen or helium as carrier gas, coupled with highly selective column chemistry (e.g., molecular sieve 5A or porous polymer PLOT columns) optimized for halogenated species separation. The system meets fundamental requirements for analytical integrity in corrosive gas environments—low vacuum leakage (<0.001 kPa/h), chemically stable flow paths, and temperature-stable detector baselines—making it suitable for routine QC in ISO/IEC 17025-accredited laboratories and production-line gas purity monitoring.
Key Features
- Corrosion-engineered fluidic path: All wetted components—including sample loop, transfer lines, valve manifolds, and detector cells—are constructed from electropolished 316L stainless steel with PTFE or Kalrez® sealing surfaces to resist HF-induced pitting and adsorption.
- Negative-pressure sampling module: Eliminates positive-pressure exposure risks; maintains sub-atmospheric conditions during sample introduction via vacuum-controlled adsorption vessel with real-time pressure monitoring.
- Dual TCD configuration: Two independently operated, temperature-compensated thermal conductivity detectors enable simultaneous detection of HF and co-eluting impurities (e.g., H₂O, O₂, N₂, CO) without requiring reactive or consumable detectors.
- VICI precision switching valves: Factory-integrated 1/8″ six-port and four-port pneumatically actuated valves ensure repeatable, low-dead-volume injection and column routing—critical for quantitative valve-loop analysis of reactive gases.
- Full digital instrumentation control: Embedded microprocessor governs oven temperature, injector parameters, detector bias, and carrier gas pressure/flow via PID algorithms; all settings are remotely adjustable via USB/RS-232 interface.
- Six-event programmable sequencer: Software-defined timing logic triggers valve actuation, pump start/stop, and detector zeroing—enabling automated multi-step analytical protocols compliant with ASTM D7607 and ISO 8573-5 workflows.
Sample Compatibility & Compliance
The GC-9560-HF is validated for direct analysis of anhydrous HF vapor, diluted HF mixtures (ppm to % v/v), and complex matrices containing F₂, ClF₃, WF₆, and perfluorocarbons. Sample introduction occurs exclusively via fixed-volume gas loops under controlled vacuum, eliminating syringe-based handling hazards. All internal surfaces undergo proprietary deactivation treatment to minimize HF adsorption and memory effects—verified by ≤2% carryover across consecutive injections per USP repeatability criteria. The system supports compliance with GMP Annex 11 (electronic records), FDA 21 CFR Part 11 (audit trail functionality via optional software license), and ISO/IEC 17025 Clause 5.9 (method validation documentation). It is routinely deployed in cleanroom environments classified per ISO 14644-1 Class 5–7 and meets electrical safety standards IEC 61010-1 for laboratory equipment.
Software & Data Management
The GC-9560-HF operates under Huaai’s GC-Studio™ Control Suite—a Windows-based application enabling bidirectional instrument control, real-time signal visualization, peak integration, calibration curve generation (linear, quadratic, or multipoint), and report export in PDF, CSV, or XML formats. Raw chromatograms include embedded metadata (operator ID, method name, audit timestamp, instrument serial number). The software logs all parameter changes, event triggers, and detector responses with time-stamped entries—forming a complete electronic audit trail required for GLP/GMP audits. Optional modules support LIMS integration via ASTM E1394 or HL7 messaging, and automated calibration verification using internal standard spikes per ISO 17034 reference material protocols.
Applications
- Quantitative HF impurity profiling in electronic-grade F₂ and NF₃ used in etch and chamber cleaning processes.
- Release testing of cylinder-filling batches for semiconductor-grade specialty gases per SEMI F57 specifications.
- In-process monitoring of HF concentration in fluorination reactor off-gas streams for pharmaceutical intermediate synthesis.
- Verification of HF removal efficiency in gas purification systems employing metal oxide scavengers or cryogenic traps.
- Stability testing of fluoropolymer decomposition products under accelerated aging conditions (ASTM D5510).
FAQ
What carrier gases are compatible with the GC-9560-HF?
Helium and hydrogen are recommended; argon is not advised due to reduced TCD sensitivity for HF and potential baseline instability.
Can the system analyze liquid-phase HF samples?
No—this is a dedicated gas-phase analyzer. Liquid HF must first be vaporized and diluted in an inert carrier stream using certified vaporization hardware external to the GC.
Is method validation support available?
Yes—Huaai provides IQ/OQ documentation templates aligned with ISO/IEC 17025 and offers on-site PQ assistance for method transfer and ruggedness testing.
What maintenance intervals are recommended for the TCDs?
Detector filaments require annual inspection; column reconditioning is advised every 6 months under continuous HF exposure, depending on sample load and purity.
Does the system comply with explosion-proof requirements for Class I, Division 1 areas?
The base configuration is rated for general laboratory use only; ATEX or UL-certified enclosures must be specified separately for hazardous location deployment.
