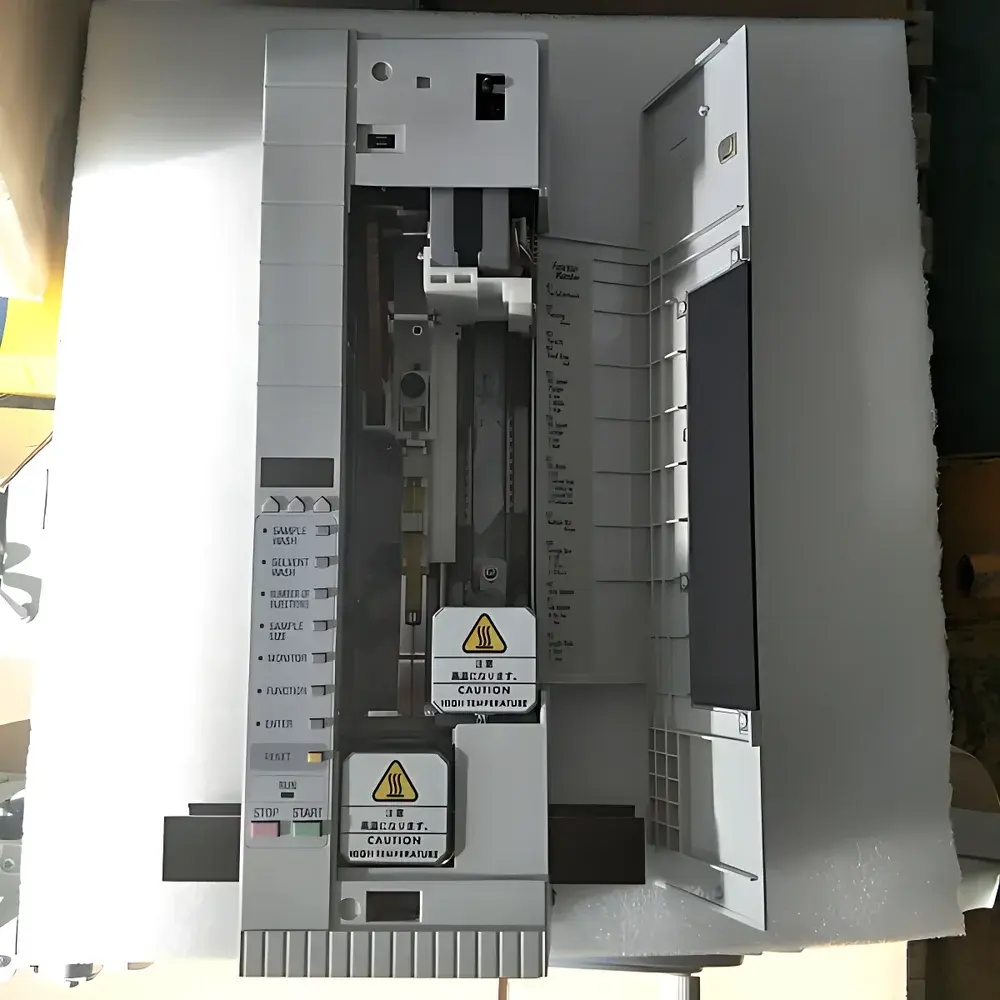

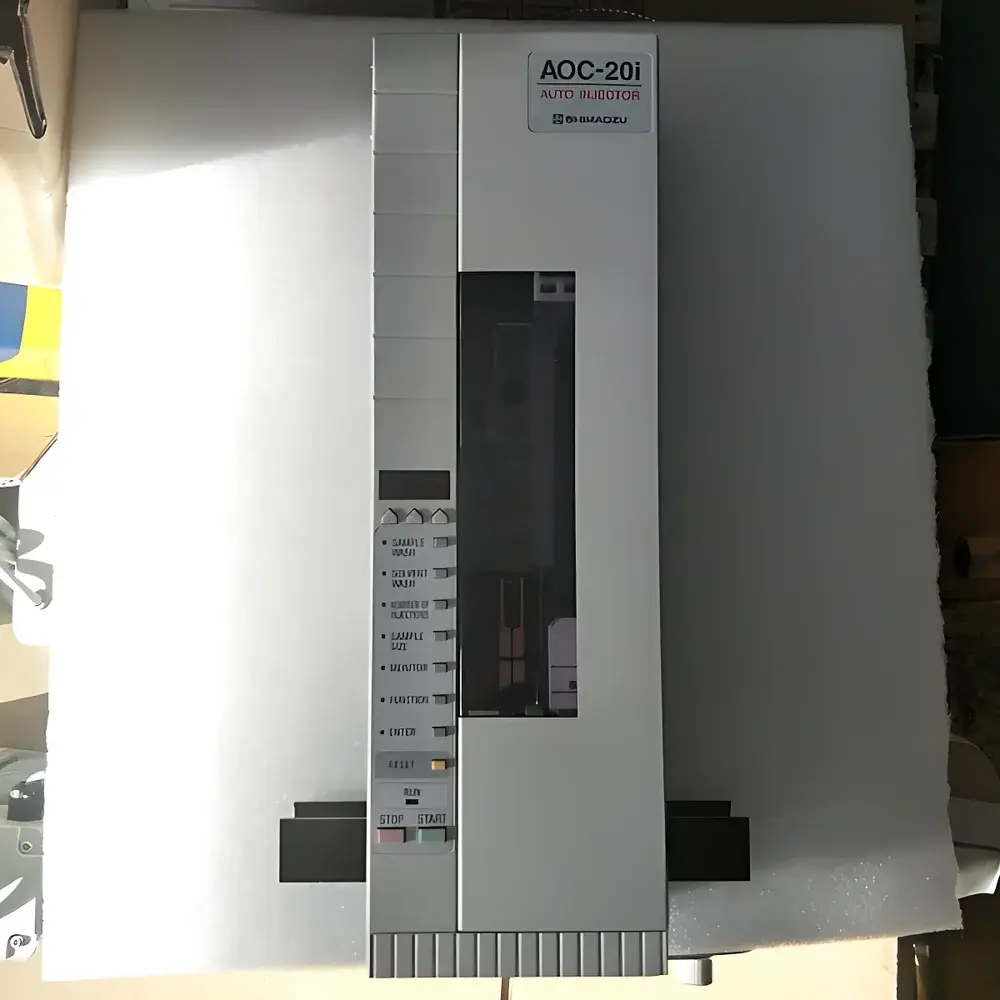

Shimadzu AOC-20i Used Autosampler for GC Systems

Overview

The Shimadzu AOC-20i is a precision-engineered autosampler designed exclusively for integration with Shimadzu gas chromatography (GC) systems. It operates on the principle of programmable syringe-based liquid-phase sample introduction, enabling reproducible, low-memory-volume injections into GC inlets—including split/splitless, PTV (Programmed Temperature Vaporizing), and cold-on-column configurations. Unlike generic autosamplers, the AOC-20i features hardware-level synchronization with Shimadzu GC controllers via dedicated RS-232 or proprietary bus interfaces, ensuring deterministic timing for injection trigger, oven ramp initiation, and detector signal acquisition. Its mechanical architecture employs high-tolerance stainless-steel syringes, ceramic-plunger seals, and temperature-stabilized sample trays—engineered to maintain volumetric accuracy (<±0.5% RSD over 100 injections) under continuous operation. The unit was originally deployed in regulated QC/QA environments supporting pharmaceutical residual solvent analysis, environmental VOC profiling, and petrochemical hydrocarbon speciation.

Key Features

• Hardware-synchronized injection control with Shimadzu GC platforms (GC-14A through GC-2025), minimizing inter-system latency and injection timing drift
• Dual power architecture: factory-integrated power supply for GC-2010/2010Plus/2014/2025; external power option available via Shimadzu AOC-20i mounting kit (P/N 228-55020-92) for legacy GC models
• Advanced sample preparation functions: pre-injection solvent flush (air or organic solvent aspiration), multi-draw/multi-inject sequences, and derivatization reagent addition prior to thermal desorption
• Compact footprint (260 × 420 × 420 mm) enables dual-unit installation on a single GC chassis—supporting parallel sample loading and sequential analysis without hardware modification
• Robust sample handling: accommodates standard 1.5–2.0 mL headspace vials and 4–10 mL screw-thread vials; tray temperature stability ±0.5°C across 4–40°C ambient range
• Mechanically validated durability: rated for >200,000 injection cycles; critical wear components (syringe barrel, plunger seal, needle guide) replaced and certified during refurbishment

Sample Compatibility & Compliance

The AOC-20i accepts aqueous, organic, and viscous liquid matrices—including derivatized samples, extracted environmental extracts, and pharmaceutical formulations—without requiring carrier gas pressure compensation. Its inert fluid path (electropolished stainless steel + PTFE-lined tubing) minimizes adsorption of polar analytes (e.g., alcohols, amines, organic acids). For regulatory compliance, the unit supports traceable method execution when paired with Shimadzu GCsolution software (v2.7+), generating electronic records compliant with FDA 21 CFR Part 11 requirements—including user authentication logs, parameter change history, and injection sequence audit trails. It meets mechanical performance criteria outlined in ASTM D3699 (hydrocarbon analysis), ISO 11843-7 (detection limit validation), and USP (chromatographic system suitability).

Software & Data Management

The AOC-20i operates under Shimadzu’s native GCsolution platform (not included; requires separate license). Method files (.mth) define injection volume (0.1–100 µL), wash cycle parameters (solvent type, draw volume, dwell time), and sequence logic (looping, conditional branching). All operational metadata—including syringe position feedback, valve actuation timestamps, and error codes (e.g., “Needle Blockage,” “Vial Not Detected”)—are embedded in raw data (.gcd) files. Refurbished units include firmware updated to version 3.10, enabling compatibility with GCsolution v3.x and LIMS integration via ODBC-compliant database export. No cloud connectivity or remote diagnostics are supported—consistent with ISO/IEC 17025 Section 5.9.2 requirements for instrument control integrity.

Applications

• Residual solvent quantification in APIs per ICH Q3C guidelines using headspace-GC/FID
• VOC monitoring in drinking water (EPA Method 524.4) with automated large-volume injection (LVI) and cryo-focusing
• Fatty acid methyl ester (FAME) profiling in biodiesel via PTV inlet with solvent venting
• Reaction monitoring in catalytic chemistry—sequential sampling from heated reactors with timed derivatization
• Environmental soil extract analysis (EPA 8260D) leveraging multi-draw sensitivity enhancement for low-abundance chlorinated compounds

FAQ

Is the AOC-20i compatible with non-Shimadzu GC systems?

No. The AOC-20i relies on proprietary hardware handshake protocols and voltage-level signaling unique to Shimadzu GC mainframes. Third-party GC integration is not supported.
What maintenance documentation accompanies the refurbished unit?

Each unit ships with a full refurbishment report: syringe calibration certificate (gravimetrically verified at 1, 10, and 50 µL), seal replacement log, firmware revision history, and functional test report covering 100-cycle injection repeatability and vial detection reliability.
Can the AOC-20i perform splitless injections with solvent venting?

Yes—when configured with a Shimadzu split/splitless inlet equipped with solvent vent functionality (e.g., SPL-2010), the AOC-20i triggers vent timing synchronized to solvent elution window, minimizing column contamination.
Does the 1-year warranty cover software licensing or GCsolution upgrades?

No. The warranty applies solely to hardware defects and electromechanical performance. GCsolution licenses, method development support, or firmware updates beyond version 3.10 require separate Shimadzu service contracts.
How is sample carryover mitigated during high-concentration analysis?

The AOC-20i implements three-stage wash: (1) internal needle rinse with strong solvent (e.g., chloroform), (2) external needle dip-wash in dedicated wash vial, and (3) air purge—each programmable in volume and dwell time within the method file.
