Sinton Instruments WCT-120MX + Suns-VocMX Minority Carrier Lifetime & Photovoltaic Characterization System

Overview

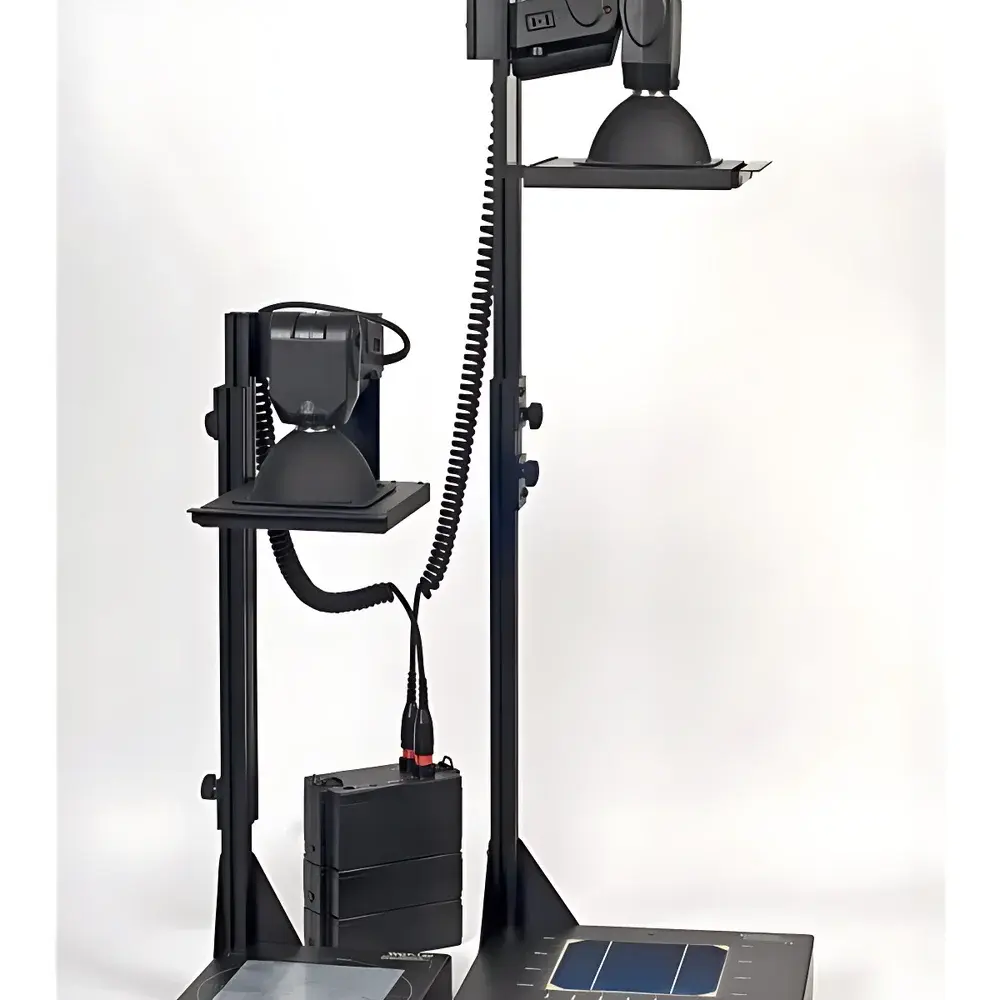

The Sinton Instruments WCT-120MX + Suns-VocMX is a dual-mode, contactless characterization platform engineered for high-precision minority carrier lifetime (τ) and photovoltaic parameter extraction in silicon photovoltaic R&D and manufacturing environments. The system integrates two complementary measurement modules: the WCT-120MX employs eddy-current-based quasi-steady-state photoconductance (QSSPC) and transient photoconductance (TPC) techniques to quantify bulk and surface recombination kinetics without physical contact; the Suns-VocMX module operates under open-circuit conditions to acquire illumination-dependent Voc curves (0.006–6 suns), enabling extraction of implied efficiency (η_implied), implied fill factor (FF_implied), ideality factor (n), J₀₁/J₀₂, shunt resistance (R_sh), and series resistance (R_s)—all prior to metallization or cell fabrication. Both modules adhere strictly to SEMI PV13-0211:2021 (“Test Method for Contactless Excess-Charge-Carrier Recombination Lifetime Measurement in Silicon Wafers, Ingots, and Bricks Using an Eddy-Current Sensor”) and support traceable calibration across injection levels (Δn = 1×10¹³–1×10¹⁶ cm⁻³). The architecture is optimized for reproducible, GLP-compliant process monitoring in ISO 9001-certified solar cell fabs and university cleanrooms.

Key Features

• Eddy-current sensor with 40 mm active diameter and calibrated 3 mm penetration depth—enabling uniform volumetric sampling across wafer thicknesses from 10 µm to 2 mm
• Programmable flash lamp systems: WCT-120MX uses IR-filtered broadband source (λ > 1000 nm); Suns-VocMX employs neutral-density-filtered xenon lamp with ±0.5% irradiance stability across 0.006–6 suns
• Integrated NI DAQ hardware (12-bit resolution, 5 MS/s max sampling rate) synchronized with proprietary real-time signal processing firmware
• Temperature-controlled sample stage (25 °C ± 0.2 °C) with magnetic probe compatibility and height-adjustable back pillar for optical alignment precision
• Simultaneous acquisition of τ(Δn), resistivity (ρ), trap density (N_t), and J₀ from single QSSPC/TPC transients—no separate resistivity meter required
• Dual-diode model fitting engine embedded in software for robust separation of J₀₁ (emitter recombination) and J₀₂ (bulk recombination) components

Sample Compatibility & Compliance

The system accommodates bare silicon wafers (Cz, FZ, mc-Si), kerfless ribbons, and processed pseudo-wafers up to 230 mm in diameter and 2 mm thick. It supports both n-type and p-type substrates across resistivity ranges of 0.15–300 Ω·cm. All measurements comply with SEMI PV13-0211:2021, ASTM F1531 (for carrier lifetime), and IEC 60904-1 (for spectral irradiance referencing). Data integrity meets FDA 21 CFR Part 11 requirements via audit-trail-enabled software with user-role access control, electronic signatures, and immutable raw-data archiving. Calibration certificates are NIST-traceable and include uncertainty budgets per ISO/IEC 17025.

Software & Data Management

WCT Control Suite v5.x provides unified interface for instrument control, real-time waveform visualization, automated calibration routines, and batch analysis. Raw time-domain signals (photoconductance decay, Voc(t)) are stored in HDF5 format with metadata tags (timestamp, operator ID, sample ID, ambient T/RH, lamp energy). Export options include CSV, MATLAB .mat, and PVLib-compatible JSON. Advanced features include: drift-compensated lifetime mapping (grid scan mode), Δn-normalized τ(Δn) curve overlay across multiple wafers, implied IV curve generation with Rs-deconvolution, and statistical SPC dashboards aligned to Six Sigma process control limits. All software updates are delivered via secure HTTPS channel with SHA-256 signature verification.

Applications

• Raw material qualification: Sorting ingots/wafers by bulk lifetime and resistivity homogeneity prior to diffusion
• Heavy metal contamination assessment: Quantifying iron-boron pair passivation efficacy after gettering treatments
• Surface passivation optimization: Correlating τ(Δn) curvature with SiN_x:H, Al₂O₃, or TOPCon layer quality
• Emitter formation validation: Extracting J_0e from Suns-Voc data to benchmark POCl₃ vs. BBr₃ diffusion profiles
• Metallization process development: Isolating Rs impact on FF loss using combined Suns-Voc + final I-V comparison
• Reliability screening: Accelerated lifetime degradation studies under controlled light-soak and thermal bias

FAQ

Does the WCT-120MX require physical contact with the wafer?

No—measurements are fully contactless via eddy-current induction, eliminating surface damage risk and enabling use on fragile or unmetallized substrates.
Can the system measure lifetime on textured or coated wafers?

Yes—IR illumination (>1000 nm) penetrates standard SiN_x:H and TiO₂ antireflection coatings; surface texturing has negligible effect on eddy-current coupling at 3 mm depth.
How is calibration traceability maintained across instruments?

Each system ships with NIST-traceable reference wafers (certified τ values at 1×10¹⁴ and 1×10¹⁵ cm⁻³) and automated calibration workflows that log deviation metrics against master standards.
Is the Suns-VocMX module compatible with heterojunction or perovskite samples?

The module is validated for crystalline silicon only; non-Si materials require custom calibration due to differing absorption coefficients and carrier transport physics.
What level of operator training is required for GMP compliance?

Sinton provides IQ/OQ documentation packages and 2-day on-site training covering SOP execution, calibration verification, and audit-readiness preparation—aligned with ISO 13485 and ICH Q7 expectations.
