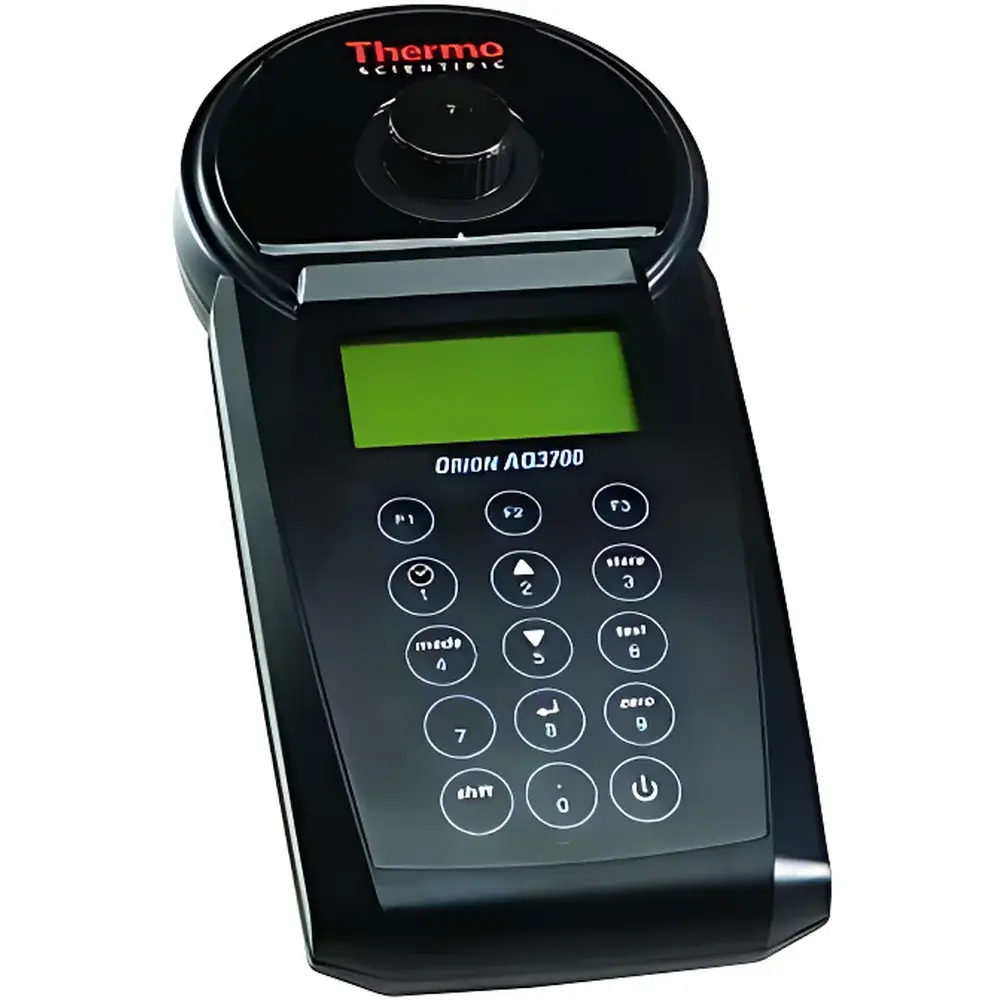

Thermo Fisher Orion AQ3700 Portable Multi-Parameter Water Quality Analyzer for Total Phosphorus, Total Nitrogen, and COD

Overview

The Thermo Fisher Orion AQ3700 is a rugged, field-deployable multi-parameter water quality analyzer engineered for reliable quantification of key nutrient and organic load indicators—including total phosphorus (TP), total nitrogen (TN), and chemical oxygen demand (COD)—in diverse aqueous matrices. It operates on standardized spectrophotometric principles compliant with EPA Methods 365.4 (TP), 351.2 (TN), and 410.4 (COD), utilizing discrete wavelength LED sources (430, 530, 560, 580, 610, and 660 nm) to ensure high photometric stability and minimal spectral drift over time. Unlike benchtop analyzers requiring complex digestion setups or continuous-flow systems, the AQ3700 integrates rapid, single-vessel persulfate digestion—validated per ISO 11908 (TN) and ISO 6878 (TP)—enabling complete oxidation of refractory phosphorus and nitrogen species within 30 minutes at 100 °C. This eliminates dependence on traditional reflux apparatuses or autoclaves while maintaining analytical integrity across municipal wastewater, surface water, effluent streams, and industrial process monitoring applications.

Key Features

• IP67-rated enclosure for dust-tight and immersion-resistant operation in harsh field environments
• Dual-wavelength LED optical system with ±0.005 Abs photometric resolution and <2% full-scale accuracy
• Preloaded library of >70 validated methods—including TP, TN, COD, ammonia-N, orthophosphate, nitrate-N, chlorine species, hardness, alkalinity, turbidity (NTU), color (APHA), and dissolved oxygen (via Winkler titration add-ons)
• Integrated digestion support: compatible with AQUAfast COD165 block digester (16-position, 150 °C max) for standardized TN/TP oxidation
• Multi-format reagent compatibility: accepts powder, tablet, liquid, and pre-filled tube reagents; blank and sample measured simultaneously in identical reaction vessels
• Intelligent auto-ranging algorithm selects optimal measurement range without manual intervention
• Infrared data transfer module (AQ37IRIM) enables secure, cable-free export of timestamped results to LIMS or QA/QC workstations

Sample Compatibility & Compliance

The AQ3700 accommodates 10 mL sample volumes in interchangeable 13 mm, 16 mm, and 24 mm cuvettes—each supported by dedicated adapters (AC37A13, AC37A16, AC2V24). Its digestion protocol meets ASTM D5179 (COD), ISO 15681-1 (TP), and ISO 11908 (TN) requirements for wastewater and environmental monitoring. Instrument firmware supports audit-trail-enabled operation per GLP/GMP guidelines, with user-defined method naming, password-protected calibration logs, and traceable reagent lot tracking. All stored measurements include date/time stamps, operator ID, method ID, and raw absorbance values—fully compliant with US EPA 40 CFR Part 136 data validation standards and FDA 21 CFR Part 11 electronic record requirements when paired with validated LIMS integration.

Software & Data Management

The embedded operating system provides intuitive menu navigation via a graphical LCD and 12-key numeric keypad. Users may customize measurement protocols—including reagent addition sequences, digestion timers, and post-digestion colorimetric steps—using the built-in method editor. Up to 1,000 result sets are retained locally with metadata (sample ID, location tag, analyst initials, ambient temperature/humidity). Data export occurs via RJ45 Ethernet port or infrared interface; firmware updates and new method downloads are performed remotely without physical media. The instrument supports automatic blank correction per method, dynamic zero-point adjustment, and real-time deviation alerts when readings fall outside predefined confidence intervals.

Applications

The AQ3700 serves as a primary field tool for wastewater treatment plant operators conducting daily nutrient removal verification (e.g., TP < 0.1 mg/L, TN < 10 mg/L discharge limits per EU Urban Wastewater Directive); environmental consultants performing lake eutrophication assessments; drinking water utilities validating coagulation efficiency via orthophosphate residual tracking; and industrial pretreatment facilities monitoring COD compliance prior to sewer discharge. Its ability to quantify both TP and TN in parallel—without cross-interference from chloride, sulfate, or suspended solids—makes it particularly suited for evaluating biological nutrient removal (BNR) performance and optimizing denitrification/anoxic zone control strategies.

FAQ

What digestion method does the AQ3700 use for total nitrogen analysis?
It employs alkaline potassium persulfate digestion at 100 °C for 30 minutes, followed by UV-catalyzed conversion of organic nitrogen to nitrate, per ISO 11908.
Can the same cuvette be used for both TP and TN measurements?
Yes—standard 16 mm or 24 mm glass or quartz cuvettes (e.g., AC2V16, AC2V24) are compatible across all digestion-based assays when used with appropriate adapters.
Is the instrument suitable for regulatory reporting under EPA or ISO frameworks?
Yes—when operated using certified reagents (e.g., ACD004/ACD007 for TN, ACD095 for TP) and validated digestion protocols, data meet EPA Method 351.2 and ISO 11908 reporting criteria.
How is photometric accuracy maintained over extended field deployment?
The LED light source exhibits <0.5% intensity drift over 5,000 hours; factory calibration is traceable to NIST SRM 2034 neutral density filters, with optional field verification using AQ3VSK calibration kit.
Does the AQ3700 require external power for digestion?
No—the instrument itself does not perform heating; digestion is conducted externally using the AQUAfast COD165 digester (sold separately), which operates independently on standard 120/230 V AC power.
