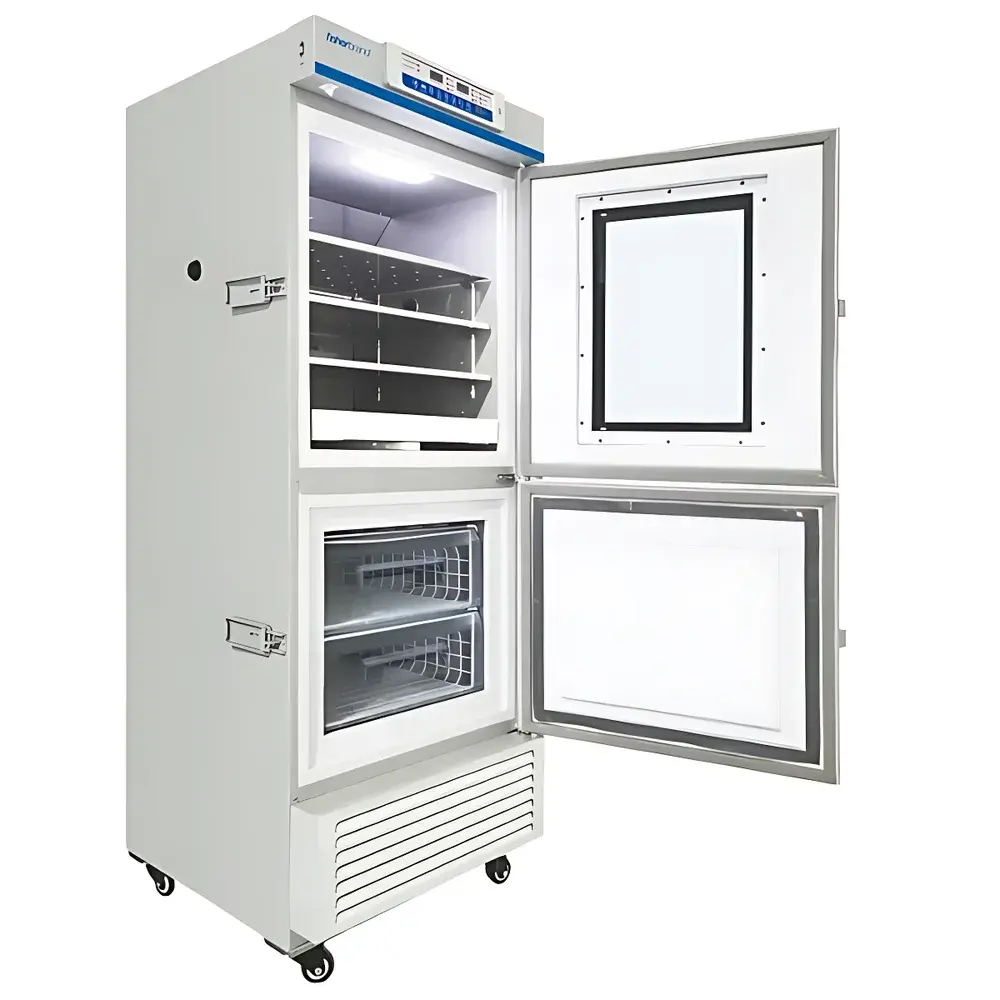

Thermo Fisher Scientific Fisherbrand FYCD-290 Dual-Temperature Laboratory Refrigerator-Freezer

Overview

The Thermo Fisher Scientific Fisherbrand FYCD-290 is a purpose-engineered dual-temperature laboratory refrigerator-freezer designed for reliable, long-term storage of temperature-sensitive biological materials—including reagents, vaccines, cell cultures, primary tissues, and diagnostic samples—in academic research laboratories, clinical testing facilities, and pharmaceutical quality control environments. Unlike single-compressor units, the FYCD-290 employs two independent refrigeration circuits: one optimized for precise +2°C to +8°C operation in the upper refrigerated compartment, and a second high-efficiency cascade or low-temperature compressor system maintaining stable −40°C performance in the lower freezer section. This architecture eliminates thermal cross-talk, ensures rapid recovery after door openings, and supports simultaneous compliance with both cold-chain requirements for short-term refrigerated storage (per WHO and CDC guidelines) and extended cryo-stable preservation at sub-zero temperatures. The unit meets IEC 61010-1 safety standards for laboratory equipment and is constructed with reinforced stainless-steel interior walls, seamless corners, and non-porous epoxy-coated shelving to resist corrosion and facilitate decontamination.

Key Features

• Dual independent compressor system enables concurrent, stable operation at +2–8°C (refrigerator) and −40°C (freezer), minimizing temperature fluctuation (< ±0.8°C at setpoint under standard load conditions).
• 290 L total effective storage volume distributed across intelligently partitioned compartments—142 L refrigerated zone and 148 L deep-freeze zone—with adjustable, load-rated stainless-steel shelves (5 per compartment).
• Microprocessor-based digital controller with real-time temperature display, programmable alarms (high/low temperature, door open, sensor fault), and configurable audible/visual alert outputs.
• Forced-air convection ensures uniform temperature distribution (±1.2°C uniformity across refrigerated zone; ±1.5°C across freezer zone, per ISO 15502 test protocol).
• Robust cabinet construction featuring 80 mm thick polyurethane insulation (CFC-free, 0.022 W/m·K thermal conductivity), double-glazed tempered glass door with anti-fog heater, and magnetic door gasket with integrated seal integrity monitoring.
• Compliance-ready design includes optional RS-485 interface for integration into centralized environmental monitoring systems (EMS) and audit-trail-capable data logging (with external USB or Ethernet module).

Sample Compatibility & Compliance

The FYCD-290 accommodates standard laboratory storage configurations including 50 mL conical tubes, 15 mL Falcon tubes, cryovials (2 mL and 5 mL), microcentrifuge tube racks, and stacked sample boxes up to 400 mm in height. Its internal geometry supports ISO/IEC 17025-aligned calibration practices using NIST-traceable PT100 sensors. The unit complies with key regulatory frameworks applicable to biobanking and GxP environments: it satisfies the mechanical and operational criteria of ISO 15502 (performance requirements for refrigerated cabinets), supports 21 CFR Part 11-compliant electronic records when paired with validated data loggers, and is suitable for GLP/GMP storage of stability-indicating reference standards per ICH Q5C. Optional validation packages (IQ/OQ/PQ) are available upon request to meet institutional SOP requirements.

Software & Data Management

While the base unit operates via an embedded microcontroller with local display and alarm management, connectivity options enable enterprise-level traceability. An optional Ethernet-enabled data logger (Fisherbrand DLM-290E) provides continuous temperature recording at user-defined intervals (1–60 min), stores ≥12 months of data onboard, and exports CSV or PDF reports compliant with FDA Annex 11 expectations. Alarm events—including door-open duration exceeding 60 seconds or sustained deviation >±2°C—are timestamped and logged with operator ID fields. Integration with Thermo Fisher’s SampleManager LIMS or third-party EMS platforms (e.g., Vaisala viewLinc, SensiNet) is supported via Modbus TCP or MQTT protocols.

Applications

• Short-term storage of PCR reagents, antibodies, enzymes, and ELISA kits requiring strict +2–8°C integrity.
• Stabilization of blood-derived products (serum, plasma, PBMCs) prior to cryopreservation or downstream analysis.
• Backup cold storage for −80°C ultra-low freezers during maintenance cycles or power redundancy planning.
• Regulatory sample retention for pharmaceutical stability studies (ICH Q1A–Q1E) where intermediate temperature points (+5°C, −20°C, −40°C) are mandated.
• Biorepository workflows requiring segregated zones for pre-processing (refrigerated) and long-term archival (frozen) biospecimens.

FAQ

Does the FYCD-290 support validation for GMP environments?

Yes—when equipped with optional calibrated sensors and a qualified data logger, the unit can be fully validated per IQ/OQ/PQ protocols aligned with EU GMP Annex 15 and ASTM E2500.
Can the refrigerator and freezer compartments be operated independently?

Yes—the dual-compressor architecture allows either compartment to be powered down while the other remains operational, supporting energy optimization and service isolation.
Is remote monitoring possible without additional hardware?

No—remote access requires the optional DLM-290E data logger or integration with an external EMS platform via the RS-485 port.
What is the mean time between failures (MTBF) for the cooling system?

Based on field data from installed units in Asia-Pacific laboratories, the dual-compressor system demonstrates an MTBF of >12,000 hours under continuous operation at rated ambient conditions (25°C, 60% RH).
Are replacement shelves and drawers available as spare parts?

Yes—stainless-steel shelves (part #FYCD-SH-01), wire basket drawers (FYCD-DR-02), and door-mounted accessory rails (FYCD-RAL-03) are stocked globally through Thermo Fisher’s authorized distribution network.
