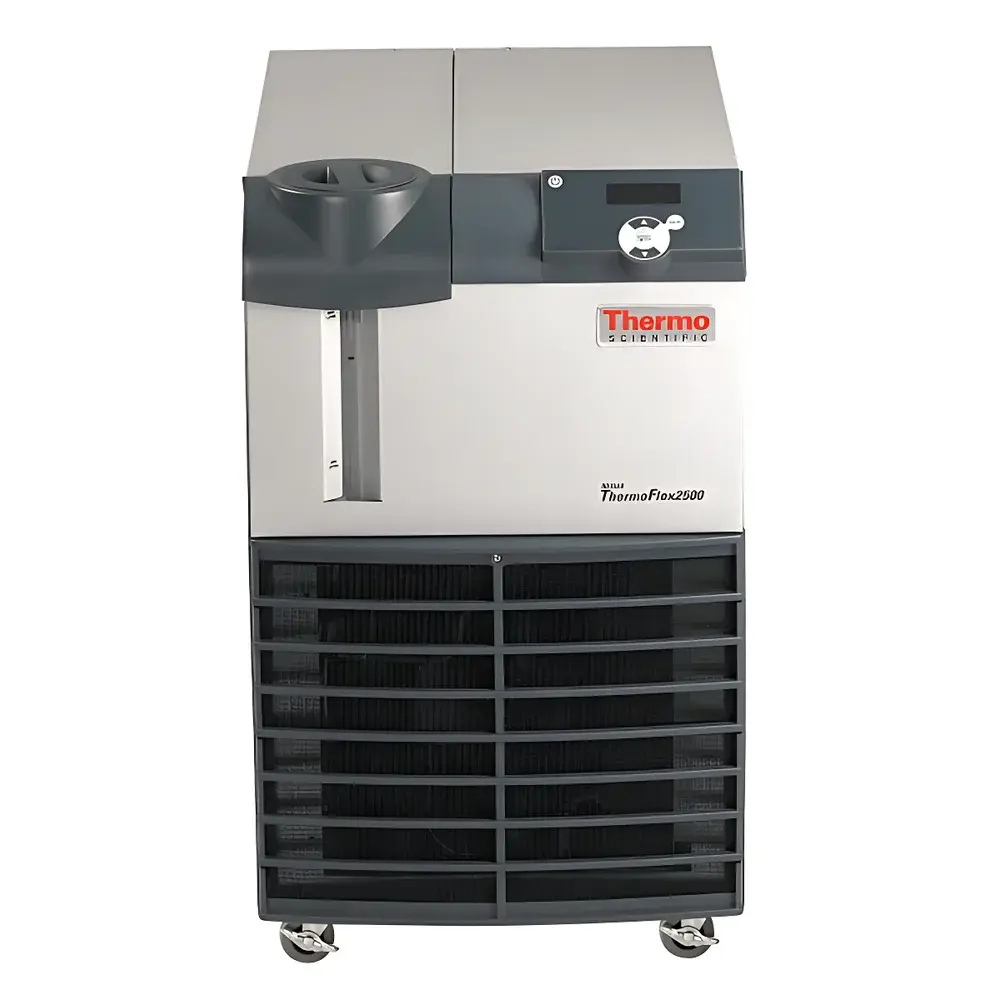

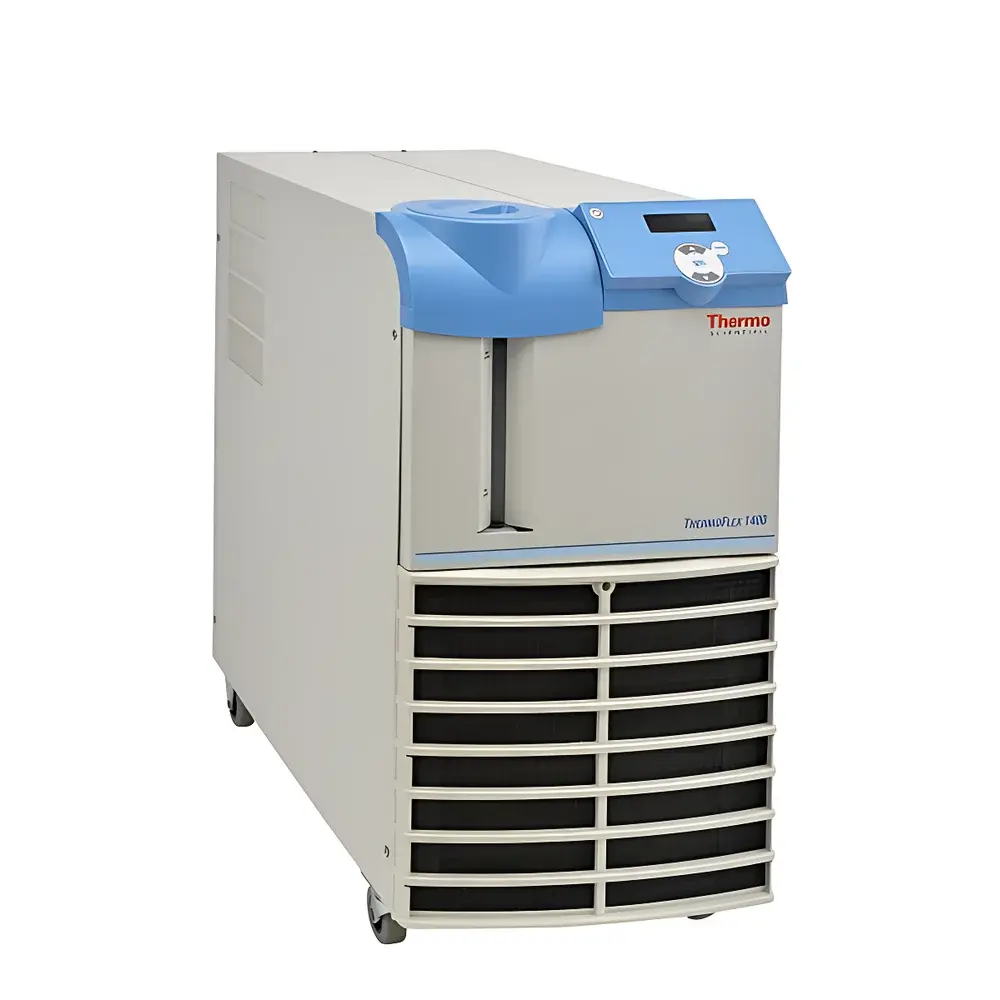

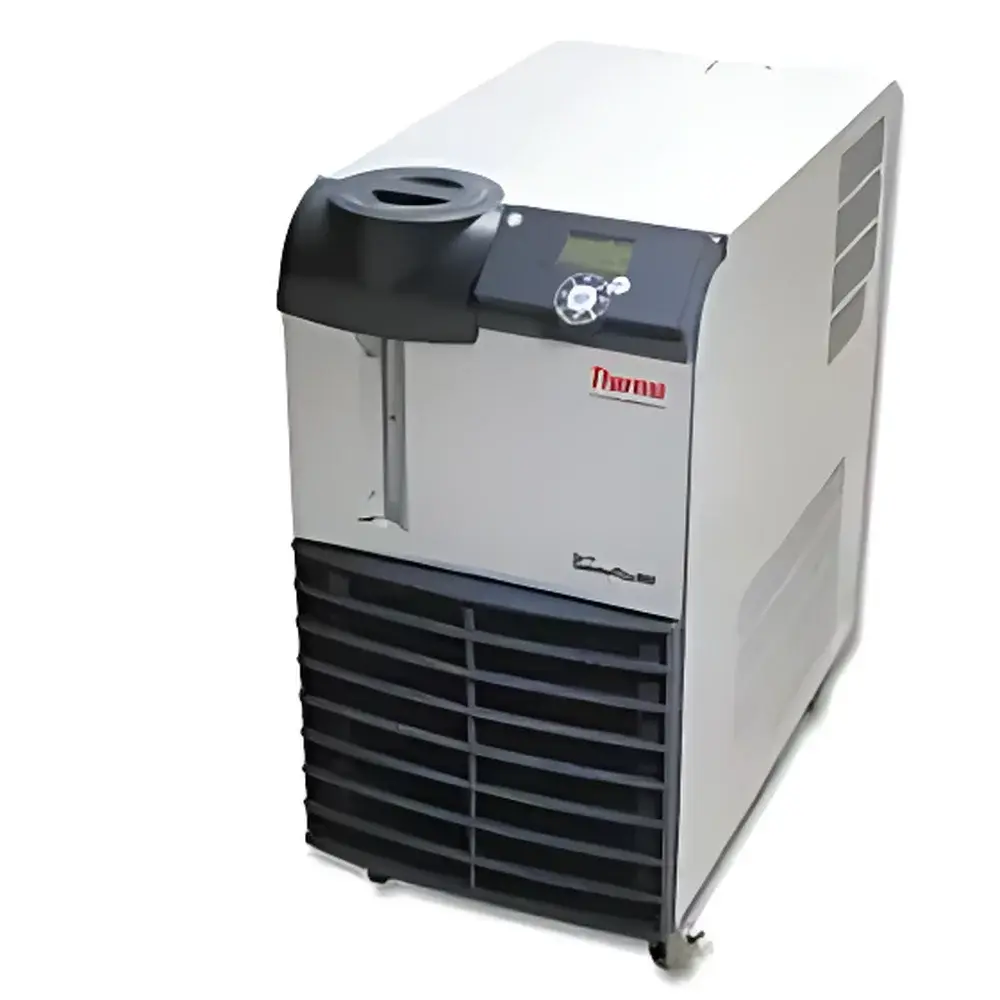

Thermo Fisher ThermoFlex 900/1400/2500 Circulating Chiller

Overview

The Thermo Fisher ThermoFlex 900/1400/2500 series represents a family of compact, air-cooled circulating chillers engineered for precision temperature control in demanding laboratory and industrial environments. These units operate on vapor-compression refrigeration principles, utilizing environmentally compliant R-410A refrigerant and hermetically sealed scroll compressors to deliver stable, continuous cooling across a standard setpoint range of 5–40°C. Designed for integration with analytical instruments—including lasers, spectrometers, X-ray diffractometers, and semiconductor process tools—the ThermoFlex platform maintains thermal equilibrium through closed-loop circulation of deionized or inhibited coolant, minimizing thermal drift and ensuring reproducible experimental conditions. Its robust architecture supports uninterrupted 24/7 operation, meeting the thermal management requirements of GLP-compliant labs, ISO 17025-accredited testing facilities, and FDA-regulated medical device manufacturing lines.

Key Features

• High System Reliability: Refrigeration circuits employ high-integrity brazed copper tubing and leak-tested components; all critical joints undergo helium mass spectrometry verification during final assembly to ensure long-term integrity under continuous duty cycles.
• Enhanced Thermal Performance: The ThermoFlex 2500 delivers up to 10% higher cooling capacity per unit footprint compared to competitive units in its class, achieved via optimized heat exchanger geometry and variable-speed compressor modulation.
• Ultra-Low Acoustic Emission: Select models (ThermoFlex 900L & 1400L) incorporate acoustic dampening enclosures, low-turbulence fan arrays, and vibration-isolated compressor mounts to achieve operational noise levels below 58 dBA at 1 m—compatible with quiet-zone laboratory specifications per ANSI S12.2-2020.
• Intuitive Operator Interface: A backlit, membrane-sealed touchscreen controller enables rapid configuration of setpoints, ramp rates, alarm thresholds, and pump parameters; onboard memory retains up to 10 user-defined profiles with timestamped execution logs.
• Maintenance-Friendly Design: Removable particulate filter cartridges (10 µm nominal rating) are accessible without tools; reservoir level is monitored via capacitive sensors with visual and relay-based low-level alerts; all service ports conform to ISO 8573-1 Class 4 purity standards for compressed air interfaces.

Sample Compatibility & Compliance

The ThermoFlex series is compatible with aqueous glycol mixtures (up to 35% v/v ethylene or propylene glycol), deionized water, and instrument-grade coolant formulations meeting ASTM D1384 corrosion inhibition requirements. Units comply with electromagnetic compatibility (EMC) directives per EN 61326-1:2013 and electrical safety standards per UL 61010-1 and CSA C22.2 No. 61010-1. All models carry CE marking under the EU Machinery Directive 2006/42/EC and RoHS 2011/65/EU compliance. For regulated environments, firmware supports audit-trail generation (per FDA 21 CFR Part 11 Annex 11 guidelines) when integrated with Thermo Fisher’s Chronos™ Lab Management Software Suite.

Software & Data Management

Native RS-485 Modbus RTU and optional Ethernet/IP interfaces enable bidirectional communication with building management systems (BMS) and LIMS platforms. The embedded controller logs real-time temperature, pressure, flow rate (where equipped), and compressor runtime data at user-configurable intervals (1 s to 1 h resolution). Export formats include CSV and XML; historical datasets support trend analysis in Microsoft Excel or MATLAB. Optional Thermo Fisher Connect™ Cloud Gateway provides remote monitoring, predictive maintenance alerts (based on compressor cycle count and delta-T deviation), and over-the-air firmware updates validated per IEC 62443-3-3 security protocols.

Applications

• Stabilization of high-power diode and CO₂ lasers used in materials processing and biomedical instrumentation
• Thermal regulation of HPLC column ovens, mass spectrometer ion sources, and NMR probe preamplifiers
• Cooling of vacuum chamber feedthroughs and RF amplifiers in semiconductor wafer fabrication tools
• Temperature control for rheometers, differential scanning calorimeters (DSC), and dynamic mechanical analyzers (DMA)
• Support of controlled-environment incubators and electrophysiology rigs requiring precise bath temperature stability

FAQ

What is the maximum allowable coolant viscosity for optimal pump performance?
The integrated centrifugal pump is rated for operation with fluids having kinematic viscosity ≤ 20 cSt at 20°C. Higher viscosities require optional high-head pump configurations (P3/P4 variants) and corresponding flow calibration.
Can the ThermoFlex chiller be operated in a ventilated fume hood?
Yes—provided ambient airflow does not exceed 0.5 m/s across the condenser intake and exhaust grilles, and ambient temperature remains within 15–35°C per IEC 60068-2-14 specifications.
Is external temperature feedback supported for cascade control loops?
Yes—via analog 4–20 mA or 0–10 V input terminals; the controller accepts external sensor signals (Pt100, thermistor, or thermocouple) to enable process-coupled temperature regulation.
How often should the particulate filter be replaced under typical lab use?
Under ISO Class 7 cleanroom-equivalent conditions with filtered coolant, replacement is recommended every 6 months or after 2000 operating hours—whichever occurs first—as tracked by the onboard maintenance timer.
Does the unit meet requirements for use in Class II biological safety cabinets?
While not certified for internal cabinet installation, ThermoFlex units may be located externally with coolant lines routed through dedicated utility ports; full compliance requires third-party validation per NSF/ANSI 49 Section 9.5.2 for external utility integration.
