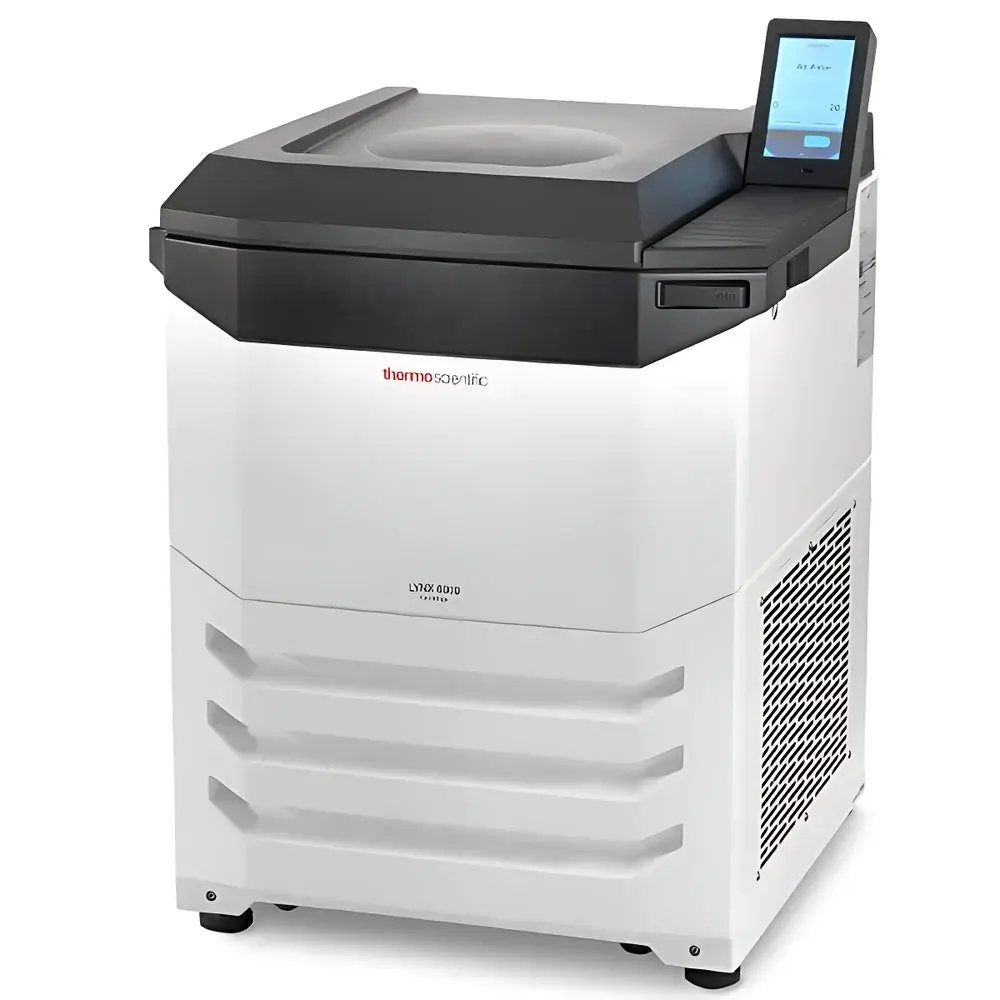

Thermo Scientific™ LYNX 6000 High-Speed Floor Model Centrifuge
| Brand | Thermo Scientific |
|---|---|
| Origin | Germany |
| Model | LYNX 6000 |
| Instrument Type | Floor-standing Centrifuge |
| Speed Range | 1,000–29,000 rpm |
| Max RCF | 100,605 × g (with T29-8×50 rotor) |
| Max Capacity | 4 L (4 × 1,000 mL bottles) |
| Horizontal Rotor Configurations | 24 microplates, 40 × 50 mL tubes, or 96 × 15 mL conical tubes at 5,500 rpm / 7,068 × g |
| Dimensions (H × D × W) | 930 × 805 × 700 mm (36.6 × 31.7 × 27.6 in) |
| Noise Level | <57 dBA (fixed-angle rotors), <61 dBA (swing-bucket rotors) |
| Vacuum System | Intelligent vacuum-assisted chamber evacuation (up to 80% air removal) |
| Compliance | CE, IEC 61010-2-020, ISO 13485 (for medical device manufacturing environments), GLP/GMP-ready with audit trail-capable software logging |
Overview
The Thermo Scientific™ LYNX 6000 High-Speed Floor Model Centrifuge is an engineered platform for demanding separation workflows in biopharmaceutical development, cell biology, virology, and large-scale biomolecule purification. Operating on the principle of sedimentation under controlled centrifugal force, it delivers precise, reproducible separations across a wide range of sample volumes and densities — from intact mammalian cells and bacterial pellets to subcellular organelles, exosomes, and viral particles. Its maximum relative centrifugal force (RCF) of 100,605 × g enables rapid pelleting of high-density particles while maintaining structural integrity of sensitive biologicals. Designed for integration into regulated laboratory environments, the LYNX 6000 supports method transfer, process validation, and routine QC/QA operations requiring traceable, repeatable performance.
Key Features
- Auto-Lock™ Rotor Engagement: A fully mechanical, tool-free, three-second rotor locking mechanism ensures secure coupling between rotor and drive shaft without manual tightening. This eliminates human error in installation and guarantees correct alignment and torque transmission during operation.
- Auto-ID™ Rotor Recognition: Integrated RFID-based identification reads rotor specifications (max speed, RCF, capacity, safety limits) instantly upon insertion. The system auto-populates parameters in the control interface and enforces hard-coded overspeed protection, preventing accidental operation beyond certified limits.
- Intelligent Vacuum System: Reduces internal chamber air volume by up to 80% during high-speed runs, minimizing aerodynamic drag and heat generation. This extends rotor lifespan, improves energy efficiency (~18% reduction in power consumption at 25,000 rpm), and enhances thermal stability of temperature-sensitive samples.
- Fiberlite™ Carbon Fiber Rotors: Engineered with aerospace-grade carbon fiber composites, these rotors offer superior corrosion resistance, fatigue tolerance, and weight reduction (up to 40% lighter than equivalent titanium rotors). All Fiberlite rotors carry a 15-year limited warranty against material and workmanship defects.
- Centri-Touch™ Control Interface: A 10.4-inch capacitive touchscreen with anti-glare coating provides intuitive navigation, multilingual support, user role-based access control (admin/operator/guest), and embedded procedural guidance for common protocols.
- Enhanced Biosafety Architecture: Optional HEPA filtration (EN 1822 H14 rated) captures aerosols generated during tube rupture events. ClickSeal™ biocontainment lids (certified by UK Porton Down and TÜV NORD CERT GmbH) provide leak-tight sealing for BSL-2/BSL-3 applications. Swing-bucket rotors feature integrated fluid containment grooves to retain spilled supernatant in case of tube failure.
Sample Compatibility & Compliance
The LYNX 6000 accommodates diverse primary containers including 15–1,000 mL conical tubes, round-bottom centrifuge bottles, deep-well microplates (96- and 384-well), and continuous-flow cartridges. It supports both batch and quasi-continuous processing modes via optional zonal and continuous-flow rotors. Regulatory compliance includes full adherence to IEC 61010-2-020 (safety requirements for centrifuges), CE marking under the EU Machinery Directive, and design conformity with ISO 13485 for use in medical device manufacturing settings. When paired with Centri-Vue™ software and enabled audit trail functionality, the system meets FDA 21 CFR Part 11 requirements for electronic records and signatures in GLP and GMP environments.
Software & Data Management
Centri-Vue™ mobile and desktop application enables real-time remote monitoring of run status, RCF, temperature, vacuum level, and elapsed time. Users can initiate, pause, or abort runs remotely; receive push notifications for completion or fault conditions; and export CSV-formatted logs containing timestamped operational metadata. Onboard data storage retains ≥10,000 run records with full parameter history, user ID, and event timestamps. Audit trail configuration allows administrators to define retention policies, enable digital signature capture, and generate PDF reports compliant with internal SOPs and external inspection readiness standards.
Applications
- Large-volume clarification of CHO, HEK293, and insect cell culture harvests (up to 4 L per run)
- Isolation of extracellular vesicles and exosomes using density gradient or differential ultracentrifugation protocols
- Preparative purification of plasmid DNA, mRNA, and viral vectors (AAV, lentivirus)
- High-throughput sample preparation for proteomics and metabolomics workflows
- Process development and scale-down modeling for downstream bioprocessing steps
- Quality control testing of sterile filtration efficacy and particulate contamination in biologics
FAQ
What safety certifications does the LYNX 6000 hold?
The instrument complies with IEC 61010-2-020, carries CE marking, and is designed to meet ISO 13485 requirements for medical device manufacturing. Optional HEPA filtration and ClickSeal™ lids are certified by UK Public Health England (Porton Down) and TÜV NORD CERT GmbH for biosafety applications.
Can the LYNX 6000 be integrated into a LIMS or MES environment?
Yes — via Ethernet-connected Centri-Vue™ software, the centrifuge supports HL7 and ASTM E1384-compliant data export, enabling bidirectional communication with laboratory information management systems and manufacturing execution systems.
Is rotor calibration required after each installation?
No. Auto-ID™ eliminates manual rotor coding. The system performs automatic recognition and applies factory-calibrated performance curves stored in the rotor’s embedded RFID chip.
What is the warranty coverage for critical subsystems?
Standard coverage includes 1 year for the main unit, 3 years for the drive assembly, 5 years for the refrigeration system, and 15 years for all Fiberlite™ carbon fiber rotors — reflecting confidence in long-term mechanical and thermal stability.
Does the intelligent vacuum system affect sample temperature stability?
Yes — by reducing convective heat transfer within the chamber, the vacuum system contributes to tighter temperature control (±0.5 °C at 4 °C setpoint), particularly during extended high-speed runs (>30 min).
