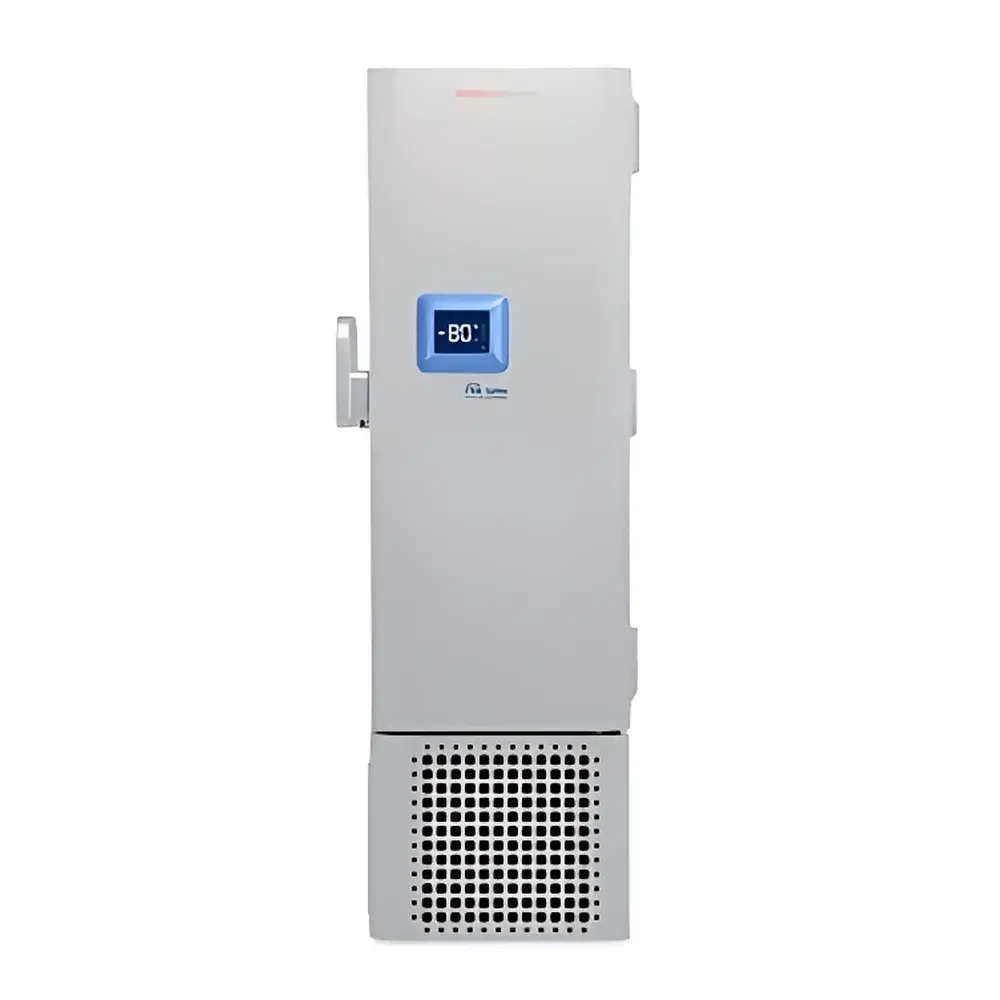

Thermo Scientific Performance HC 60086 Ultra Low Temperature Freezer

Overview

The Thermo Scientific Performance HC 60086 Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of sensitive biological materials—including primary cells, stem cell lines, plasma, mRNA vaccines, and genomic samples—at sustained temperatures of –80 °C. Designed using proven dual-stage cascade refrigeration architecture with independent compressor circuits, the system delivers thermal stability within ±2 °C across the entire chamber volume under standard ambient conditions (25 °C, 60% RH). Its structural integrity is reinforced by vacuum-insulated panels (VIPs) integrated into the door and cabinet walls, reducing thermal bridging and supporting consistent temperature uniformity. Unlike legacy models relying on high-global-warming-potential (GWP) hydrofluorocarbon (HFC) refrigerants, this series employs a pure hydrocarbon (HC) blend—R290/R600a—as the primary working fluid, fully compliant with U.S. EPA SNAP Program requirements and EU Regulation (EU) No 517/2014 on fluorinated greenhouse gases.

Key Features

• Hydrocarbon-based refrigeration system: Zero ozone depletion potential (ODP) and ultra-low GWP (<;10), enabling regulatory alignment with evolving environmental mandates in North America and the EEA.
• Intuitive 7-inch capacitive touchscreen interface with multi-level user permissions (administrator, operator, viewer), audit-trail–capable event logging, and real-time status visualization via dynamic icons—including a dedicated “Heart” indicator for instantaneous operational health assessment.
• Acoustically optimized cabinet design achieves ≤50 dBA sound pressure level at 1 m distance—critical for placement in shared laboratory corridors or open-plan research suites without disrupting adjacent workflows.
• Compact footprint (0.98 m² floor area) maximizes storage density per square meter, supporting high-throughput biobanking operations where spatial efficiency directly impacts facility scalability.
• Robust construction includes stainless-steel interior chamber, reinforced door gasket with magnetic seal integrity monitoring, and optional 21 CFR Part 11–compliant software package for electronic signatures, role-based access control, and immutable data archiving.

Sample Compatibility & Compliance

The Performance HC 60086 supports storage of diverse biospecimens including cryovials (1.0–5.0 mL),冻存管 racks (e.g., Nunc™, Corning® formats), microtiter plates, and bulk containers up to 500 mL. Chamber geometry accommodates standard ISO 9001–certified rack configurations with vertical clearance for stacked storage. All models are CE-marked and comply with IEC 61010-1:2010 for laboratory equipment safety. For regulated environments, optional validation documentation (IQ/OQ/PQ protocols) and factory-installed temperature mapping kits support compliance with FDA 21 CFR Part 11, ISO/IEC 17025, and GLP/GMP cold-chain requirements. Temperature alarms include visual/audible alerts, remote SNMP notification, and configurable email/SMS escalation paths.

Software & Data Management

Embedded firmware supports local data retention for ≥30 days of 1-minute interval temperature logs, door-open events, and compressor cycle history. Optional Thermo Fisher Connect™ Cloud Service enables secure remote monitoring, cross-site fleet management, predictive maintenance alerts, and automated report generation (PDF/CSV). Data export conforms to ASTM E2500-13 guidelines for raw data traceability. Audit trails record all parameter changes, user logins, and alarm acknowledgments with timestamp, IP address, and authenticated identity—fully satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

This freezer serves mission-critical roles across pharmaceutical development (QC/QA sample archiving), academic genomics cores (DNA/RNA biobanking), clinical trial logistics (biospecimen stabilization pre-shipment), and government public health repositories (viral isolate preservation). Its energy-efficient operation reduces total cost of ownership over a 10-year lifecycle—particularly advantageous for CROs managing multiple client-specific storage contracts and universities operating centralized core facilities under constrained capital budgets.

FAQ

What is the minimum ambient temperature rating for continuous operation?
The unit is rated for stable performance in ambient environments between 10 °C and 32 °C, with derating applied above 25 °C per IEC 60068-2-14.
Can the freezer be integrated into a building management system (BMS)?
Yes—via optional Modbus TCP or BACnet/IP gateway module for real-time telemetry and centralized HVAC coordination.
Is external temperature monitoring port available?
Standard RS-485 and analog 4–20 mA outputs support third-party data loggers and SCADA integration.
Does the system support automated defrost cycles?
No—this model uses a manual-defrost architecture to preserve thermal stability during extended storage; frost accumulation is minimized through VIP insulation and HC refrigerant thermodynamic efficiency.
What validation documentation is provided with shipment?
Factory calibration certificate, IQ/OQ templates, and temperature uniformity test report per ISO 14644-1 Class 5 cleanroom-compatible methodology are included.
