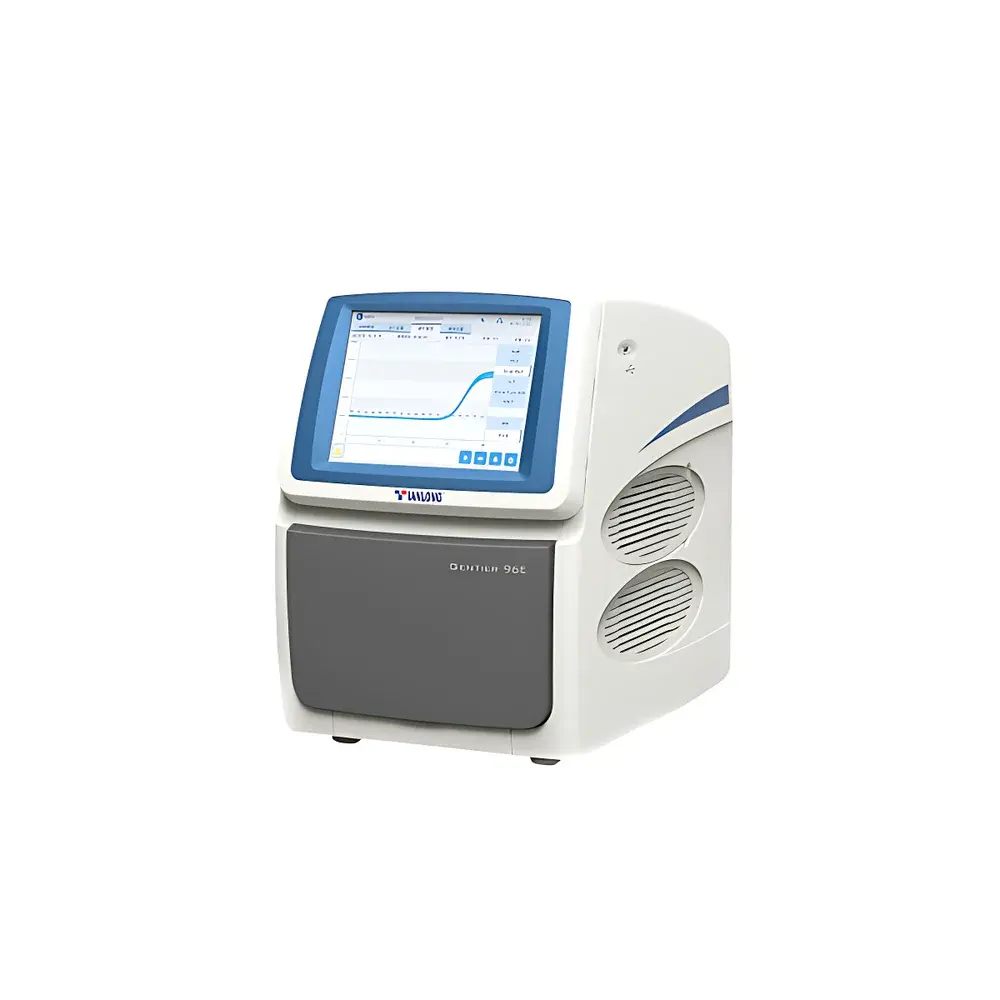

TIANLONG Gentier 96R Fully Automated Clinical Real-Time Fluorescent Quantitative PCR System

Overview

The TIANLONG Gentier 96R is a CE-IVD–designed, fully automated clinical real-time fluorescent quantitative PCR system engineered for high-fidelity nucleic acid amplification and detection in regulated diagnostic environments. It operates on the principle of sequence-specific DNA amplification coupled with real-time fluorescence monitoring—utilizing SYBR Green I, hydrolysis probes (TaqMan), hybridization probes (FRET), and other commercially validated chemistries. The system integrates a Peltier-based thermal control architecture with 12-column gradient capability (1–40 °C span), enabling empirical optimization of annealing temperatures without iterative manual testing. Its top-mounted optical module employs wavelength-specific LEDs (465 nm, 527 nm, 580 nm, 632 nm excitation) and matched photodiode detectors (510 nm, 563 nm, 616 nm, 664 nm emission), ensuring minimal cross-talk and eliminating edge-effect artifacts through synchronized per-well scanning. With ≤7 s acquisition time for full 96-well interrogation across four independent fluorescence channels, the Gentier 96R supports rapid cycle kinetics while maintaining thermal precision (≤±0.1 °C uniformity) and reproducibility (Ct CV ≤0.5%).

Key Features

• Four-channel real-time fluorescence detection optimized for clinical assay panels—including FRET-capable channel configuration for low-background, high-sensitivity probe assays.

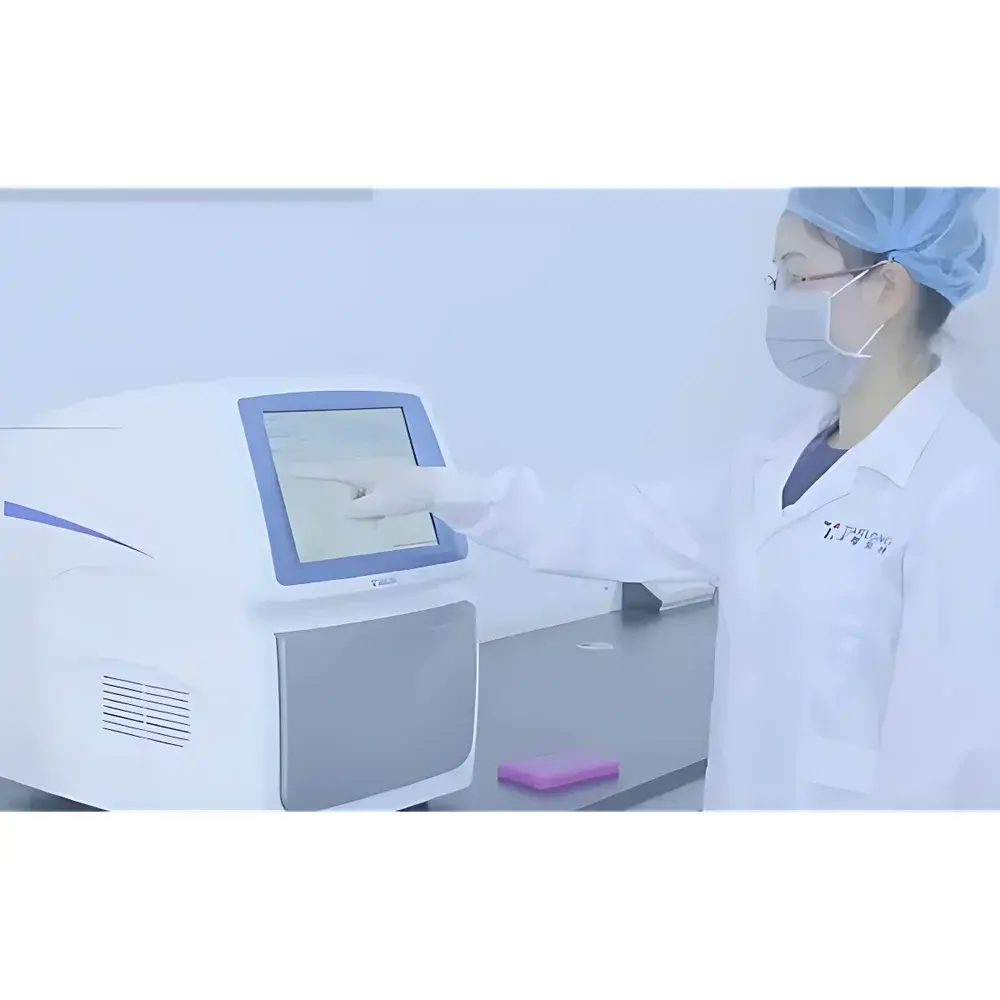

• Integrated 10.4-inch capacitive touchscreen interface enabling standalone operation: experiment setup, real-time monitoring, result visualization, and report generation without external PC dependency.
• Robust thermal architecture featuring multi-zone Peltier elements delivering ≥6.1 °C/s heating and ≥5.0 °C/s peak cooling rates—reducing total run time for standard 40-cycle protocols by up to 22% versus legacy systems.

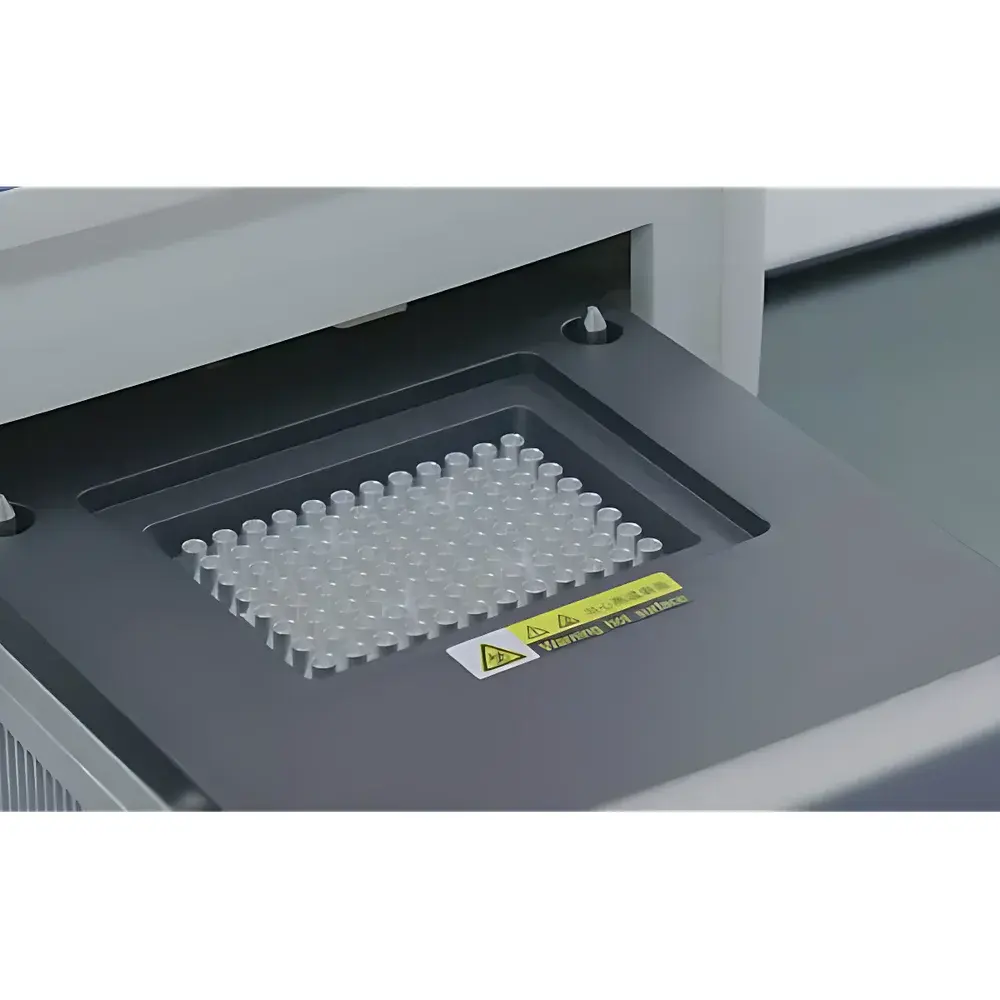

• Automated sample chamber with motorized ejection/retraction, tactile-close functionality, and transport-lock sensing to prevent mechanical damage during shipment or relocation.
• Intelligent power-resume logic: automatically restores interrupted runs upon AC recovery—preserving thermal ramp history, fluorescence baseline, and cycle count without user intervention.
• Comprehensive security framework supporting role-based access control (administrator, technician, viewer), audit-trail logging per FDA 21 CFR Part 11 requirements, and encrypted local data storage (≤1,000 experiments).

Sample Compatibility & Compliance

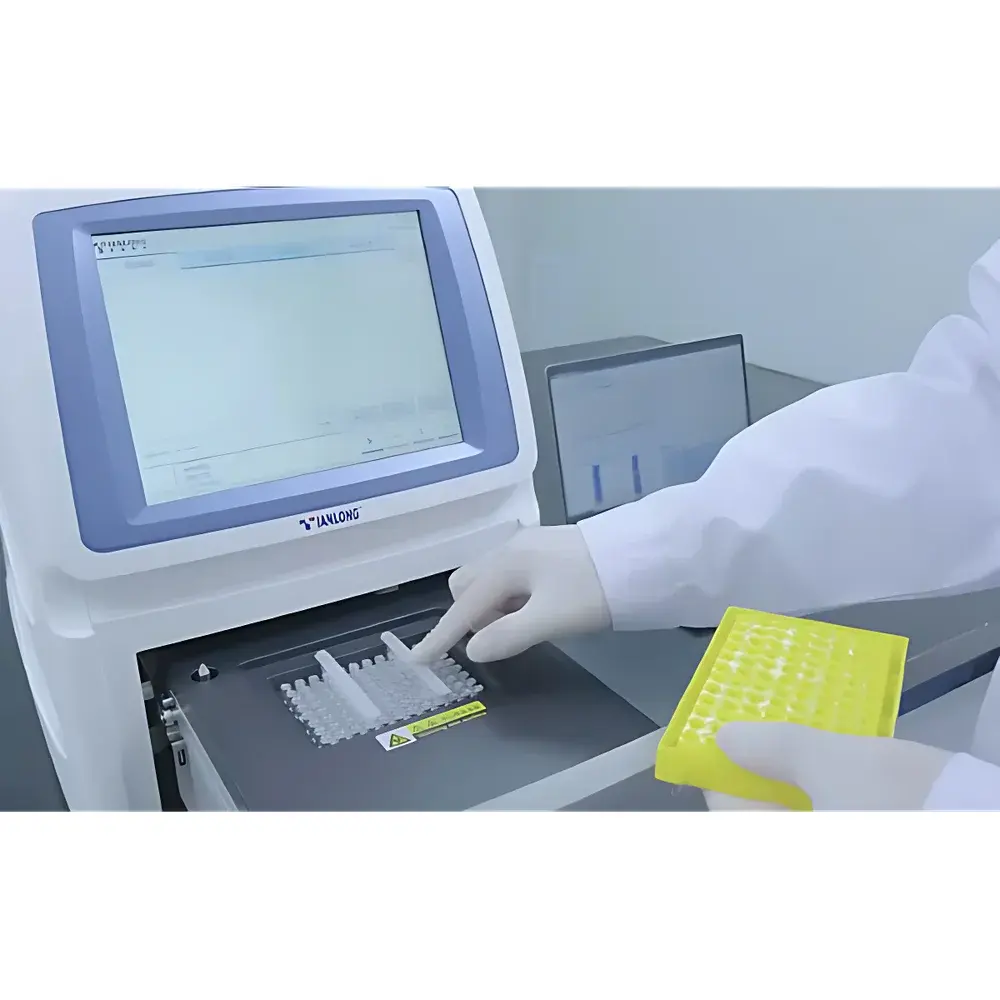

The Gentier 96R accepts standard 0.2 mL 96-well plates (clear, frosted, or white), 8-tube strips, and individual tubes—compatible with all major commercial qPCR master mixes and probe chemistries. Its thermally stabilized optical path and sealed reaction chamber minimize contamination risk and ensure long-term signal stability. The system complies with ISO 13485:2016 for medical device quality management and meets electromagnetic compatibility (EMC) requirements per IEC 61326-1:2013. For in vitro diagnostic use, it aligns with IVDR Annex I essential requirements (ER 10.1, ER 10.2) regarding analytical sensitivity, specificity, and repeatability. All firmware and software updates are version-controlled and traceable, supporting GLP/GMP laboratory validation workflows.

Software & Data Management

GentierControl™ v5.x software provides an intuitive, workflow-driven interface supporting protocol templating, multi-level analysis (Ct thresholding, ΔΔCt, efficiency-corrected quantification), HRM curve differentiation, and SNP cluster classification. Raw fluorescence data (.gdt) and processed results (.xlsx, .csv, .pdf) are exportable via USB or network transfer. Built-in LIS connectivity uses HL7-compatible message formatting and supports bidirectional synchronization with hospital laboratory information systems. Audit logs record every user action—including parameter modification, file deletion, and calibration event—with immutable timestamps and operator ID binding. Data encryption at rest (AES-256) and TLS 1.2–secured remote access ensure confidentiality across distributed lab networks.

Applications

The Gentier 96R serves as a primary platform for molecular diagnostics in clinical microbiology (e.g., SARS-CoV-2, influenza A/B, RSV, TB), oncology (BRAF V600E, EGFR L858R), pharmacogenomics (CYP2C19*2, VKORC1 -1639G>A), and transplant medicine (HLA typing). Its gradient-enabled thermal profiling accelerates assay development for novel pathogens, while HRM functionality supports methylation-sensitive detection and rare variant screening. Public health laboratories leverage its networked operation mode for centralized instrument monitoring across regional testing sites. Forensic DNA labs utilize its high Ct reproducibility and low background noise for STR quantification and degraded sample analysis.

FAQ

Does the Gentier 96R support FDA 21 CFR Part 11 compliance?
Yes—the system includes electronic signature support, audit trail generation, and role-based permission controls required for regulated environments.
Can the instrument operate without a connected PC?
Yes—full experimental control, real-time monitoring, and basic analysis are available via the integrated 10.4-inch touchscreen interface.
What consumables are validated for use with this system?
All ANSI/SBS-compliant 0.2 mL 96-well plates, 8-tube strips, and single tubes (transparent, frosted, or white) from leading suppliers (e.g., Thermo Fisher, Eppendorf, Axygen) are supported.
Is LIS integration limited to specific vendor platforms?
No—open API documentation and configurable HL7 message mapping allow interoperability with any LIS that supports standard clinical data exchange protocols.
How is temperature uniformity verified during factory calibration?
Each unit undergoes NIST-traceable thermal mapping using 96-point fiber-optic sensors across the block surface, with final certification confirming ≤±0.1 °C deviation at 60 °C and 95 °C setpoints.
