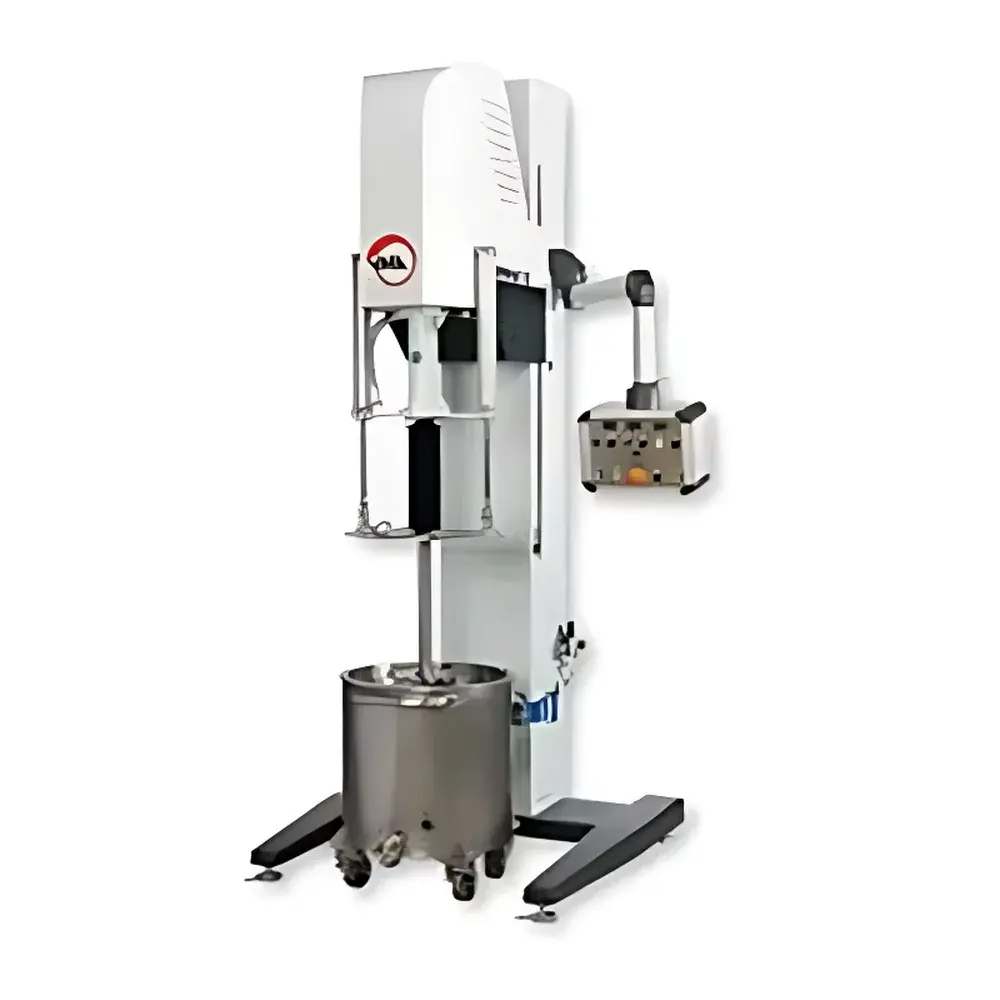

VMA SC122 High-Shear Dispersion System
| Brand | VMA |
|---|---|
| Origin | Germany |
| Model | SC122 |
| Power | 15 kW |
| Max. Batch Volume | 75–750 L |
| Optional Modules | Vacuum Dispersion Unit, ATEX-Compliant Explosion-Proof System (Zone 0/1/2), PLC-Based Control System |
| Compliance | CE, ISO 9001, ATEX Directive 2014/34/EU |
Overview
The VMA SC122 High-Shear Dispersion System is an industrial-grade laboratory and pilot-scale dispersion platform engineered for reproducible, scalable processing of complex multiphase formulations. Operating on the principle of high-intensity rotor-stator hydrodynamic shear, the system generates controlled turbulent flow fields that simultaneously induce cavitation, impact, and elongational stress—enabling rapid deagglomeration, particle size reduction, and uniform phase distribution in suspensions, emulsions, pastes, and highly viscous matrices. Designed for transferability from R&D to pre-commercial production, the SC122 integrates precision mechanical architecture with process-critical safety and environmental controls, making it suitable for applications demanding strict adherence to GLP, GMP, and hazardous-area operational protocols.
Key Features
- High-power 15 kW drive unit with variable-speed frequency inverter (0–6000 rpm) for precise shear rate modulation across viscosity ranges up to 50,000 mPa·s
- Interchangeable rotor-stator geometries (e.g., fine-gap, multi-stage, high-turbulence configurations) optimized for specific material rheology and target particle size distribution
- Integrated vacuum dispersion module enabling operation under reduced pressure (down to 10 mbar abs) to suppress foaming, eliminate entrapped air, and enhance wetting of hydrophobic powders
- ATEX-certified explosion-proof configuration compliant with Directive 2014/34/EU for use in Zone 0, 1, and 2 classified environments—validated for solvent-based, reactive, or dust-laden processes
- PLC-based control system with HMI touchscreen interface supporting recipe management, real-time torque/temperature/pressure monitoring, and event-logged audit trails per FDA 21 CFR Part 11 requirements
- Robust stainless-steel (AISI 316L) construction with CIP/SIP-compatible sealing and surface finish (Ra ≤ 0.8 µm) meeting pharmaceutical and food-grade hygiene standards
Sample Compatibility & Compliance
The SC122 accommodates batch volumes from 75 L to 750 L, supporting both low-viscosity Newtonian fluids and non-Newtonian systems including thixotropic gels, nanoparticle suspensions, conductive pastes, and polymer-modified bitumens. Its modular design allows seamless integration with auxiliary equipment such as temperature-controlled jackets, feed pumps, and inline particle analyzers (e.g., laser diffraction or dynamic light scattering). Regulatory alignment includes full CE marking, conformity with Machinery Directive 2006/42/EC, electromagnetic compatibility per EN 61000-6-2/-4, and traceable calibration documentation per ISO/IEC 17025. For regulated industries, the system supports IQ/OQ/PQ validation protocols and maintains electronic records compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
Software & Data Management
The embedded Siemens S7-1200 PLC controls all critical process parameters—including rotational speed, vacuum level, jacket temperature, and motor load—with configurable setpoints and interlocks. Data acquisition occurs at 10 Hz resolution and is stored locally on encrypted SD card or exported via Ethernet/IP to MES or LIMS platforms. The proprietary VMA ProcessLog software provides graphical trend analysis, deviation alerts, and PDF report generation with digital signatures. All user actions, parameter changes, and alarm events are time-stamped and immutable, satisfying audit requirements under ISO 13485, USP , and EU Annex 11 for computerized system validation.
Applications
- Development and scale-up of battery electrode slurries (NMC, LFP, silicon anodes) requiring sub-micron dispersion stability and minimal agglomerate reformation
- Formulation of UV-curable inks, conductive silver pastes, and ceramic green tapes where void-free homogeneity directly impacts sintering integrity
- Pharmaceutical nanosuspension preparation under inert atmosphere for poorly water-soluble APIs (BCS Class II/IV)
- Production of stable oil-in-water and water-in-oil emulsions for cosmetics and functional foods, with droplet size control down to Dv90 < 200 nm
- Dispersion of carbon nanotubes, graphene, and metal oxide nanoparticles in polymer matrices for advanced composites
FAQ
What batch volume range does the SC122 support?
The system is configurable for nominal working volumes between 75 L and 750 L, with geometric scalability validated across all sizes.
Can the SC122 be integrated into an existing cleanroom or hazardous-area facility?
Yes—ATEX Zone 0/1/2 certification and optional ISO Class 5-compatible enclosures enable direct installation in classified environments.
Is the PLC control system compatible with third-party data infrastructure?
It supports OPC UA, Modbus TCP, and Ethernet/IP protocols for bidirectional communication with SCADA, MES, and cloud-based analytics platforms.
Does VMA provide validation support for regulated industries?
VMA supplies comprehensive IQ/OQ documentation templates, factory acceptance test (FAT) reports, and on-site commissioning assistance aligned with ASTM E2500 and GAMP5 guidelines.
What maintenance intervals are recommended for rotor-stator assemblies?
Routine inspection is advised every 500 operating hours; wear-part replacement intervals depend on abrasive load and are tracked automatically via the PLC’s service counter.
