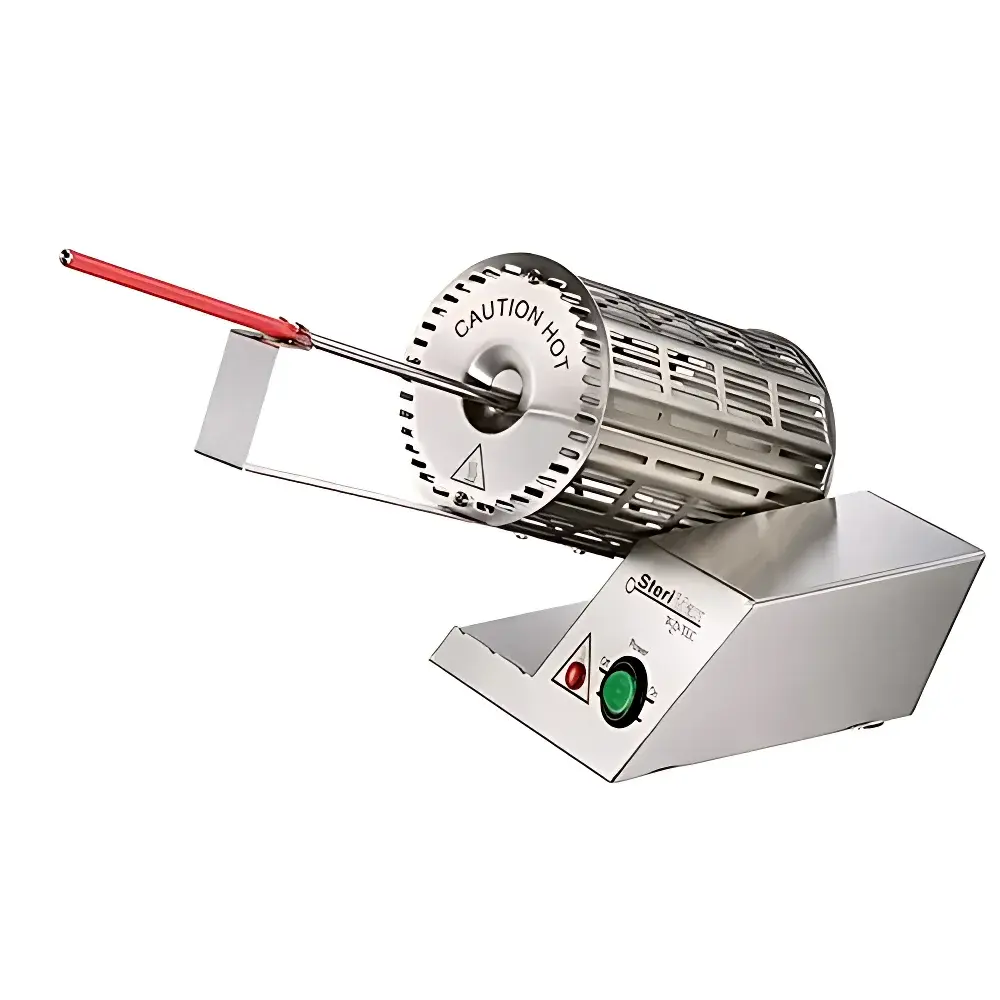

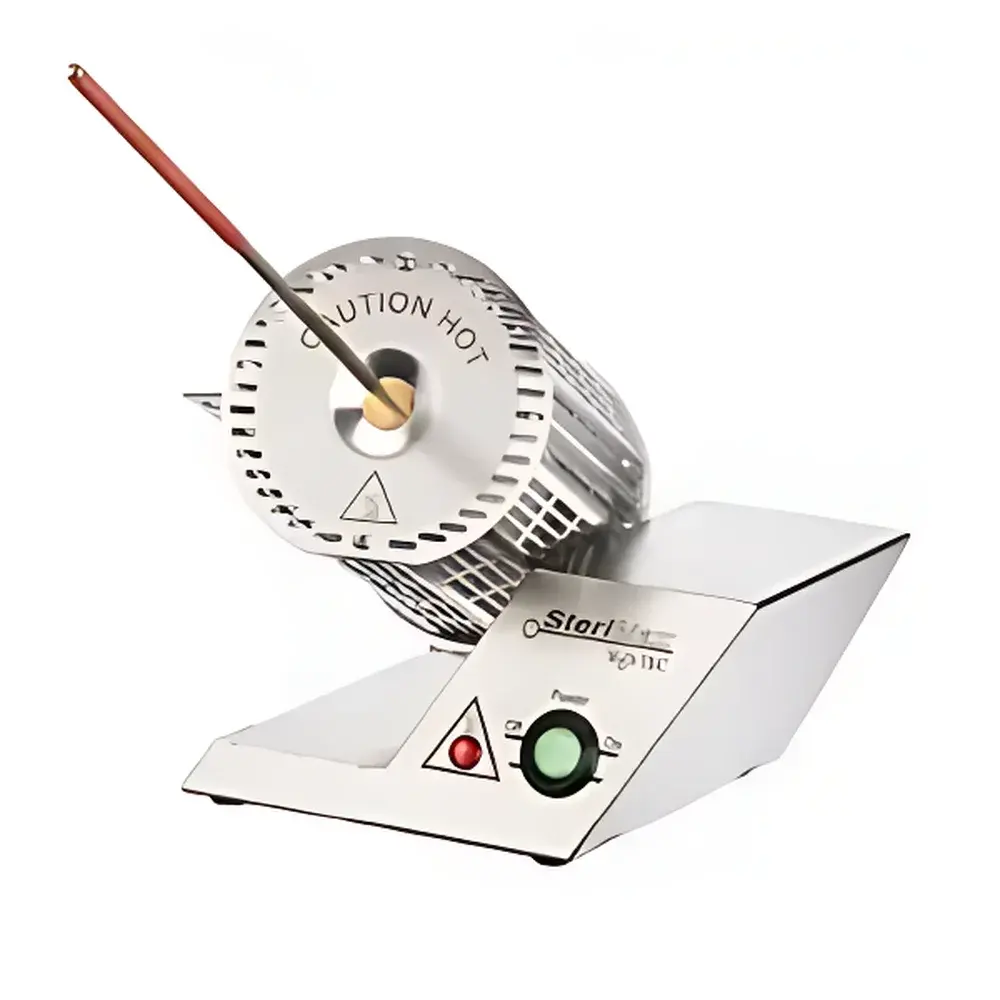

WIGGENS SteriMax Electric Loop Sterilizer

Overview

The WIGGENS SteriMax Electric Loop Sterilizer is a precision-engineered, flame-free thermal sterilization device designed for rapid, reliable decontamination of microbiological inoculation loops, needles, and small metal instruments in biosafety-conscious laboratory environments. Unlike open-flame Bunsen burners, the SteriMax employs resistive heating within a high-purity fused quartz tube to achieve stable operating temperatures of 900–950 °C—sufficient to incinerate bacterial endospores, mycobacteria, and viral agents on contact. Its design eliminates combustion hazards, volatile gas storage requirements, and flame instability issues, making it ideal for use in laminar flow hoods, anaerobic chambers, cleanrooms (ISO Class 5–8), and laboratories operating under strict fire safety or explosion-proof regulations. The unit operates on standard 220–240 V AC power and requires no external gas supply or ventilation ducting—enabling safe deployment in confined or low-airflow workspaces.

Key Features

• High-temperature quartz sterilization chamber (900–950 °C), fabricated from chemically inert, UV-resistant fused silica with smooth internal surface for effortless residue removal

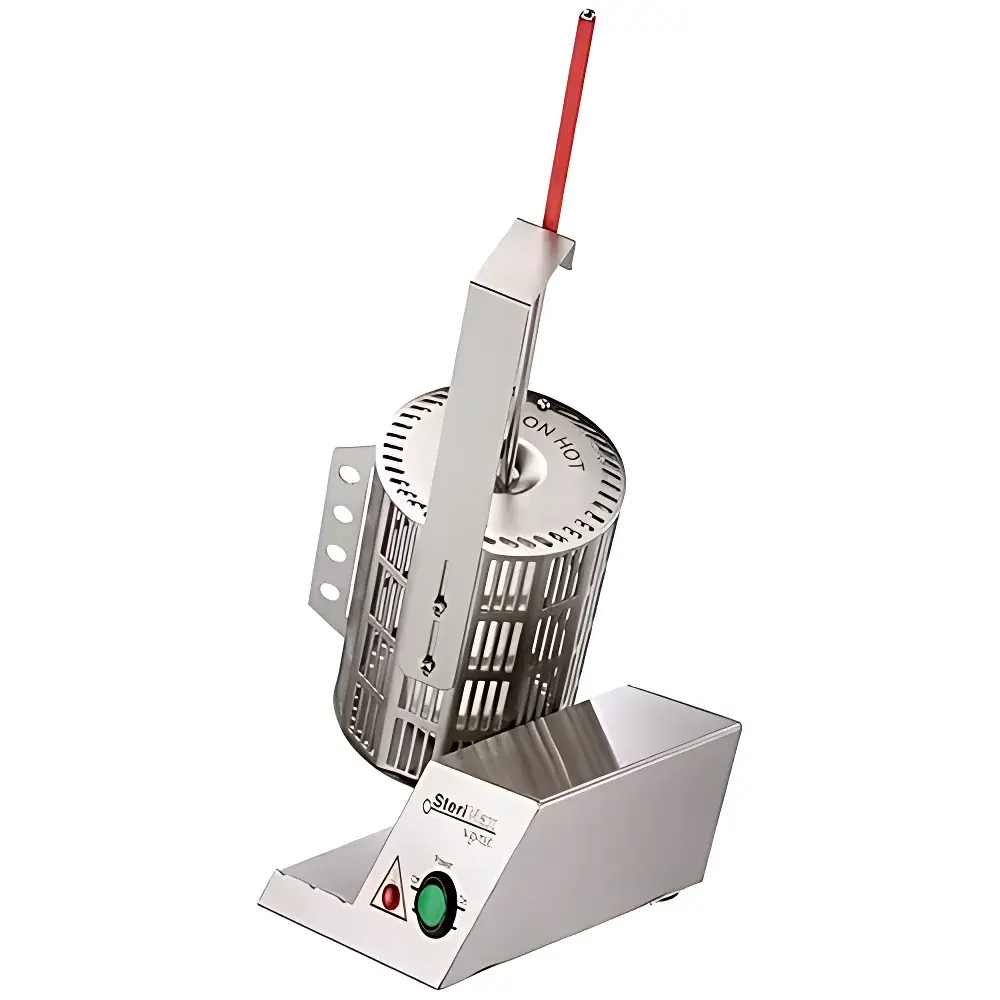

• Seven-position adjustable tilt mechanism for ergonomic insertion angle optimization across user height and workstation configuration
• Integrated splash guard and shielded heating zone to contain aerosolized bioaerosols during sterilization of pathogenic samples (BSL-2 compatible operation)
• Automatic post-shutdown thermal warning indicator—illuminated LED and audible alert signal residual surface temperature >60 °C
• Dual-tube configuration options: 15 mm Ø × 118 mm L (960 g) and 20 mm Ø × 161 mm L (1060 g), both with stainless steel housing and IP20-rated enclosure
• No preheating required beyond initial warm-up; full operational temperature reached in ≤16 minutes, with consistent thermal output maintained over extended duty cycles

Sample Compatibility & Compliance

The SteriMax is validated for sterilizing stainless steel inoculation loops (diameters 0.6–1.0 mm), straight/curved needles, wire probes, and micro-spatulas up to 245 mm in length. It is not intended for plastic, coated, or heat-sensitive tools. All materials contacting the quartz tube must withstand ≥1000 °C intermittent exposure without deformation or outgassing. The device complies with EN 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), EN 61326-1:2013 (EMC for Laboratory Instruments), and EN 61000-3-2:2019 (Harmonic Current Emissions). It meets essential requirements of the EU Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU), and carries CE marking per harmonized standards referenced in the EU Declaration of Conformity (DoC).

Software & Data Management

The SteriMax is a stand-alone analog instrument with no embedded firmware, network interface, or digital data logging capability. Its operational integrity relies entirely on passive thermal design and mechanical reliability—eliminating software validation requirements under FDA 21 CFR Part 11 or EU Annex 11. However, its consistent performance profile supports GLP/GMP traceability when integrated into documented sterilization SOPs: users may record sterilization events manually in lab notebooks or electronic lab notebooks (ELNs) with timestamps, operator ID, and instrument serial number. Optional accessories—including timer units (Order No. 5.000.200) and stainless steel loop holders (Order No. 6.000.341)—facilitate standardized workflow documentation and reduce inter-operator variability.

Applications

The SteriMax is routinely deployed in clinical microbiology labs for routine loop sterilization prior to streaking agar plates or stab cultures; in pharmaceutical QC labs for aseptic transfer validation; in academic research facilities conducting anaerobic culturing or working with genetically modified organisms (GMOs); and in teaching laboratories where gas cylinder handling and open-flame training present liability concerns. Its compact footprint and absence of exhaust requirements enable integration into biosafety cabinets without compromising airflow uniformity or containment integrity. When used with WIGGENS-compatible stainless steel loops (e.g., Order Nos. 6.000.371–6.000.375), it delivers reproducible sterility assurance levels (SAL) ≥10⁻⁶ per cycle—consistent with ISO 11137-1:2018 guidance for dry-heat sterilization of medical devices.

FAQ

Is the SteriMax suitable for sterilizing plastic or coated instruments?
No. Only stainless steel, nickel-chromium, or tungsten-alloy instruments rated for continuous exposure above 950 °C should be used. Plastic, rubber, or polymer-coated tools will melt, decompose, or release toxic fumes.
Does the SteriMax require periodic calibration?
No formal calibration is specified by the manufacturer. However, routine verification using temperature-indicating strips (e.g., Tempil® 900 °C) or infrared pyrometry is recommended every 30 days in GxP environments to confirm sustained thermal output.
Can the quartz tube be replaced in the field?
Yes. Replacement quartz tubes are available as consumables (Order No. 5.001.0005.101.000). Installation requires no tools and takes <60 seconds—ensuring minimal downtime during scheduled maintenance.
What safety certifications does the SteriMax hold?
It bears CE marking compliant with EN 61010-1, EN 61326-1, and EN 61000-3-2, plus adherence to EEC directives 89/336/EWG (EMC) and 73/23/EWG (Low Voltage). Full test reports are available upon request from WIGGENS Technical Support.
How does the SteriMax compare to infrared-based alternatives like the SteriMax Smart?
The SteriMax uses resistive heating of a quartz tube, offering higher thermal mass and slower cooldown—ideal for high-throughput workflows with frequent sequential use. The SteriMax Smart employs pulsed infrared emitters for faster startup (<5 s) and non-contact activation but requires stricter alignment tolerances and has lower thermal inertia.
