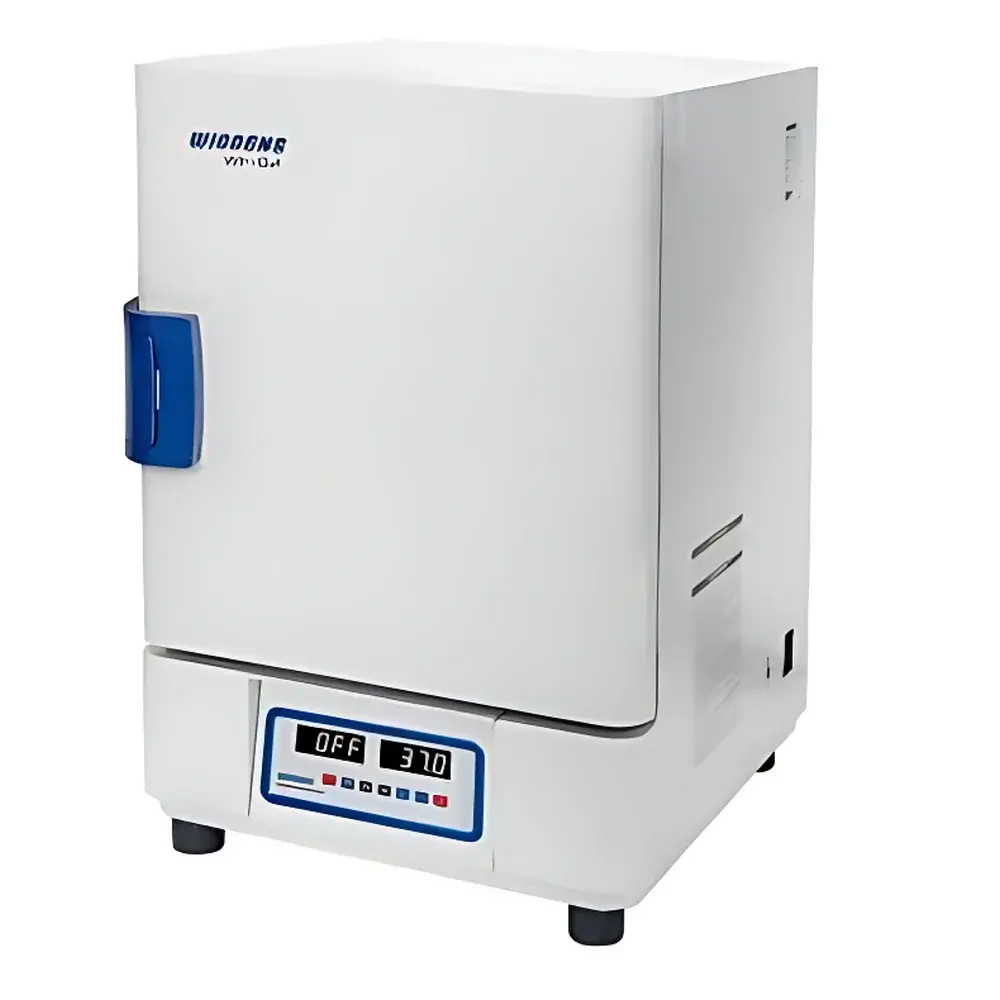

WIGGENS WF-11E Forced Convection Drying Oven (Standard Model)

Overview

The WIGGENS WF-11E Forced Convection Drying Oven (Standard Model) is a precision-engineered laboratory drying system designed for reliable thermal processing across research, quality control, and production environments. Utilizing forced-air convection—driven by a high-efficiency internal circulation fan—the oven ensures rapid heat transfer and uniform temperature distribution throughout the 100 L chamber. Its PID-controlled heating system enables stable setpoint attainment with minimal overshoot, delivering ±0.4 °C fluctuation and ±3.3 °C uniformity at 100 °C—performance metrics aligned with ISO 17025–recommended stability criteria for thermal validation. The unit operates across a broad temperature range of RT + 10 °C to 220 °C, supporting applications from moisture removal and polymer curing to microbiological media sterilization (e.g., dry-heat depyrogenation per USP ) and pre-weighing sample conditioning in accordance with ASTM E145 and ISO 554.

Key Features

• PID microprocessor-based temperature controller with intuitive LED interface and tactile membrane keys
• Three programmable temperature presets for rapid recall of frequently used setpoints
• Auto-tuning function and simplified calibration procedure compliant with internal GLP documentation requirements
• Robust nickel-chromium-iron alloy sheathed heating elements mounted on chamber walls for corrosion resistance and long-term thermal stability
• Two manually adjustable sliding ventilation ports (38 mm diameter each) enabling controlled vapor evacuation during drying of hygroscopic or solvent-based samples
• Over-temperature safety cutoff and real-time door-open alarm to prevent thermal runaway and ensure operator safety per EN 61010-1
• Timer function with 1-minute to 99-hour 59-minute range, supporting unattended operation with automatic shutdown
• Ergonomic rounded door handle and spacious interior (455 × 430 × 510 mm) accommodating standard labware including Petri dishes, weighing boats, and glassware up to 500 mL

Sample Compatibility & Compliance

The WF-11E accommodates a wide spectrum of sample types—including powders, granules, filters, biological tissues, ceramic precursors, and coated substrates—without risk of cross-contamination or thermal degradation. Its stainless-steel interior (standard), reinforced insulation, and non-reactive heating architecture ensure compatibility with acidic, alkaline, and organic solvent residues. The oven meets essential electrical safety standards (EN 61010-1, CE-marked), and its thermal performance supports IQ/OQ protocols required under FDA 21 CFR Part 11–governed environments when paired with validated data logging. Optional shelf configurations (up to 14 positions) allow flexible load optimization while maintaining airflow integrity—critical for GMP-compliant drying of pharmaceutical excipients or medical device components.

Software & Data Management

While the WF-11E operates as a standalone instrument with embedded firmware, its analog output (0–10 V or 4–20 mA, optional) enables integration into centralized building management systems (BMS) or SCADA platforms for remote monitoring. All operational parameters—including setpoint, actual temperature, timer status, and alarm events—are logged locally via non-volatile memory. For audit-trail compliance, users may connect an external Class I certified data logger (e.g., compliant with ISO/IEC 17025 traceability) to record time-stamped temperature profiles. Firmware supports password-protected parameter lockout, preventing unauthorized modification during routine QC workflows.

Applications

• Moisture content determination (per AOAC 950.46 and ISO 712)
• Dry-heat sterilization of glassware and metal instruments (160–180 °C for ≥2 hours)
• Curing of epoxy resins, adhesives, and powder coatings
• Pre-drying of filter papers and crucibles prior to gravimetric analysis
• Stabilization of reference standards and hygroscopic calibration materials
• Accelerated aging studies in polymer and battery material R&D
• Residue ashing preparation for elemental analysis (ICP-OES, AAS)

FAQ

What is the maximum recommended operating temperature for continuous use?
The WF-11E is rated for continuous operation up to 220 °C; however, sustained use above 200 °C may reduce heater service life and requires periodic verification of thermal uniformity.
Can the oven be validated for GxP environments?
Yes—its repeatability, documented temperature stability, and configurable alarm/logging capabilities support IQ/OQ/PQ execution per Annex 15 and EU GMP guidelines when supported by qualified third-party validation services.
Is external data export supported natively?
No native USB or Ethernet port is included; however, analog output expansion and optional RS-485 interface kits are available for integration with LIMS or PLC-based control networks.
How many shelves can be installed without compromising airflow?
Up to 14 shelves may be fitted using optional support rails, but optimal convection efficiency is maintained with ≤8 shelves under full-load conditions, as verified by DIN 12880 airflow mapping.
Does the unit include a certificate of conformance?
Each WF-11E ships with a factory-issued CoC confirming compliance with EN 61010-1, CE marking, and measured thermal specifications at 100 °C and 180 °C. NIST-traceable calibration certificates are available upon request.
