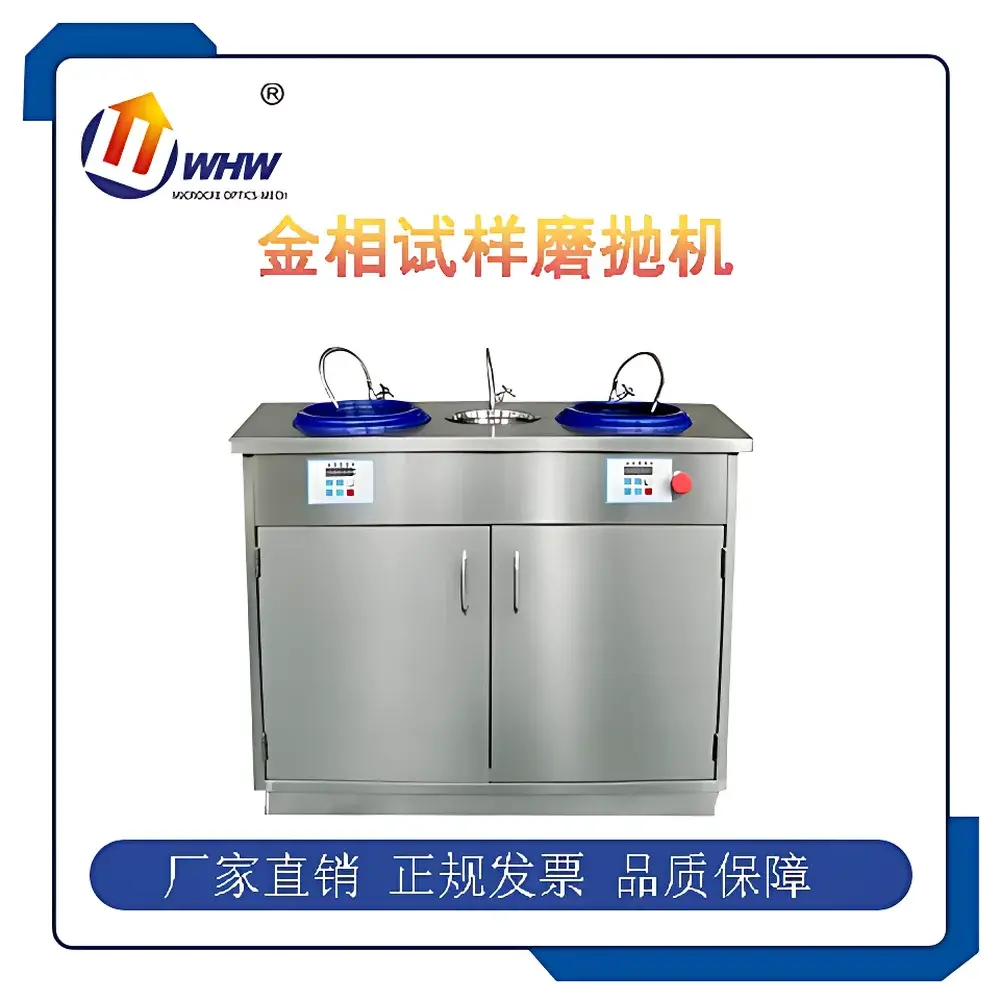

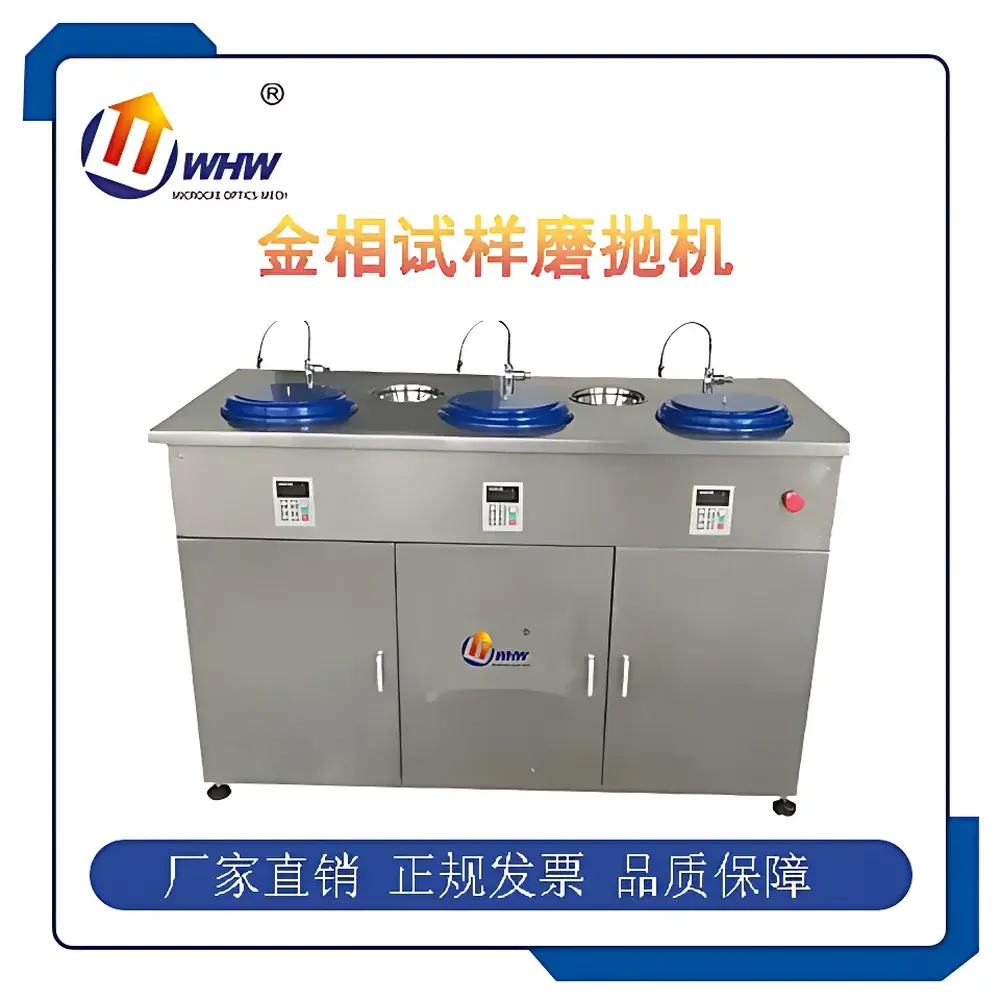

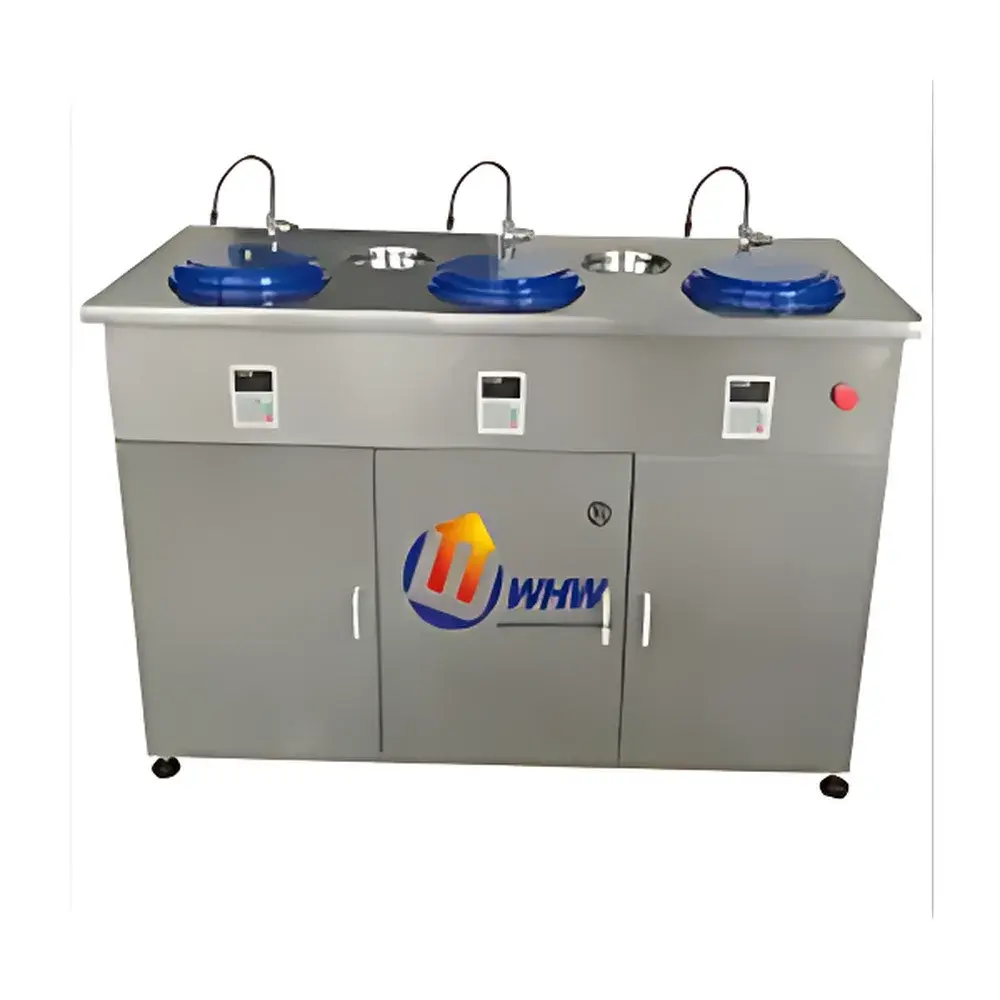

YANRUN MP-2A/3A Cabinet-Style Metallographic Grinding and Polishing Machine

Overview

The YANRUN MP-2A/3A Cabinet-Style Metallographic Grinding and Polishing Machine is an engineered solution for standardized, reproducible specimen preparation in metallurgical, materials science, and geological laboratories. Designed around the fundamental principles of mechanical surface conditioning—comprising sequential abrasive grinding, fine lapping, and final polishing—the system enables precise control over material removal rate, surface finish, and subsurface damage minimization. Its dual- or triple-platen architecture supports parallel processing of multiple specimens under identical rotational and pressure conditions, significantly improving throughput without compromising consistency. The machine operates on a robust AC induction motor drive with integrated thermal protection, delivering stable torque across its full speed range. All structural components—including the cabinet, water containment system, and platen mounting assembly—are constructed from high-grade stainless steel (AISI 304), ensuring long-term resistance to corrosion from water, lubricants, and common polishing slurries.

Key Features

• Cabinet-integrated stainless steel housing with ergonomic height and splash-resistant design, compliant with ISO 14644-1 Class 8 cleanroom-compatible lab environments
• Sealed inlet/outlet water management system with quick-connect fittings and integrated overflow protection to prevent cross-contamination between stations
• Dual independent control channels (MP-2A) or triple independent control channels (MP-3A), enabling simultaneous yet individually adjustable operation of each platen
• Hybrid speed control architecture: selectable fixed-speed presets (4-step or 6-step, including factory-configurable low/high setpoints at 600 rpm and 1200 rpm) plus continuous 200–1500 rpm variable-speed regulation via precision potentiometer
• Reversible rotation capability per platen—critical for uniform wear distribution on abrasive papers and polishing cloths, extending consumable life and reducing edge rounding artifacts
• 360° swivel-mounted stainless steel faucet with adjustable flow rate and directional spray nozzle for targeted rinsing during intermediate cleaning steps
• Integrated wash basin with sloped drainage geometry and removable debris trap, facilitating rapid cleanup between specimen batches

Sample Compatibility & Compliance

The MP-2A/3A accommodates standard metallographic specimens up to 50 mm × 50 mm × 30 mm (L×W×H), including ferrous and non-ferrous alloys, sintered metals, ceramics, composites, and rock/mineral thin sections. It supports all common consumables: waterproof silicon carbide papers (P80–P2500), diamond-impregnated lapping films (3–9 µm), colloidal silica suspensions (30–50 nm), and woven/non-woven polishing cloths (e.g., synthetic napped, velvet, or felt). The system meets mechanical safety requirements per IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission), and its construction aligns with ISO 15190:2020 (laboratory safety management). While not certified for GMP/GLP-regulated production environments out-of-the-box, it supports audit-ready documentation workflows when paired with external logbooks or LIMS-integrated process tracking.

Software & Data Management

The MP-2A/3A operates as a standalone electromechanical instrument without embedded firmware or digital interface. However, its analog control architecture ensures full compatibility with third-party laboratory automation systems via optional 4–20 mA or 0–10 V analog signal output modules (available as field-upgrade kits). Process parameters—including active speed setting, direction, and runtime—are manually recorded per ASTM E3-22 Section 7.3 (“Documentation of Specimen Preparation”) and can be archived alongside microstructural analysis reports in ELN platforms. For regulated labs, the unit’s mechanical repeatability (±2 rpm stability under load, per internal calibration verification) supports validation protocols aligned with ISO/IEC 17025:2017 Clause 7.7 (uncertainty of measurement).

Applications

• Routine metallographic specimen preparation for optical and electron microscopy (SEM/TEM cross-section analysis)
• Quality control of heat-treated steels, aluminum castings, titanium aerospace components, and additive-manufactured alloys
• Geological thin-section polishing for petrographic analysis and cathodoluminescence imaging
• Failure analysis laboratories requiring rapid turnaround of fracture surfaces and inclusion mapping specimens
• Educational institutions performing standardized ASTM E3-22 and ISO 14577 hardness test sample prep

FAQ

Can the MP-2A/3A be used for automated, unattended operation?
No—this model requires manual intervention for specimen loading, consumable replacement, and speed/direction adjustment. It is not equipped with programmable timers, force feedback, or robotic integration interfaces.
What electrical supply is required for stable operation?
A dedicated 220 V ±10%, 50 Hz single-phase circuit with minimum 16 A breaker capacity is recommended. Each platen draws 500 W continuously; total system load is 1000 W (MP-2A) or 1500 W (MP-3A).
Is the water system compatible with deionized or ethanol-based slurries?
Yes—the sealed stainless steel plumbing accepts DI water, glycerol-water mixtures, and low-concentration alcohol-based lubricants, though prolonged exposure to >30% ethanol may degrade standard EPDM gasket materials (optional Viton seals available).
How is maintenance performed on the platen drive mechanism?
The gearmotor assembly is pre-lubricated for lifetime service; only periodic inspection of belt tension (if equipped) and cleaning of the water trap chamber are required per 200 operating hours.
Does YANRUN provide calibration certificates traceable to national standards?
Calibration documentation (speed verification against NIST-traceable tachometer) is included with each unit shipment; full ISO/IEC 17025-accredited calibration services are available through authorized regional partners upon request.
