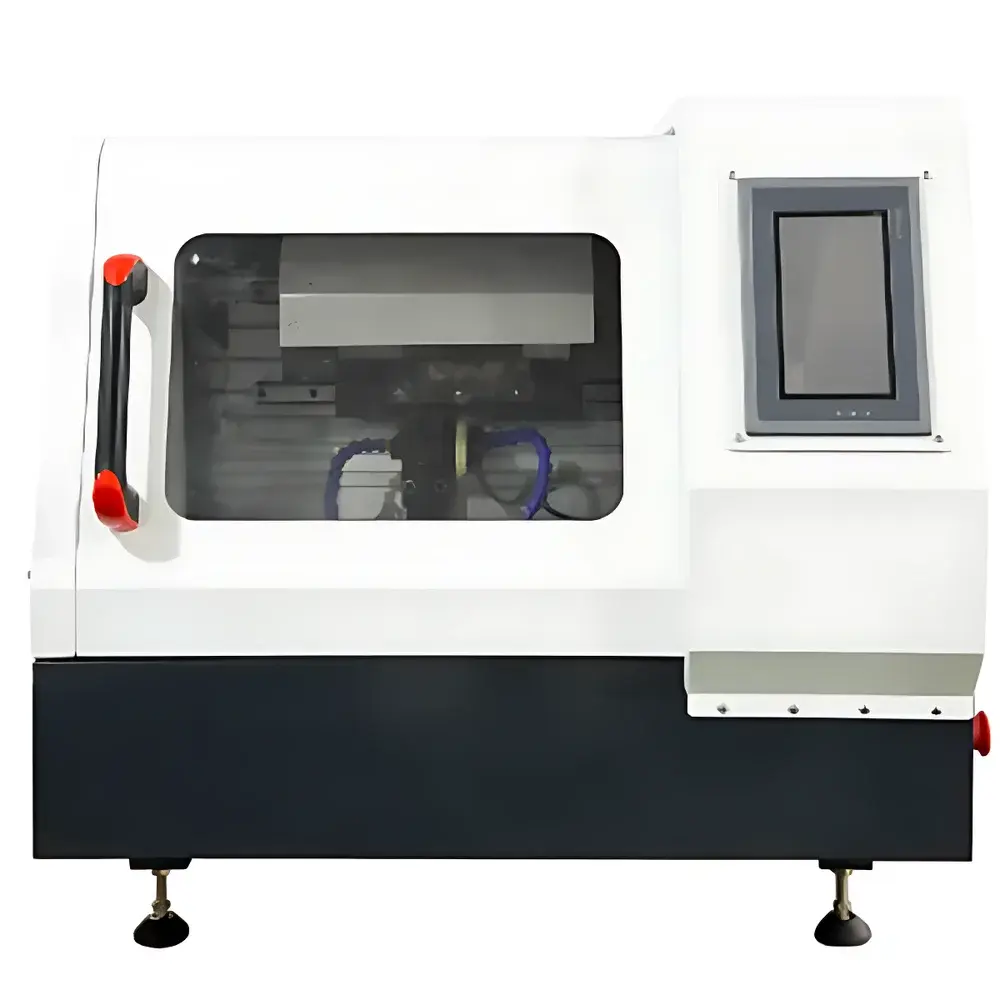

YANRUN ZXG-300 Intelligent Diamond Wire Cutting Machine

Overview

The YANRUN ZXG-300 Intelligent Diamond Wire Cutting Machine is a precision-engineered metallographic sample preparation system designed for high-fidelity sectioning of hard and brittle materials. It operates on the principle of abrasive wire sawing, where tensioned diamond-impregnated wire—under controlled feed rate, rotational speed, and directional motion—removes material via micro-abrasion rather than mechanical shearing. This minimizes thermal distortion, mechanical deformation, and subsurface damage, preserving the native microstructure essential for subsequent metallographic analysis (e.g., optical microscopy, SEM, EBSD). Unlike conventional abrasive cut-off machines, the ZXG-300 eliminates wheel wear variability and delivers superior edge integrity in samples ranging from aerospace superalloys to sintered ceramics and single-crystal silicon. Its fully motorized XYZ+R kinematic architecture enables reproducible, programmable cuts across complex geometries—including cylindrical rotation (R-axis), multi-layer slicing, and custom contour segmentation—making it suitable for both routine QC workflows and advanced research protocols.

Key Features

• Fully automated 4-axis motion control (X, Y, Z, R) with real-time positional feedback via high-resolution encoders and LCD digital display
• 7-inch industrial-grade color touchscreen interface integrated with embedded PLC logic for intuitive program creation, parameter storage, and cycle recall
• Infinitely variable feed rates (0–100 mm/min for X/Y; 0–5 mm/min for wire advancement) and rotational speeds (1–100 rpm for R-axis), enabling optimization for diverse material hardness and brittleness
• Diamond wire compatibility across five standard diameters (0.2–1.0 mm), supporting applications from ultra-thin wafer slicing to bulk ingot partitioning
• Integrated recirculating coolant system with adjustable flow rate and filtration, ensuring consistent thermal management and extended wire life
• Modular tooling platform including precision-machined vise-type clamping fixtures, dual-axis linear positioning stage, and dedicated wire threading station
• Structural rigidity reinforced by cast-iron base and vibration-damped frame, minimizing runout and maintaining ±2 µm positional repeatability over extended operation

Sample Compatibility & Compliance

The ZXG-300 accommodates a broad spectrum of conductive and non-conductive specimens up to 300 × 300 mm planar footprint and 300 mm height, including ferrous and non-ferrous metals (e.g., Ti-6Al-4V, Inconel 718, Al-Si alloys), cemented carbides, geological core samples, optical crystals, battery electrode stacks, and biomedical hard tissues (e.g., calcified bone, dental enamel). All operational parameters comply with ISO 14971 (risk management for medical devices) and align with ASTM E3-22 guidelines for metallographic specimen preparation. The machine’s closed-loop control architecture supports audit-ready operation under GLP and GMP environments when paired with external data logging systems. While not inherently FDA 21 CFR Part 11 compliant, its deterministic motion sequences and timestamped parameter logs facilitate integration into validated laboratory information management systems (LIMS).

Software & Data Management

The onboard HMI firmware stores up to 100 user-defined cutting programs with full parameter sets (speed, feed, rotation angle, dwell time, coolant activation). Each program includes cycle counter, runtime clock, and error-log history accessible via USB export. No proprietary PC software is required; however, ASCII-formatted log files (CSV-compatible) can be imported into MATLAB, Python (Pandas), or LabVIEW for statistical process control (SPC) analysis. Optional Ethernet module enables remote monitoring and firmware updates via secure SSH connection. All motion trajectories are traceable to NIST-traceable encoder calibration standards, satisfying ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Applications

• Preparation of cross-sectional specimens for failure analysis in automotive powertrain components and weld joints
• Sectioning of turbine blade root sections for grain structure mapping and creep void quantification
• Serial sectioning of additively manufactured parts to assess layer bonding quality and porosity distribution
• Controlled thinning of geological thin sections and mineralogical mounts for polarized light microscopy
• Isolation of discrete regions from lithium-ion battery cathodes/anodes for post-cycling microstructural correlation
• R-axis rotational cutting of cylindrical samples (e.g., pipes, rods) to generate radial or helical slices without re-fixturing
• Multi-step intelligent block cutting for high-throughput sample batching in metallurgical QA labs

FAQ

What types of diamond wire are compatible with the ZXG-300?
The system accepts industry-standard electroplated and resin-bonded diamond wires with outer diameters of 0.2, 0.25, 0.35, 0.5, and 1.0 mm. Wire tensile strength and bond type must match the target material’s hardness and fracture toughness.
Can the ZXG-300 perform angled or beveled cuts?
Yes—by synchronizing R-axis rotation with coordinated X/Y motion, users can generate precise bevel angles (±0.1° resolution) without manual fixture adjustment.
Is coolant flow rate adjustable during cutting?
Yes—the integrated pump features analog-controlled variable-speed output, allowing dynamic adjustment between 0.5–3.0 L/min depending on material thermal conductivity and cut depth.
Does the machine support external trigger inputs for synchronized imaging or sensor acquisition?
Yes—opto-isolated I/O terminals (24 V DC) enable hardware-level triggering of external cameras, acoustic emission sensors, or temperature probes at defined cut stages.
What maintenance intervals are recommended for long-term reliability?
Daily: Coolant level and filter inspection; Weekly: Wire tension verification and guide wheel cleaning; Annually: Encoder recalibration and PLC firmware validation per manufacturer service bulletin.
