| Brand | Kurabo |
|---|---|
| Origin | Japan |
| Model | RX410 |
| Measurement Principle | Multi-Wavelength Infrared Absorption Spectroscopy |
| Detection Capability | Simultaneous Non-Contact Measurement of Base Film Thickness and Heat-Resistant Coating Thickness (or Areal Mass) |
| Optical Configuration | Rotating Filter Wheel (6-position, 3 active wavelengths standard) |
| Spot Size | 20 × 30 mm (elliptical) |
| Standoff Distance | 20 mm (sensor-to-sample), 40 mm (inter-sensor gap) |
| Response Time | ≤50 ms |
| Output Options | 0–10 V analog or 4–20 mA current loop |
| Operating Temperature | 5–40 °C (non-condensing, ambient ≤35 °C without forced air cooling) |
| Power Supply | AC 100 V ±10%, 50/60 Hz, 200 VA per unit |

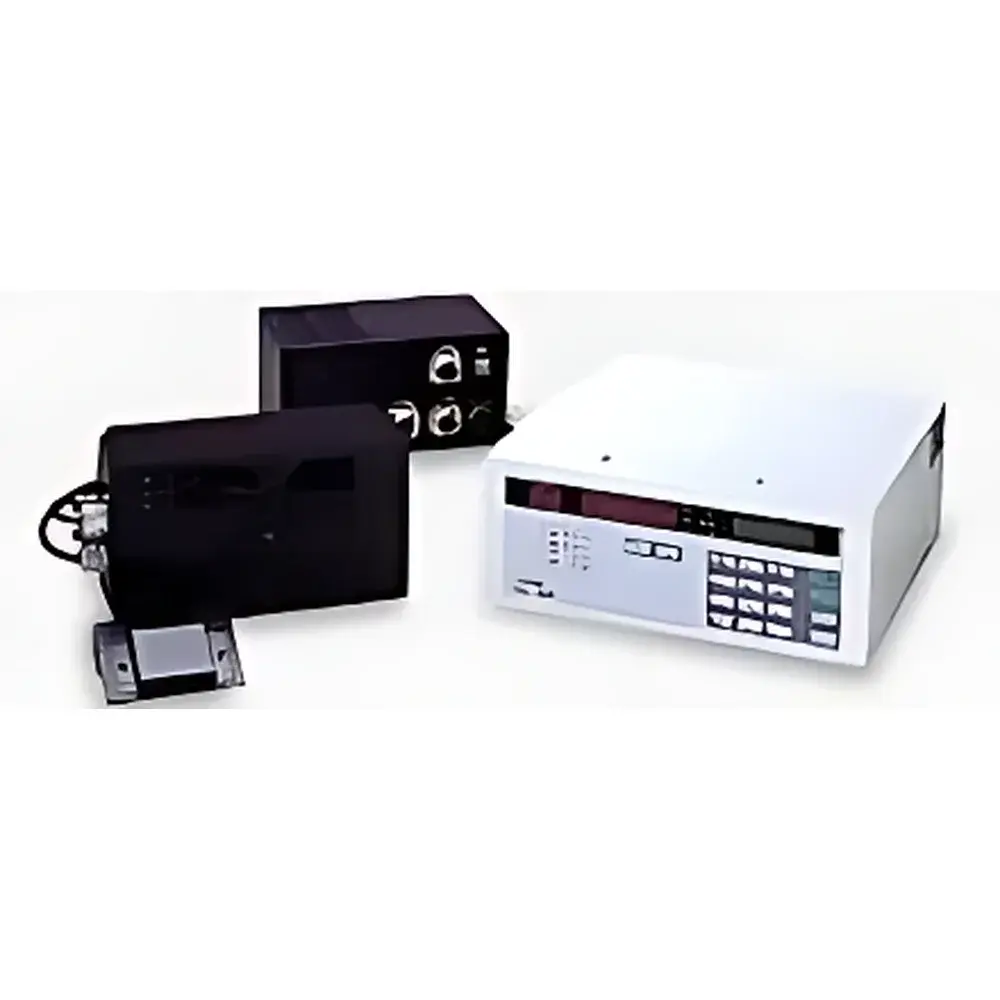

| Brand | Kurabo |
|---|---|
| Origin | Japan |
| Model | RX400 |
| Measurement Principle | Infrared Reflectance Absorption |
| Spectral Method | Rotating Filter Wheel (6-band) |
| Measurement Distance | 40 mm (from bottom surface of main unit) |
| Spot Size | 20 × 30 mm (elliptical) |
| Operating Temperature | 5–40 °C (non-condensing) |
| Power Supply | AC 100 V ±10%, 50/60 Hz, 200 VA (main unit & data processor) |
| Output Signals | 0–10 V DC and 4–20 mA analog (factory-configured) |
| Main Unit Dimensions | 410 × 207 × 160 mm (W×D×H, excluding protrusions) |
| Main Unit Weight | 8.5 kg |
| Relay Connector Dimensions | 322 × 113 × 140 mm |
| Relay Connector Weight | 4 kg |
| Data Processor Dimensions | 300 × 275 × 165 mm |
| Data Processor Weight | 6 kg |

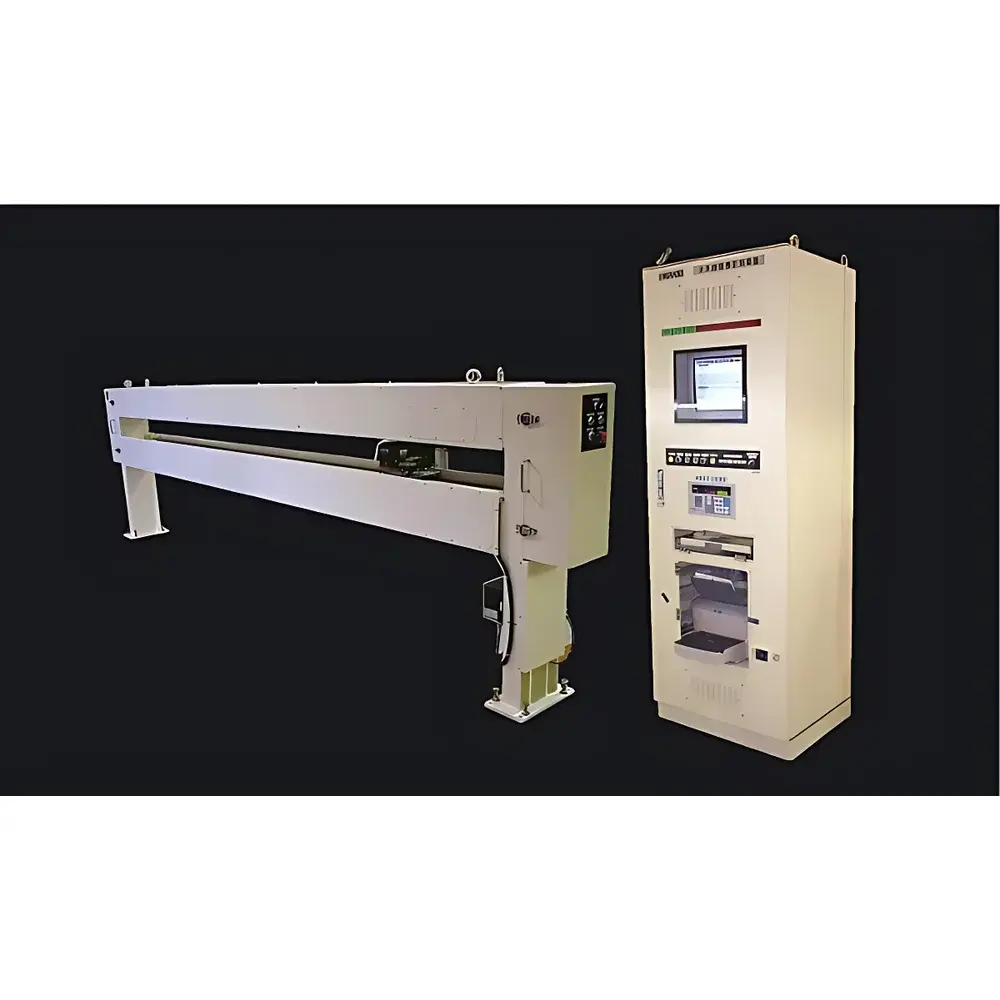

| Brand | KURABO |
|---|---|
| Origin | Japan |
| Model | RX-350 |
| Measurement Principle | P-polarized three-wavelength diffuse reflectance infrared absorption |
| Measurement Range | 0–10 g/m² |
| Resolution | 0.01 g/m² |
| Spot Diameter | φ15 mm |
| Standoff Distance | ~80 mm |
| Minimum Measurement Time | 50 ms |
| Wavelength Selection | Rotary filter wheel (up to 6 filters) |
| Line Speed Compatibility | 1–10 m/min |
| Operating Temperature | 5–40 °C (non-condensing) |
| Power Supply | AC 100–240 V ±10%, 50/60 Hz, 200 VA |
| Output Options | Analog 0–10 V or 4–20 mA |
| Weight | Sensor Head 5.2 kg, Repeater 3.0 kg, Data Processor 6.0 kg |
| Dimensions (W×D×H) | Sensor Head 126×213×120 mm, Repeater 250×140×113 mm, Data Processor 275×300×165 mm |
