| Brand | NanoMagnetics |
|---|---|
| Origin | United Kingdom |
| Model | LT-AFM/MFM |
| Cooling System | Cryogen-Free Closed-Cycle Cryostat |
| Temperature Range | 1.5 K – 400 K (base temperature ≤1.5 K) |
| Maximum Magnetic Field | 20 T |
| Vibration Isolation | Active + Passive Vibration-Free Design |
| Operation Mode | Fully Dry, Helium-Free |
| Sample Stage Travel (Z) | 10 mm |
| Sample Stage Travel (XY) | Ø3 mm |
| Sample Positioning Resolution | 2 µm (capacitive encoder) |
| Sample Dimensions (max) | 15 × 15 × 5 mm |
| Electrical Interface | 5-pin sample holder (1 bias + 4 auxiliary channels) |
| Environmental Compatibility | UHV-compatible, exchange-gas capable, PPMS®-integrated, Evercool®-compatible, dilution refrigerator & He-3 system adaptable |
| Brand | NanoMagnetics |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

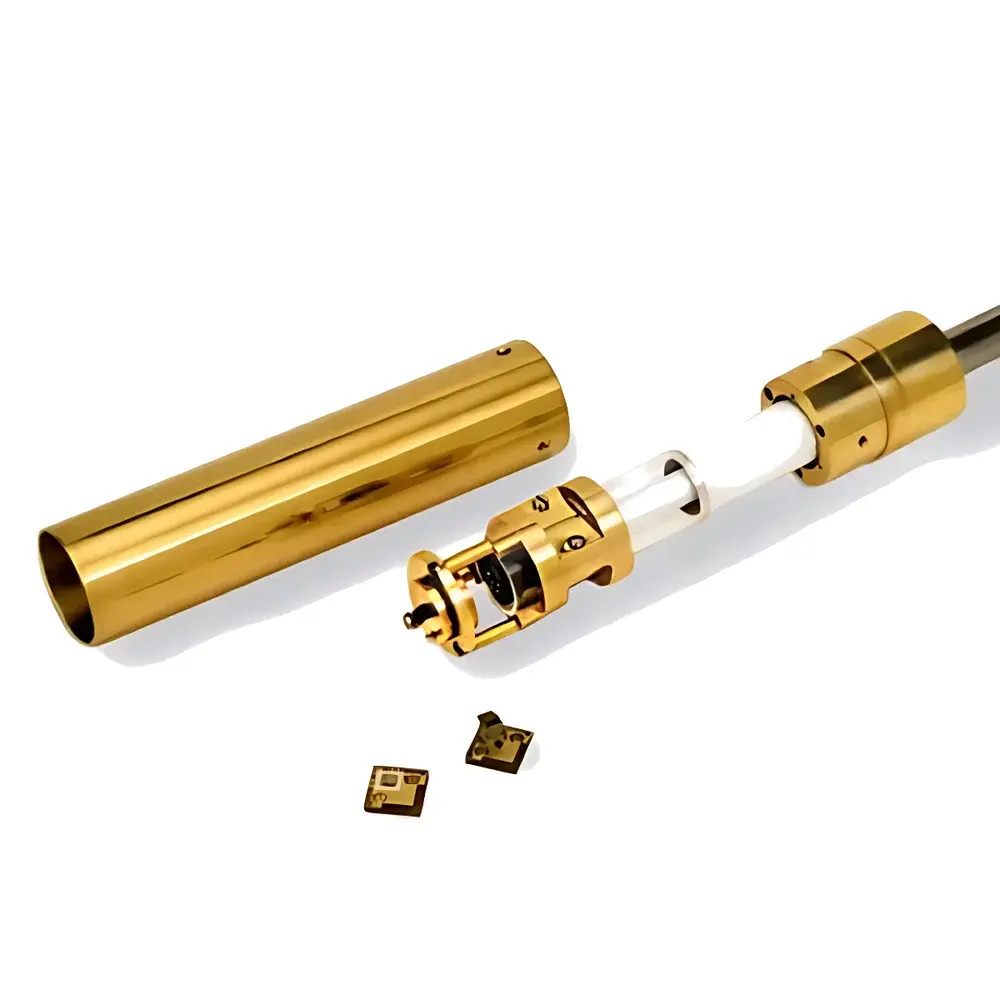

| Model | LT-SHPM/STM |
| Pricing | Available Upon Request |
| Temperature Range | 10 mK – 400 K |
| Magnetic Field Range | Up to 20 T |
| Spatial Resolution (Z) | 50–800 nm (stick-slip approach) |
| Scan Range (XY) | Ø3 mm |
| Z-Travel | 10 mm |
| Sample Dimensions | Max. 15 × 15 × 5 mm |
| Magnetic Noise Floor | 10 µT/√Hz @ 300 K, 100 nT/√Hz @ 77 K, 10 nT/√Hz @ 4 K |
| Compatibility | PPMS®, dry magnet systems, dilution refrigerators (DRs), He-3 cryostats |
| Optional Module | 3D-SHPM for vectorial magnetic field mapping |
| Brand | NanoMagnetics |
|---|---|
| Origin | United Kingdom |
| Model | mK-CFM/RAMAN |
| Temperature Range | 10 mK – 300 K |
| Magnetic Field | Up to 31 T |
| Objective | 0.82 NA, 0.95 mm Working Distance APO Cryo-Objective |
| Scan Range (300 K) | 50 × 50 × 25 µm |
| Scan Range (4 K) | 30 × 30 × 15 µm |
| Coarse Approach Range | 6 × 6 × 12 mm (XYZ), Step Size: 50–700 nm |
| Closed-Loop Encoder Resolution | 200 nm |
| Fine Scan Range (300 K) | 7.5 µm |
| Fine Scan Range (4.2 K) | 1 µm |
| Max Sample Dimensions | 10 × 10 × 5 mm |
| Sample Holder | 8-pin electrical feedthrough |
| Environmental Compatibility | Ultra-high vacuum (UHV) or purged gas atmosphere |
| Cryostat Compatibility | Compatible with standard 50 mm cold-finger dilution refrigerators and most commercial cryogenic platforms |
| Brand | NanoMagnetics |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | NV |
| Pricing | Upon Request |
| Objective NA | 0.82 (Achromatic Apochromatic, 0.95 mm clear aperture) |
| Excitation Laser | 532 nm single longitudinal mode, 10 mW |
| Operating Temperature Range | 10 mK – 300 K |
| Scan Range (at 4 K) | 30 × 30 × 15 µm |
| Detector | Avalanche Photodiode (APD) for optical readout |
| Sample Stage | 6 × 6 × 12 mm XYZ piezo nanopositioner |
| NV/QTF Sensor Stage | 4 × 4 × 6 mm XYZ nanopositioner |
| Position Sensing | Resistive sensor, 200 nm resolution |
| Controller | FPGA-based AFM/SPM controller with USB 3.0 interface |
| Real-time Processor | 32-bit, 128 MB DDR SDRAM |
| ADC | Dual-channel 16-bit @ 100 MHz |
| DAC | Dual-channel 16-bit @ 100 MHz |
| On-FPGA PID Loops | 7 independent channels |
| Piezo Driver Channels | 19-channel high-voltage piezo controller |
| Auxiliary ADC | 16-channel 24-bit @ 175 kHz |
| Scan DAC | 24-bit for XYZ raster scanning |
| High-Voltage Amplifier | Low-noise, wide-bandwidth |
