| Brand | Tailin |
|---|---|

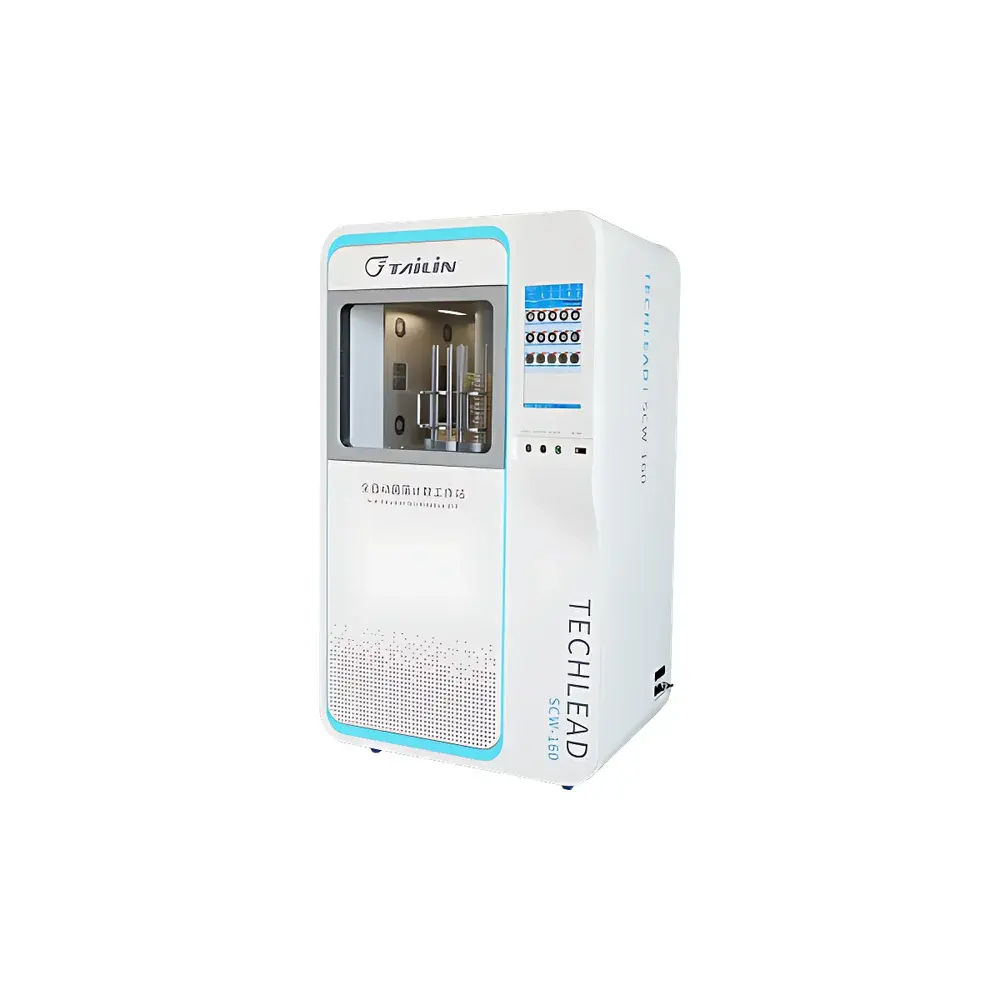

| Model | SCW-160 |
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Category | Domestic Instrument |
| Computing Platform | Intel Core i7 / 16 GB RAM / 4 TB HDD / Windows 10 |
| Imaging System | 20 MP CMOS camera with fixed-focus lens |
| Illumination | LED annular shadow-free light (6500–7500 K) |
| Temperature Control | Refrigerant-free heating/cooling system |
| Display | 15″ 1080p capacitive touchscreen |
| Internal Chamber Dimensions | 630 × 660 × 440 mm |
| Overall Dimensions | 950 × 750 × 1700 mm |
| Weight | 200 kg |
| Construction Materials | Powder-coated exterior, aluminum alloy interior chamber, 304 stainless steel frame, tempered glass viewport |
| Acoustic Noise Level | ≤55 dB(A) |
| Power Input | 220 V, 50 Hz (16 A), Max. 2200 W |
| Software Features | Three-tier user permissions, electronic signature, audit trail, remote firmware/algorithm updates, PDF/PNG export, manual correction logging, time-lapse image playback & zoom, colony growth curve generation |
| Brand | Tailin |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Fully Automated Colony Counter & Incubation Workstation |
| Maximum Sample Capacity | 320 Petri Dishes |
| Compliance | Designed for ISO 4833-1:2013, ISO 7218, USP <61>, EU Pharmacopoeia 2.6.12, and FDA Bacteriological Analytical Manual (BAM) workflows |
| Connectivity | Ethernet, USB, Wi-Fi |
| Data Export Formats | PDF, XLSX, CSV, TIFF, JPEG |
| Imaging System | High-resolution monochrome CMOS sensor (5 MP), motorized focus, uniform LED illumination with glare-free coaxial lighting |
| Algorithm Engine | Proprietary deep neural network trained on >10,000 annotated colony images across 12 microbial species and 7 substrate types |
| Growth Monitoring | Time-lapse imaging at user-defined intervals (1–24 h) |
| Environmental Control | Integrated incubation chamber (range: 20–45 °C, ±0.3 °C stability), humidity monitoring (optional sensor) |
| Brand | Tailin |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Product Type | Fully Automated Colony Counter |

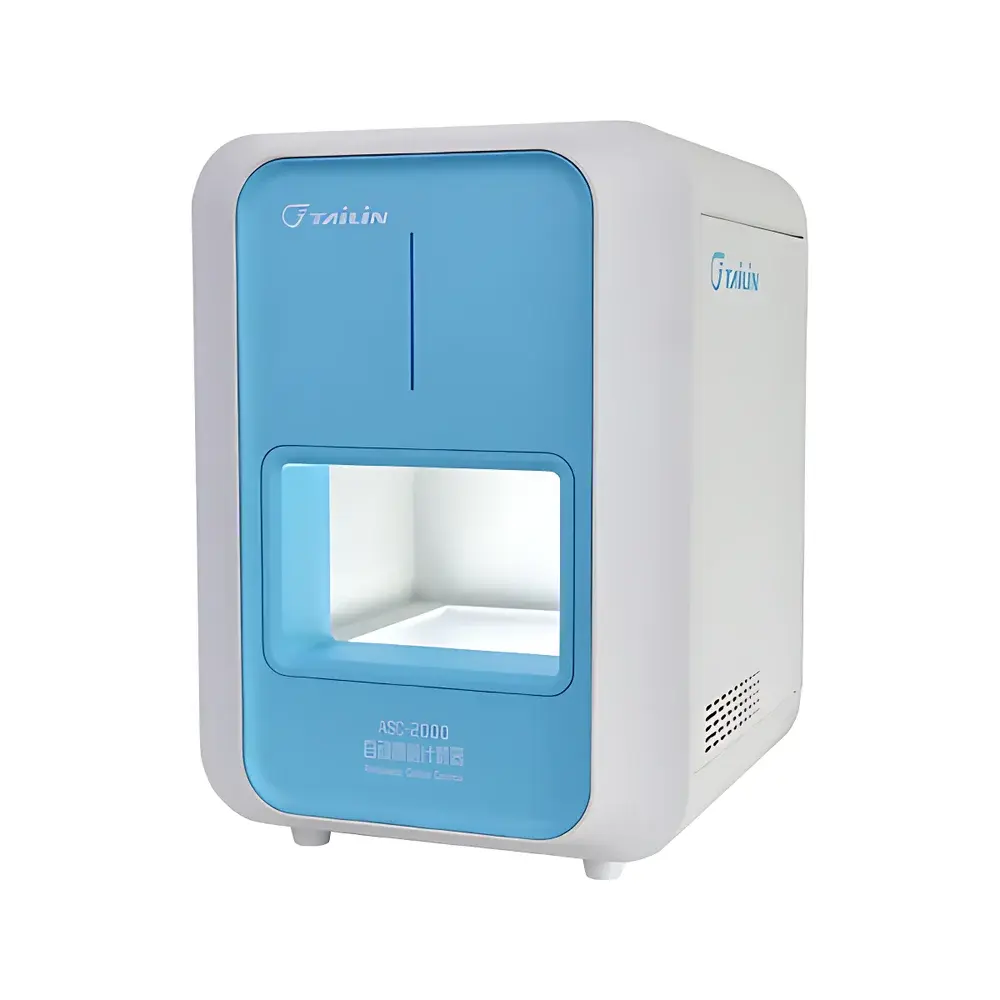

| Model | ASC-2000 |
| Camera Sensor | Sony 20 MP CMOS |
| Counting Speed | ≥1000 CFU/sec |
| Plate Compatibility | Standard Petri dishes (Ø50–150 mm), including stacked or nested plates |
| Detection Algorithm | Adaptive watershed segmentation with edge-aware region partitioning for confluent colonies |
| Sterilization | Integrated UV-C lamp (254 nm, ≥15 mW/cm² irradiance) |
| Data Compliance | Audit trail, electronic signatures, and role-based three-tier user permissions (Administrator/Operator/Reviewer) |
| Connectivity | LIMS integration via ASTM E1384-compliant HL7 or RESTful API |
| Input Method | QR/barcode scanning (GS1-128, Code 128, DataMatrix) |
| Sample Handling | Non-contact imaging |
| Brand | Tailin |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

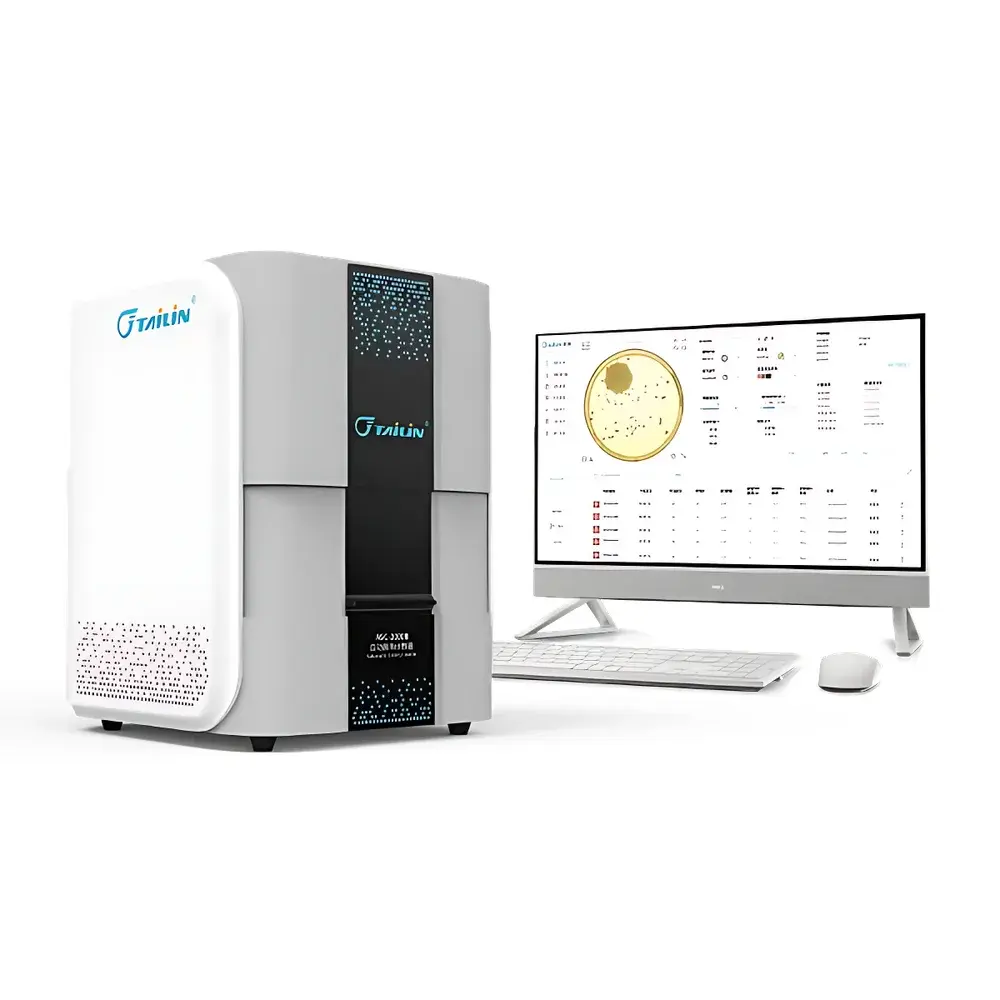

| Model | ASC-2000B |
| Instrument Type | Fully Automated Colony Counter |
| Camera Resolution | 20 MP High-Speed Industrial Sensor |
| Illumination | Multi-Mode Integrated LED Lighting System |
| Core Algorithm | Onboard Edge AI for Colony Segmentation and Morphometric Analysis |
| Software Functions | Colony Counting, Size Distribution Histogram, Color-Based Classification, Zone of Inhibition (ZOI) Analysis (Two-Point, Three-Point Assay), Disc Diffusion, Well Diffusion, Oxford Cup Method |
| Compliance Support | Designed for GLP/GMP-aligned microbiological QC workflows |
