| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

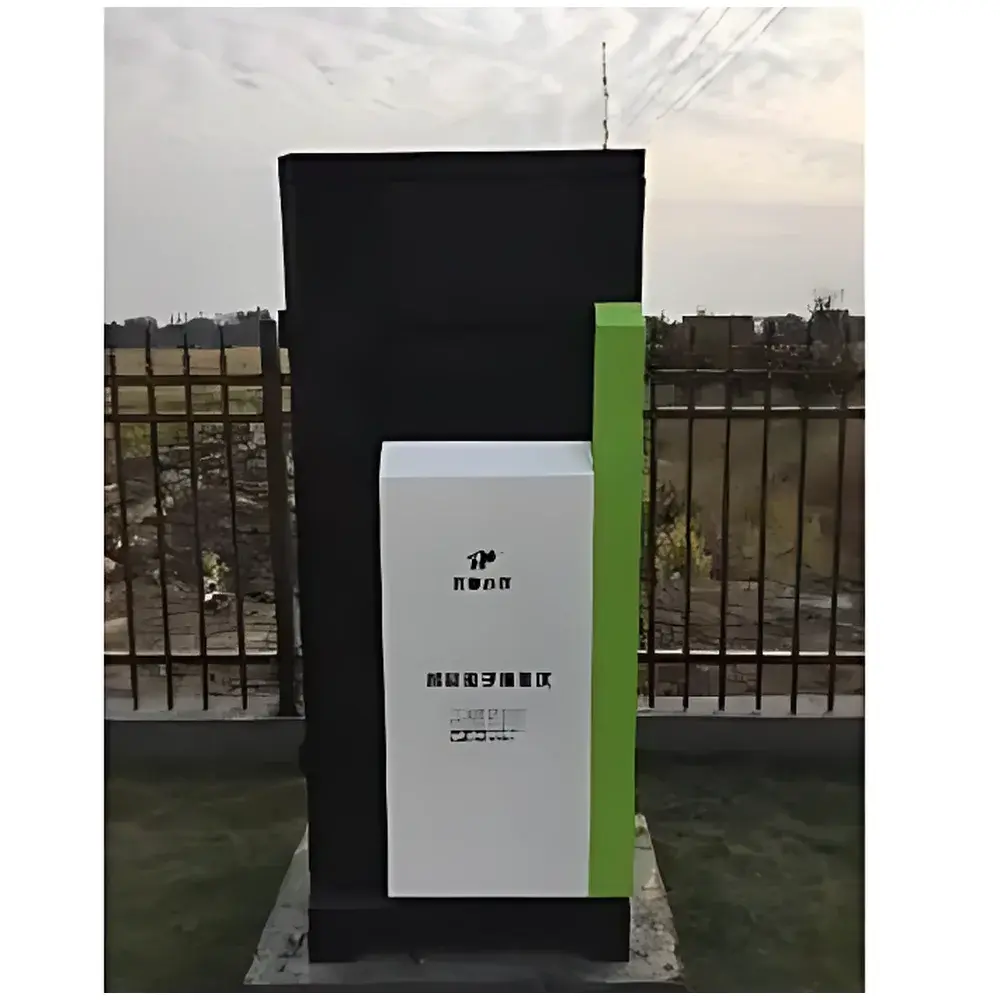

| Model | TPSQ-BZ |
| Power Supply | AC 220V±10% or DC 12V (solar-compatible: 300W panel + battery) |
| Max. Power Consumption | 65 W |
| Standby Power (fan on) | 20 W |
| Standby Power (fan off) | 2 W |
| Camera Resolution | 5 MP |
| Optical Magnification | 20× |
| Display | 10.4-inch TFT LCD |
| Dimensions (H×W×D) | 1850 × 760 × 660 mm |
| Operating Temperature | −30 °C to +70 °C |
| Operating Humidity | ≤98 % RH |
| Air Sampling Flow Rate | 120 L/min |
| Sampling Duration Range | 60–1200 min |
| Capture Area per Slide | 50 mm × 8 mm |
| Image Capture Frequency | 1–100 images per cycle |
| Slide Tape Runtime | 365 days (3 images/day) |
| GPS Module | Integrated for geolocation and anti-displacement monitoring |
| Auto-Focus & Depth Fusion | Yes |
| Environmental Monitoring | Onboard temperature/humidity sensors |
| Data Transmission | 3G wireless uplink to cloud platform |
| Barcode Tracking | Yes |
| Precision Positioning & Limit Switching | Yes |
