| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Fertilizer & Plant Nutrient Analyzer |

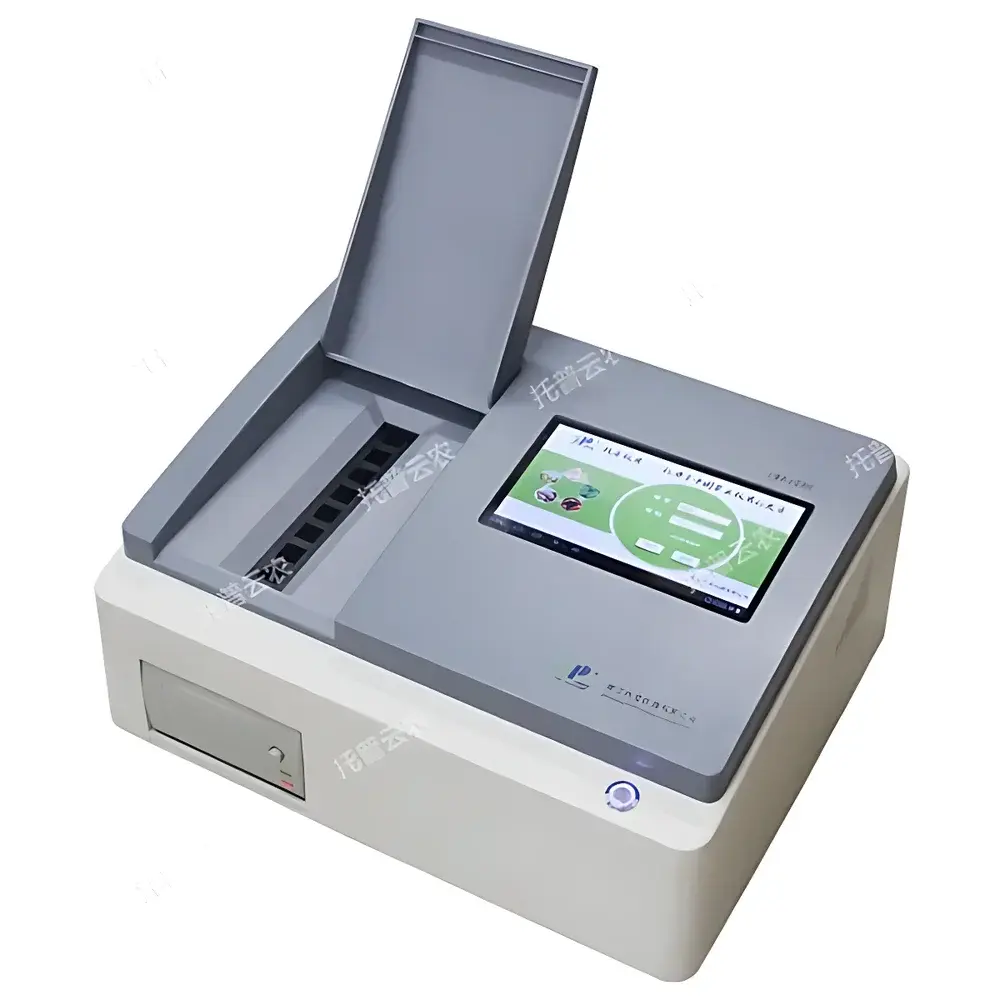

| Model | TPY-8A |
| Detection Parameters | Available N (Nitrate/NH₄⁺-N), Available P (Olsen-P), Available K (NH₄OAc-K), Total N, Total P, Total K, Organic Matter, pH (solid-state sensor), EC (0–20 mS/cm) |
| Optical System | Dual-wavelength photometric channels (620 ± 4 nm red, 440 ± 4 nm blue) |
| Stability | Drift < 0.003 absorbance units in 3 min |
| Repeatability | CV < 1.5% (absorbance < 0.005) |
| Linearity Error | < 3.0% |
| pH Accuracy | ±0.5 pH units (1–14 range) |
| EC Accuracy | ±2% FS (0–20 mS/cm) |
| Display | 7-inch capacitive touchscreen, Android OS |
| Onboard Storage | Internal non-volatile memory with timestamped records |
| Connectivity | Wi-Fi & 4G LTE |
| GPS | Integrated GNSS (latitude, longitude, altitude) |
| Power | Rechargeable Li-ion battery + AC adapter |
| Data Output | Thermal printer (built-in, ribbon-free), CSV export, cloud sync via TopCloud Platform |
| Compliance | Designed for field-deployable agricultural testing per ISO 11260, ISO 10390 (pH), ISO 11265 (EC), and aligned with FAO/IAEA soil testing guidelines for on-site nutrient assessment |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

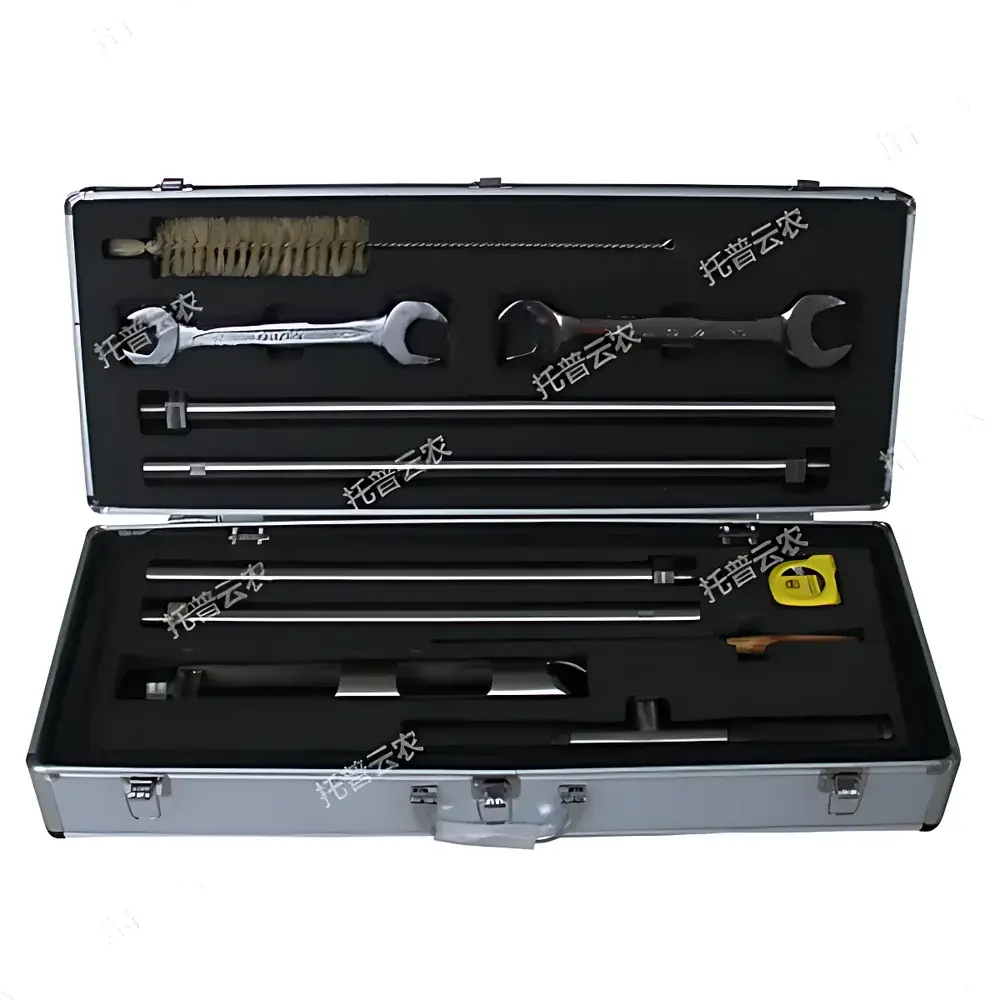

| Model | TPLQ-2 |
| Instrument Type | Soil Moisture/Suction Probe Support Tool |
| Depth Options | 1 m / 1.5 m / 2 m |
| Material | AISI 304 Stainless Steel |
| Sample Length per Insertion | 15–20 cm |
| Depth Scale | Graduated at 100 mm intervals |
| Connection Type | Threaded (M12 × 1.75 mm standard interface) |
| Accessories Included | Aluminum Carrying Case, Brush, Two Wrenches, 3-m Tape Measure, Soil Scraper, Ergonomic Handle, Cutting Head, Four Extension Rods |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

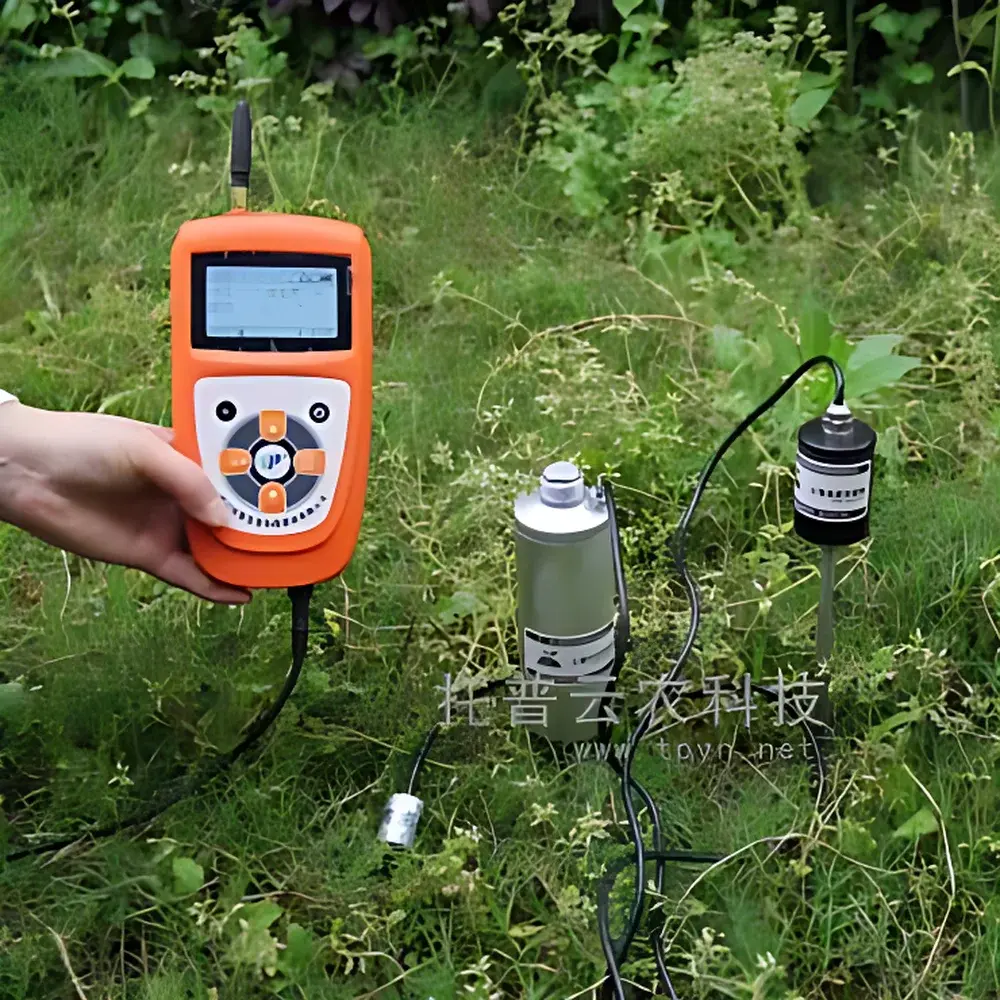

| Model | TZS-ECW-G |
| Instrument Type | Multi-parameter Soil Analyzer |
| Power Supply | 7.4 V / 2.8 Ah Li-ion battery (with charging protection) |
| Internal Storage | 30,000 records in Flash memory |
| Expandable Storage | Standard 4 GB microSD card (user-replaceable) |
| Data Transmission | GPRS wireless upload with configurable interval or manual trigger |
| GPS | Integrated high-sensitivity module (accuracy ≤ 5 m CEP) |
| Sensor Interface | IP67-rated multi-channel hub supporting up to 32 sensors |
| Operating Temperature | –40 °C to +100 °C (sensor), –20 °C to +60 °C (host) |
| Soil Temperature Range | –40 °C to +100 °C |
| Temp Accuracy | ±0.5 °C |
| Temp Resolution | 0.1 °C |
| Soil EC Range | 0–20 mS/cm |
| EC Accuracy | ±2% FS |
| EC Resolution | 0.01 mS/cm |
| Soil Moisture Range | 0–100% vol (m³/m³) |
| Moisture Accuracy | ≤ ±3% relative error |
| Moisture Response Time | ≤ 2 s |
| Moisture Resolution | 0.1% vol |
| Cable Length (standard) | 1.5 m (extendable to 1000 m) |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |

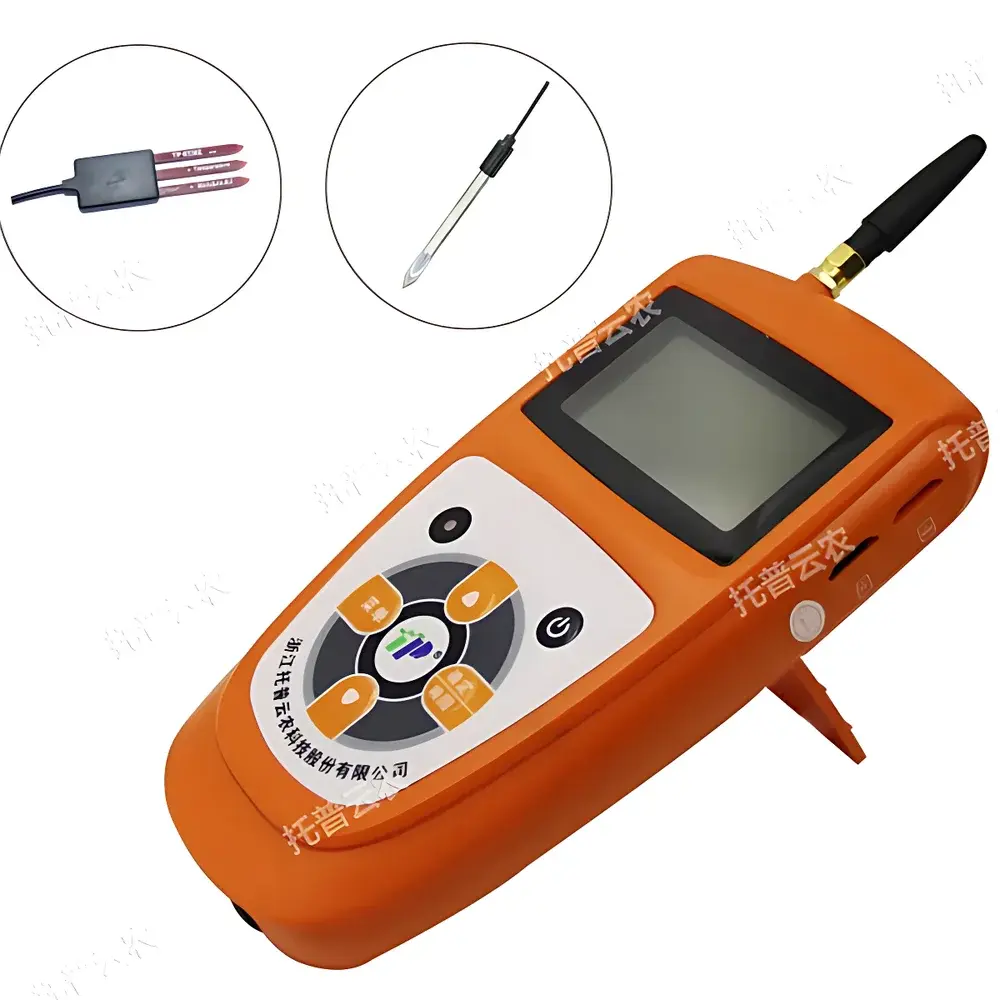

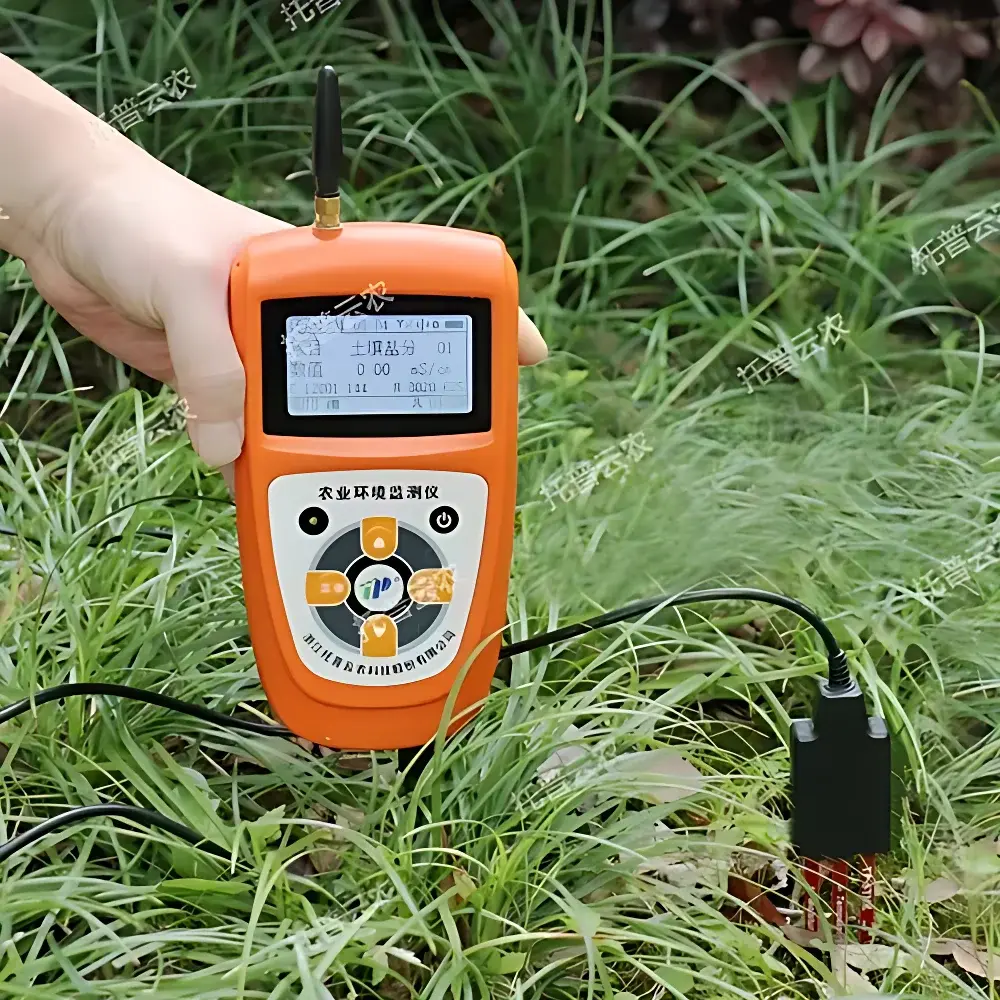

| Model | TZS-pHWY-7G |
| Instrument Category | Fertilizer & Nutrient Analyzer |
| Communication | 5G/4G Cellular |
| Onboard Storage | 30,000 records (Flash) + 4 GB microSD |
| Power | 7.4 V / 2.8 Ah Li-ion battery (with charging protection & low-voltage alert) |
| GPS | Integrated high-sensitivity module |
| Sensor Expansion | Up to 32 channels via IP67-rated daisy-chain interface |
| Data Upload | Automatic via cellular network or USB bulk transfer |
| Operating Temperature | –40 °C to +85 °C |
| Display | Backlit Chinese LCD with real-time timestamp, sensor values, storage status, and configuration menu |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | Domestic (China) |

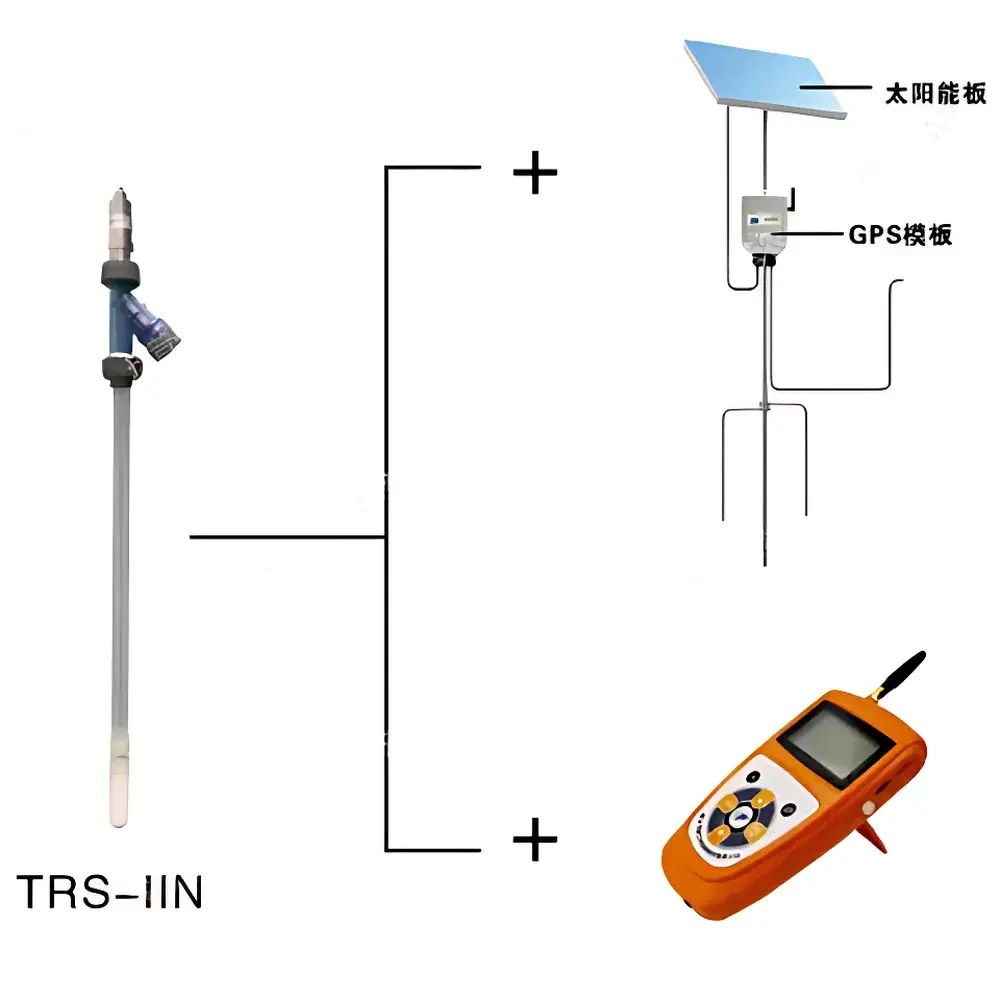

| Model | TRS-IIN |
| Instrument Type | Soil Water Potential & Temperature Analyzer |
| Power Supply | Dual AC/DC with 7.4 V / 2.8 Ah Rechargeable Lithium Battery |
| Data Transmission | Integrated GPRS Module |
| GPS | Built-in GNSS Positioning |
| Storage | 30,000 records in internal Flash + expandable 4 GB microSD card |
| Sampling Interval | 5 min to 99 h |
| Measurement Time per Sample | ≤2 s |
| Water Potential Range | 0 to –100 kPa |
| Water Potential Resolution | 0.01 kPa |
| Water Potential Accuracy | ±0.25 kPa or ±0.5% F.S. (whichever is greater) |
| Response Time (Water Potential) | 30 s |
| Soil Temperature Range | –55 °C to +150 °C |
| Soil Temperature Accuracy | ±0.5 °C |
| Soil Temperature Sensor Length | 20 cm |
| Display | Dot-matrix LCD with full Chinese menu interface |
| Connectivity | 32-channel expandable sensor interface with auto-detection |
| Software Platform | Web- and mobile-compatible cloud management platform (C/S architecture), supports data visualization, export (CSV, PDF), reporting, audit trail, and over-the-air firmware updates |
| Compliance | Designed for long-term unattended field deployment |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Class | Laboratory-Based |

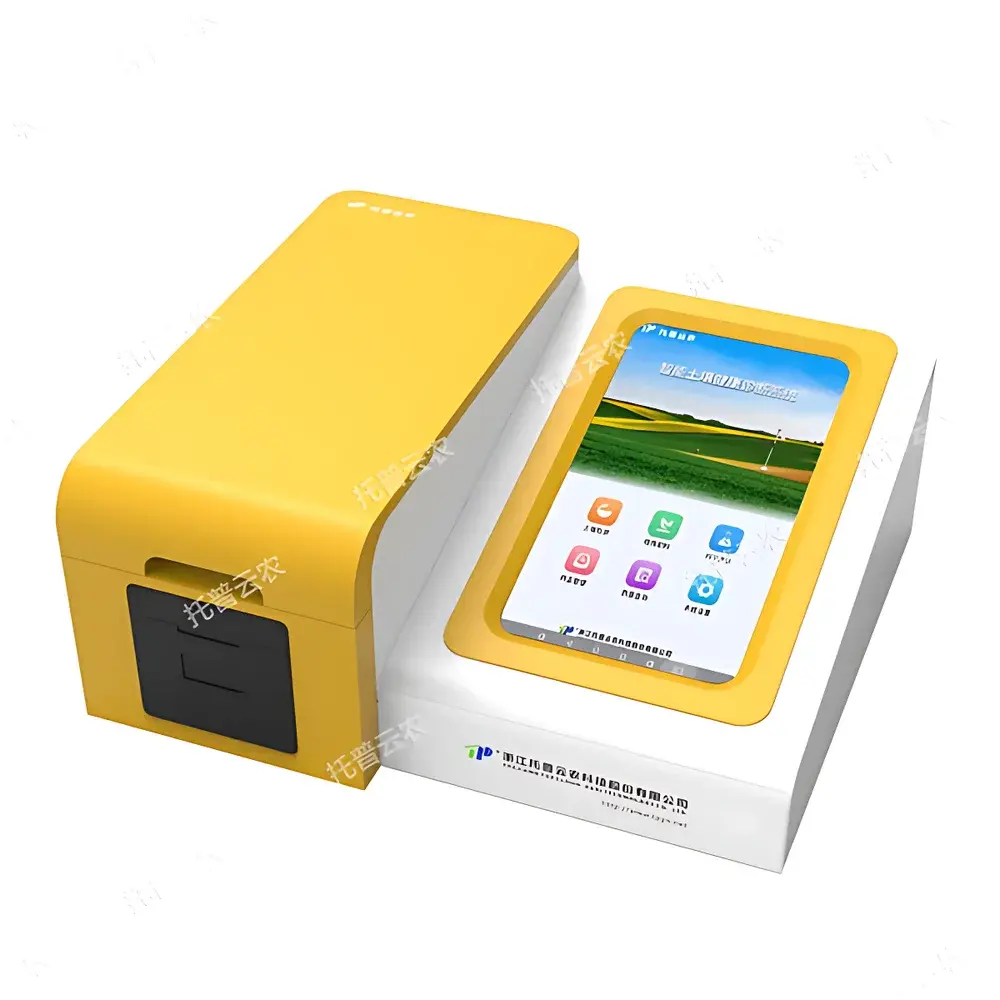

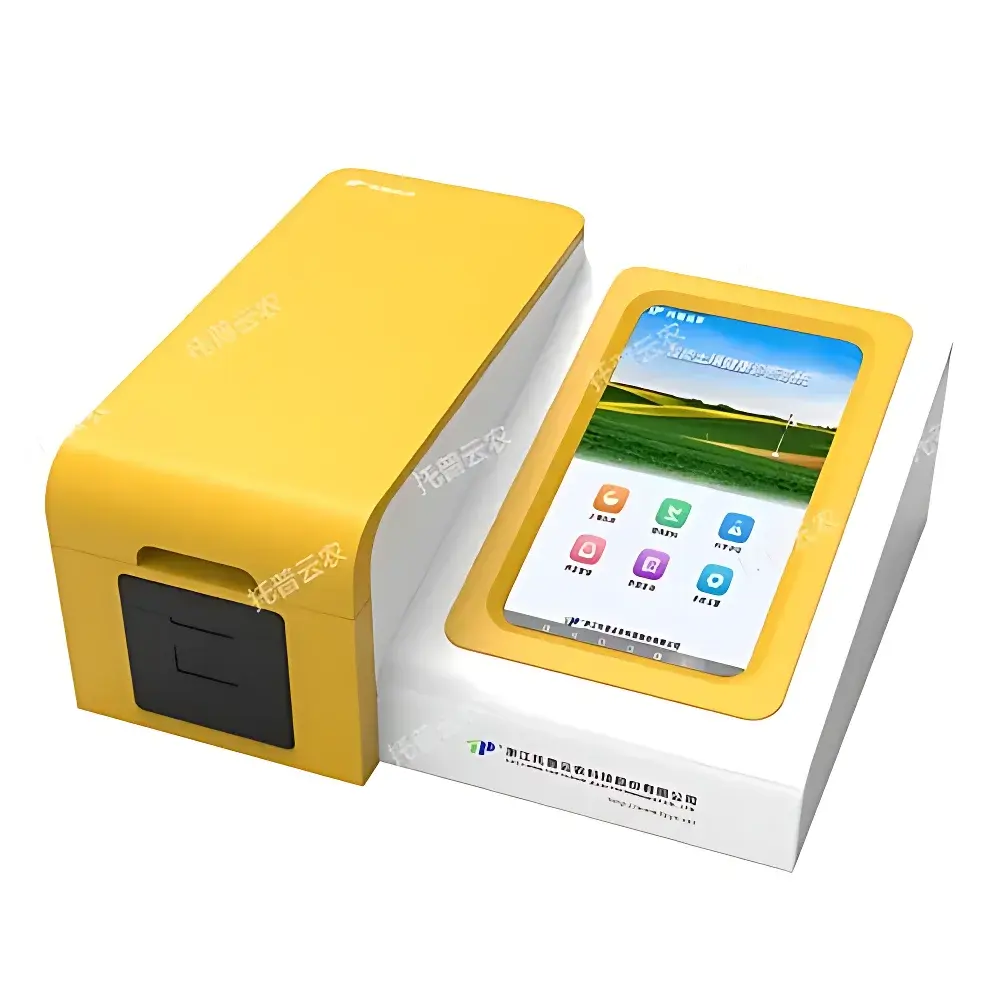

| Model | TP-SNT-12A |
| Detection Channels | 12 |
| Test Capabilities | Nitrogen (NH₄⁺-N, NO₃⁻-N, alkali-hydrolyzable N, total N), Phosphorus (available P, total P), Potassium (available K, total K), Organic Matter, Secondary & Trace Elements (S, Mn, Fe, Cu, Si, B, Zn, Mo), Heavy Metals (Pb, Cd, Cr, As, Al, Ti), Plant Tissue Nutrients, Fertilizer Composition (N-P-K, humic acid, micronutrients) |
| Optical Range | 0.000–4.000 A (Absorbance), Resolution: 0.001 A |
| Transmittance Accuracy | ±2.0% |
| Photocurrent Drift | ≤0.5% (3 min) |
| Display | 10" Capacitive Touchscreen (800×1280 IPS) |
| Storage | 8 GB Internal |
| Power | 220 V ±10%, 12 V/5 A, 20 W |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | TPSQ-W-1 |
| Instrument Type | Soil Moisture & Water Potential Analyzer |
| Power Supply | Dual-mode (15W monocrystalline solar panel + 220V AC) |
| Battery Life | ≥15 days (standalone), indefinite with solar charging |
| Communication | 4G CAT1 (optional 5G), backward-compatible with 2G (China Unicom/China Mobile) |
| Enclosure Rating | IP65 (system), IP68 (soil sensors) |
| Data Storage | ≥400,000 records on microSD (5-year retention typical) |
| Positioning | Dual-band GNSS (GPS + BeiDou), altitude + coordinate logging, displacement detection algorithm |
| Imaging | 2-MP CMOS sensor (1280×1080), 360° manual pan-tilt, scheduled remote capture |
| Operating System | FreeRTOS |
| Software Platform | B/S architecture cloud platform with Web + iOS/Android apps |
| Compliance | Designed for ISO 11277-compliant soil sampling context |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |
| Model | TZS-ECW-G |
| Instrument Type | Soil Moisture / Water Potential Analyzer |
| Power Supply | 7.4 V Li-ion battery (2.8 Ah) with charging protection |
| Internal Storage | 30,000 records in Flash memory |
| Expandable Storage | Standard 4 GB microSD card (user-replaceable) |
| Data Transmission | GPRS wireless upload (configurable interval or on-demand) |
| GPS | Integrated high-sensitivity module (records WGS84 coordinates with each measurement) |
| Sensor Interface | IP67-rated hub supporting up to 32 sensor channels |
| Operating Temperature Range | –40 °C to +100 °C |
| Soil Temperature Range | –40 °C to +100 °C |
| Temp. Accuracy | ±0.5 °C |
| Temp. Resolution | 0.1 °C |
| Soil EC Range | 0–20 mS/cm |
| EC Accuracy | ±2% FS |
| EC Resolution | 0.01 mS/cm |
| Soil Volumetric Water Content (VWC) Range | 0–100% (m³/m³) |
| VWC Accuracy | ≤±3% (relative error) |
| VWC Response Time | ≤2 s |
| VWC Resolution | 0.1% |
| Cable Length (standard) | 1.5 m (customizable up to 1000 m) |
| Display | Backlit Chinese LCD showing real-time values, timestamp, GPS coordinates, storage status, and system diagnostics |
| Software Support | Cross-platform cloud platform (web + Android/iOS app), FDA 21 CFR Part 11–compatible audit trail optional, GLP/GMP-ready data export (CSV, PDF, Excel) |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |

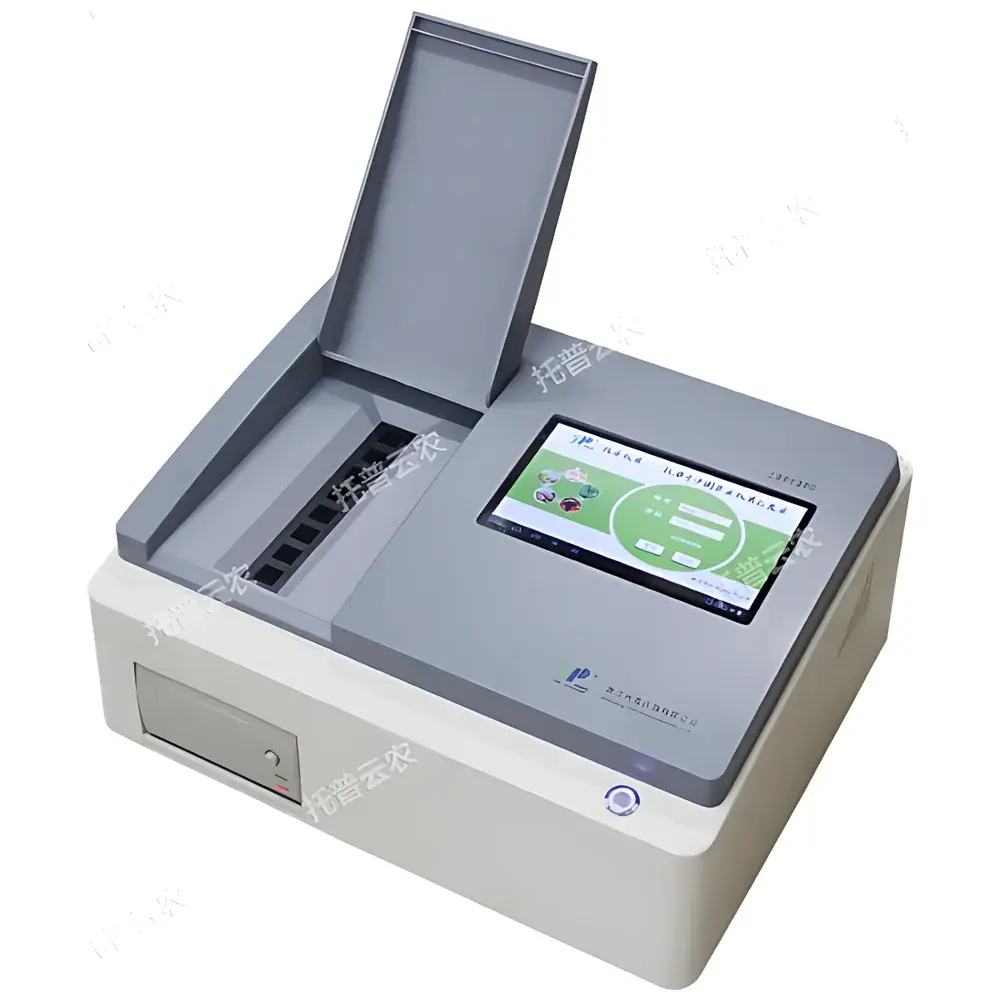

| Model | TPY-9PC |
| Instrument Type | Fertilizer & Plant Nutrient Analyzer |
| Display | 7-inch Capacitive Touch LCD (Android OS) |
| Connectivity | Wi-Fi & GPRS |
| Onboard Storage | Internal Flash Memory with Timestamped Logging |
| Power Supply | Rechargeable Li-ion Battery + AC Adapter |
| GPS | Integrated GNSS Module (Latitude/Longitude/Altitude) |
| Sensor Expansion | Modular Interface for Soil Temp, VWC, EC, pH, Penetration Resistance, Air Temp/RH, PAR, CO₂ (Optional) |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |

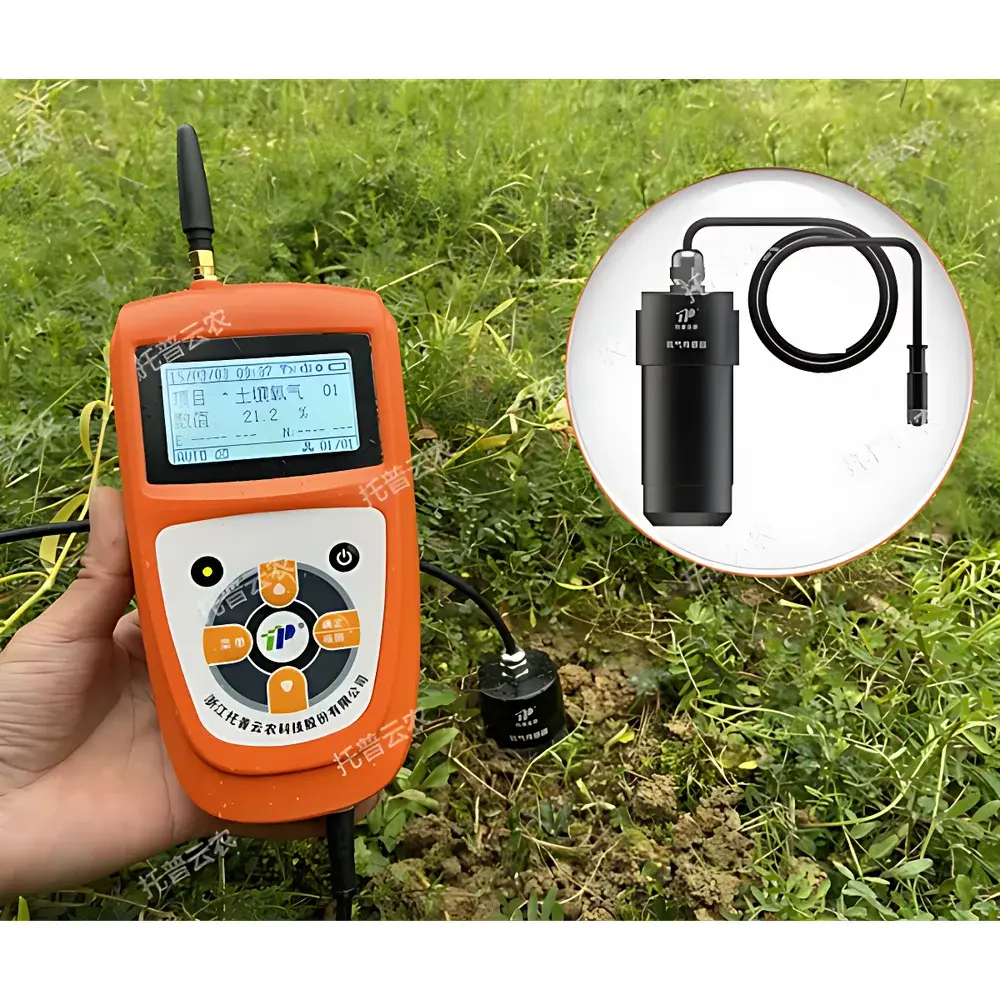

| Model | TP-TRY |
| Instrument Type | Multi-parameter Soil Analyzer |
| Measurement Range | 0–25.00% O₂ |
| Resolution | 0.01% |
| Accuracy | ±2% FS |
| Sensor Cable Length | 2.5 m |
| Operating Temperature | −10°C to +55°C |
| Operating Humidity | 5%–98% RH |
| Data Storage | ≥30,000 entries in internal Flash |
| Logging Interval | 5 min – 99 h (user-configurable) |
| Power Supply | AC/DC dual-mode |
| Standby Current | 19 mA |
| Max Operating Current | 300 mA |
| Standby Duration | ≥18 days (with标配 battery) |
| GPS Positioning | Integrated, outputs WGS84 latitude/longitude |
| Communication | USB 2.0, 4G/5G cellular module (LTE Cat-1 or higher), Bluetooth 5.0 (optional) |
| Display | Backlit LCD with Chinese/English UI |
| IP Rating | IP68 (sensor probe) |
| Expandability | Up to 32 external sensors via IP68-rated daisy-chain interface |
| Alarm | Voice prompt (Mandarin), configurable threshold alerts |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |

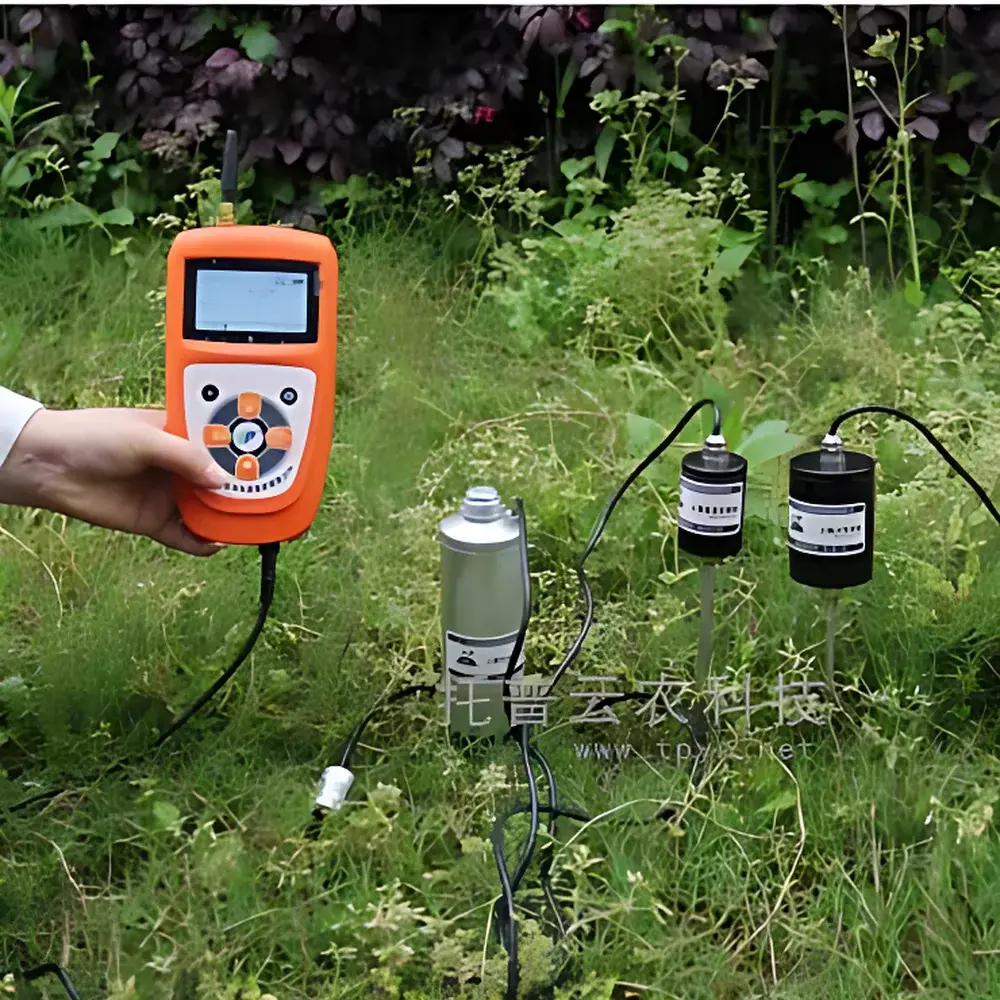

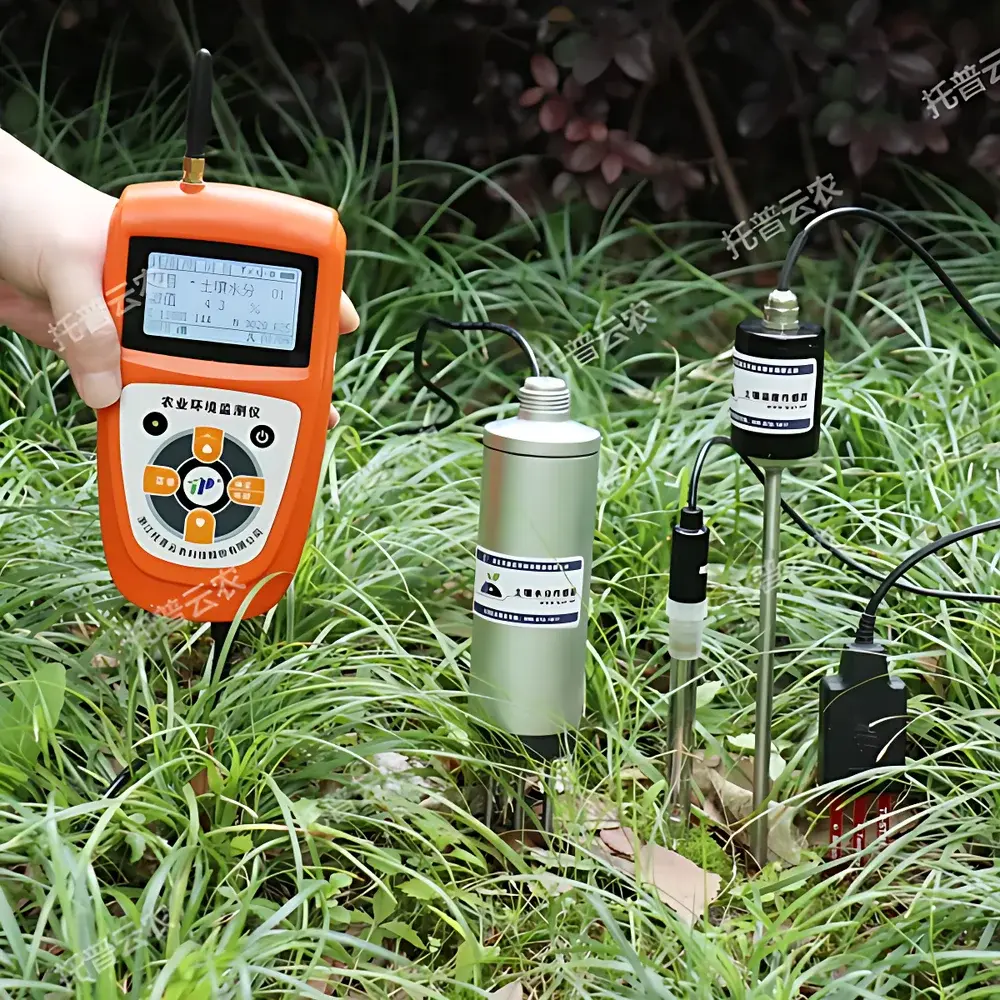

| Model | TZS-pHW-4G |
| Instrument Type | Soil Moisture/Tension Analyzer |
| Communication | 5G/4G Cellular |
| Data Storage | 30,000 entries in internal Flash + expandable microSD (4 GB standard, unlimited with card) |
| Power Supply | 7.4 V / 2.8 Ah Li-ion battery (with low-voltage warning & charge protection) |
| external DC input | 8.4 V ≥1000 mA |
| Operating Current | 10 mA (standby), variable under active sensing |
| GPS | Integrated high-sensitivity module with automatic geotagging |
| Sensor Expansion | Up to 32 channels via IP67-rated daisy-chain hub |
| Display | Backlit Chinese LCD showing real-time values, timestamps, storage status, and system diagnostics |
| Sampling Interval | Configurable from 5 minutes to 99 hours |
| Audio Feedback | Mandarin voice prompts and threshold-triggered alarm announcements |
| Software Platform | Web- and mobile-accessible cloud management system (C/S architecture), supporting data visualization, export (CSV, PDF), reporting, audit-ready history, and OTA firmware updates |
| Soil Temperature Sensor | Range –40 to +100 °C, accuracy ±0.5 °C, resolution 0.1 °C, probe length ≥25 cm |
| Soil Electrical Conductivity (EC) Sensor | Solid-state electrode, range 0–23 mS/cm, accuracy ±2%, resolution 0.01 mS/cm |
| Soil Volumetric Water Content (VWC) Sensor | Range 0–100 %VWC, response time ≤2 s, resolution 0.1 %VWC, relative error ≤3%, standard cable 1.5 m (customizable up to 1000 m) |
| Soil pH Sensor | Range 0–14, accuracy ±0.5 pH units |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | TZS-pHW-4G |
| Instrument Type | Soil Moisture / Water Potential Analyzer |
| Measurement Parameters | Soil Temperature, Soil Moisture (v/v %), Soil Electrical Conductivity (EC), Soil pH |
| Communication | GPRS + USB + Bluetooth (via App) |
| Data Storage | 30,000 internal Flash entries + expandable 4GB microSD |
| Power | 7.4V 2.8Ah rechargeable Li-ion battery (with low-voltage warning & charging protection) |
| GPS | Integrated high-sensitivity module (WGS84 coordinates, ±5 m CEP) |
| Sensor Interface | IP67-rated multi-channel hub supporting up to 32 sensors |
| Operating Temperature | -20°C to 60°C |
| Display | Backlit Chinese LCD with real-time timestamp, parameter values, storage status, and GPS coordinates |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

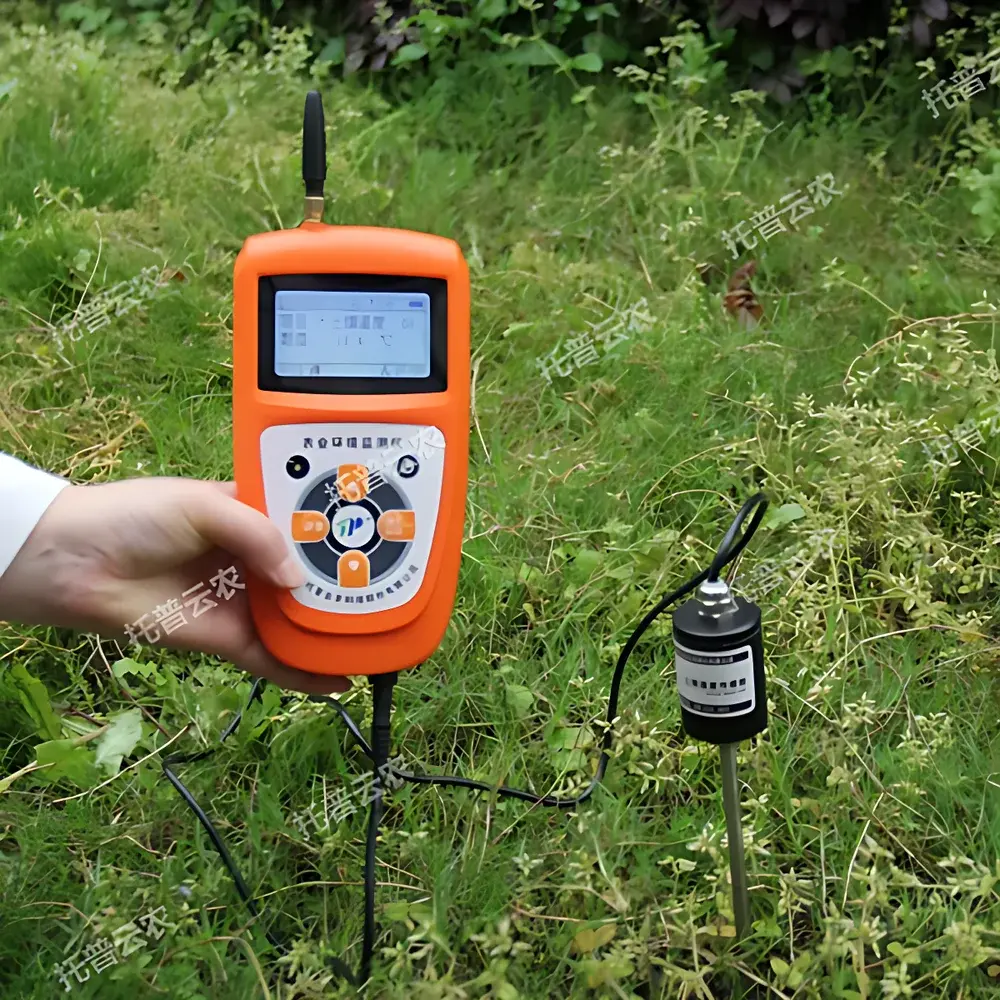

| Model | TPJ-21-G |
| Instrument Type | Soil Moisture and Temperature Logger |
| Temperature Range | -40°C to 100°C |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Internal Storage | 30,000 records (Flash) + optional 4GB microSD card |
| Power Supply | 7.4V 2.8Ah rechargeable Li-ion battery (with low-voltage alert & charging protection) |
| External Power | 8.4V DC ≥1000mA |
| Communication | GPRS wireless transmission |
| GPS | Built-in module for geotagged data logging |
| Sensor Expansion | Up to 32 sensor types via IP67-rated hub |
| Data Upload | Web platform & mobile app (iOS/Android) |
| Sampling Interval | 5 minutes to 99 hours |
| Operating Current | 10mA (standby), variable under active operation |
| Display | Chinese LCD with real-time date/time, sensor values, storage status, and GPS coordinates |
| Voice Function | Configurable Chinese voice prompts and alarm alerts |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |

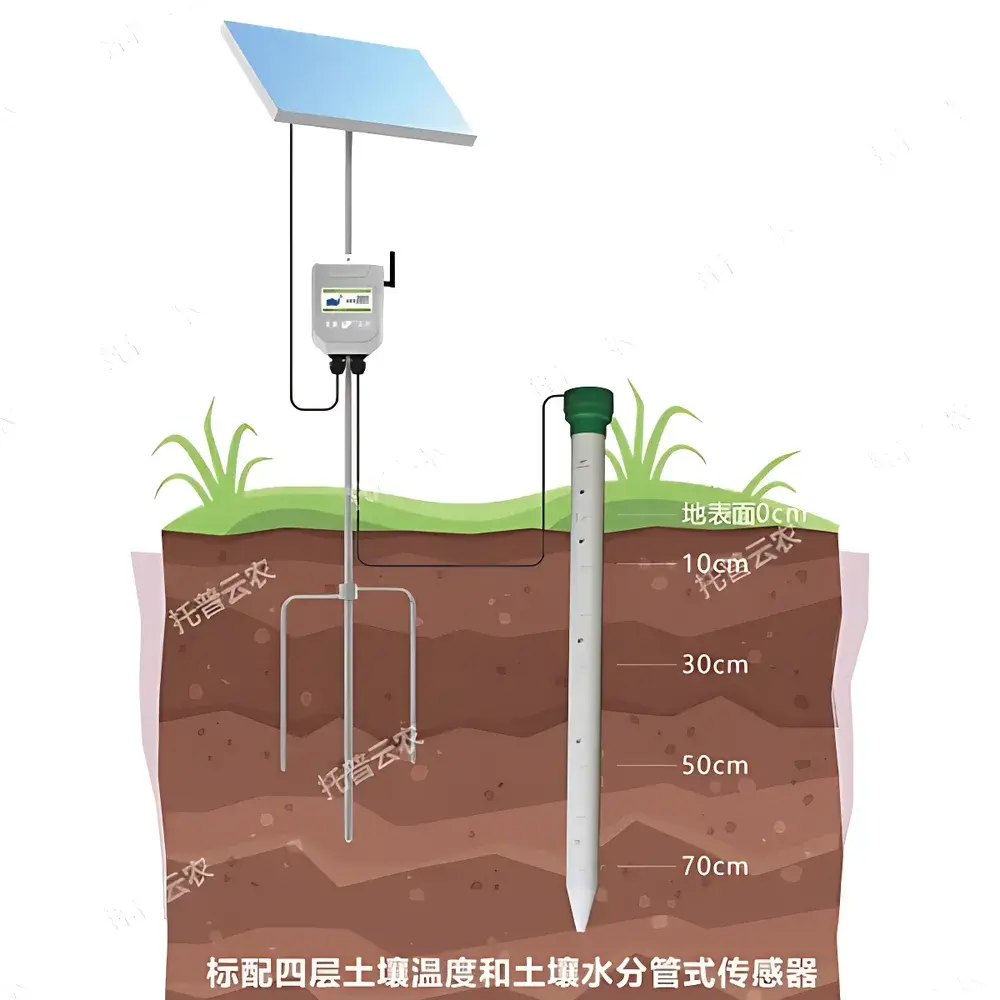

| Model | TPGSQ-4 |
| Instrument Category | Soil Moisture / Water Potential Analyzer |
| Protection Rating | IP67 |
| Housing Material | PVC |
| Communication Options | 4G/2G cellular, RS485 (≥100 m) |
| Power Supply | Solar panel, AC 220 V, or long-life internal Li-ion battery |
| GPS Integration | Yes, real-time geolocation reporting |
| Vibration Detection | Integrated accelerometer for tamper alerting |
| Sensor Configuration | Standard 4-layer soil moisture & temperature profiling |
| Measurement Depth | Up to 70 cm (customizable beyond 70 cm) |
| Layer Spacing | Minimum 10 cm |
| Moisture Range | 0–100% volumetric water content (VWC) |
| Moisture Accuracy | ±3% VWC (factory-calibrated, no field recalibration required) |
| Temperature Range | −20 °C to +70 °C |
| Temperature Accuracy | ±0.5 °C |
| Data Logging Interval | Configurable from 5 minutes to 12 hours |
| Data Export | CSV, Excel via web platform or USB |
| Cloud Platform | Proprietary C/S architecture with web and mobile (iOS/Android) interfaces |
| Data Security | Local backup + cloud redundancy, audit-ready export logs |
| Software Updates | Over-the-air (OTA) supported |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |
| Model | TPJS-B |
| Instrument Type | Multi-Element Handheld X-ray Fluorescence (XRF) Soil Analyzer |
| Weight | 1.6 kg (with battery) |
| Dimensions | 254 × 79 × 280 mm (L×W×H) |
| Excitation Source | Integrated micro-focus X-ray tube (6–50 kV, 0–200 µA), Ag anode (standard), optional Au/W/Rh anodes |
| Detector | High-sensitivity Silicon Drift Detector (SDD), resolution <125 eV |
| Detection Range | Mg (12) to U (92) |
| Analysis Time | ≤80 s per measurement |
| Operating Temperature | –20 °C to +50 °C |
| Battery Life | Up to 8 hours per charge |
| Data Storage | 32 GB internal memory (≥300,000 spectra) |
| Connectivity | USB, Bluetooth 5.0, Wi-Fi 802.11 b/g/n |
| Display | 4.3″ industrial resistive touchscreen, glove-compatible, auto-brightness adjustment |
| Environmental Rating | IP54-rated housing with shock-absorbing T-slot thermal management system |
| Safety Certifications | CE, FCC, UN 38.3, compliant with IEC 61000-4 EMC standards |
| GPS | Built-in GNSS module (GPS/BeiDou/GLONASS), geotagged spectral data with altitude logging |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TZS-ECW-IG |
| Instrument Category | Soil Moisture / Water Potential Meter |
| Soil Parameter Range | 0–23 mS/cm (EC), –40–100 °C (Temp), 0–100% VWC (Moisture) |
| Accuracy | ±2% (EC), ±0.5 °C (Temp), ≤3% (VWC) |
| Resolution | 0.01 mS/cm, 0.1 °C, 0.1% VWC |
| Data Storage | 30,000 records (internal Flash), unlimited with optional 4GB microSD |
| Connectivity | 5G/4G cellular, USB, GPS geotagging |
| Power | 7.4 V / 2.8 Ah Li-ion battery (with low-voltage alert and charging protection), 8.4 V DC external input |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Domestic |
| Model | TP-SNT-12A / TP-SNT-12B |
| Instrument Type | Multi-Parameter Soil Analyzer |
| Display | 10.1" capacitive touchscreen (800×1280 IPS) |
| Storage | 8 GB internal |
| Absorbance Range | 0.000–4.000 A (0.001 resolution) |
| Transmittance Range | 0.00–100.00% T (0.001 resolution) |
| Photometric Accuracy | ±2.0% T |
| Repeatability | ≤0.5% T |
| Photocurrent Drift | ≤0.5% (3 min) |
| Power Supply | 220 V ±10%, 12 V / 5 A DC adapter |
| Power Consumption | 20 W |
| Detection Channels | 12-channel photometric system (6 dual-wavelength groups) |
| Connectivity | Wi-Fi, USB 2.0 |
| GPS | Integrated high-sensitivity module (±2.5 m CEP) |
| Sample Types | Soil extracts, fertilizer solutions, plant tissue digests, aqueous environmental samples |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | TZS-2X-G |
| Instrument Type | Soil Moisture & Temperature Meter |
| Measurement Parameters | Soil Temperature (°C), Volumetric Water Content (%VWC) |
| Communication | 4G/5G Cellular + GPS + USB + Cloud API |
| Data Storage | 30,000 entries internal Flash + expandable microSD (up to 4GB default) |
| Power | Rechargeable 7.4V 2.8Ah Li-ion battery (with low-voltage warning & charge protection) |
| Operating Current | 10mA (standby), variable under active sensing |
| Sampling Interval | 5 min – 99 h |
| Display | Backlit Chinese LCD with real-time timestamp, sensor values, memory status, GPS coordinates |
| Sensor Interface | IP67-rated multi-sensor hub (up to 32 channels) |
| Compliance | Designed for field-deployed environmental monitoring per ISO 11274 (soil water retention), ASTM D5859 (in-situ soil moisture), and GLP-aligned data integrity practices |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

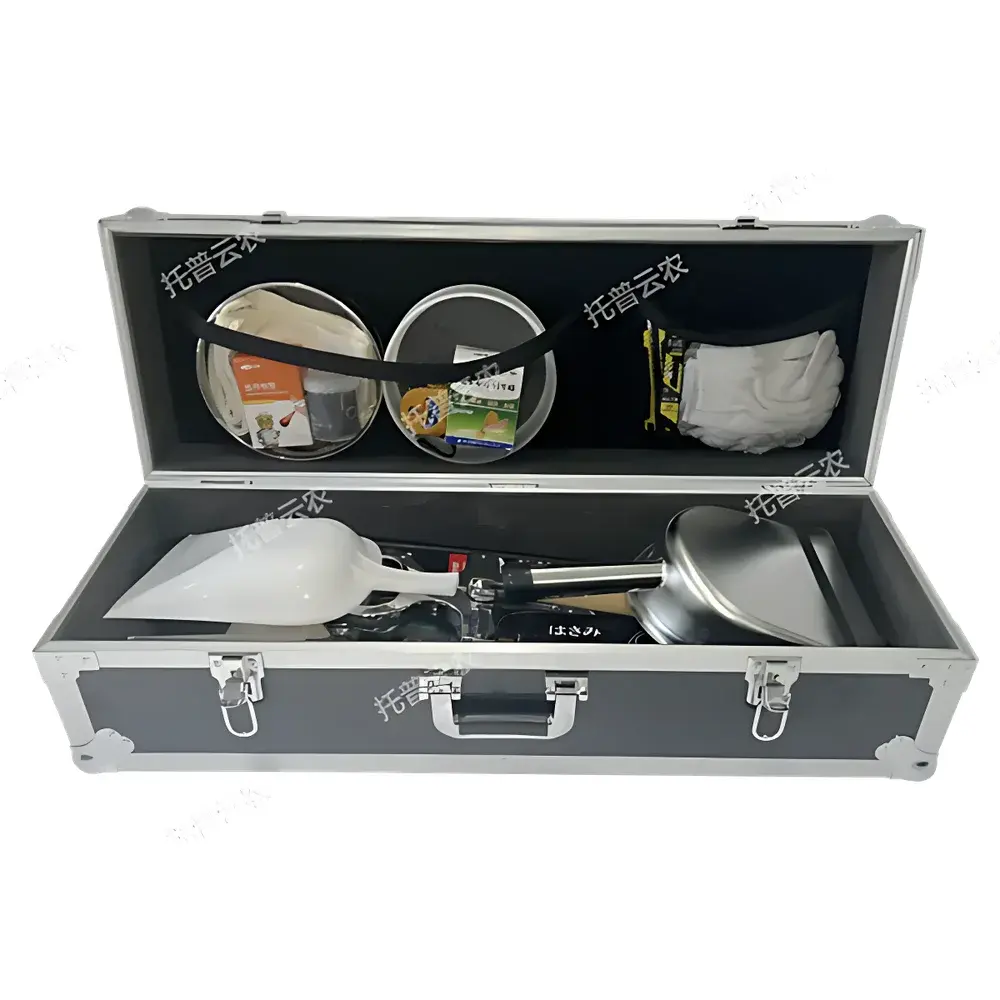

| Model | TPLQ-3 |
| Pricing | Available Upon Request |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |

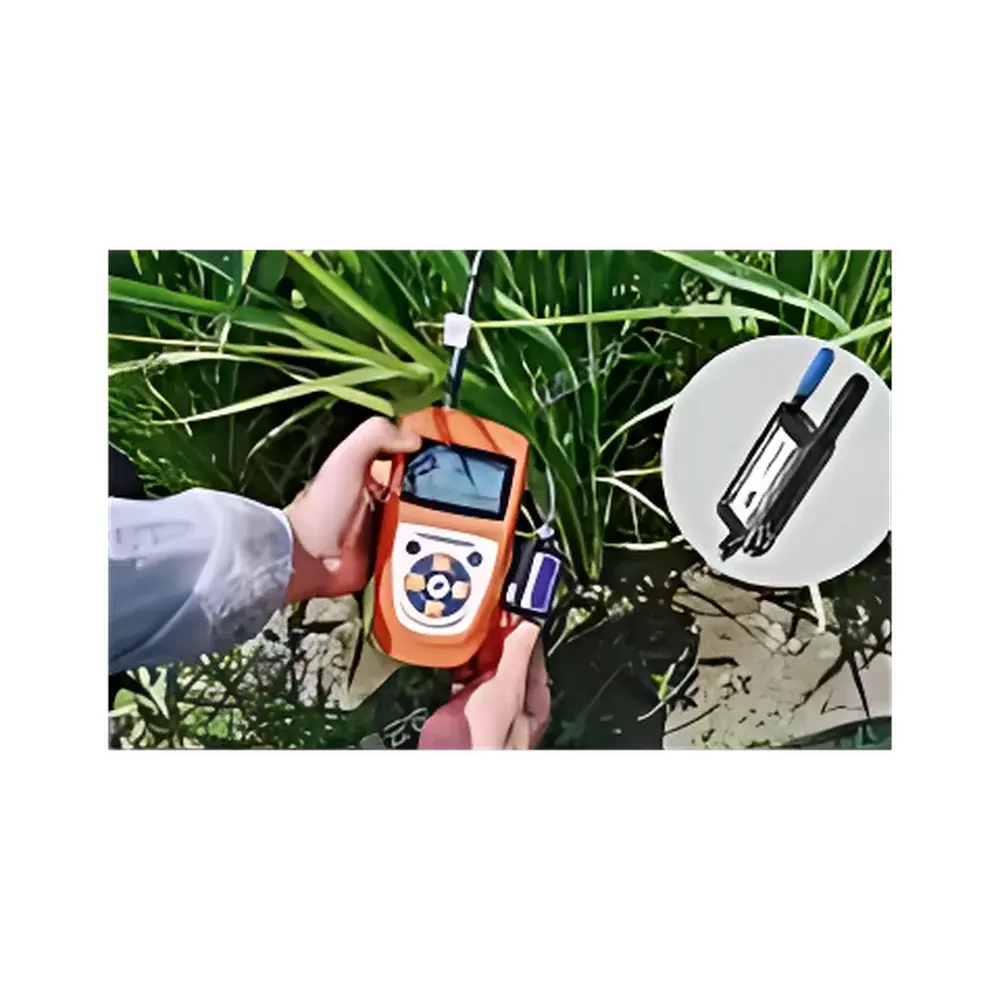

| Model | TZS-pH-IIG |
| Instrument Type | Soil pH Meter |
| Measurement Parameters | pH (0.0–14.0, ±0.1 accuracy, 0.1 resolution, single-point calibration) and Soil Temperature (−5°C to 70°C, ±0.5°C accuracy, 0.1°C resolution, automatic temperature compensation) |
| Operating Environment | −10°C to 55°C, 0–95% RH (non-condensing) |
| Power | Built-in 7.4 V / 2 Ah Li-ion battery |
| Standby Current | <20 mA |
| Max Operating Current | 300 mA |
| Onboard Storage | 30,000 records (Flash) +标配 4 GB TF card (expandable to 64 GB) |
| Data Logging Interval | 5 min – 99 h (user-configurable) |
| Connectivity | 2G/4G cellular, mini-USB, GPS positioning |
| Display | Chinese LCD with real-time clock, battery level, sensor values, storage status, voice status |
| Audio Alert | Mandarin voice播报 for threshold violations |
| Platform Integration | Cloud-based management platform with web & mobile access, data visualization, export (CSV/PDF), alarm configuration, crop-specific presets, audit-ready data history, remote firmware updates |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | TZS-pHWY-7G |
| Instrument Type | Multi-Function Soil Analyzer |
| Wireless Connectivity | 5G/4G Cellular |
| Onboard Storage | 30,000 records (Flash) + 4 GB microSD |
| GPS Integration | Built-in GNSS module (GPS+GLONASS) |
| Power Supply | 7.4 V / 2.8 Ah Li-ion battery (with low-voltage alert & charging protection) |
| Operating Current | 3 mA (standby), variable under active sensing |
| Data Logging Interval | 5 min – 99 h |
| Display | Backlit Chinese LCD with real-time timestamp, sensor values, storage status |
| Sensor Expansion | Up to 32 channels via IP67-rated daisy-chain hub |
| Environmental Rating | IP67-rated sensor interface |
| Communication Protocols | MQTT/HTTP over cellular |
| Compliance | Designed for field-deployable environmental monitoring per ISO 11277 (soil sampling), ASTM D4972 (pH), ASTM D511 (soluble salts), and USDA-NRCS soil testing guidelines |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

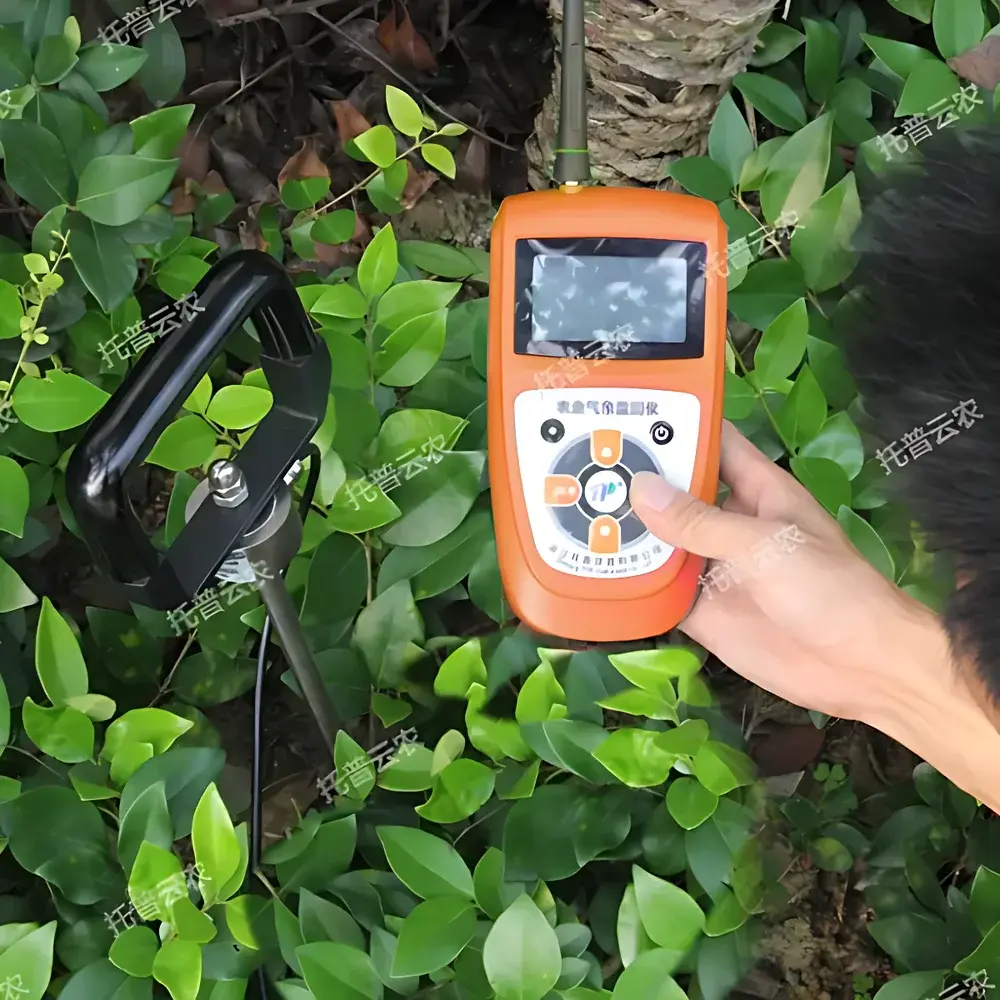

| Model | TJSD-750-II |
| Measurement Accuracy | ±5% |
| Measuring Depth | 0–375 mm (400 mm probe length) |
| Penetration Force Range | 0–7922 kPa / 0–89 kgf/cm² / 0–890 N/cm² (unit-selectable) |
| Data Logging Interval | 5 min – 99 h |
| GPS Resolution | Latitude 0–90°, Longitude 0–180° |
| Internal Storage | ~30,000 records (Flash) + expandable microSD (up to 4 GB standard) |
| Power Supply | 7.4 V / 1.8 Ah Li-ion battery (with low-voltage warning & charge protection) |
| Communication | Dual-mode 2G/4G cellular uplink + USB data export |
| IP Rating (Extension Cable) | IP67 |
| Sensor Expansion Capacity | Up to 32 sensors via daisy-chained hub |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Domestic |

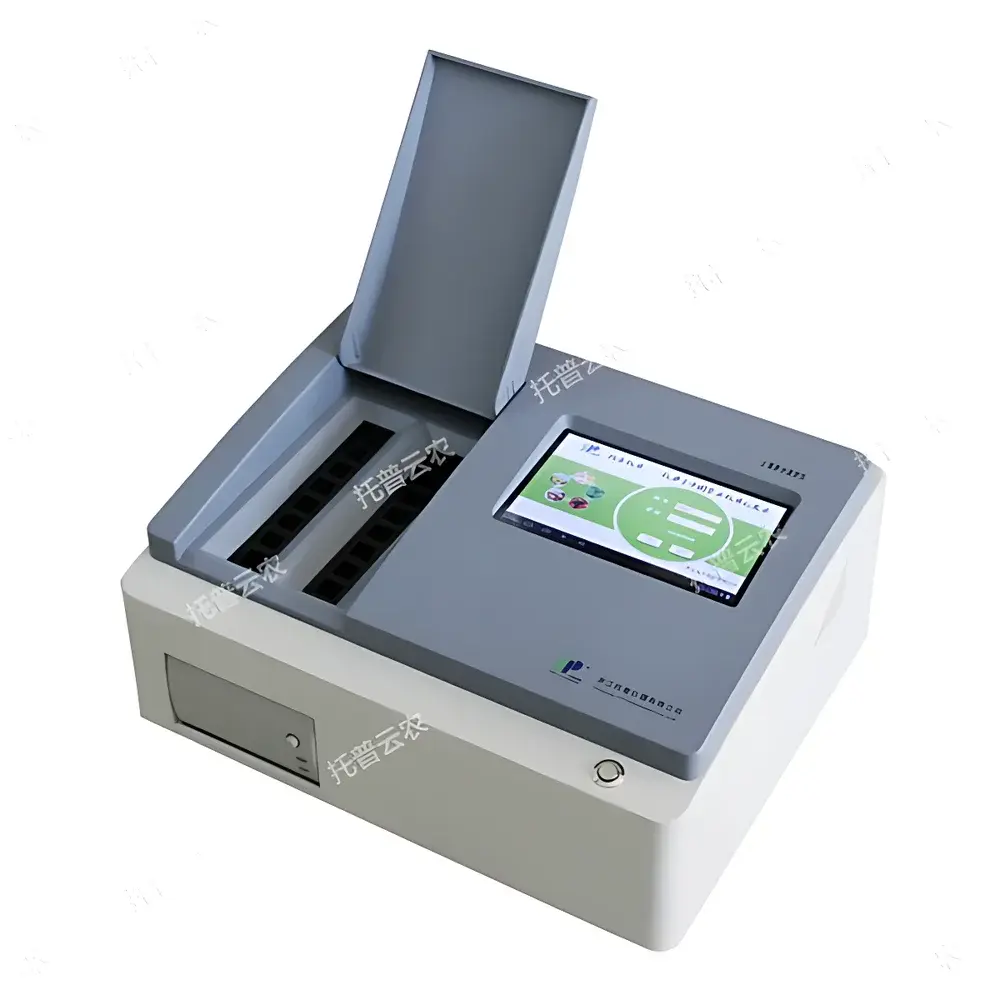

| Model | TPY-16A |
| Instrument Type | Fertilizer & Plant Nutrient Analyzer |
| Detection Channels | 16 |
| Display | 7-inch Color Touchscreen (Android OS) |
| Power Supply | Built-in Rechargeable Lithium Battery + AC/DC Adapter |
| Connectivity | Wi-Fi & GPRS |
| GPS | Integrated GNSS Module (Latitude/Longitude/Altitude) |
| Data Storage | Onboard Non-Volatile Memory |
| Printing | Built-in Thermal Printer (Ribbon-Free) |
| Cloud Platform | Proprietary C/S Architecture Web & Mobile App (Android) |
| pH Range | 0–14 (±0.5 accuracy) |
| EC Range | 0–20 mS/cm (±2% FS) |
| Optical System | Dual-Wavelength Photometric Detection (Red: 620±4 nm |
| Blue | 440±4 nm) |
| Photometric Stability | ΔA ≤ 0.003 in 3 min |
| Repeatability | ΔA ≤ 0.005 |
| Linearity Error | <3.0% |
| pH Sensor Type | Solid-State Potentiometric Sensor (No Glass Electrode) |
| EC Sensor Type | Conductivity Cell with Temperature Compensation |
| Optional Sensors | Air Temp/RH, Soil Temp, Volumetric Water Content, CO₂, PAR, Illuminance |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |

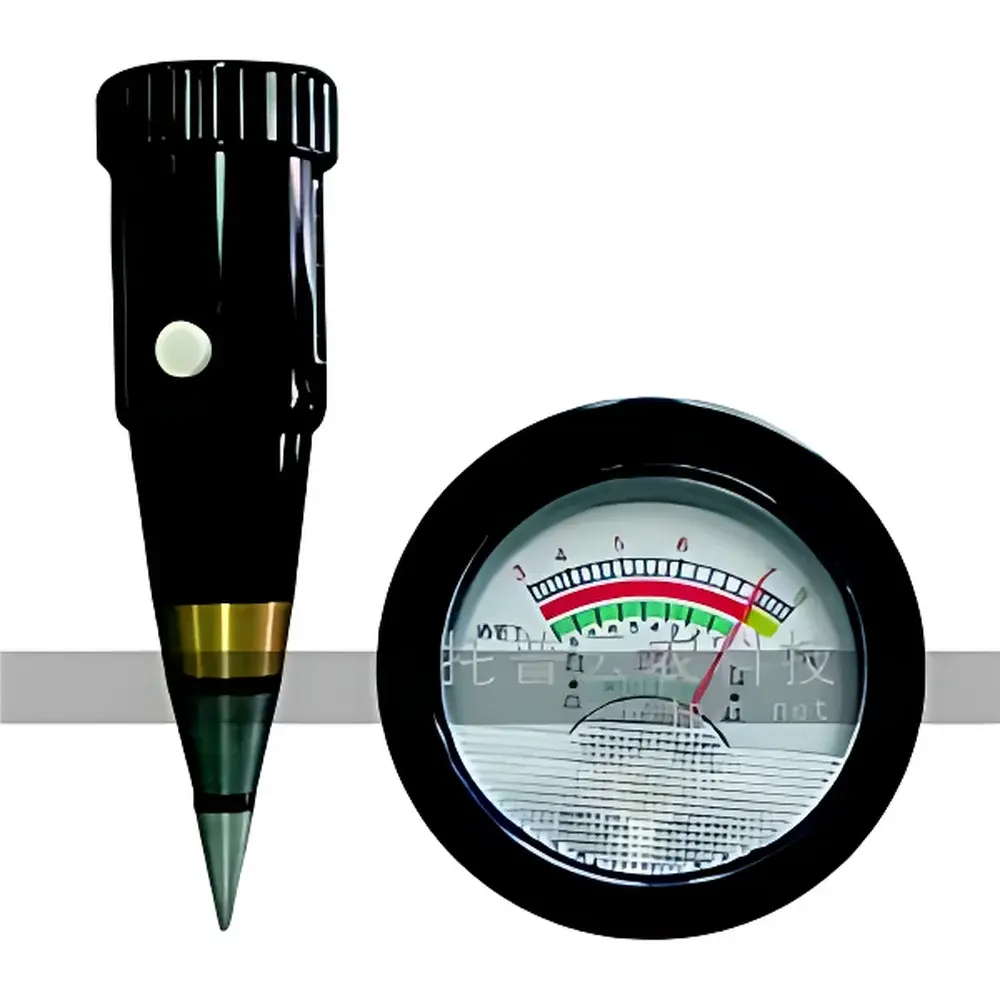

| Model | SDT-60 |
| pH Range | 3–8 |
| pH Accuracy | ±0.2 pH |
| Moisture Range | 1–8% (v/v or gravimetric equivalent) |
| Moisture Accuracy | ±1% |
| Probe Insertion Depth | 6 cm |
| Power Source | None (galvanic cell-based, self-powered) |
| Probe Material | Corrosion-resistant metal alloy |
| Expected Service Life | ≥3 years |
| Compliance | Designed for field-deployable soil assessment per ISO 10390:2022 (soil pH determination) and ASTM D4972-21 (acid-soluble salts in soils) |
Show next
