| Brand | TopCloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model Numbers | TP-WHL (Visible-light Imaging), TP-WHY (Multispectral Imaging) |
| Pricing | Available Upon Request |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |

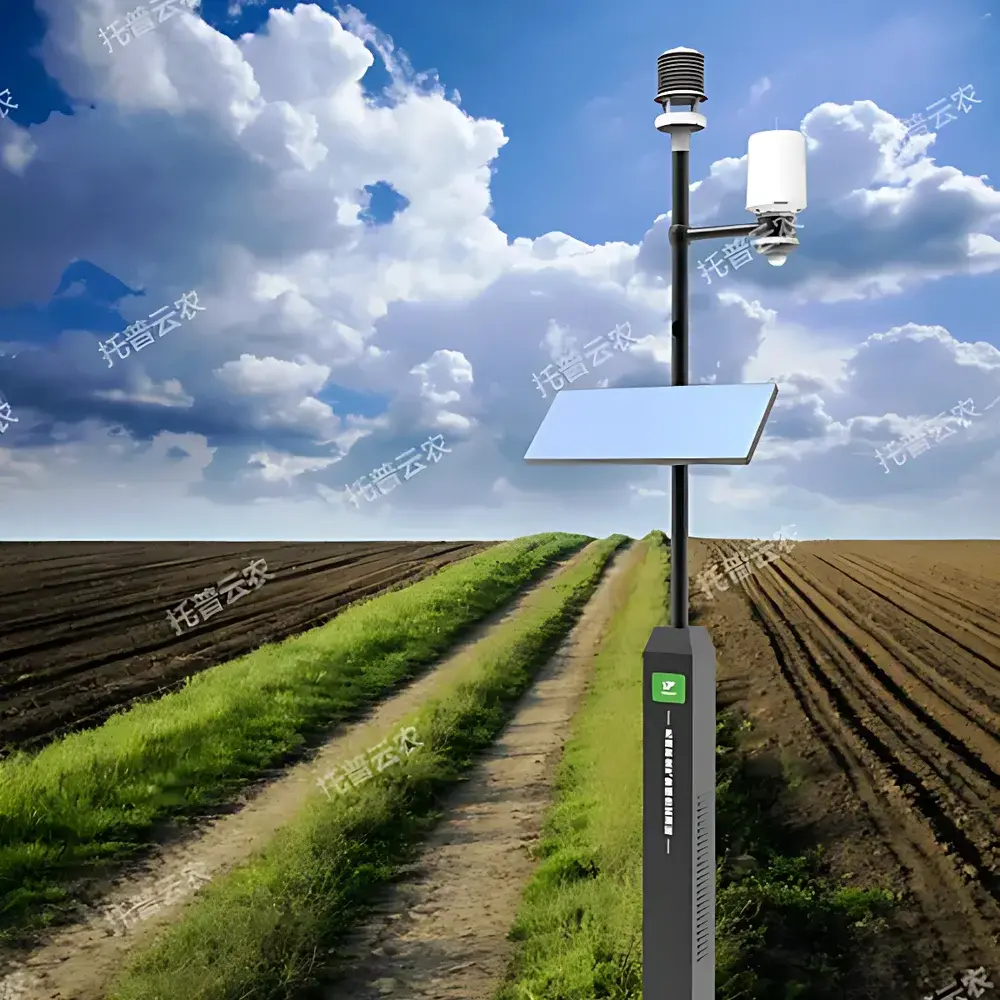

| Model | TP-WMS-1Z |
| Instrument Type | Integrated Agricultural Microclimate Monitoring Station |
| Power Supply | Dual-mode (Solar + LiFePO₄ Battery) |
| Operating Temperature | −30 °C to +55 °C |
| Relative Humidity Range | 5%–98% RH |
| Soil Sensor Depth Layers | 4 (0–20 cm, 20–40 cm, 40–60 cm, 60–100 cm) |
| Data Acquisition Interval | Configurable (Default: 1 h) |
| Data Transmission Interval | Configurable (Default: 2 h) |
| Onboard Storage | TF card (User-expandable) |
| Communication Protocols | GPRS / CDMA / NB-IoT / GSM / 4G / 5G / Wi-Fi / Ethernet / Fiber |
| Positioning Systems | GPS + BeiDou + Galileo |
| Altitude Measurement | Yes |
| Camera Resolution | 2 MP (1920×1080), 2.7″ CMOS sensor |
| LED Display | 640×320 px (128×64 dot matrix), 35 W, 220 V AC powered |
| Enclosure Dimensions (Control Box) | 250 × 149.5 × 375 mm |
| Overall System Height | 3028 mm |
| Mounting Structure | Corrosion-resistant aluminum alloy mast with integrated solar panel & battery housing |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

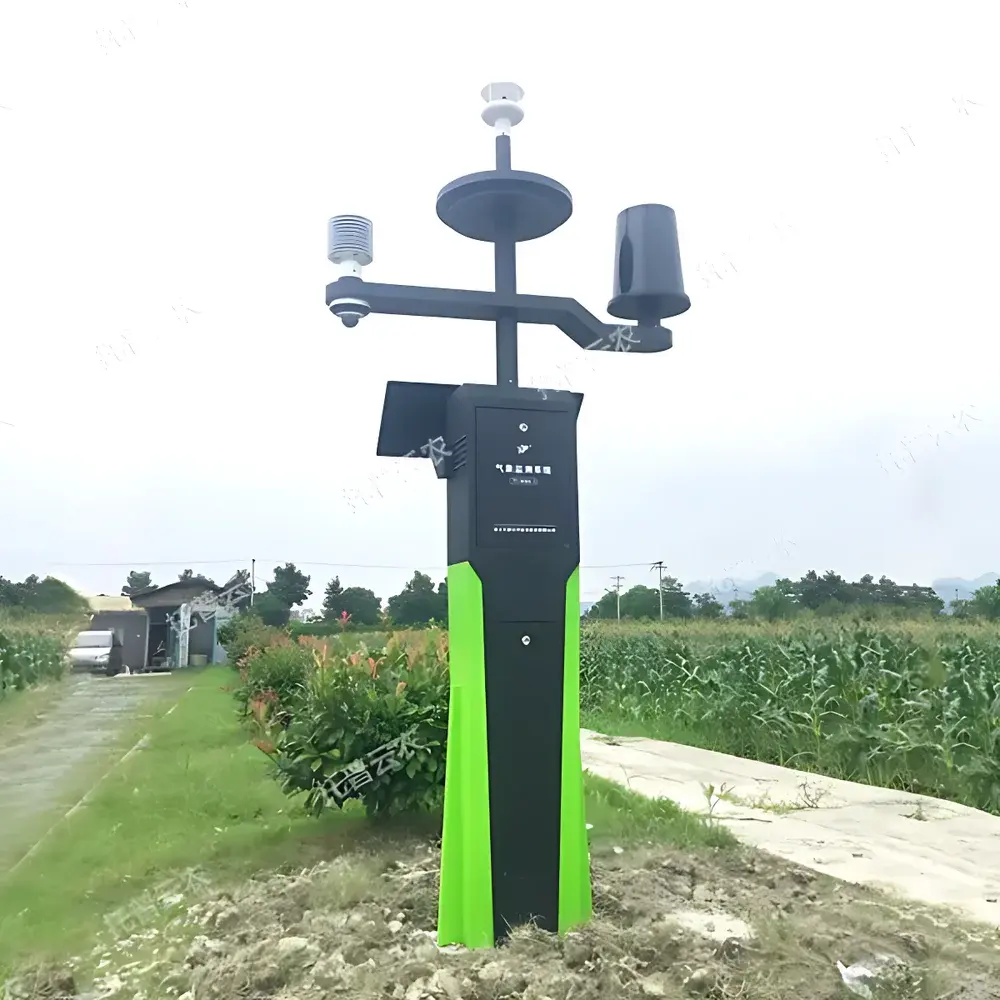

| Model | TP-WMS-1 |
| Instrument Type | Autonomous Weather Station |
| Communication | GPRS/NB-IoT/CDMA/4G/5G |
| Sensor Interfaces | RS485 & LoRa |
| Wind Measurement | Ultrasonic (0–65 m/s, 0–360°) |
| Soil Moisture Range | 0–100% (±2% accuracy, 0.1% resolution) |
| Soil Temperature Range | −20–100°C (±0.2°C, 0.1°C res.) |
| Air Temperature | −40–120°C (±0.3°C, 0.1°C res.) |
| Relative Humidity | 0–100% RH (±2%, 0.1% res.) |
| Illuminance | 0–200,000 lux (±2% FS, 1 lux res.) |
| Rainfall | 0–4 mm/min (±0.4 mm ≤10 mm |
| Camera | 1920×1080, 2 MP, 4 mm lens, 89.1° FoV |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |

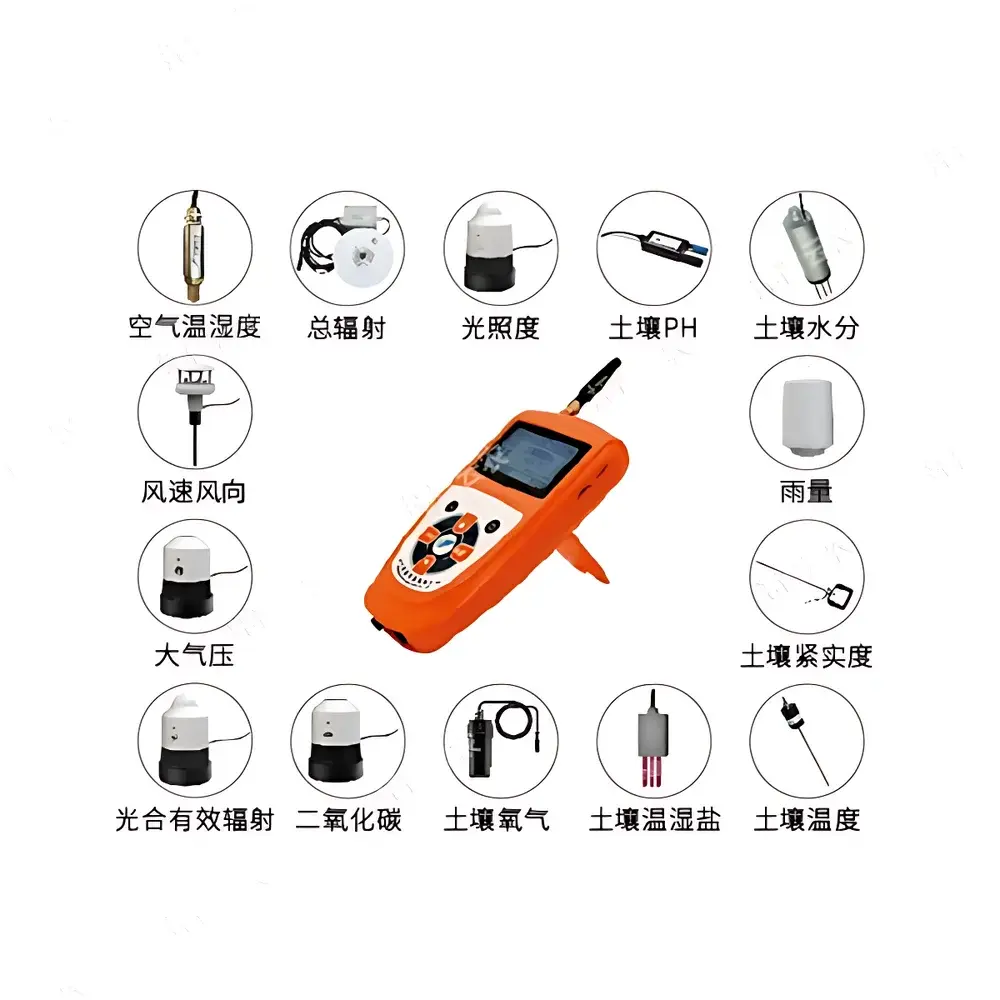

| Model | TNHY-4G to TNHY-14G |
| Instrument Type | Handheld Weather Station |
| Connectivity | 4G/5G Cellular |
| Data Storage | 30,000 internal Flash entries + expandable microSD (4GB standard) |
| Power | 7.4V 2.8Ah rechargeable Li-ion battery with low-voltage alert |
| GPS | Integrated high-sensitivity module with automatic geotagging |
| Sensor Expansion | Up to 32 sensors via IP67-rated daisy-chain hub |
| Compliance | Designed for GLP-aligned field data collection |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Producer |
| Country of Origin | China |

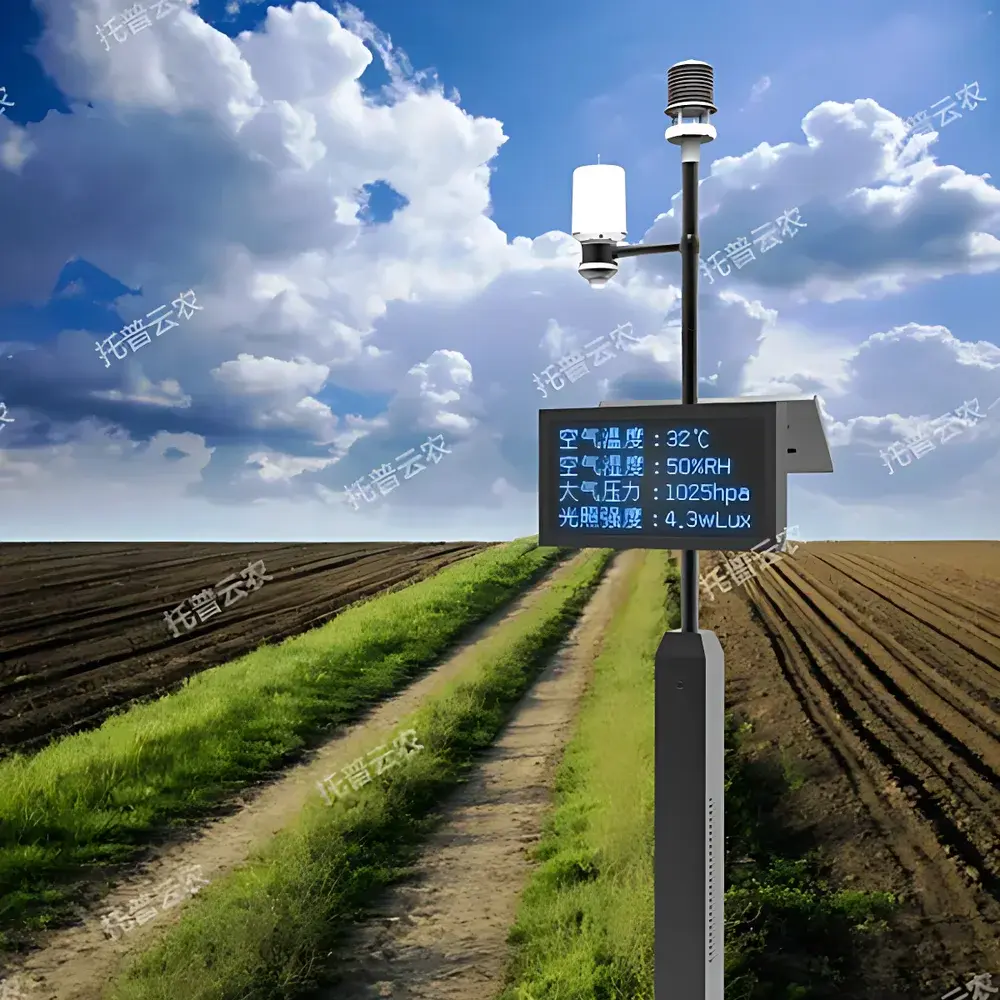

| Model | TP-WMS-1P |
| Instrument Type | Compact Autonomous Weather Station |
| Communication | 5G/4G/GPRS/NB-IoT/WiFi/Fiber/Ethernet |
| Power Supply | Dual-mode (Solar + AC) with Li-ion battery (≥30 days autonomy under continuous overcast) |
| Sensor Integration | Multi-layer soil temperature & volumetric water content (4 depths), air temp/humidity, barometric pressure, photosynthetic photon flux density (PPFD)-equivalent lux, ultrasonic wind speed/direction, tipping-bucket rainfall, onboard RGB crop imaging (2 MP, 2.7″ sensor),北斗/GPS/Galileo geolocation & altimetry |
| Data Resolution & Accuracy | Air Temp ±0.2°C (−50–120°C), RH ±3% (0–100% RH), Soil Temp ±0.3°C (−40–85°C), VWC ±2% vol (0–100%), Lux ±2% FS (0–200,000 lx), Wind Speed ±(0.5+0.03×v) m/s (0–60 m/s), Wind Direction ±3° (0–360°), Rainfall ±0.4 mm (≤10 mm) or ±4% (>10 mm), Pressure ±0.3 hPa (300–1100 hPa) |
| Enclosure | Corrosion-resistant integrated housing (250×149.5×375 mm control box) |
| Total deployed footprint | 736×438×3028 mm |
| Operating Environment | −30°C to +55°C, 5–98% RH |
| Data Logging | Configurable sampling (default 1 h) and upload intervals (default 2 h) |
| Display | Optional P5 outdoor monochrome LED panel (720×400×120 mm |
| Software Compliance | Supports GLP-aligned audit trails, user-role-based access control (RBAC), threshold-based alerting (per-crop configurable), multi-tier data export (CSV, Excel, PDF), ISO/IEC 17025 traceability metadata tagging, and interoperability with national/provincial agro-meteorological monitoring platforms (e.g., China National Meteorological Information Center architecture) |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |
| Model | TP-WMS-1L |
| Instrument Type | Multi-parameter Unmanned Weather Station |
| Communication | 4G CAT1 (supporting China Unicom/China Mobile 2G/4G, China Telecom 4G) |
| Data Storage | Internal TF card (5-year sensor data retention) |
| Positioning | Integrated GPS/BeiDou/Galileo |
| Imaging | CMOS 1/2.7″ sensor, 2 MP (1280×1080), scheduled capture |
| Environmental Parameters | Air Temp (−20–70°C, ±0.4°C), Air RH (0–98% RH, ±2.5% RH), Soil Moisture (0–100% VWC, ±3% in 0–50% range), Soil Temp (−40–70°C, ±0.5°C), Wind Speed (0–60 m/s, ±(0.5 + 0.03v) m/s), Wind Direction (0–360°, ±3°), Rainfall (0–4 mm/day, ±0.4 mm ≤10 mm), Illuminance (0–200,000 lux, ±2% FS) |
| Brand | Top Cloud-agri |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | TP-WMS-1H |
| Instrument Type | Multi-parameter Environmental Monitoring Station |
| Communication | 4G/5G/NB-IoT/GPRS/CDMA |
| Power Supply | Solar-powered (≥15 days autonomy in overcast conditions) |
| Camera Resolution | 1920×1080 (2 MP), 4 mm focal length, 89.1° FoV |
| LED Display (Optional) | P5 outdoor monochrome, 128×64 pixels, 720×400×120 mm, 35 W |
| Air Temp Range | −40 to +120 °C, ±0.3 °C accuracy (−40 to 90 °C) |
| RH Range | 0–100 %RH, ±2.5 %RH accuracy (0–90 %RH) |
| Soil Moisture | 0–100 %, ±3 % (0–50 % range) |
| Soil Temp | −40 to +70 °C, ±0.5 °C |
| Wind Speed | 0–60 m/s, ±2 % of reading |
| Wind Direction | 0–360°, ±3° |
| Rainfall | 0–9999 mm total, 0–4 mm/min intensity, ±0.1 mm |
| Illuminance | 0–200,000 lux, ±2 % FS |
| Negative Air Ions | 0–50,000 ions/cm³, ±15 % of reading |
| PM2.5 | 0.0–999.9 µg/m³, ±15 % (25 °C, 50 %RH) |
| Positioning | Integrated GPS/BeiDou/Galileo |
| Sensor Interface | RS485 & LoRa compatible |
| Data Logging Interval | Remotely configurable via cloud platform |
