| Brand | HORIBA |
|---|---|
| Origin | USA |
| Model | Symphony CCD |
| Cooling | Liquid Nitrogen |
| Sensor Architecture | Front-Illuminated (FI) / Back-Illuminated (BI) / Deep-Depletion (DD) |
| Resolution Options | 1024×256, 2048×512 |
| Pixel Types | UV-Enhanced, Vis-Enhanced, Open Electrode |
| ADC | 16-bit, 20 kHz – 1 MHz readout |
| Interface | Gigabit Ethernet |
| Onboard Memory | Yes |
| Software Control | SynerJY, LabVIEW VI |
| Compliance | Designed for GLP/GMP-aligned spectroscopic workflows per ISO/IEC 17025 and ASTM E131–22 guidance |
| Brand | HORIBA |
|---|---|
| Origin | USA |

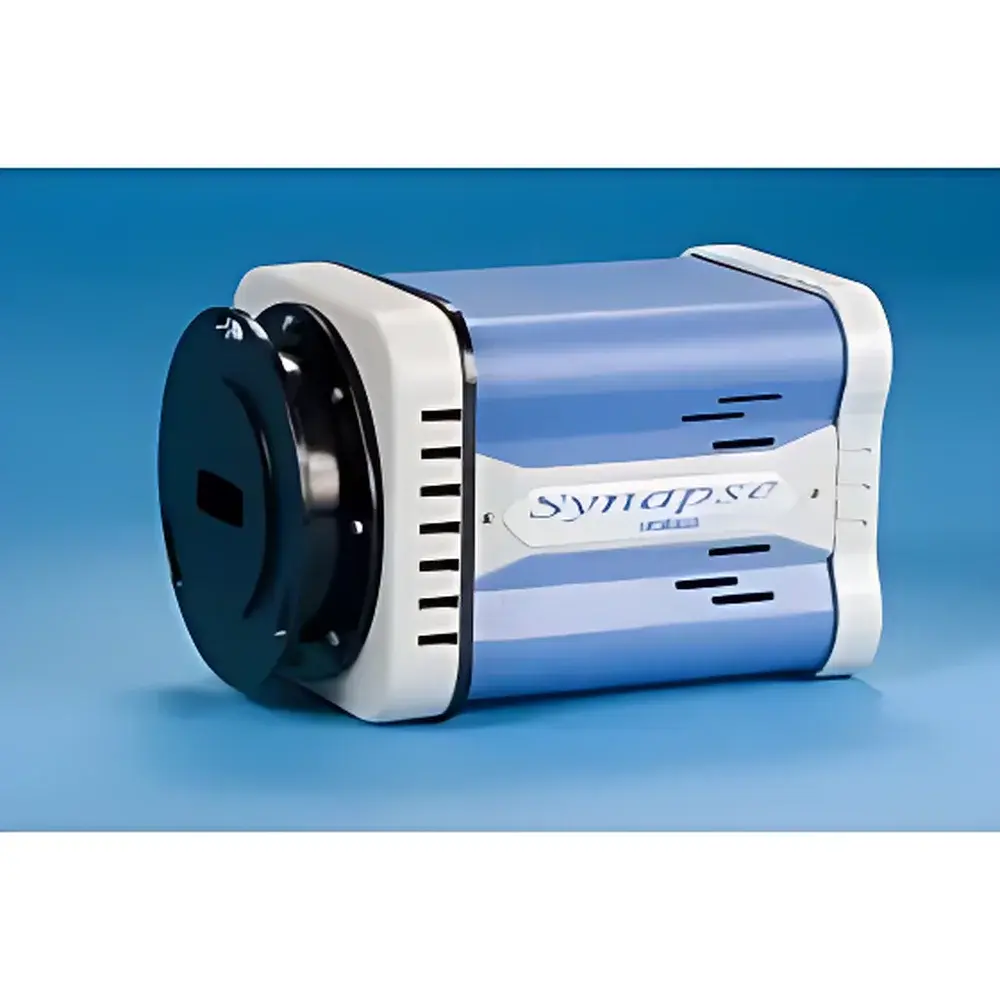

| Model | Synapse CCD |
| Cooling | Thermoelectric (TE), down to −75 °C |
| Sensor Architecture | Front-Illuminated (FI) or Back-Illuminated (BI), with UV/Visible/NIR-optimized variants |
| Pixel Array Options | 1024×256, 2048×512, 512×512 |
| Readout Interface | USB 2.0 |
| Auxiliary Analog Input | Voltage or current channel for PMT/Si/InGaAs reference detection |
| Trigger Support | Programmable TTL edge-triggered input/output |
| Integrated Shutter Driver | Yes |
| Vacuum-Sealed Sensor Chamber | Yes |
| Linearity Certification | Per-unit factory-tested across full dynamic range |
| Software Compatibility | SynerJY® control suite, SDK, LabVIEW® VIs |
| Compliance | Designed for GLP/GMP-aligned spectral laboratories |
