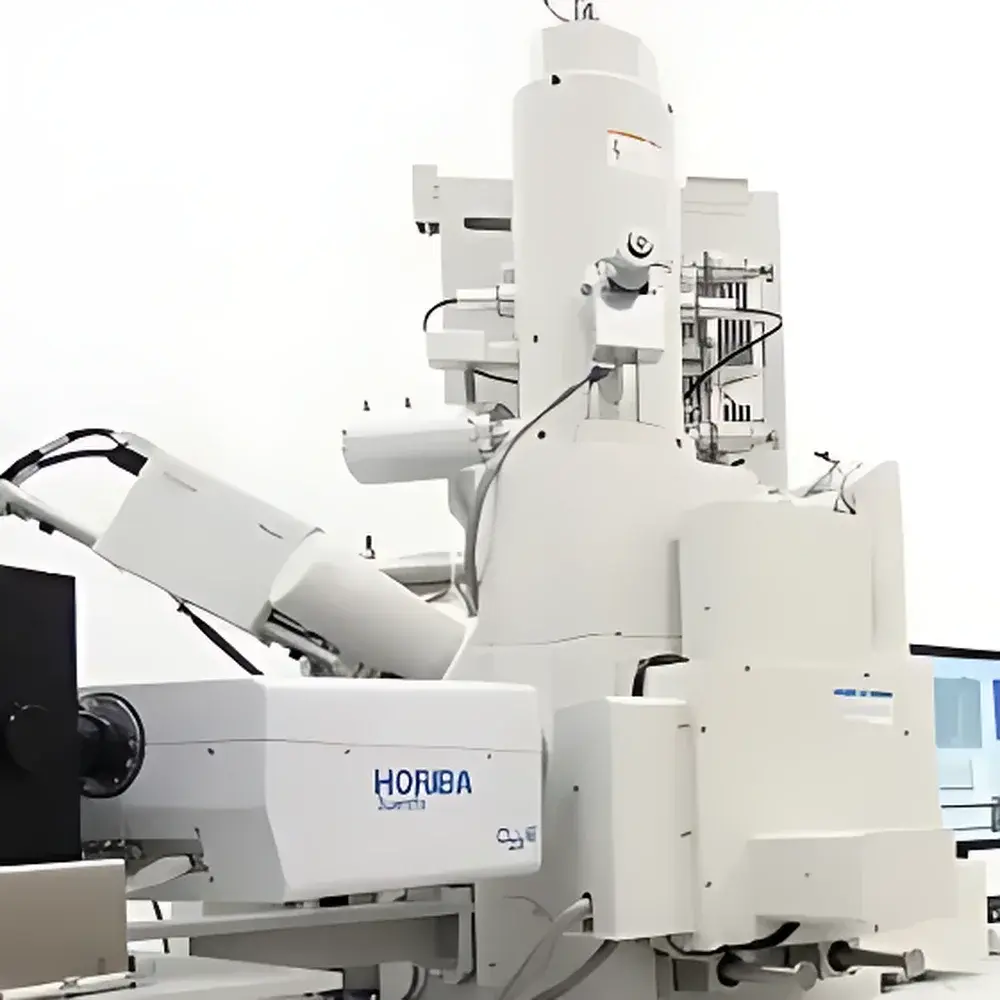

| Brand | HORIBA |
|---|---|
| Origin | France |
| Model | HCLUE |
| Spectral Range (with dual detectors) | 185–2500 nm |
| Coupling Method | Mirror-based direct coupling |
| Detector Configuration | Dual-detector compatible |
| Spectrometer Focal Length Options | 320 mm, 500 mm, 550 mm |
| Grating Options | Multiple selectable gratings |
| Measurement Modes | Point spectrum, line scan, hyperspectral mapping |
| Compliance | Designed for integration with SEM/FIB platforms per ISO 16700 (electron probe microanalysis) and ASTM E1508 (quantitative cathodoluminescence) |
| Brand | JASCO |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VAP-8010 |
| Pricing | Available Upon Request |

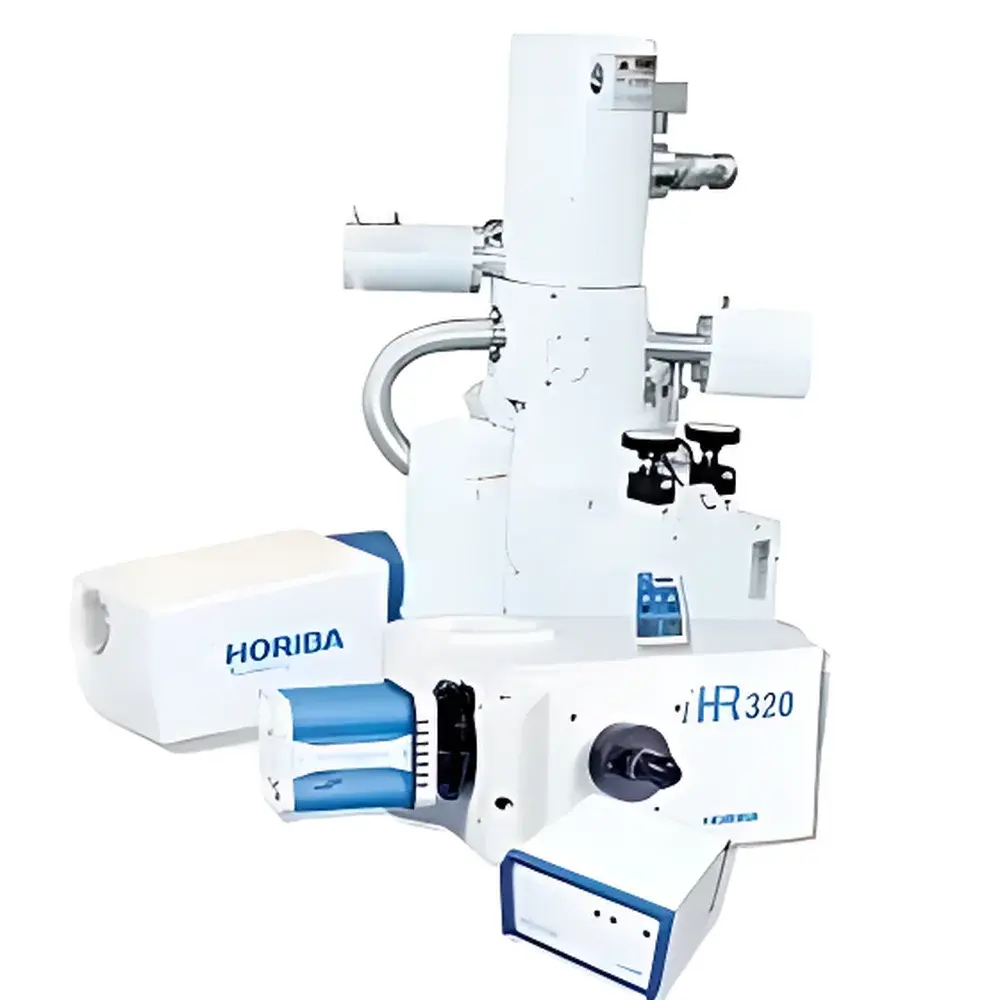

| Brand | HORIBA |
|---|---|
| Origin | France |
| Model | Flex-CLUE |
| Spectral Range | 200–1000 nm or 400–1700 nm |
| Optical Coupling | Fiber-coupled |
| Spectrometer Focal Length Options | 140 mm, 200 mm, 320 mm |
| Grating Options | Multiple selectable |
| Measurement Modes | Point acquisition, line scan, hyperspectral mapping |
| Detector Compatibility | Open-electrode CCD, EMCCD, InGaAs arrays |
| Integration | SEM-compatible (FE-SEM, SEM, STEM) |
| Spatial Resolution | Sub-100 nm (dependent on electron beam conditions and sample properties) |
