| Brand | HORIBA |
|---|---|
| Origin | USA |
| Model | MicOS |
| Application | Fluorescence Spectroscopy |
| Grating Configuration | Triple-grating imaging spectrometer with motorized grating turret |
| Spectral Range | 200 nm – 1600 nm |
| Imaging Capability | Integrated digital camera for real-time sample visualization |
| Microscope Orientation | Inverted or side-entry configuration (compatible with cryostats) |
| Excitation Laser Compatibility | 325 nm, 405 nm, 488 nm, 532 nm, 633 nm, 785 nm |
| Objective Options | 10×, 50×, 100× (UV-VIS-NIR optimized) |
| Spot Size | down to <10 µm (dependent on objective and wavelength) |
| Detector Options | Back-illuminated CCD (200–1050 nm), InGaAs array (800–1600 nm), UV-enhanced CCD (190–1100 nm), selectable per spectral segment |
| Software Platform | LabSpec 6 (FDA 21 CFR Part 11 compliant audit trail, GLP/GMP-ready) |
| Brand | HORIBA |
|---|---|
| Origin | France |
| Model | VHR640 / VHR1000 |
| Focal Length | 640 mm / 1000 mm |
| Input/Output Ports | Dual entrance & dual exit |
| Grating Mount | Turret with dual gratings |
| Optical Design | Czerny–Turner |
| Wavelength Range | 100 nm – 15 µm (grating-dependent) |
| Spectral Resolution (10 µm slit) | 0.016 nm (VHR640) / 0.010 nm (VHR1000) |
| Wavelength Accuracy | ±0.03 nm |
| Wavelength Repeatability | ±0.015 nm |
| Scanning Speed | >300 nm/s |
| Spectral Dispersion | 1.2 nm/mm (VHR640) / 0.8 nm/mm (VHR1000) |
| Entrance F/# | f/5.4 (VHR640) / f/9.0 (VHR1000) |
| Grating Size (single-grating mode) | 110 mm × 110 mm |
| Grating Size (dual-grating mode) | 80 mm × 110 mm |
| Slit Range | 0–2 mm (micrometer-adjustable) |
| Vacuum Compatibility | <1×10⁻⁵ mbar |
| Vacuum Flanges | DN25 KF (pump & gauge), DN63 LF (slit), DN100 LF (CCD), PC interface (RS232 to USB) |
| Dimensions (L×W×H) | 740×350×350 mm (VHR640) / 1160×430×350 mm (VHR1000) |
| Mass | 65 kg (VHR640) / 70 kg (VHR1000) |
| Optional Accessories | Pre-mirror chamber (two toroidal mirrors), Post-mirror chamber (two toroidal mirrors), Sample chamber (up to four 25 mm Ø samples), Polarizer inserts, 4 K cryostat, Vacuum pump |
| Brand | HORIBA |
|---|---|
| Origin | France |

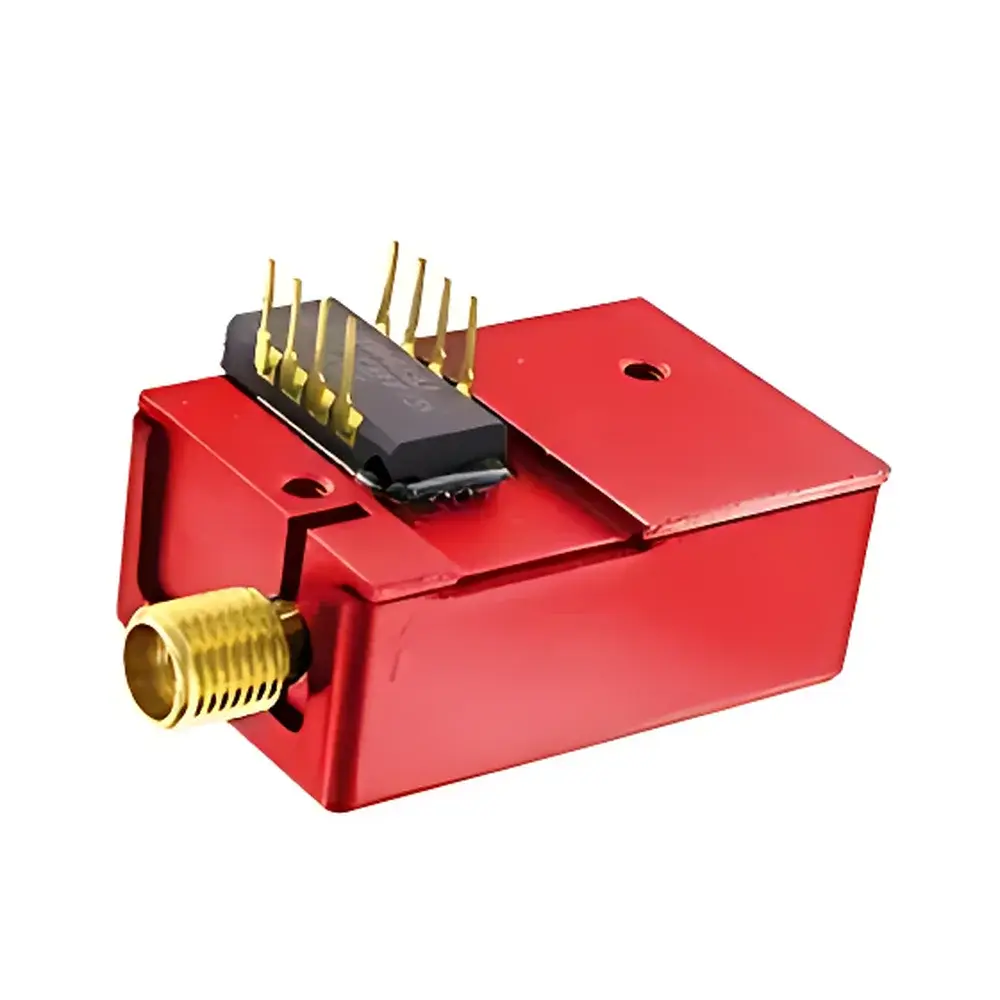

| Model | VS20 |
| Optical Configuration | Czerny–Turner with concave holographic grating |
| Spectral Range | 200–1700 nm |
| Spectral Resolution | 6.5 nm (FWHM, typical) |
| Dispersion | 90 nm/mm |
| F/# | 2.7 |
| Wavelength Accuracy | < ±0.5 nm |
| Stray Light | < 0.25% @ 260 nm |
| Thermal Drift | < 0.03 nm/°C |
| Dimensions | 15 × 22 × 35 mm |
| Detector Compatibility | CMOS, CCD, InGaAs (e.g., Hamamatsu S837X, S390X, S1011X |
| Application Modes | Transmission & Reflection Spectroscopy |
| Compliance | RoHS-compliant optical housing, ISO 9001 manufacturing environment |
| Brand | HORIBA |
|---|---|
| Origin | USA |

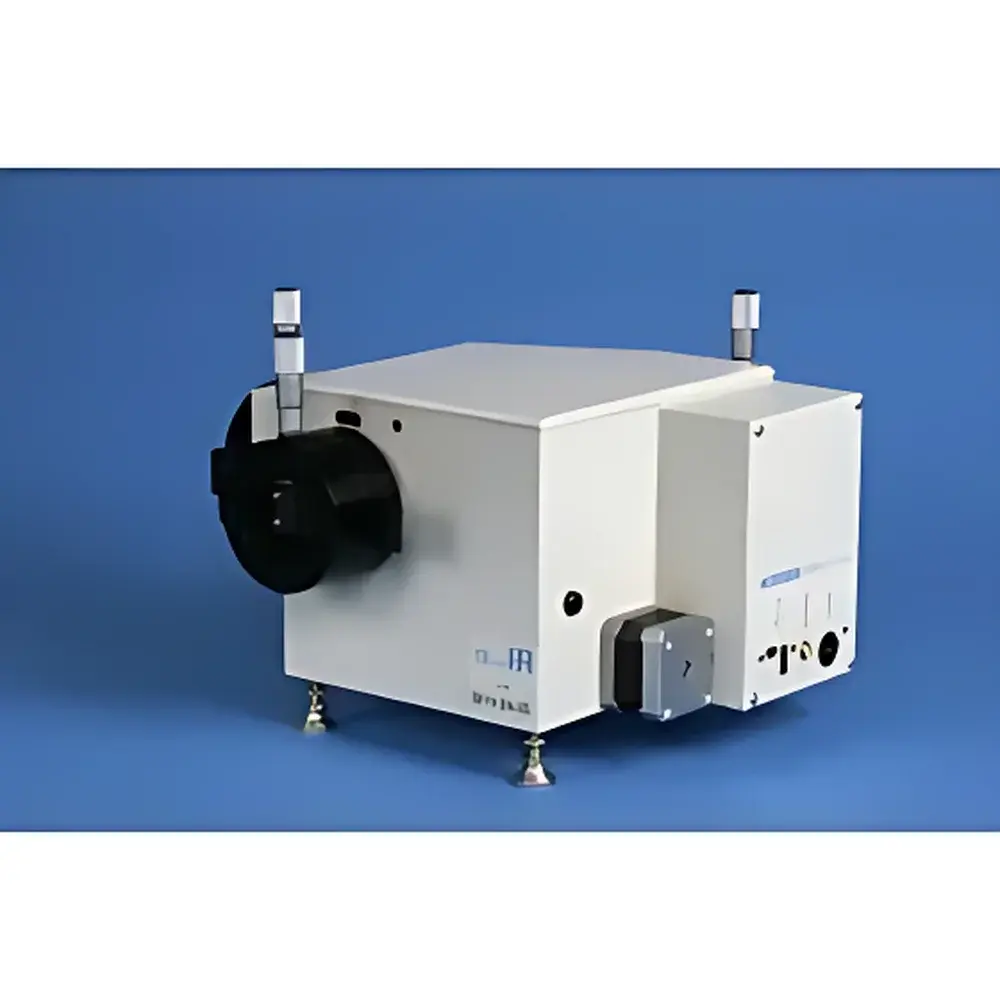

| Model | MicroHR |
| Focal Length | 140 mm |
| f/# | f/3.88 |
| Linear Dispersion | 5.25 nm/mm |
| Grating Format | Dual-position motorized or manual turret (32 mm × 32 mm) |
| Spectral Range | 180 nm – 20 µm (dependent on grating and detector selection) |
| Detector Interface | Compatible with CCD, PMT, and other single-channel detectors |
| Application Modes | Transmission, Reflection, Fluorescence, Laser Spectroscopy, In-situ & Field Deployment |
| Brand | HORIBA |
|---|---|
| Origin | France |
| Model | PGS/PGM 1000 |
| Application Modes | Transmission/Reflection Spectroscopy |
| Optical Configuration | Aberration-Corrected Plane Grating + Toroidal Mirror |
| Focal Length | 1000 mm |
| F-number | f/48 |
| Vacuum Compatibility | UHV up to 1×10⁻⁹ mbar |
| Wavelength Range | 4–125 nm (10–310 eV) |
| Resolution (typ.) | 0.02–0.3 nm (dependent on grating selection) |
| Grating Options | 550, 1800, 3600 grooves/mm |
| Exit Slit Interface | Adjustable micrometer slits, DN100 CF/ICF152 detector flange |
| Input/Output Flanges | DN63 LF (pump), DN100 CF (UHV pump), DN40 CF (vacuum gauge) |
| Motorized Wavelength Drive | Stepper motor with USB 2.0 interface |
| Brand | HORIBA |
|---|---|
| Origin | France |

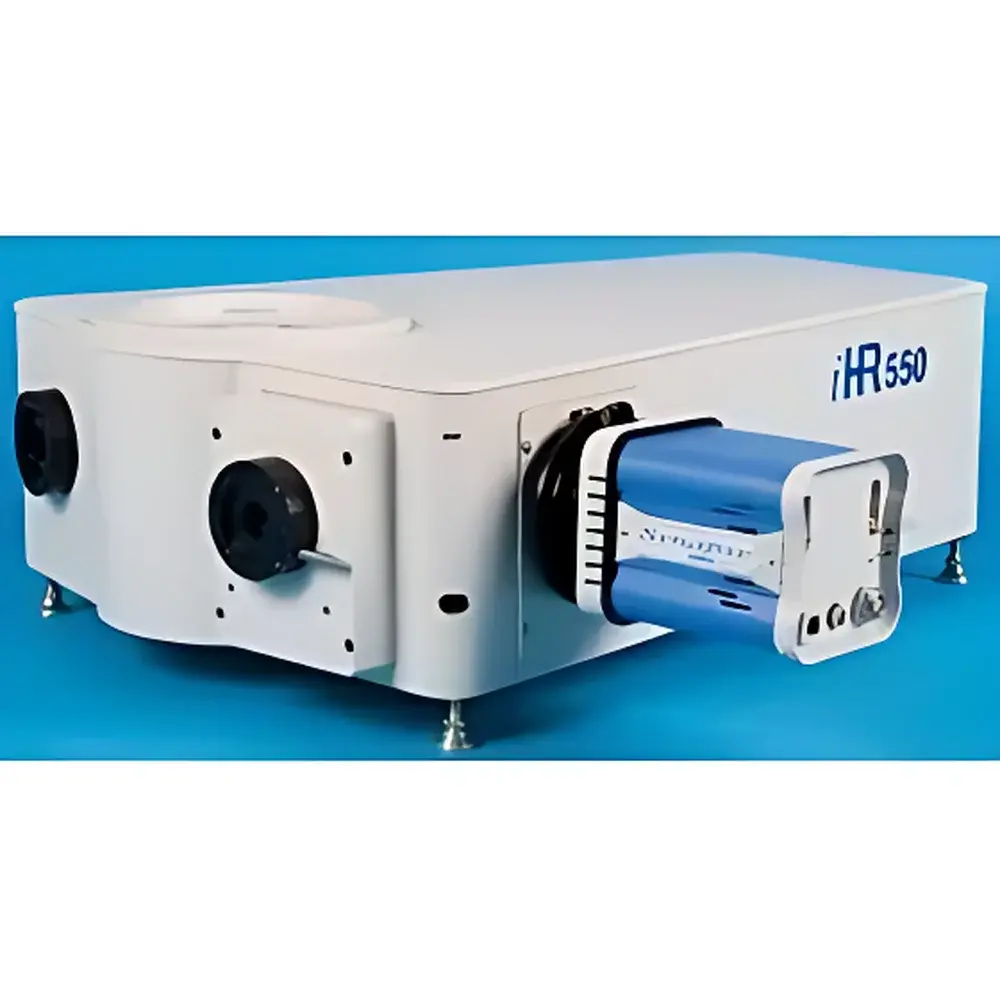

| Model | iHR320 / iHR550 |
| Application System | Fluorescence Spectroscopy |
| Grating Mount | Dual-grating turret |
| Stray Light | 1.5×10⁻⁴ (iHR320) / 1×10⁻⁵ (iHR550) |
| Focal Length | 320 mm (iHR320), 550 mm (iHR550) |
| f-number | f/4.1 (iHR320), f/6.4 (iHR550) |
| Spectral Resolution | 0.06 nm (iHR320), 0.025 nm (iHR550) |
| Linear Dispersion | 2.31 nm/mm (iHR320), 1.34 nm/mm (iHR550) |
| Grating Size | 68 mm × 68 mm (iHR320), 76 mm × 76 mm (iHR550) |
| Brand | HORIBA |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | VS7000+ |
| Application System | Fluorescence Spectroscopy |
| Grating Mount | Motorized or Fixed Grating Turret (OEM Configurable) |
| Spectral Resolution | 0.33 nm/pixel (at 75 µm slit, 2048-pixel CCD, UV-VIS configuration) |
| Dispersion | ~1.6 nm/mm (typical, dependent on grating and focal length) |
| Wavelength Range | 200–1050 nm (configurable via grating & filter options) |
| F/# | f/2.8 |
| Wavelength Accuracy | ±0.2 nm (calibrated, traceable to NIST standards) |
| Stray Light | <0.04% (typical), <0.08% (max), measured with 300 µm UV-VIS CCD, 510 nm bandpass filter, 75 µm slit |
| Brand | HORIBA |
|---|---|
| Origin | France |

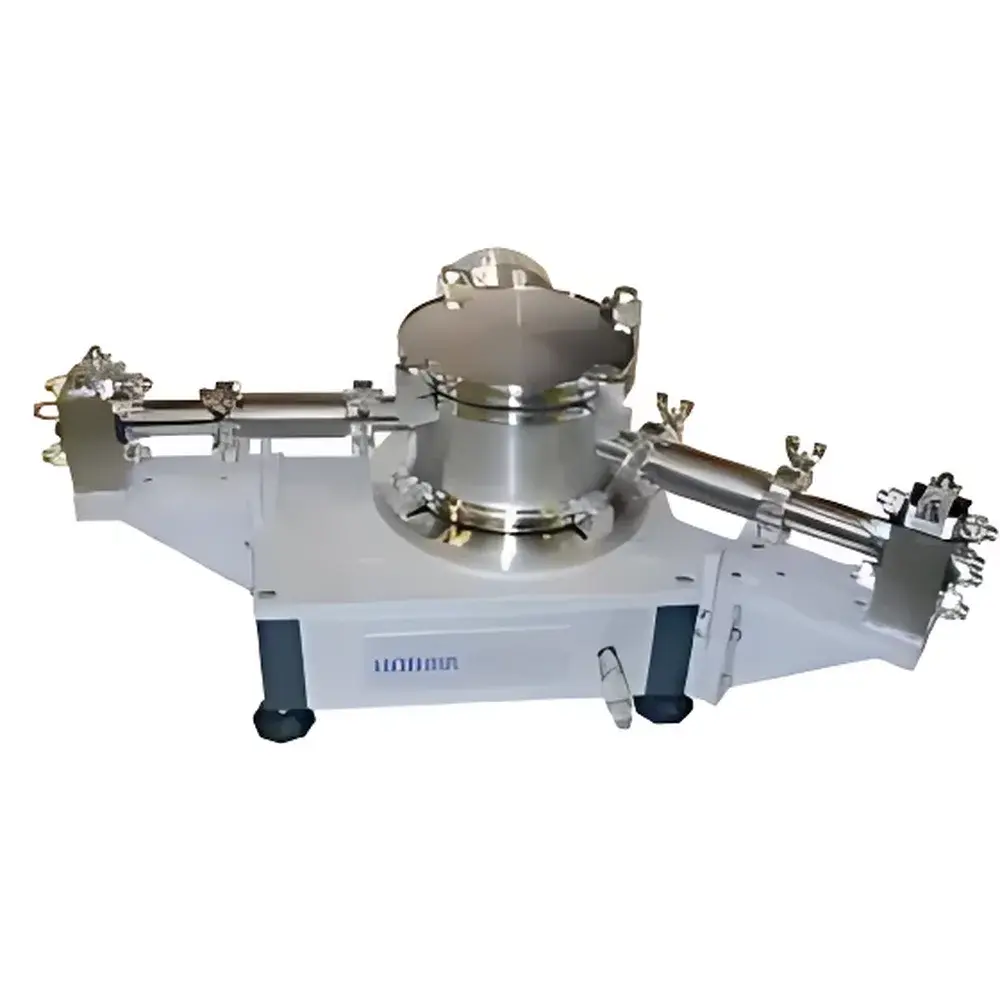

| Model | TGM300 |
| Spectral Range | 10–300 nm (configurable via interchangeable gratings) |
| Focal Length | 320 mm |
| f-number | f/10 |
| Optical Design | Monolithic toroidal grating monochromator with HJY aberration-corrected toroidal gratings |
| Vacuum Compatibility | UHV up to 1×10⁻⁹ mbar |
| Grating Options | Three standard gratings (550 gr/mm: 10–50 nm & 15–150 nm |
| 275 gr/mm | 50–300 nm) |
| Resolution | ≤0.4 nm (at 15 nm, using 550 gr/mm grating) |
| Slit Integration | Motorized or manual micrometer-driven entrance/exit slits |
| Grating Exchange | In-vacuum dual-grating turret |
| Optional Accessories | Pre-mirror chamber (2 toroidal mirrors), post-mirror chamber (2 toroidal mirrors), sample chamber (4× Ø25 mm positions), polarization insertion optics, 4 K cryostat, DN100LF vacuum flange, DN40KF vacuum gauge port |
| Brand | HORIBA |
|---|---|
| Origin | France |

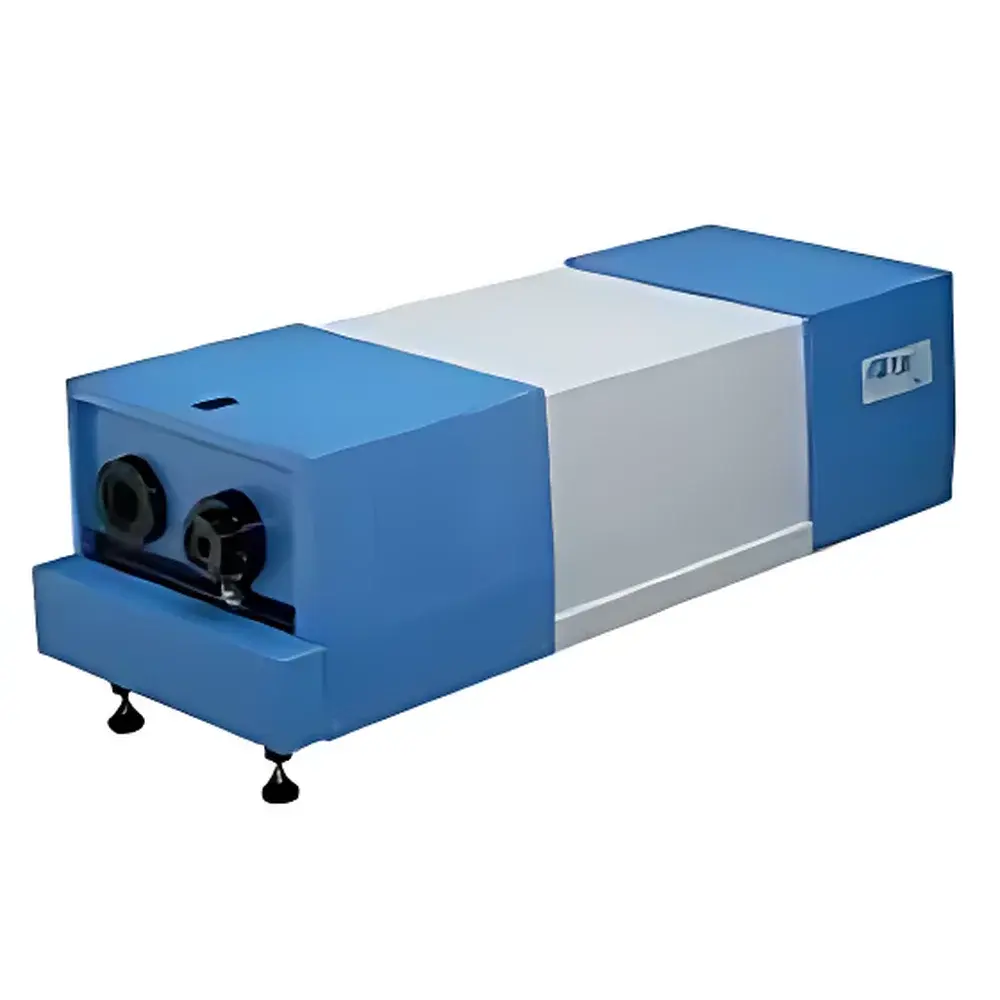

| Model | FHR640/FHR1000 |
| Focal Length | 640 mm (FHR640) / 1000 mm (FHR1000) |
| f-number | f/5.4 (FHR640) / f/9.0 (FHR1000) |
| Spectral Resolution | 0.016 nm (FHR640) / 0.010 nm (FHR1000) |
| Linear Dispersion | 1.2 nm/mm (FHR640) / 0.8 nm/mm (FHR1000) |
| Wavelength Accuracy | ±0.05 nm |
| Wavelength Repeatability | ±0.015 nm |
| Scanning Speed | >300 nm/s |
| Grating Mount | Dual-grating turret (up to two 110×110 mm or 80×110 mm gratings) |
| Output Ports | Dual simultaneous exit ports |
| Structural Design | Monolithic aluminum cast housing |
| Brand | HORIBA |
|---|---|

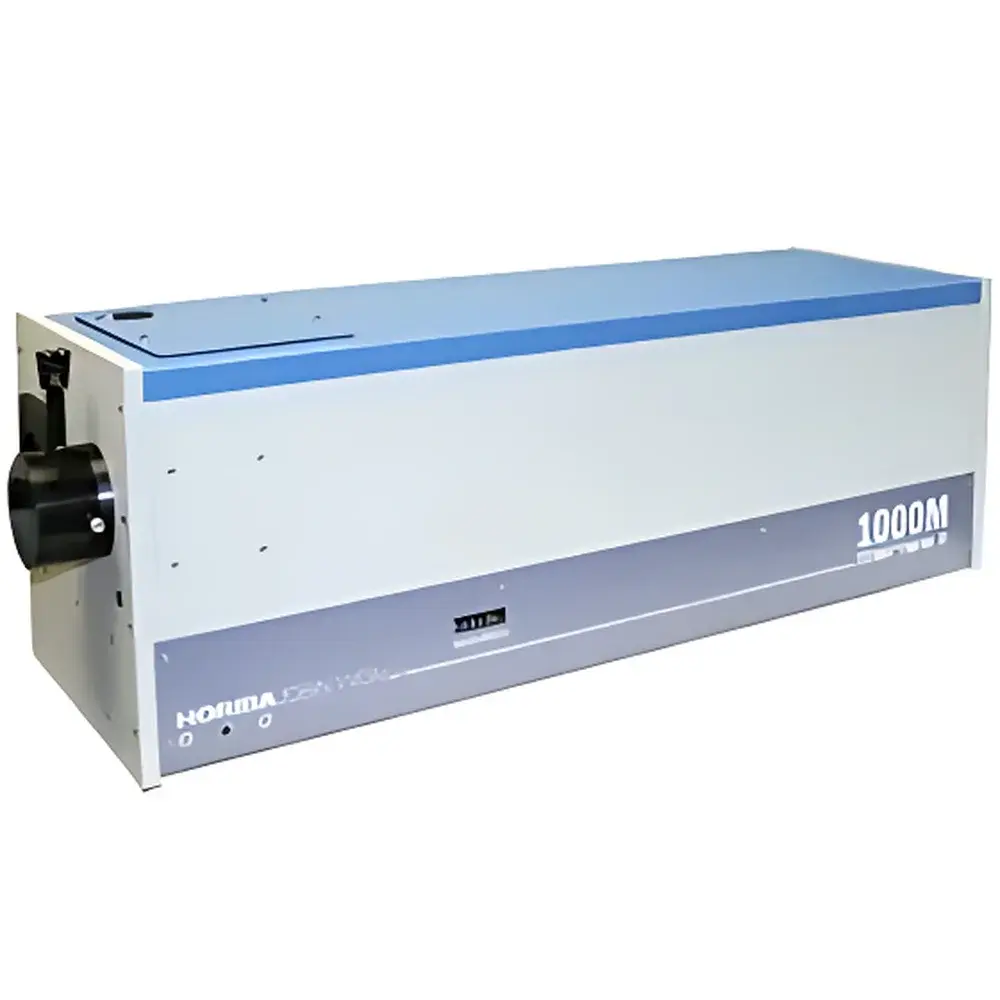

| Model | 1000M / 1250M |
| Focal Length | 1000 mm / 1250 mm |
| F-number | f/8 / f/9 |
| Spectral Resolution | 0.008 nm (1000M) / 0.006 nm (1250M) |
| Linear Dispersion | 0.8 nm/mm (1000M) / 0.65 nm/mm (1250M) |
| Grating Size | 110 mm × 110 mm |
| Wavelength Accuracy | ±0.05 nm |
| Wavelength Repeatability | ±0.005 nm |
| Slit Adjustment Range | 0–3 mm (2 µm step resolution) |
| Step Resolution | 0.00025 nm |
| Input/Output Ports | Dual entrance & dual exit with motorized mirror switching |
| Grating Mount | Manual or motorized interchangeable grating turret |
| Brand | HORIBA |
|---|---|
| Origin | France |

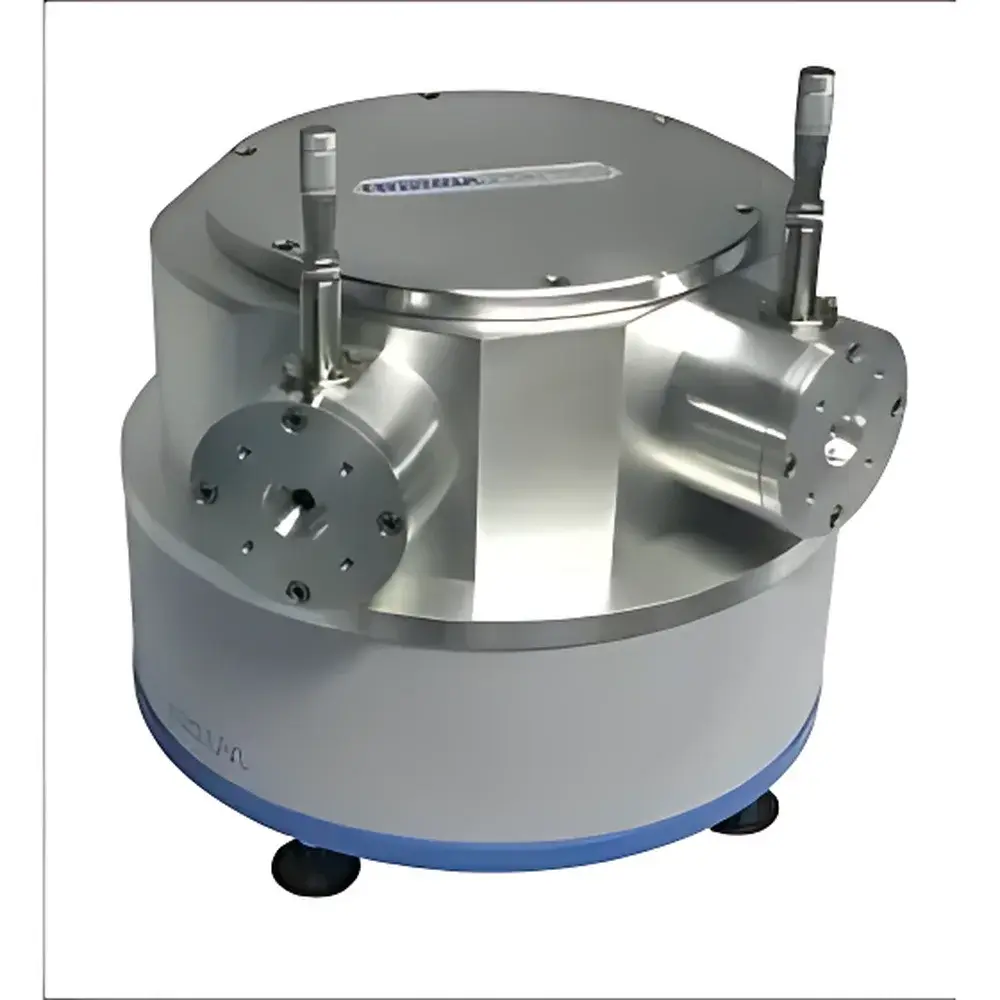

| Model | H20-UVL |
| Spectral Range (Vacuum) | 100–400 nm (3–12.4 eV) |
| Spectral Range (Atmospheric) | 190–400 nm (3–6.5 eV) |
| Focal Length | 200 mm |
| f/# | f/4.2 |
| Grating Type | HJY4 aberration-corrected concave grating |
| Groove Density | 1200 gr/mm |
| Deviation Angle | 64° |
| Linear Dispersion at 100 nm | 3.6 nm/mm |
| Minimum Step Size | 0.06 nm |
| Scanning Speed | up to 400 nm/s |
| Wavelength Accuracy | ±0.2 nm (±0.06 nm with software calibration) |
| Repeatability | ±0.06 nm |
| Resolution (10 µm slit, 2 mm height, 121 nm) | <0.5 nm |
| Base Vacuum | ≤1×10⁻⁵ mbar (vacuum pump and gauge not included) |
| Vacuum Flange | DN40 KF (pump), DN25 KF (input/output) |
| Slit Width Range | 10 µm – 2 mm |
| Slit Height Options | 2, 4, or 6 mm |
| Optical Interfaces | Pre- and post-monochromator mirror chambers with toroidal mirrors |
| Sample Chamber | Accommodates up to four Ø25 mm samples |
