| Brand | Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Equipment Type | Nitrogen Generator |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) with Carbon Molecular Sieve (CMS) |
| Output Flow Rate | 0–16 L/min |
| Output Pressure | 0.1–0.4 MPa (adjustable), Max Burst Pressure >1.0 MPa |
| Nitrogen Purity | 99.0–99.99% (user-adjustable) |
| Dew Point | –40 °C to +5 °C (typical post-dryer output) |
| Power Supply | 220 V ±10%, 50 Hz |
| Rated Power | 900 W |
| Noise Level | <55 dB(A) |
| Dimensions (W×D×H) | 620 × 510 × 820 mm |
| Weight | 105 kg |
| Operating Ambient Temperature | 5–45 °C |
| Compliance | CE-marked design principles |
| compatible with ISO 8573-1 | 2010 Class 2 compressed air feed requirements |
| Brand | Beijing Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Model | PGN-30LB High-Pressure Nitrogen Generator |
| Nitrogen Generation Principle | Membrane Separation |
| Output Flow Rate | 0–30 L/min |
| Output Pressure | 110 psi (0.76 MPa) |
| Nitrogen Purity | 95%–99.9% |
| Dew Point | ≤ −45 °C |
| Particulate Filtration | < 0.01 µm |
| Total Power Consumption | 1100 W |
| Noise Level | ≤ 60 dB(A) |
| Dimensions (L×W×H) | 800 × 500 × 700 mm |
| Weight | 120 kg |
| Operating Ambient | 220 V ±10%, 50 Hz |
| Relative Humidity | ≤ 80% |
| Ambient Temperature | ≤ 45 °C |
| Brand | Beijing Huayisanpu |
|---|---|
| Origin | Beijing, China |

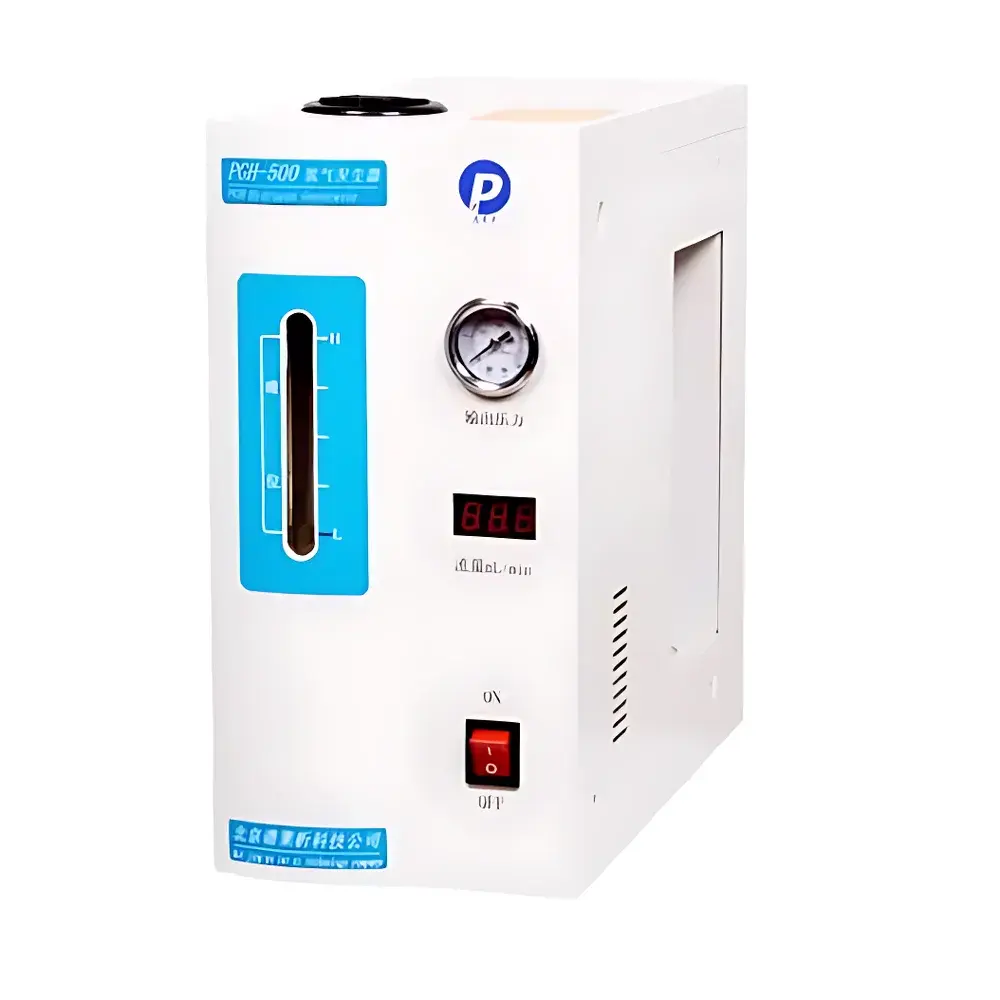

| Model | PGH-500 Hydrogen Generator |
| Hydrogen Generation Principle | Pure Water Electrolysis |
| Output Flow Rate | 0–500 mL/min |
| Output Pressure | 0.4 MPa |
| Hydrogen Purity | ≥99.999% |
| Power Consumption | 150 W |
| Input Voltage | 220 V ±10%, 50 Hz |
| Operating Temperature | 0–40 °C |
| Relative Humidity | <85% |
| Dimensions (L×W×H) | 370 × 180 × 360 mm |
| Weight | ~12 kg |
| Brand | Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Model | PGA-2LB / PGA-5LB |
| Output Flow | 0–2 L/min (PGA-2LB) / 0–5 L/min (PGA-5LB) |
| Output Pressure | 0.4 MPa |
| Power Consumption | 145 W / 175 W |
| Noise Level | ≤42 dB(A) |
| Dimensions (L×W×H) | 500 × 260 × 380 mm |
| Weight | ~25 kg / ~28 kg |
| Air Purity | Oil-free, Triple-stage Purification |
| Cooling | Semiconductor-based Cold-drying System |
| Safety Features | Overpressure Protection, Thermal Cut-off, Low-pressure Soft-start, Automatic Drain Valve |
| Brand | Huayisanpu (Beijing Huayisanpu Instrument Co., Ltd.) |
|---|---|
| Origin | Beijing, China |
| Model | PGN-30L |
| Output Flow | 30 L/min |
| Output Pressure Range | 0.1–0.4 MPa |
| Nitrogen Purity | 99–99.9% |
| Dew Point | < −60 °C |
| Feed Gas | Oil-free Compressed Air |
| Power Supply | 220 V AC ±10%, 50 Hz, 1100 W |
| Dimensions | 600 × 700 × 1100 mm |
| Weight | 120 kg |
| Compliance | Designed for GLP-compliant lab environments |
| compatible with ISO 8573-1 Class 2 | 2:2 compressed air input |
| Brand | Beijing Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Model | 320B / 520B |
| Output Flow Rate | 0–300 mL/min (320B) / 0–500 mL/min (520B) |
| Output Pressure | 0.4 MPa |
| Hydrogen Purity | 99.999% |
| Power Consumption | 150 W (320B) / 180 W (520B) |
| Dimensions (L×W×H) | 370 × 220 × 360 mm |
| Input Voltage | 220 V ±10%, 50 Hz |
| Water Requirement | Deionized or Distilled Water |
| Cooling Method | Semiconductor-based Cooling |
| Moisture Removal | Stacked Tubular Condensation System |
| Maintenance Mode | Auto-refill, Non-backflow Electrolyte Design |
| Compliance | Designed for ISO/IEC 17025-compliant lab environments |
| Brand | Beijing Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Model | PGT-300/500 Integrated N₂–H₂–Air Generator |
| Nitrogen Purity | 99.994% (O₂ ≤ 60 ppm) |
| Hydrogen Purity | 99.999% (O₂ + H₂O ≤ 1 ppm) |
| Air Purity | Oil-free, Class 3 per ISO 8573-1 |
| Nitrogen Flow Rate | 0–300 mL/min (PGT-300) / 0–500 mL/min (PGT-500) |
| Hydrogen Flow Rate | 0–300 mL/min (PGT-300) / 0–500 mL/min (PGT-500) |
| Air Flow Rate | 0–2 L/min (PGT-300) / 0–5 L/min (PGT-500) |
| Output Pressure | 0.4 MPa (adjustable, stability ≤ ±0.01 MPa) |
| Power Supply | AC 220 V, 50 Hz |
| Max. Power Consumption | 350 W (PGT-300) / 450 W (PGT-500) |
| Dimensions (L×W×H) | 505 × 400 × 460 mm |
| Weight | 40 kg (PGT-300) / 42 kg (PGT-500) |
| Operating Environment | 0–45 °C, RH < 85%, non-corrosive, low-dust |
| Water Requirement | Deionized or distilled water only |
| Design | Integrated monolithic chassis with independent gas modules and shared control logic |
| Brand | Huayisanpu |
|---|---|
| Origin | Beijing, China |
| Model | PGN-300 |
| Nitrogen Generation Principle | Electrolytic Membrane Separation |
| Output Flow Rate | 0–300 mL/min |
| Output Pressure | 0.4 MPa |
| Nitrogen Purity | 99.999% |
| Dew Point | −10 to −40 °C |
| Input Air Pressure | 0.5 MPa |
| Power Supply | 220 V AC, 50 Hz |
| Max. Power Consumption | 80 W |
| Dimensions (L×W×H) | 385 × 180 × 360 mm |
| Net Weight | ~14 kg |
| Operating Ambient | 10–40 °C, RH < 85%, non-corrosive, low-dust environment |
