| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Floor-standing |
| Instrument Category | Scanning-type |
| X-ray Tube Power | 4 kW |
| Analyzable Elements | B to U |
| Beryllium Window Thickness | 75 μm (optional ≤75 μm variants) |
| Goniometer Angular Reproducibility | θ–2θ independent drive |
| Scan Ranges | SC (1–118°), PC (10–148°) |
| Step Angles | 0.001°, 0.002°, 0.005°, 0.01°, 0.02°, 0.05°, 0.1° |
| Brand | NCS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Product Type | Handheld/Portable |

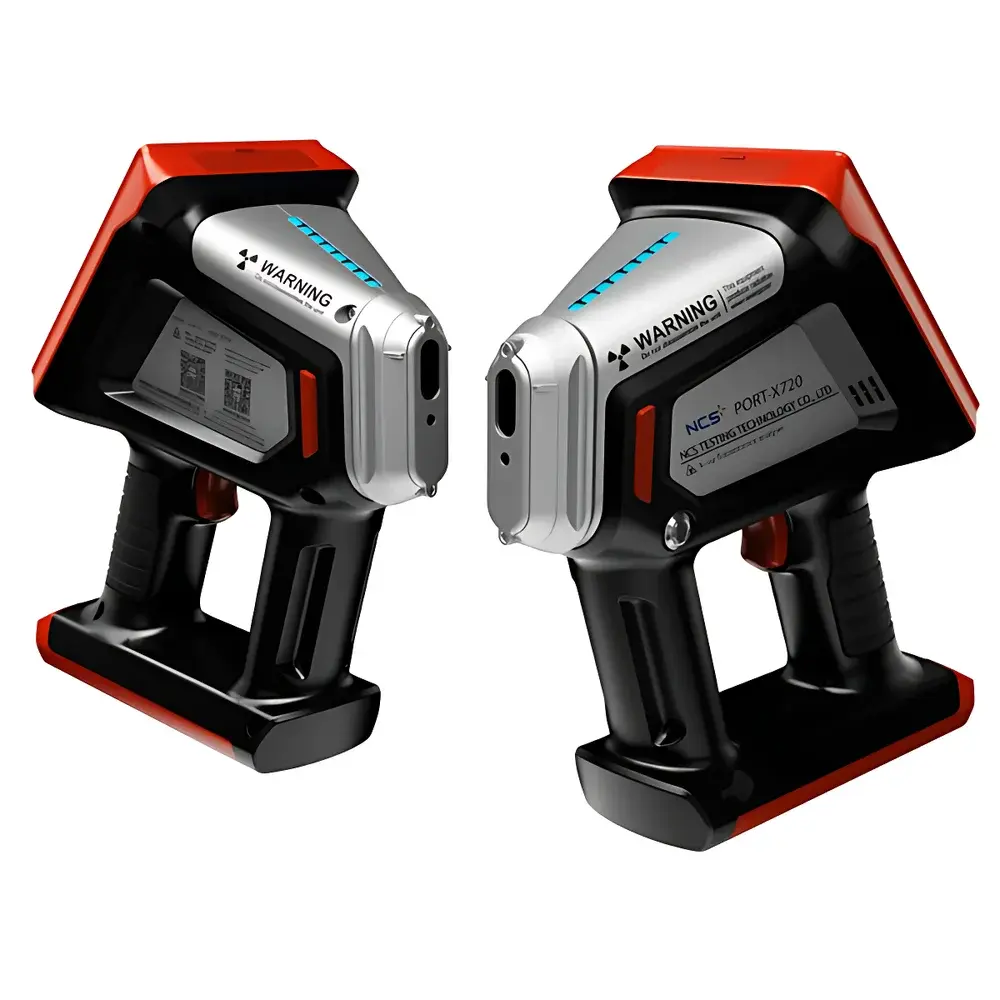

| Model | PORT-X720 |
| X-ray Tube | 5 W, 50 kV, 200 µA max |
| Anode Material | Rhodium (Rh) |
| Detector | Silicon Drift Detector (SDD) |
| Energy Resolution | ≤155 eV |
| Operating Temperature | −10 °C to 50 °C |
| Dimensions | 240 × 110 × 240 mm |
| Weight | 1.6 kg |
| Measurement Elements | Mg to U |
| Battery | Dual 7.4 V / 9600 mAh Li-ion |
| Runtime | ≥10 h |
| Processor | Qualcomm Snapdragon™ Octa-core (14 nm FinFET), 2.0 GHz, 1 MB L2 cache |
| OS | Android 7.1 |
| Display | 5.5-inch Full HD (1080p) touchscreen |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2/LE, USB |
| Radiation Safety | Integrated shutter, sample proximity sensor, password-protected startup, regulatory compliance per CNAS and GBZ 188–2014 |
| Analysis Algorithm | Fundamental Parameters (FP) method with user-customizable method development capability |
| Brand | NCS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Product Type | Domestic |
| Model | PORT-X710 Handheld ED-XRF Spectrometer |
| Application | Field-Portable |
| Instrument Class | General-Purpose |
| Industry-Specific Use | Multi-Material Alloy Analysis |
| X-ray Tube | 5 W / 50 kV / 200 µA max |
| Target Material | Rhodium (Rh) |
| Detector | Si-Pin |
| Energy Resolution | ≤185 eV |
| Operating Temperature | –10 °C to 50 °C |
| Dimensions | 240 mm (L) × 110 mm (W) × 240 mm (H) |
| Weight | 1.6 kg |
| Quantitative Method | Fundamental Parameters (FP) |
| Elemental Range | Ti to U |
| Battery | Dual Li-ion, 7.4 V / 9600 mAh |
| Runtime | ≥10 h (typical) |
| Processor | Qualcomm Snapdragon™ octa-core, 2.0 GHz, 14 nm FinFET, 1 MB L2 cache |
| OS | Android 7.1 |
| Display | 5.5-inch Full HD (1080p) capacitive touchscreen |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2/LE |
| Radiation Safety | Integrated shutter, sample proximity sensor, password-protected startup, certified radiation shielding per CNAS and GBZ 188–2014 |
| Sample Compatibility | Solid metal alloys (e.g., stainless steels, low-alloy steels, Cu-based, Ni-based, Ti alloys), scrap fragments, billets, pipes, fasteners |
