| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS |
| Country of Origin | China |
| Model | NC-HUT Series |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Model | NC-C-SCAN Long-Product Series |
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Compliance | GB/T 4730, GB/T 5777, GB/T 18248 |
| Detection Modes | Simultaneous axial & circumferential flaw detection, lamination assessment, and wall thickness measurement |
| Positioning | Dual-axis (axial + circumferential) encoder-based positioning |
| Data Output | C-scan image mapping with embedded A-scan waveform storage |
| Real-time monitoring | Live A-scan waveform display during scanning |
| Application Scope | Cylindrical and elongated components including seamless high-pressure gas cylinders (CNG, LPG), welded pressure vessels, forgings, castings, carbon fiber composites, honeycomb structures, bars, tubes, billets, and irregular-shaped industrial parts |
| Brand | NCS (China Steel Research Academy) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |

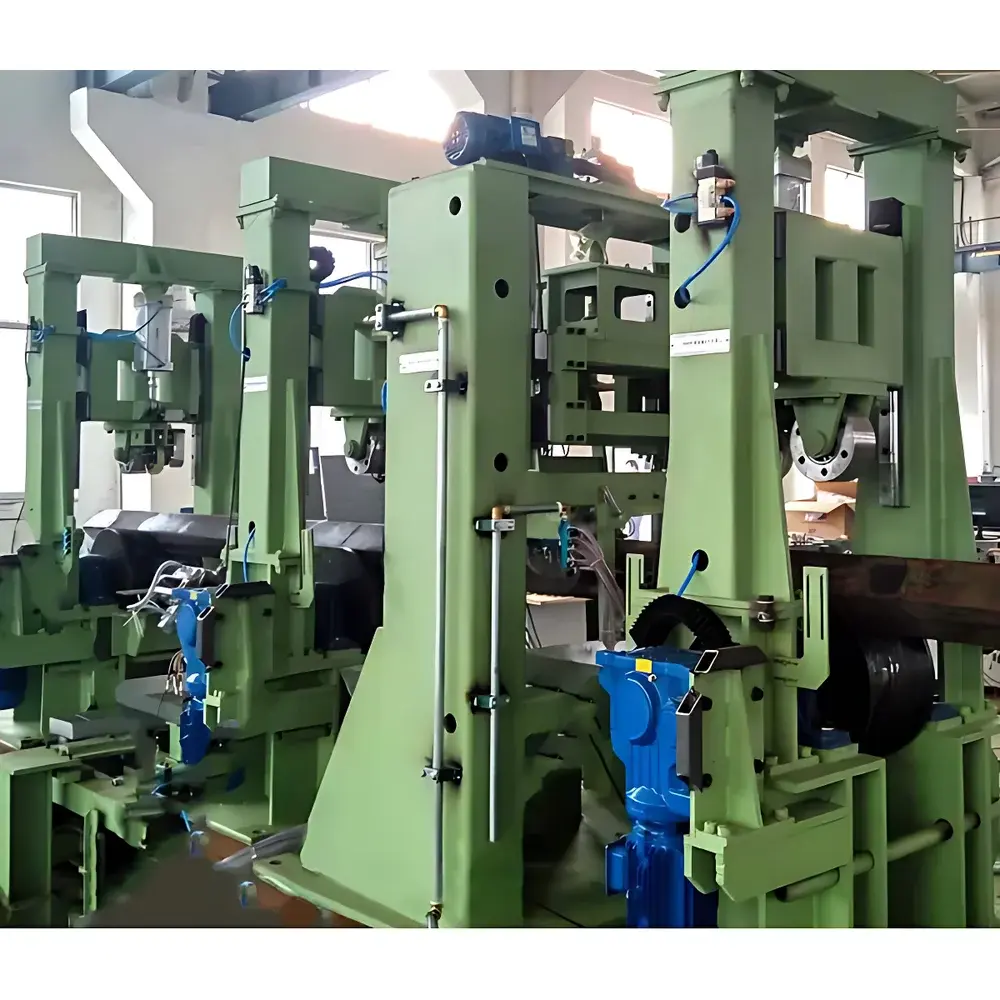

| Model | NC-PUT Billet Series |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | NC-C-SC-AN Series for Bar Inspection |
| Pricing | Upon Request |
| Probe Configuration | 128-element array, max 32 elements fired per group |
| Static Sensitivity | Φ0.8 mm flat-bottom hole at depths of ½, ¼, and 1/8 bar diameter (≥5 mm min depth), SNR > 12 dB |
| Dynamic Sensitivity | Φ0.8 mm FBH at ≤0.5 m/s |
| End Blind Zone | <30 mm |
| Near-Surface Blind Zone | None |
| False Negative Rate | 0% |
| Inspection Speed | ≥60 m/min |
| Scan Modes | Linear Scan, Sector Scan, Dynamic Depth Focusing (DDF) |
| Applicable Standards | GB/T 4162, ISO 18563-1:2015, ISO 18563-2:2015, ASTM E2700 |
| Material Coverage | Carbon steel, alloy steel, bearing steel, spring steel, cold-heading steel |
| Bar Diameter Range | 16–65 mm (customizable) |
| Bar Length Range | 6–12 m |
| Surface Roughness Requirement | ≤25 µm Ra |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | NC-PUT Series |
| Pricing | Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Model | NC-GET Series |
| Origin | Beijing, China |
| Manufacturer | NCS |
| Country of Origin | China |
| Pricing | Available Upon Request |
| Brand | NCS (China Steel Research Institute) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Origin | Domestic (China) |
| Model | NC-DUT Series |
| Pricing | Available Upon Request |
