| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | Domestic (China) |
| Model | NC-Series |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS |
| Country of Origin | China |
| Model | NC-HUT Series |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | NC-RGET Series |
| Pricing | Available Upon Request |
| Inspection Mode | Automated Inspection |
| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Model | NC-C-SCAN Long-Product Series |
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Compliance | GB/T 4730, GB/T 5777, GB/T 18248 |
| Detection Modes | Simultaneous axial & circumferential flaw detection, lamination assessment, and wall thickness measurement |
| Positioning | Dual-axis (axial + circumferential) encoder-based positioning |
| Data Output | C-scan image mapping with embedded A-scan waveform storage |
| Real-time monitoring | Live A-scan waveform display during scanning |
| Application Scope | Cylindrical and elongated components including seamless high-pressure gas cylinders (CNG, LPG), welded pressure vessels, forgings, castings, carbon fiber composites, honeycomb structures, bars, tubes, billets, and irregular-shaped industrial parts |
| Brand | NCS (China Steel Research Institute) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | NC-CUT Series |
| Pricing | Upon Request |
| Brand | NCS (China Steel Research Academy) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | NC-PUT Billet Series |
| Pricing | Available Upon Request |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS (Steel Research Institute Nano-Characterization Co., Ltd.) |
| Type | Pendulum Impact Tester |
| Compliance Standards | GB/T 229, GB/T 19478–2005, ASTM E23, ISO 14556 |
| Output Data | Load-time, Force-displacement, Energy absorption, Crack initiation & propagation parameters (K₁d, J₁d) |
| Sensor Resolution | High-resolution dynamic load cell & energy transducer |
| Control Interface | Touchscreen-based digital control system |
| Test Modes | Charpy, Izod, Tensile Impact, Bending Impact |
| Report Export | Word, Excel-compatible formats |
| Frame Construction | Monolithic cast steel base and column |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Producer |
| Country of Origin | Domestic (China) |
| Model | NCS-MMTI600 |
| Price | USD 1 (Reference Only) |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | NC-C-SC-AN Series for Steel Plate Inspection |
| Ultrasound Channels | 16 (expandable to 64 via cascading) |
| Probe Configuration | Up to 4 probes, 128 total elements |
| Phased Array Beamforming Capacity | 1024 delay laws |
| Data Throughput | 40 MB/s via Gigabit Ethernet |
| Network Interface | Industrial Power + Dual-Mode Fiber Optic |
| Encoder Input | 2-channel quadrature (A/B phase) |
| Trigger Mode | Internal or External (software-selectable) |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| TCG (Time-Corrected Gain) | Integrated |
| Minimum Detectable Flaw | Ø3 mm flat-bottom hole (FBH) at full material thickness |
| Scanning Coverage | Adjustable multi-probe array with 15 mm overlap per 120 mm probe |
| Mechanical Architecture | Immersion-type water bath with dual staggered probe carriage assemblies |
| Compliance Standards | ISO 3183, GB/T 2970, ASTM A435, ASTM A578, ISO 10893-11 |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS (Steel Research Institute) |
| Type | Pendulum Impact Testing Machine |

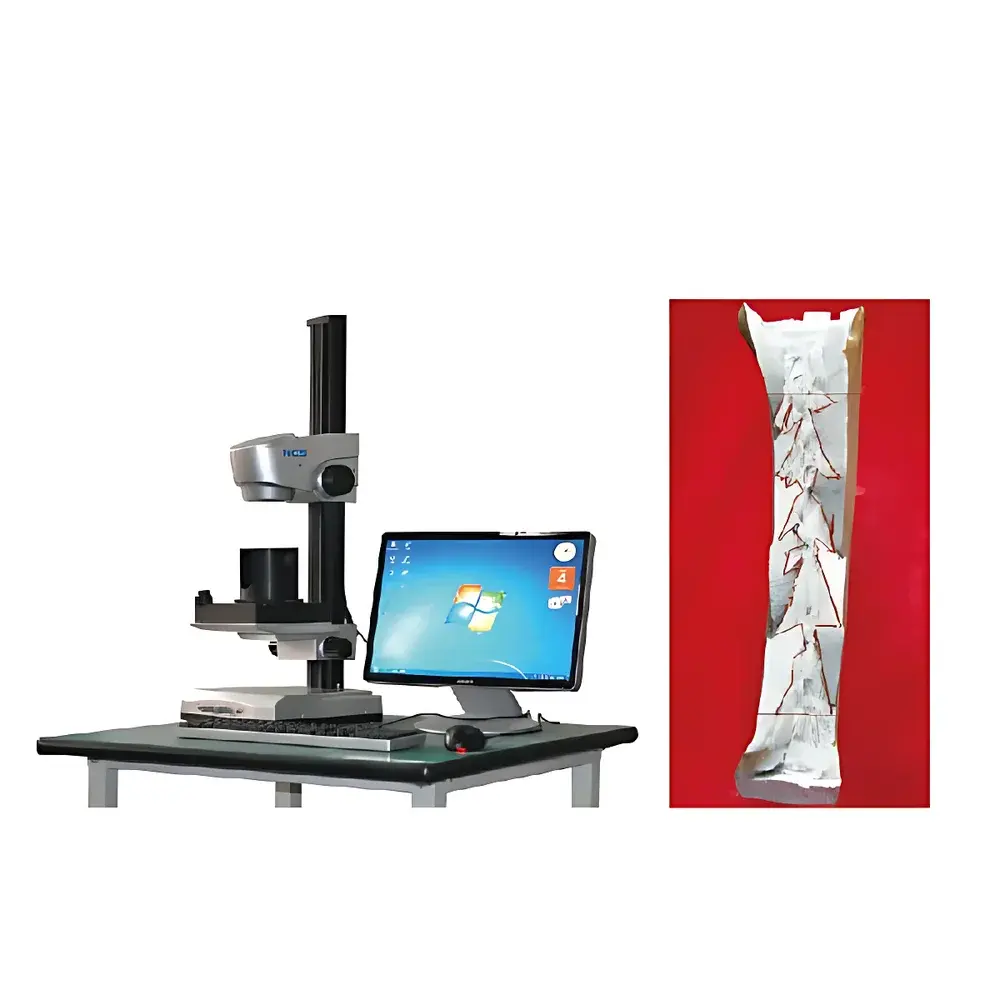

| Model | NCS DFAI |
| Imaging Sensor | 3-Megapixel CCD |
| Measurement Accuracy | ±0.02 mm |
| Compliance | Designed for ASTM E436, ASTM E23, ISO 148-1, ISO 83, GB/T 229, GB/T 8363 |
| Software | Proprietary fracture morphology analysis suite with audit trail and data export (CSV, TIFF, PDF) |
| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Model | NC-GET Large-Tube Series |
| Origin | Beijing, China |
| Manufacturer | Yes |
| Detection Method | Automated Ultrasonic + Eddy Current Testing |
| Compliance | API RP 5L, ASTM A578/A578M, ASTM A53/A500, ASME BPVC Section V, JIS G3444, GB/T 3091, GB/T 5777, YB/T 4082–4083, Q/SY GJX101, DEP 31.40.20.37 |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS (National Center for Steel Research) |
| Type | Domestic |
| Model | NCS-RBET Series |
| Pricing | Upon Request |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | Domestic (China) |
| Model | NC-DMT Series |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | NC-C-SC-AN Series for Bar Inspection |
| Pricing | Upon Request |
| Probe Configuration | 128-element array, max 32 elements fired per group |
| Static Sensitivity | Φ0.8 mm flat-bottom hole at depths of ½, ¼, and 1/8 bar diameter (≥5 mm min depth), SNR > 12 dB |
| Dynamic Sensitivity | Φ0.8 mm FBH at ≤0.5 m/s |
| End Blind Zone | <30 mm |
| Near-Surface Blind Zone | None |
| False Negative Rate | 0% |
| Inspection Speed | ≥60 m/min |
| Scan Modes | Linear Scan, Sector Scan, Dynamic Depth Focusing (DDF) |
| Applicable Standards | GB/T 4162, ISO 18563-1:2015, ISO 18563-2:2015, ASTM E2700 |
| Material Coverage | Carbon steel, alloy steel, bearing steel, spring steel, cold-heading steel |
| Bar Diameter Range | 16–65 mm (customizable) |
| Bar Length Range | 6–12 m |
| Surface Roughness Requirement | ≤25 µm Ra |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | NC-PUT Series |
| Pricing | Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | NC-GUFT Series |
| Pricing | Available Upon Request |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | NC-MT Series |
| Pricing | Available Upon Request |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | GNT100 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Test Load | 100 kN |
| Accuracy Class | 0.5 |
| Force Measurement Range | 0.4–100% FS (full-scale, no range switching) |
| Force Resolution | 1/500,000 of full scale, constant across entire range |
| Force Indication Error | ±0.5% of reading |
| Deformation Measurement Range | 0.2–100% FS |
| Deformation & Displacement Indication Error | ±0.5% of reading |
| Displacement Resolution | 0.016 µm |
| Crosshead Speed Range | 0.001–500 mm/min (infinitely variable) |
| Force Control Rate Range | 0.005–5% FS/s |
| Strain Rate Range | 0.02–5% FS/s |
| Closed-Loop Control Modes | Constant Force, Constant Strain, Constant Displacement (0.5–100% FS) |
| Speed Accuracy | ±0.2% of set value (0.01–500 mm/min) |
| Effective Tensile Space | 800 mm |
| Effective Test Width | 600 mm |
| Dimensions (H×W×D) | 1921 × 1997 × 660 mm |
| Software Platform | LZCX-800, Windows 7-based, open architecture, graphical UI, multi-method support (tension, compression, bending, shear), unit conversion (N, kN, gf, kgf, lbf, mm, in), real-time stress–strain plotting |
| Protection Functions | Overload, mechanical limit, overcurrent, overvoltage, overtemperature |
| Control Interchange | Seamless, shock-free transition among force, strain, and displacement control modes |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Model | NC-GET Series |
| Origin | Beijing, China |
| Manufacturer | NCS |
| Country of Origin | China |
| Pricing | Available Upon Request |
| Brand | NCS (China Iron and Steel Research Institute Group) |
|---|---|
| Model | NC-C-SCAN Series |
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (PRC) |
| Pricing | Available Upon Request |
| Brand | NCS (China Steel Research Institute) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Origin | Domestic (China) |
| Model | NC-DUT Series |
| Pricing | Available Upon Request |
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS (Central Iron and Steel Research Institute) |
| Type | Domestic |
| Model | NCS-SJ01 |
| Pricing | Upon Request |
