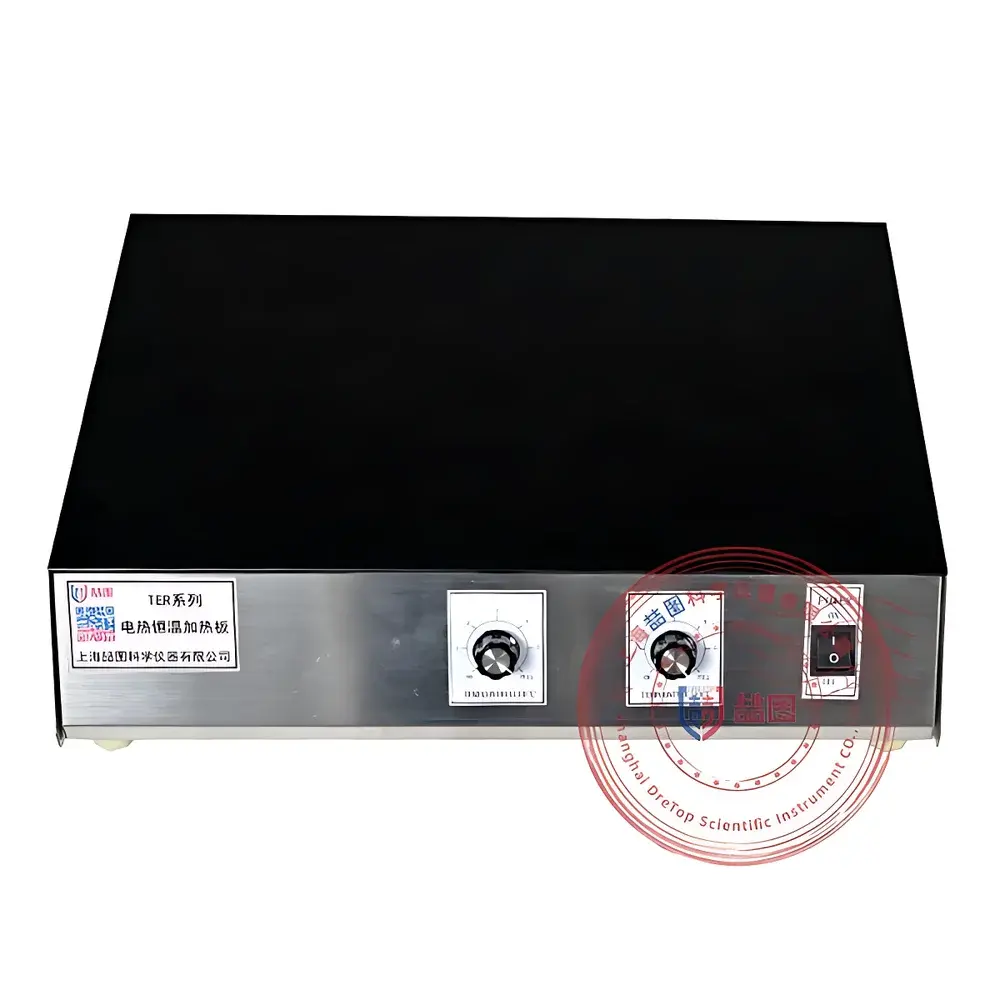

| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Model | TER Series |
| Price Range | USD 280–1,270 (FOB) |
| Heating Power | 1.2 kW – 2.4 kW |
| Max Operating Temperature | 450 °C |
| Temperature Uniformity | ±3 °C |
| Hotplate Surface Dimensions | 170 × 170 mm |

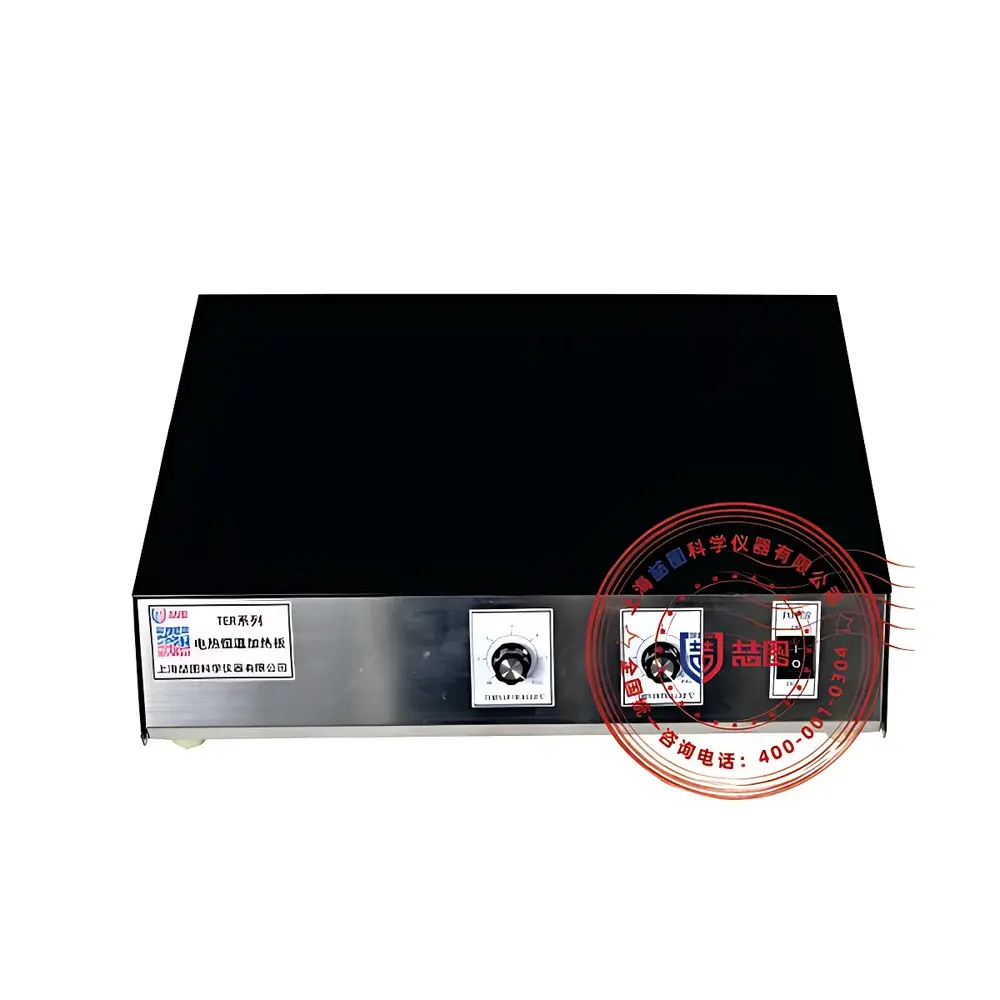

| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Model | TER-35S-I |
| Heating Power | 2400 W |
| Controller | PID Microprocessor-Based Temperature Controller |
| Max. Operating Temperature | 400 °C |
| Surface Dimensions | 500 × 300 mm |
| Heating Zone Dimensions | 500 × 300 mm |
| Display | Digital LED |
| Construction | Integrated All-in-One Design (Heating Module + Controller) |
| Panel Material | Chemically Resistant Ceramic-Glass (Microcrystalline Glass) |
| Frame Material | 316L Stainless Steel (Corrosion-Resistant Variant) |
| Thermal Uniformity | ±1.5 °C (Typical, Measured at 5 Points per ASTM E2207-22) |
| Temperature Stability | ±0.5 °C (Over 8 h at 300 °C, Load: 3 × 500 mL Beakers) |

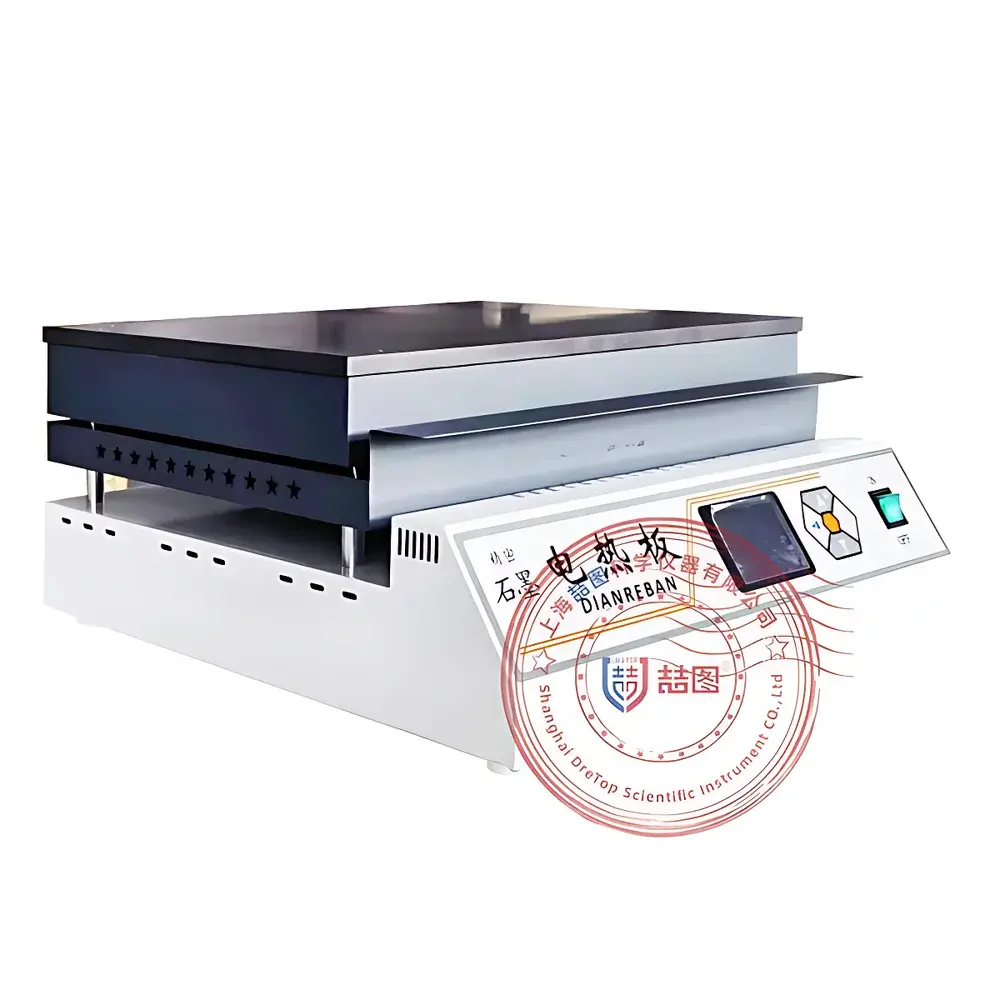

| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Model | EH50-4535 |
| Heating Power | 4000 W |
| Controller | Microprocessor-based PID |
| Max. Operating Temperature | 500 °C |
| Temperature Uniformity | ±0.1 °C |
| Heating Surface Dimensions | 450 × 350 mm |
| Display | Digital PID Temperature Readout |
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Model | DPS-1200 |
| Temperature Range | Stage 1: RT+50°C to 1200°C |
| Stage 2 | RT+50°C to 1400°C |
| Tube ID | 100 mm |
| Heating Zone Length | 440 mm |
| Vacuum Compatibility | Low-to-High Vacuum Operation |
| Atmosphere Control | N₂, Ar, H₂, and Custom Gas Mixtures |
| Sealing | KF-25 Quick-Connect Stainless Steel Double-Ring Metal Flanges |
| Safety Systems | Over-Temperature Protection, Thermocouple Break Detection, Leakage Current Protection |
| Insulation | Ceramic Fiber Furnace Chamber with High-Purity Quartz Tube |

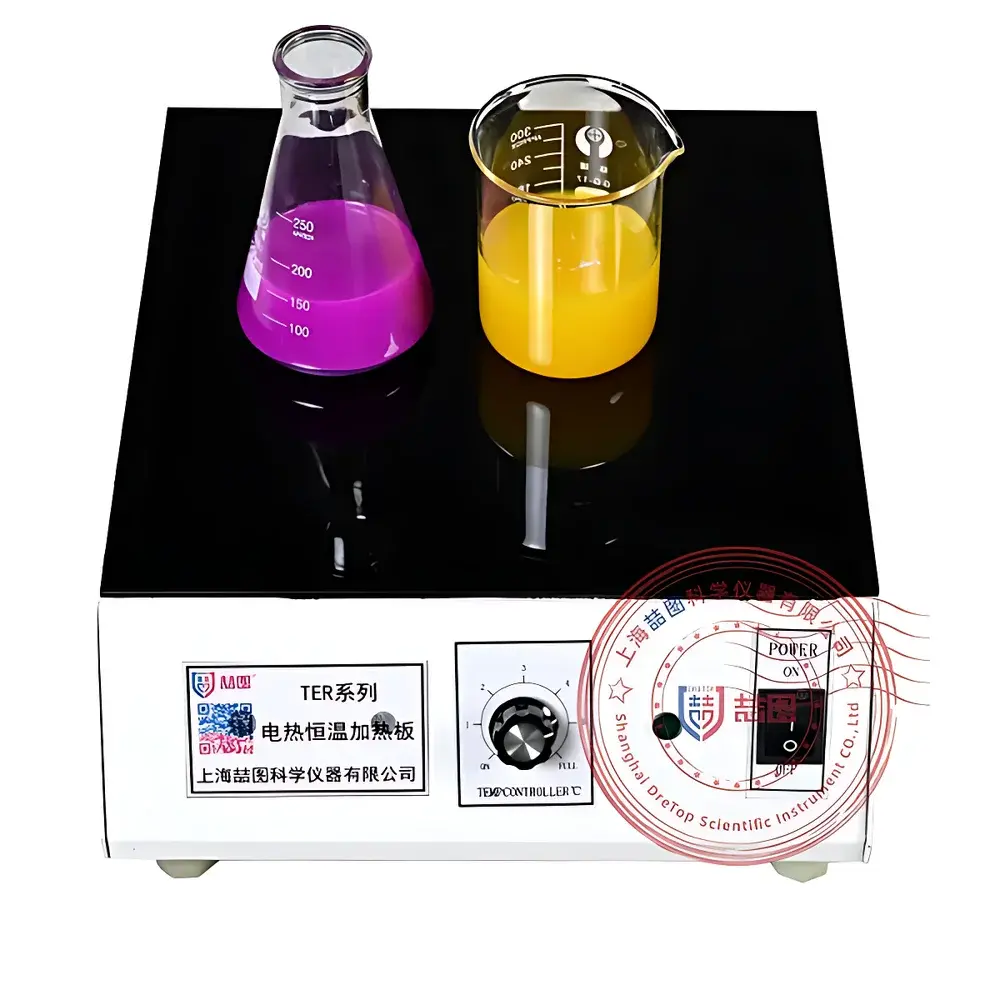

| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Model | TER Series |
| Price Range | USD 365 – 1,280 (FOB) |
| Heating Power | 1200 W – 2400 W |
| Controller | PID Microprocessor-Based Temperature Control |
| Max Operating Temperature | 450 °C |
| Surface Dimensions (W×D×H) | 300×355×125 mm to 620×355×200 mm |
| Heating Zone Dimensions | 300×300 mm to 500×300 mm |
| Display & Interface | Analog Rotary Knob (Non-Digital), Optional Digital Display Versions Available (TER-F/TER-S-I) |
