| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-C524-12 Ambient-Temperature Tape Holding Power Tester |
| Test Stations | 12 |
| Timing Resolution | Hour-Minute (9999 h 59 min) / Hour-Minute-Second (99 h 59 min 59 s) / Minute-Second-Millisecond (99 min 59 s 59 ms) |
| Standard Load Mass | 1000 g ±5 g (including stainless steel triangular hook and hanging weight) |
| Triangular Hook Dimensions | 45 mm × 5 mm (edge length × wire diameter) |
| Standard Test Plate | 150 mm × 50 mm × 2 mm (L×W×H), SUS304 mirror-finish stainless steel |
| Surface Roughness | 50 nm ±25 nm (Ra) |
| Power Consumption | ~120 W |
| Internal Chamber Dimensions | ~987 mm × 175 mm × 430 mm (L×W×H) |
| Overall Dimensions | ~990 mm × 200 mm × 640 mm (L×W×H) |
| Weight | ~50 kg |
| Power Supply | 1∮ AC 220 V |
| Applicable Standards | GB/T 4851–2014 (Methods A, B, C), CNS 11888, PSTC-107 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-H212 |
| Quotation | Upon Request |
| Internal Chamber Dimensions (W×D×H) | 520 × 450 × 560 mm |
| External Dimensions (W×D×H) | 800 × 700 × 1730 mm |
| Internal Material | 1.2 mm thick SUS#304 stainless steel |
| External Material | 1.5 mm thick A3 steel with baked enamel finish |
| Observation Window | 250 × 250 mm dual-layer tempered glass with embedded stainless-steel mesh |
| Exhaust Port Diameter | 100 mm (rear-mounted) |
| Pressure Relief Port | 200 × 200 mm (rear-mounted, spring-loaded passive venting) |
| Door Configuration | Single left-hinged door with safety interlock switch and side-mounted explosion-proof chain |
| Test Port | One Ø50 mm port on left side wall |
| Illumination | Integrated LED lighting for real-time visual monitoring |
| Actuation | Hydraulic drive system |
| Force Range | 1–20 kN |
| Force Resolution | 0.1 N |
| Crush Stroke | 250 mm |
| Force Display | 7-inch industrial touchscreen HMI |
| Standard Crush Platen | Flat rigid plate ≥20 cm² contact area |
| Crush Load Target | 13.0 ± 0.2 kN, held for 60 s |
| Nail Specifications | Austenitic stainless steel (e.g., AISI 304), Ø2–8 mm, L = 100 mm (custom lengths available) |
| Penetration Speed | Adjustable 4–40 mm/s |
| Net Weight | 280 kg |
| Power Supply | AC 380 V, 3-phase, 50/60 Hz |
| Rated Power | 2 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-H204 |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 400 × 400 × 400 mm (W×D×H) |
| External Dimensions | 630 × 620 × 1130 mm (W×D×H) |
| Internal Material | SUS304 Stainless Steel, 3.0 mm Thickness |
| External Material | Powder-Coated Cold-Rolled Steel, 1.5 mm Thickness |
| Observation Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Mobility | Four Swivel Casters with Brakes |
| Pressure Range | 0.5–100 kPa (Typical Test Point: 11.6 kPa) |
| Vacuum Display | Digital SMC Pressure Gauge |
| Control Interface | Push-Button Panel with LED Timer (0–9999 h) |
| Pressure Stability | ≤ ±5% of Setpoint |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Chain |
| Load Trays | 2 Stainless Steel Shelves |
| Net Weight | 120 kg |
| Power Supply | AC 220 V, 1 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-H211 |
| Quotation | Upon Request |
| Control System | PLC + Touchscreen HMI |
| Drive Mechanism | Servo Motor |
| Solution Temperature Range | Ambient to 80 °C (adjustable) |
| Standard Test Temp | 45 ± 2 °C |
| Test Drum Outer Diameter | Ø500 ± 10 mm |
| Inner Tank Diameter | 650 mm |
| Inner Tank Depth | 600 mm |
| Rotational Speed | 1–999 rpm (adjustable) |
| Inner Chamber Material | SUS#304 Stainless Steel |
| Outer Casing Material | Cold-Rolled Steel with Powder Coating |
| Test Duration Range | 0–9999 h/min/sec (programmable) |
| Temperature Control Method | PID Algorithm |
| Test Solution | pH 11.0 ± 0.1 (e.g., 0.004 wt% NaOH), heated to 45 ± 2 °C |
| Sample Immersion Depth | Battery center positioned at 300 ± 10 mm below liquid surface |
| Inner Chamber Dimensions (W×D×H) | 900 × 900 × 645 mm |
| Overall Dimensions (W×D×H) | 1200 × 1150 × 1880 mm |
| Net Weight | 230 kg |
| Power Supply | AC 220 V, 50/60 Hz |
| Rated Power | 6 kW |
| Operating Environment | Ambient Temp. 0–35 °C |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-A513-C |
| Load Capacity Options | 500 N / 1 kN / 2 kN / 5 kN |
| Motor | 400 W Servo Motor |
| Driver | 400 W Servo Drive |
| Control System | Windows-Based PC Control |
| Display & Output | Real-time PC Interface with Export to Microsoft Office Formats |
| Actuation | Precision Ball Screw with Belt-Driven Reduction Gearbox |
| Speed Range | 0.1–500 mm/min (Adjustable) |
| Maximum Travel | 600 mm (Excluding Fixtures) |
| Load Resolution | 1/250,000 Full Scale |
| Load Accuracy | ≤ ±0.5% of Reading |
| Effective Test Force Range | 1 N – 5 kN |
| Unit Conversion | gf / kgf / N / kN / lbf / tonf |
| Effective Test Width | 420 mm |
| Dimensions (L×W×H) | ≈ 790 × 610 × 1100 mm |
| Weight | ≈ 170 kg |
| Power Supply | 1Ø AC 220 V |
| Total Power Consumption | ≈ 500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | HD-H203 Battery Explosion-Proof Test Chamber |
| Quotation | Upon Request |
| Internal Dimensions | 500 × 500 × 500 mm (W × D × H) |
| External Dimensions | 680 × 750 × 1375 mm (W × D × H) |
| Inner Chamber Material | 1.2 mm thick SUS304 stainless steel with PTFE lining |
| Outer Enclosure Material | 1.5 mm cold-rolled steel with baked enamel finish |
| Observation Window | 250 × 250 mm dual-layer tempered glass with embedded stainless-steel mesh |
| Exhaust Port | Ø100 mm, rear-mounted |
| Pressure Relief Opening | 200 × 200 mm, rear-mounted, spring-actuated passive venting mechanism |
| Door Configuration | Single left-hinged door with explosion-resistant safety chain |
| Test Port | One Ø50 mm feedthrough on left side for thermocouples, voltage/current probes, and data cables |
| Mobility | Four swivel casters with locking brakes |
| Illumination | Integrated LED interior lighting |
| Control Interface | Push-button panel |
| Power Supply | AC 220 V, 200 W |
| Net Weight | 65 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-A840 Corrugating Tester |
| Working Speed | 4.5 rpm |
| Speed Accuracy | ±0.2 rpm |
| Temperature Control Range | Ambient to 200 °C |
| Standard Operating Temperature | 175 °C |
| Temperature Resolution | 1 °C |
| Temperature Accuracy | ±1% of setpoint |
| Adjustable Pressure Range | 49–108 N |
| Spring Tension | 100 N (adjustable) |
| Fluting Roller Outer Diameter | 228.5 ± 0.5 mm |
| Fluting Roller Thickness | 16 ± 0.05 mm |
| Number of Teeth | 84 |
| Tooth Profile | A-Flute |
| Upper Tooth Radius | 1.5 ± 0.1 mm |
| Lower Tooth Radius | 2.0 ± 0.1 mm |
| Flute Depth | 4.75 ± 0.05 mm |
| Sample Dimensions | 152 mm × 12.7 mm (L × W) |
| Overall Dimensions | Approx. 454 mm × 554 mm × 470 mm (L × W × H) |
| Weight | Approx. 60 kg |
| Power Supply | 1Ø AC 220 V |
| Total Power Consumption | ~1.8 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-C525 |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

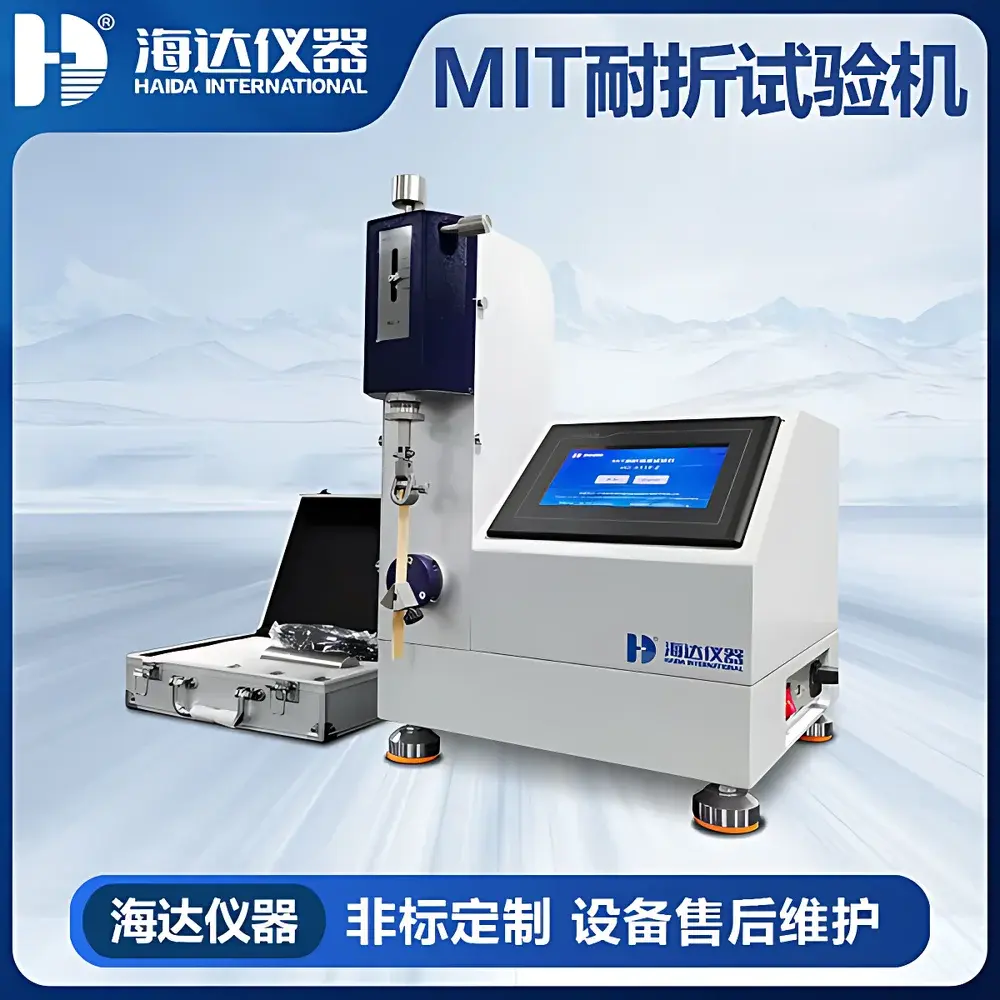

| Model | HD-A519-2 MIT Fold Endurance Tester |
| Drive System | Servo Motor |
| Test Loads | 4.91 N, 9.81 N, 14.72 N |
| Folding Angle | ±135° (adjustable from 0° to ±135°, single- or double-side folding) |
| Specimen Dimensions | 15 mm × 150 mm, thickness < 1.25 mm |
| Folding Speed | (175 ± 10) rpm (0–175 ± 10 rpm adjustable) |
| Folding Head Width | 19 ± 1 mm |
| Fold Radius (Chord) | 0.38 ± 0.02 mm (interchangeable) |
| Gap Between Folding Jaws | 0.25 mm / 0.5 mm / 0.75 mm / 1.0 mm (custom gaps available) |
| Counter Range | 0–999,999 cycles, auto-stop |
| Dimensions (L×W×H) | 421 × 357 × 526 mm |
| Display | Touchscreen Interface |
| Weight | ~30 kg |
| Power Supply | 1-phase, 220 V, 50 Hz, 1 A |
| Rated Power | ~500 W |
| Compliance Standards | GB/T 457–2008, GB/T 2679.5–1995, ISO 5626:1993, JIS P 8115:2001 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-A512 |
| Capacity | 300 N |
| Motor | Stepper Motor |
| Driver | Stepper Motor Driver |
| Control Interface | Touchscreen |
| Display | Touchscreen LCD |
| Transmission | Precision Ball Screw |
| Speed Range | 0.1–200 mm/min |
| Maximum Travel | 300 mm |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤0.5% FS |
| Effective Force Range | 5 g–30 kg (49 mN–294 N) |
| Unit Options | gf, kgf, N, kN, lbf, tonf |
| Dimensions (L×W×H) | 700 × 420 × 325 mm |
| Weight | ~50 kg |
| Power Supply | 1∮ AC 220 V, 50/60 Hz |
| Power Consumption | ~500 W |
| Compliance Standards | GB/T 12914–2018, GB/T 1040, GB 13022–1991, ISO 1924-2:2008 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-H201 Temperature-Controlled Battery Short-Circuit Test Chamber |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 400 × 400 × 400 mm (W × D × H) |
| Overall Dimensions | 650 × 550 × 1200 mm (W × D × H) |
| Temperature Range | Ambient to 200 °C |
| Temperature Display Resolution | 0.1 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | (5 ± 1) °C/min |
| Inner Chamber Material | 1.2 mm SUS304 Stainless Steel |
| Outer Cabinet Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Chain |
| Test Ports | Two Ø50 mm Penetration Ports on Right Side |
| Insulation Material | High-Efficiency Compressed Glass Wool |
| Safety Protections | Fuseless Circuit Breaker, Over-Temperature Cut-Off Switch, Thermal Fuse |
| Air Circulation | Convection-Based Forced-Air System |
| Control System | PLC + Touchscreen HMI |
| Exhaust Duct | Ø100 mm at Rear Panel |
| Temperature Sensing Range | Ambient to 1000 °C |
| Temp. Channel Count | 1 |
| Temp. Measurement Accuracy | ±0.5 °C |
| Voltage Input Range | 0–100 V |
| Voltage Channel Count | 1 |
| Voltage Accuracy | ±0.5% FS |
| Current Capacity | Up to 1000 A |
| Current Channel Count | 1 |
| Current Accuracy | ±0.5% FS |
| Short-Circuit Loop Resistance | 80 ± 20 mΩ |
| Mobility | Four Swivel Casters with Locks |
| Net Weight | 90 kg |
| Power Supply | AC 220 V |
| Rated Power | 2.5 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-A535 Simulated Clamp-and-Hug Testing System |
| Load Capacity | 18 kN |
| Max. Specimen Weight | 500 kg |
| Clamp Plate Dimensions | 1220 mm × 1220 mm (L × H) |
| Minimum Clamping Space | 50 mm × 1220 mm × 1220 mm (L × W × H) |
| Maximum Clamping Space | 2000 mm × 1220 mm × 1220 mm (L × W × H) |
| Clamping Speed Range | 5–500 mm/min (adjustable) |
| Vertical Travel Range | 50–1000 mm |
| Vertical Speed (Up/Down) | 5–600 mm/min / 5–300 mm/min (adjustable) |
| Load Resolution | 1/250,000 |
| Load Accuracy | ≤ ±0.5% FS |
| Drive Motor | 750 W AC Servo Motor (Panasonic Digital Series) |
| Hydraulic Power Unit | 2.2 kW (3 HP), 40 L Oil Reservoir |
| Lifting Mechanism | Dual Hydraulic Cylinders |
| Specimen Max. Dimensions | 2000 mm × 1220 mm × 1220 mm (L × W × H) |
| Overall Dimensions | 3250 mm × 2000 mm × 2350 mm (L × W × H) |
| Net Weight | ~3000 kg |
| Power Supply | 3-phase AC / 380 V |
| Total Installed Power | ~3 kW |
| Displacement Feedback | High-precision draw-wire encoder |
| Safety Features | Mechanical stroke limit switches, electrical leakage protection, real-time fault alarm system |
| Compliance Standards | ASTM D6055, ISTA 6-SAMSCLUB, Sears Corporate Packaging Specification |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-A508-A Ink Rub Resistance Tester |
| Sample Area Minimum Dimensions | 250 × 80 mm |
| Rubbing Speed | (43 ± 1) cycles/min (adjustable: 21, 43, 85, 106 cycles/min) |
| Normal Load | 908 g (2 lb) and 1810 g (4 lb) |
| Stroke Length | ≈ 55 mm (center displacement of rubbing element) |
| Rubbing Area | 51 × 102 mm (L × W) |
| Cycle Count Range | 0–9999 (auto-stop) |
| Dimensions (L × W × H) | 360 × 290 × 450 mm |
| Net Weight | ≈ 30 kg |
| Power Supply | 1-phase AC 220 V, 60 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-H203-1 Dual-Layer Explosion-Proof Battery Test Chamber |
| Pricing | Upon Request |
| Internal Chamber Dimensions | 500 × 500 × 500 mm (W × D × H) |
| External Dimensions | 680 × 750 × 1375 mm (W × D × H) |
| Inner Wall Material | 1.2 mm SUS304 Stainless Steel with PTFE Lining |
| Outer Casing | 1.5 mm Powder-Coated Cold-Rolled Steel |
| Observation Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Exhaust Port | Ø100 mm, Rear-Mounted |
| Pressure Relief Opening | 200 × 200 mm, Rear-Mounted, Spring-Loaded Passive Release Mechanism |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Safety Chain |
| Test Port | One Ø50 mm Penetration Port on Left Side |
| Mobility | Four Swivel Casters with Locks |
| Illumination | Integrated LED Interior Light |
| Control Interface | Push-Button Panel |
| Power Input | AC 220 V, 200 W |
| Net Weight | 65 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-H210 |
| Temperature Range | RT to 200 °C |
| Internal Dimensions (W×D×H) | 400 × 400 × 400 mm |
| External Dimensions (W×D×H) | 860 × 700 × 1310 mm |
| Temperature Display Resolution | 0.1 °C |
| Temperature Stability | ±1.0 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | (5 ± 1) °C/min |
| Soak Time Range | 0–9999 h |
| Control Interface | Keypad-based Controller |
| Inner Chamber Material | 1.2 mm SUS304 Stainless Steel |
| Outer Cabinet Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Door Configuration | Single Left-Swing Door with Explosion-Proof Chain |
| Test Ports | Two Ø50 mm Penetration Ports (Right Side) |
| Insulation | High-Efficiency Compressed Glass Wool |
| Safety Protections | Non-fuse Breaker, Over-Temperature Cut-off Switch, Thermal Fuse, Audible Alarm on Over-Temp Event |
| Air Circulation | Convection-Based Forced-Air System |
| Net Weight | 75 kg |
| Power Supply | AC 220 V |
| Rated Power | 2 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HD-A513-E |
| Display | 7-inch Color Touchscreen |
| Load Capacity | 2 kN |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Maximum Applied Load | 1800 N |
| Minimum Force Resolution | 0.02 N |
| Test Speed | (12.5 ± 2.5) mm/min |
| Compression Plate Diameter | φ120 mm |
| Parallelism of Compression Plates | ≤ 0.06 mm |
| Plate Travel Range | 0.1–80 mm |
| RCT Specimen Size | 152 × 12.7 mm (L × W) |
| ECT Specimen Size | 100 × 25 mm (L × W) |
| Flat Crush Test (FCT) Anvil | 12 mm thick, φ120 mm |
| Dimensions (L×W×H) | 400 × 400 × 650 mm |
| Weight | ~40 kg |
| Power Supply | 1Ø AC 220 V |
| Power Consumption | ~220 W |
| Force Units | kgf, lbf, N |
| Compliance Standards | GB/T 2679.8–2016, GB/T 2679.17–1997, GB/T 6546–1998, ISO 3035:2011, TAPPI T804–2011, TAPPI T811–2007, TAPPI T809–2011, JIS P8126 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HD-A534 Simulated Clamp-and-Hug Testing System |
| Capacity | 18 kN |
| Max. Sample Weight | 500 kg |
| Clamp Plate Dimensions | 1220 mm × 1220 mm (L × H) |
| Minimum Clamping Clearance | 50 mm × 1220 mm × 1220 mm (L × W × H) |
| Maximum Test Envelope | 2000 mm × 1220 mm × 1220 mm (L × W × H) |
| Clamping Speed Range | 5–500 mm/min (adjustable) |
| Parallelism Tolerance | <5 mm (unloaded), <10 mm at 1.8 t clamping force |
| Vertical Travel Range | 50–1000 mm |
| Vertical Speed (Up/Down) | 5–600 mm/min / 5–300 mm/min (adjustable) |
| Load Resolution | 1/250,000 |
| Load Accuracy | ≤ ±0.5% FS |
| Drive Motor | 750 W servo motor |
| Hydraulic Power Unit | 2.2 kW (3 HP), 40 L oil reservoir |
| Elevation Mechanism | Dual hydraulic cylinders |
| Overall Dimensions | 3250 mm × 2000 mm × 2350 mm (L × W × H) |
| Net Weight | ~3000 kg |
| Power Supply | 3-phase AC / 380 V |
| Total Power Consumption | ~3.5 kW |
| Compliance Standards | ISTA 6 – Horizontal Compression Test, ASTM D6055-2019 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-A537 Box Sliding Angle Tester |
| Measurement Range | 0.1°–35° |
| Angular Resolution | ±0.1° |
| Tilt Speed | 2°/s |
| Test Platform Dimensions | 600 mm × 500 mm (L×W) |
| Overall Dimensions | 1100 mm × 700 mm × 1200 mm (L×W×H) |
| Weight | ~170 kg |
| Power Supply | 1∮ AC 220 V |
| Power Consumption | ~220 W |
| Compliance Standard | DIN 53119-2:1997 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-C522 Computer-Controlled Release Force Tester for Pressure-Sensitive Adhesives |
| Sensor Capacity | 10 N / 20 N / 50 N |
| Motor | 400 W Servo Motor |
| Driver | 400 W Servo Drive |
| Lead Screw | Precision Ball Screw |
| Control Mode | PC-Based Windows OS Interface |
| Adjustable Speed Range | 0.1–1000 mm/min |
| Maximum Travel | 500 mm (without fixtures) |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Force Measurement Range | 0.01–50 N |
| Unit Options | gf, kgf, N, kN, lbf, tonf |
| Dimensions (L×W×H) | 400 × 600 × 1000 mm |
| Weight | ~68 kg |
| Power Supply | 1∮ AC 220 V |
| Total Power Consumption | ~500 W |
| Standard Test | 180° Peel Release Force |
| Compliance | GB/T 2792–2014, ASTM D3330–22, GB/T 25256–2010, ISO 8510-2:2019 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-H209 Battery Combustion Test Chamber |
| Quotation | Available upon Request |
| Internal Chamber Dimensions | 750 × 750 × 500 mm (L×W×H) |
| External Dimensions (incl. door lock) | 1000 × 950 × 1310 mm (L×W×H) |
| Internal Material | SUS2304 Stainless Steel, 1.2 mm thickness |
| External Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Exhaust Port Diameter | 100 mm (rear-mounted) |
| Pressure Relief Opening | 200 × 200 mm (rear-mounted, spring-actuated) |
| Door Configuration | Single left-swing door with safety interlock switch and explosion-proof chain |
| Control Interface | Push-button panel |
| Bunsen Burner Tip ID | 10 mm, length ≈ 100 mm |
| Combustion Duration Setting Range | 0–99 h 99 min |
| Test Aperture Diameter | 102 ± 2 mm |
| Test Wire Mesh | Woven stainless steel, 0.43 mm wire diameter, 20 mesh/inch |
| Flame Height Above Mesh | 38 mm |
| Octagonal Aluminum Enclosure | Opposite sides spaced 610 mm (24″), height 305 mm (12″), modular hinged design |
| Fuel Supply | Methane or LPG (user-supplied) |
| Net Weight | 160 kg |
| Power Supply | 1∮ AC 220 V |
| Rated Power | 200 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HAIDA HD-C524-6 Ambient-Temperature Tape Holding Power Tester |
| Price | Upon Request |
| Test Stations | 6 |
| Timer Resolution | 0.01 s (mm:ss:ms mode), 1 s (hh:mm mode), 1 s (hh:mm:ss mode) |
| Standard Load Mass | 1000 g ±5 g (including stainless steel triangular ring and hook weight) |
| Triangular Ring Dimensions | 45 mm × 5 mm (edge length × wire diameter) |
| Standard Test Plate | 150 mm × 50 mm × 2 mm (L×W×H), SUS304 mirror-finish stainless steel |
| Surface Roughness of Test Plate | 50 nm ±25 nm (Ra) |
| Power Consumption | ~72 W |
| Internal Chamber Dimensions | 507 mm × 175 mm × 430 mm (L×W×H) |
| Overall Dimensions | 510 mm × 200 mm × 640 mm (L×W×H) |
| Weight | ~30 kg |
| Power Supply | 1∮ AC 220 V |
| Applicable Standards | GB/T 4851–2014 (Methods A, B, C), CNS 11888, PSTC-107 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-A513-B |
| Display | Touchscreen (optional PC interface) |
| Control | Touchscreen (optional software control) |
| Load Capacity | 5 kN |
| Force Resolution | 1/250,000 |
| Force Accuracy | ≤ ±0.5% |
| Max. Applied Load | 4500 N |
| Minimum Force Resolution | 0.05 N |
| Test Speed | (12.5 ± 2.5) mm/min |
| Platen Diameter | 120 mm |
| Platen Travel | 0.1–80 mm |
| RCT Specimen Size | 152 × 12.7 mm (L×W) |
| ECT Specimen Size | 100 × 25 mm (L×W) |
| Flat Crush (CMT) Guide Block | Thickness 12 mm, Ø120 mm |
| Dimensions (L×W×H) | 515 × 566 × 555 mm |
| Weight | ~70 kg |
| Power Supply | 1-phase, 220 V, 50 Hz, 2 A |
| Power Consumption | 300 W |
| Force Units | kgf, lbf, N |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-H206 Battery Crush & Impact Tester |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 490 × 520 × 1430 mm (W×D×H) |
| External Dimensions | 700 × 1000 × 1700 mm (W×D×H) |
| Chamber Material | 1.2 mm SUS304 stainless steel with PTFE lining |
| Exterior Enclosure | 1.5 mm cold-rolled steel with powder coating |
| Viewing Window | 250 × 250 mm double-layer tempered glass with stainless steel mesh overlay |
| Exhaust Port | Ø100 mm, rear-mounted |
| Pressure Relief Port | 200 × 200 mm, rear-mounted, spring-actuated |
| Door Configuration | Left-hinged single door with safety interlock switch and explosion-proof chain restraint |
| Drop Mass | 9.1 ± 0.1 kg or 10 kg |
| Impact Height Range | 0–1000 mm (standard test height: 610 ± 25 mm) |
| Height Display | LED digital readout, resolution ±5 mm |
| Impact Rod | Ø15.8 ± 0.2 mm (5/8″) hardened 45# steel rod, horizontally mounted across cell center |
| Maximum Test Specimen Size | 200 × 200 × 200 mm |
| Impact Surface | 45# steel, 30 mm thick, baked enamel finish |
| Illumination | Integrated LED lighting for real-time visual monitoring |
| Net Weight | 270 kg |
| Power Supply | AC 220 V, 600 W, 50/60 Hz |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HD-A513-E |
| Display | 7-inch TFT Touchscreen (Dual-language UI: English/Chinese) |
| Load Capacity | 2 kN |
| Force Resolution | 0.02 N |
| Force Accuracy | ≤ ±0.5% FS |
| Load Cell Resolution | 1/250,000 |
| Test Speed | (12.5 ± 2.5) mm/min |
| Platen Diameter | φ120 mm |
| Parallelism of Platens | ≤ 0.06 mm |
| Travel Range | 0.1–80 mm |
| RCT Specimen Size | 152 × 12.7 mm (L × W) |
| ECT Specimen Size | 100 × 25 mm (L × W) |
| Flat Crush Fixture | 12 mm thick, φ120 mm |
| Dimensions (L×W×H) | 400 × 400 × 650 mm |
| Weight | ~40 kg |
| Power Supply | 1∮ AC 220 V, 50/60 Hz |
| Power Consumption | ~220 W |
| Force Units | N, kgf, lbf |
| Compliance Standards | GB/T 2679.8-2016, GB/T 2679.17-1997, GB/T 6546-1998, ISO 3035:2011, TAPPI T804-2011, TAPPI T811-2007, TAPPI T809-2011, JIS P8126 |
Show next
