| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

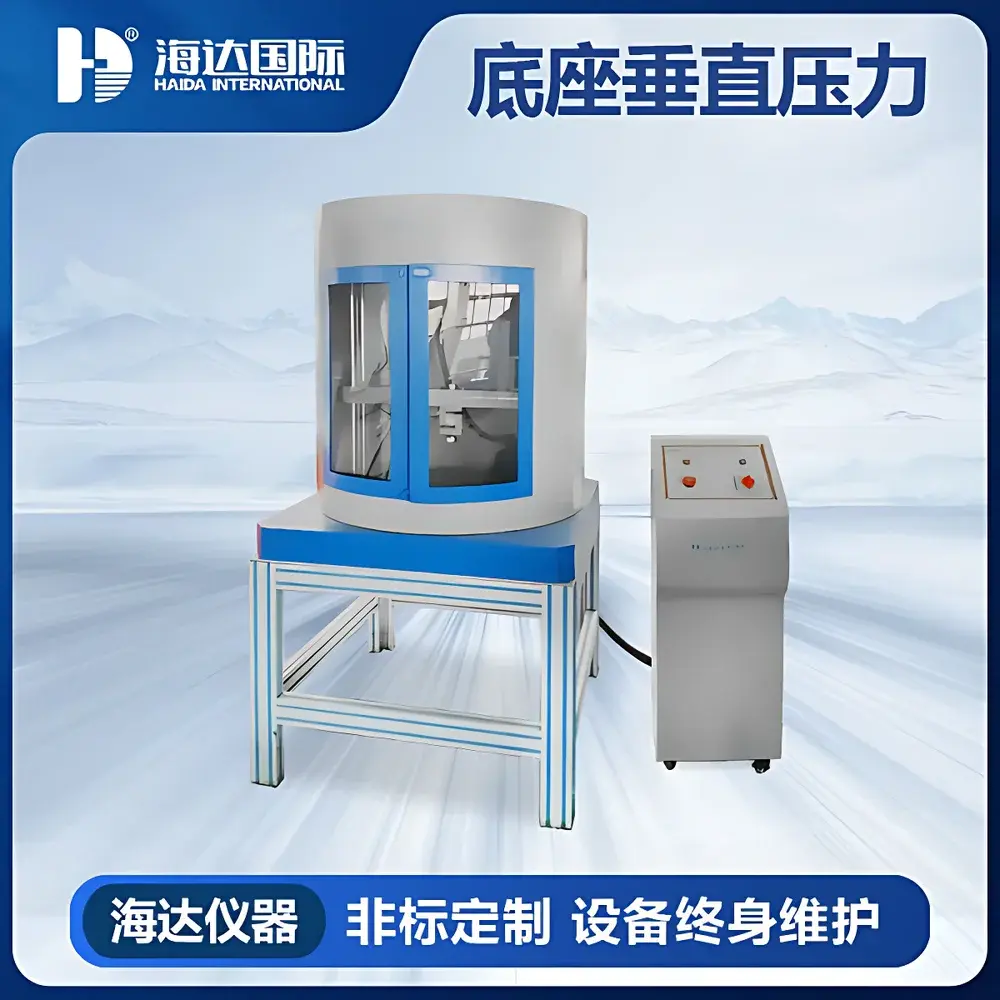

| Model | HAIDA HD-F733-1 Office Chair Base Vertical Load Tester |
| Max Test Force | 1–30 kN |
| Speed Range | 0.1–120 mm/min (adjustable) |
| Host Weight | ~300 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-F750-1A |
| Max Test Force | 1–1300 N |
| Fatigue Frequency | 70 ± 5 cycles/min (per GB/T 18941-2003 & ISO 3385:2014) |
| Host Weight | ~80 kg |
| Max Specimen Dimensions | 380 × 380 × 150 mm (L×W×H) |
| Standard Specimen Size (GB/ISO) | 380 × 380 × 50 mm |
| ASTM Standard Specimen Size | 380 × 380 × 100 mm |
| Cycle Count Range | 1–999,999 (user-definable) |
| Indentation Speed | 100 ± 20 mm/min (per GB/T 12825-2003, ISO 2439:2008, GB/T 10807-2006) |
| Fatigue Stroke Speed | 250 ± 25 mm/min (per ASTM D3574, Test Point I3) |
| Hardness Test Stroke | 180 mm |
| Effective Force Range | 1–1300 N |
| Overall Dimensions | 600 × 500 × 1080 mm (L×W×H) |
| Power Supply | 1∮ AC 220 V |
| Rated Power | ~850 W |
| Control Interface | Touchscreen |
| Load Cell Control | Integrated PCB-based closed-loop control |
| Fixture Mounting | Magnetic coupling for rapid tool change |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | HAIDA HD-F750-6 Sponge Rolling Fatigue Tester |
| Max Test Load | 1 kN |
| Frequency Range | 1–999,999 cycles (user-definable) |
| Host Weight | ~500 kg |
| Sample Dimensions | 380 mm × 380 mm × 50 mm (L×W×H) |
| Roller Diameter | 76 ± 1.3 mm × 457 mm (L) |
| Roller Weight | ≤110 N |
| Stroke Length | 300 mm |
| Test Speed | 15 ± 1.5 cycles/min |
| Vertical Travel Speed | 15 mm/min |
| Position Resolution | 1/250,000 |
| Load Accuracy | ≤±0.5% FS |
| Drive Motor | 400 W AC Servo Motor |
| Servo Driver | 400 W Digital AC Servo Drive |
| Actuation | Electric Linear Actuator |
| Control System | PLC + 7-inch Touchscreen HMI |
| Data Output | USB Interface |
| Power Supply | 1Ø AC 220 V, 5 A, 50 Hz |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |

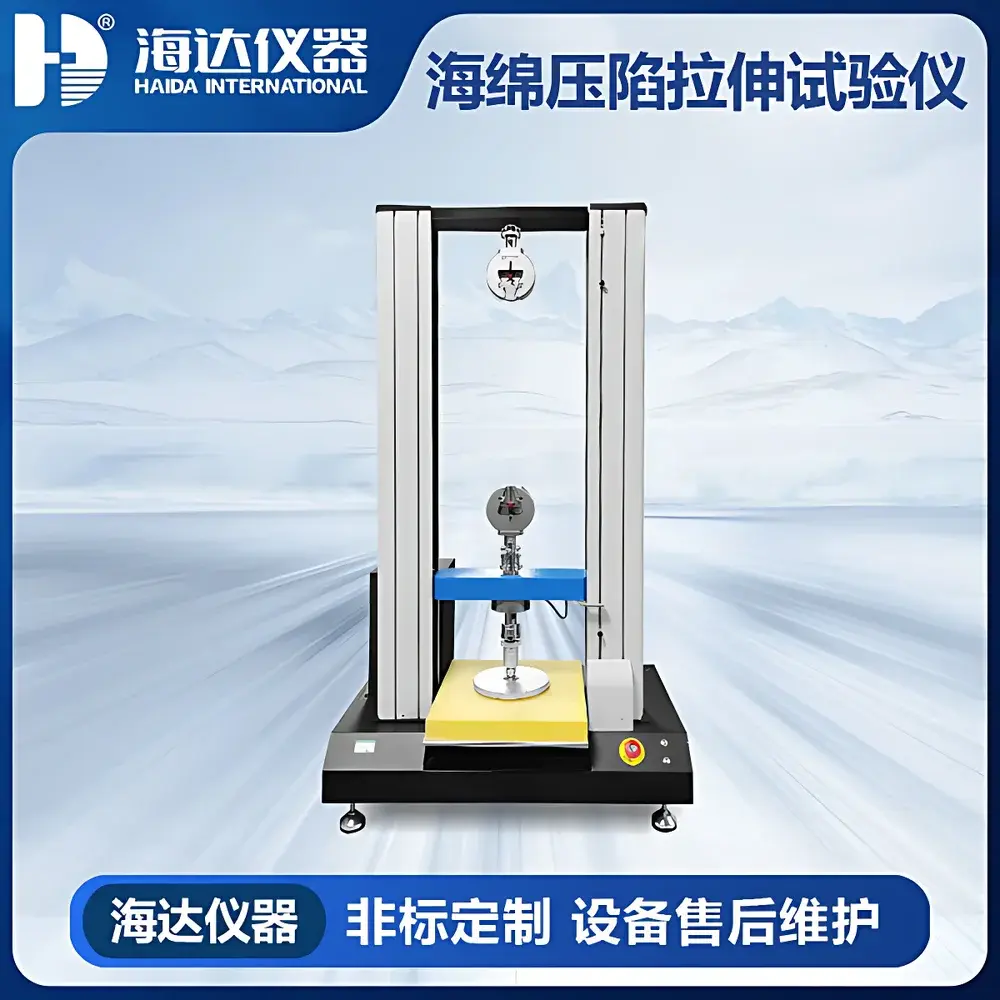

| Model | HAIDA HD-F750A Dual-Mode Foam Indentation & Tensile Testing Machine |
| Instrument Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | 500 kg Load Cell (Spoke-Type) |
| Speed Range | 0.1–500 mm/min (Computer-Controlled Adjustable) |
| Host Weight | Approx. 150 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HD-F735 |
| Max Test Force | 200 kg × 3 (simultaneous) |
| Frequency Range | 10–30 cycles/min |
| Stroke Control | Motorized Vertical Adjustment |
| Force Actuation | Servo-Proportional Pneumatic Valve |
| Load Sensing | Three 200 kg Load Cells |
| Test Count Range | 1–999,999 cycles (user-defined) |
| Sample Height Range | 500–750 mm |
| Test Table Width | 800 mm |
| Power Supply | AC 220 V, 5 A, 50 Hz |
| Air Supply Requirement | ≥0.6 MPa (6 bar) |
| Rated Power | 200 W |
| Dimensions (L×W×H) | 2400 × 1000 × 1950 mm |
| Compliance Standards | GB 10357.3, QB/T 2280-2007, EN 1335:2009, EN 12520:2010 / EN 1728:2012, BIFMA 5.1-2017 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-F731-1 Chair Rotational Durability Tester |
| Frequency Range | 1–999,999 cycles (user-definable) |
| Host Weight | ~620 kg |
| Motor | 750 W servo motor ×1 + 400 W vertical reduction motor ×1 |
| Control System | PLC-based with touchscreen HMI |
| Cycle Count Range | 1–999,999 |
| Test Speed | 5–15 cycles/min |
| Rotation Angle | 0–360° (adjustable) |
| Effective Test Height | 250–700 mm |
| Max Base Diameter | ≤750 mm |
| Dimensions (L×W×H) | 1850 × 1200 × 2400 mm |
| Power Supply | 1-phase AC 220 V |
| Total Power Consumption | ~1250 W |
| Data Output | USB interface |
| Compliance Standard | BIFMA 5.1–2017 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-F733 Office Chair Base Vertical Static Load Tester |
| Maximum Test Force | 1–30 kN |
| Crosshead Speed Range | 0.1–120 mm/min (adjustable) |
| Host Weight | ~300 kg |
| Force Resolution | 1/200,000 |
| Force Accuracy | ≤ ±0.5% FS |
| Effective Test Height | 650 mm (excluding fixtures) |
| Max Sample Diameter | 750 mm |
| Dimensions (L×W×H) | 1100 × 1100 × 1650 mm |
| Power Supply | 1-phase AC 220 V |
| Rated Power | ~850 W |
| Compliance Standards | BIFMA 5.1 Appendix C, QB/T 2280–2016 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

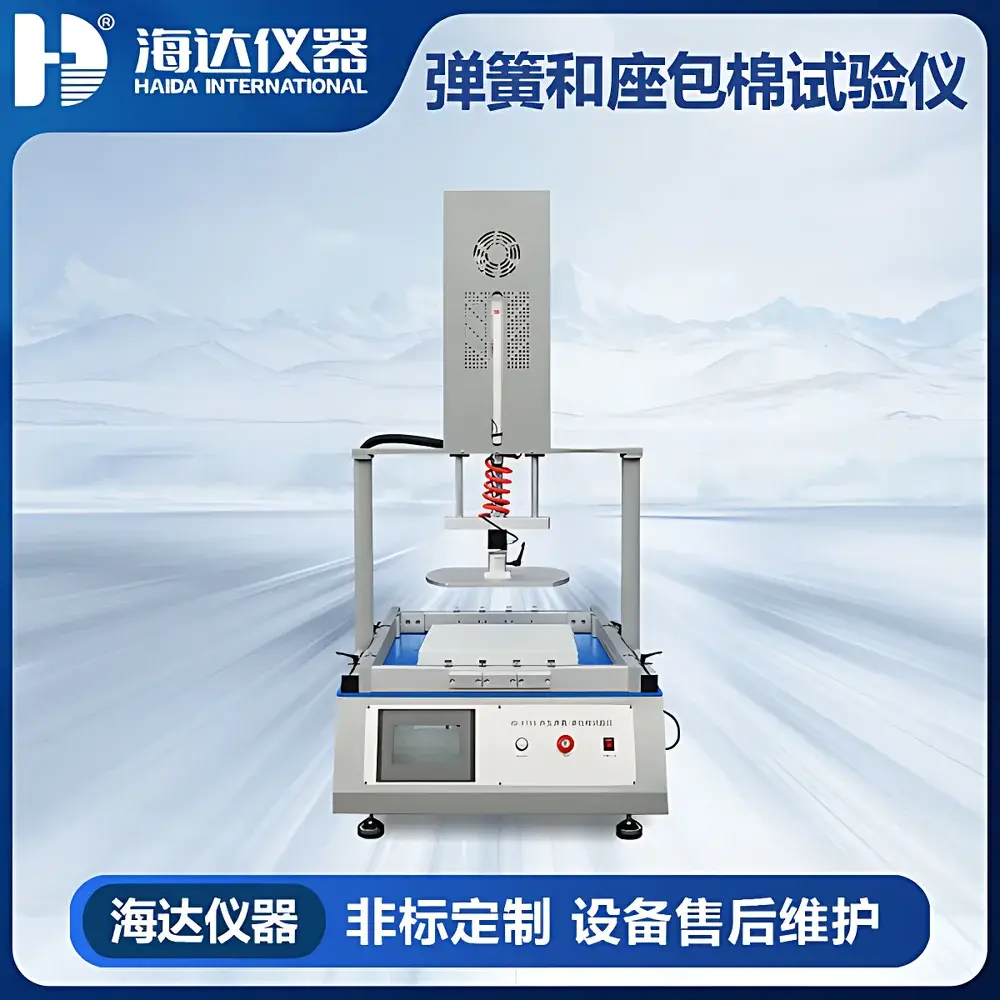

| Model | HAIDA HD-F753 Sofa Spring & Seat Cushion Fatigue Testing Machine |
| Instrument Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | 2 kN (single load cell) |
| Cycle Count Range | 1–999,999 cycles (user-definable) |
| Host Weight | ~100 kg |
| Motor | 400 W servo motor |
| Control System | PLC-based |
| Display | Touchscreen HMI |
| Test Speed | 1–80 mm/min |
| Actuator Stroke | 250 mm |
| Stroke Accuracy | ±0.25 mm |
| Power Supply | 1-phase AC 220 V |
| Total Power Consumption | ~450 W |
| Data Output | USB interface |
| Sample Dimensions (Foam) | Max. 400 × 400 × 120 mm (L×W×H) |
| Sample Dimensions (Serpentine Spring) | Width ≤70 mm |
| Overall Dimensions | 950 × 780 × 1550 mm (L×W×H) |
