| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

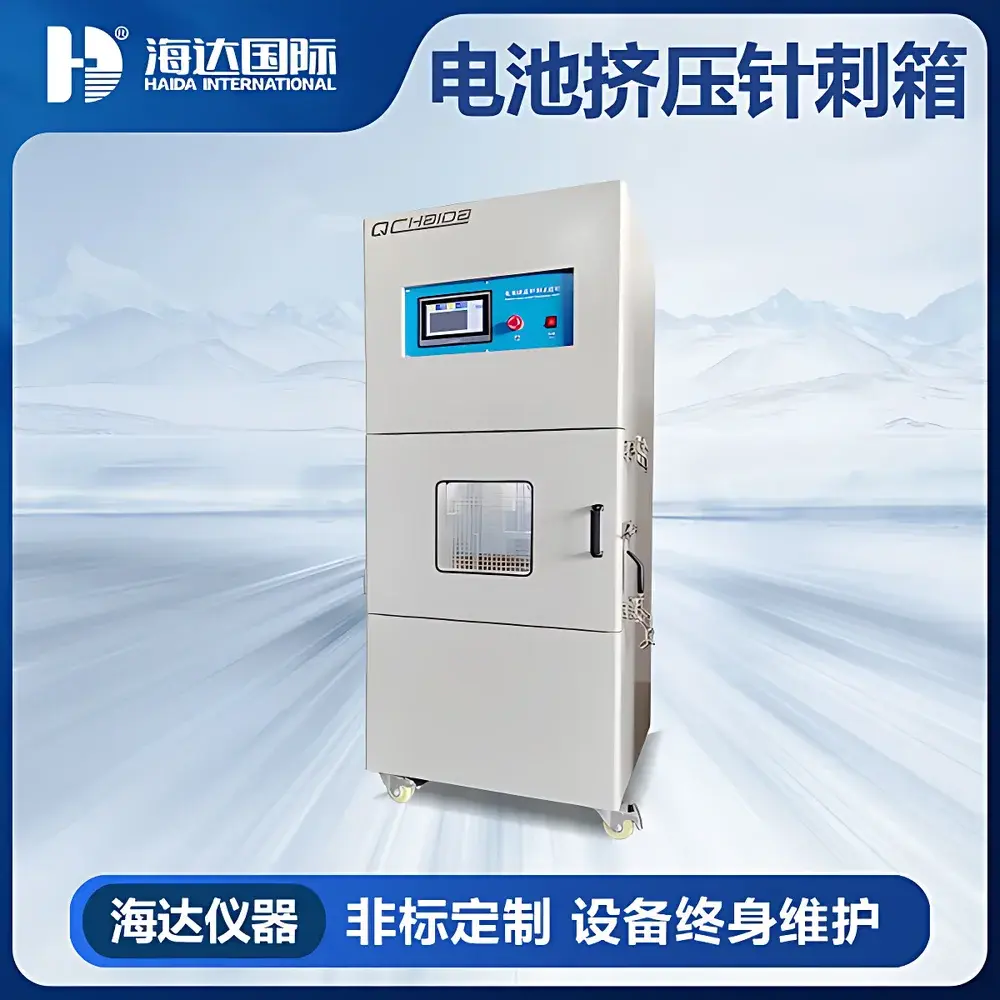

| Model | HD-H212 |
| Quotation | Upon Request |
| Internal Chamber Dimensions (W×D×H) | 520 × 450 × 560 mm |
| External Dimensions (W×D×H) | 800 × 700 × 1730 mm |
| Internal Material | 1.2 mm thick SUS#304 stainless steel |
| External Material | 1.5 mm thick A3 steel with baked enamel finish |
| Observation Window | 250 × 250 mm dual-layer tempered glass with embedded stainless-steel mesh |
| Exhaust Port Diameter | 100 mm (rear-mounted) |
| Pressure Relief Port | 200 × 200 mm (rear-mounted, spring-loaded passive venting) |
| Door Configuration | Single left-hinged door with safety interlock switch and side-mounted explosion-proof chain |
| Test Port | One Ø50 mm port on left side wall |
| Illumination | Integrated LED lighting for real-time visual monitoring |
| Actuation | Hydraulic drive system |
| Force Range | 1–20 kN |
| Force Resolution | 0.1 N |
| Crush Stroke | 250 mm |
| Force Display | 7-inch industrial touchscreen HMI |
| Standard Crush Platen | Flat rigid plate ≥20 cm² contact area |
| Crush Load Target | 13.0 ± 0.2 kN, held for 60 s |
| Nail Specifications | Austenitic stainless steel (e.g., AISI 304), Ø2–8 mm, L = 100 mm (custom lengths available) |
| Penetration Speed | Adjustable 4–40 mm/s |
| Net Weight | 280 kg |
| Power Supply | AC 380 V, 3-phase, 50/60 Hz |
| Rated Power | 2 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

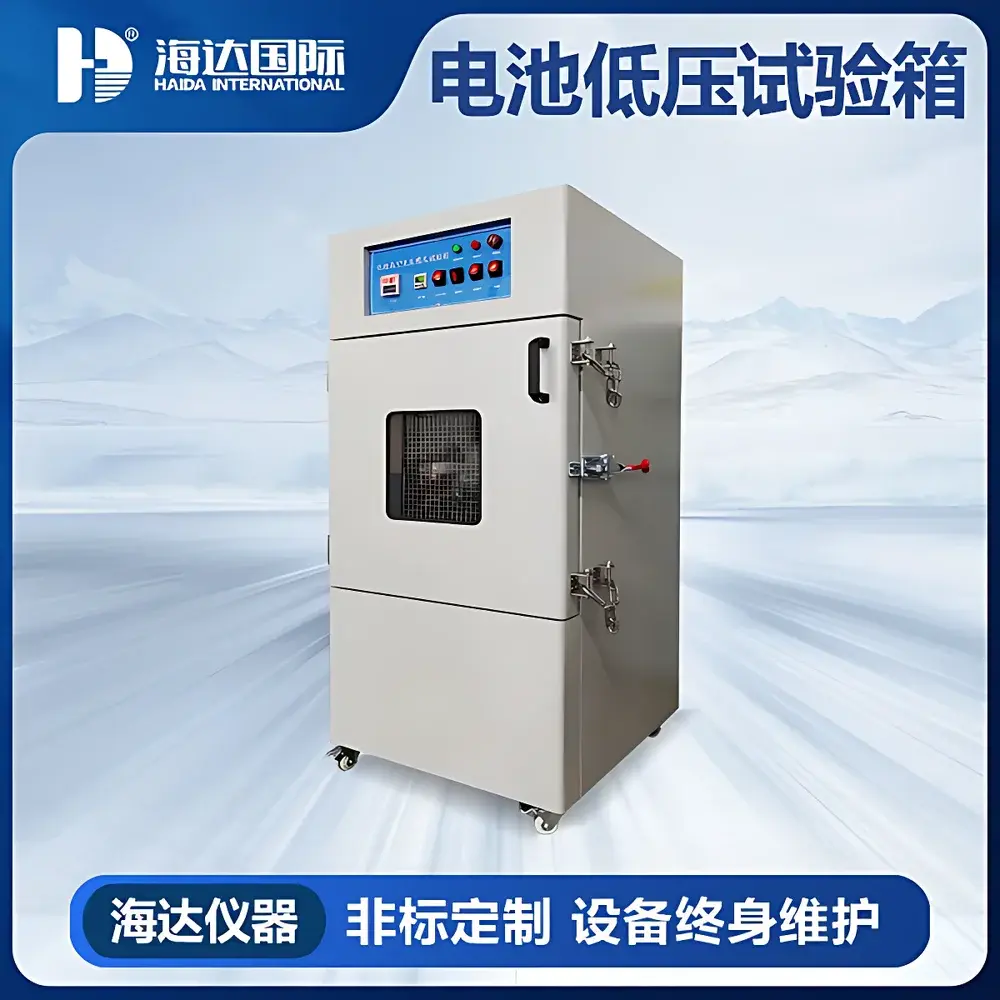

| Model | HD-H204 |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 400 × 400 × 400 mm (W×D×H) |
| External Dimensions | 630 × 620 × 1130 mm (W×D×H) |
| Internal Material | SUS304 Stainless Steel, 3.0 mm Thickness |
| External Material | Powder-Coated Cold-Rolled Steel, 1.5 mm Thickness |
| Observation Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Mobility | Four Swivel Casters with Brakes |
| Pressure Range | 0.5–100 kPa (Typical Test Point: 11.6 kPa) |
| Vacuum Display | Digital SMC Pressure Gauge |
| Control Interface | Push-Button Panel with LED Timer (0–9999 h) |
| Pressure Stability | ≤ ±5% of Setpoint |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Chain |
| Load Trays | 2 Stainless Steel Shelves |
| Net Weight | 120 kg |
| Power Supply | AC 220 V, 1 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Origin | Domestic (China) |

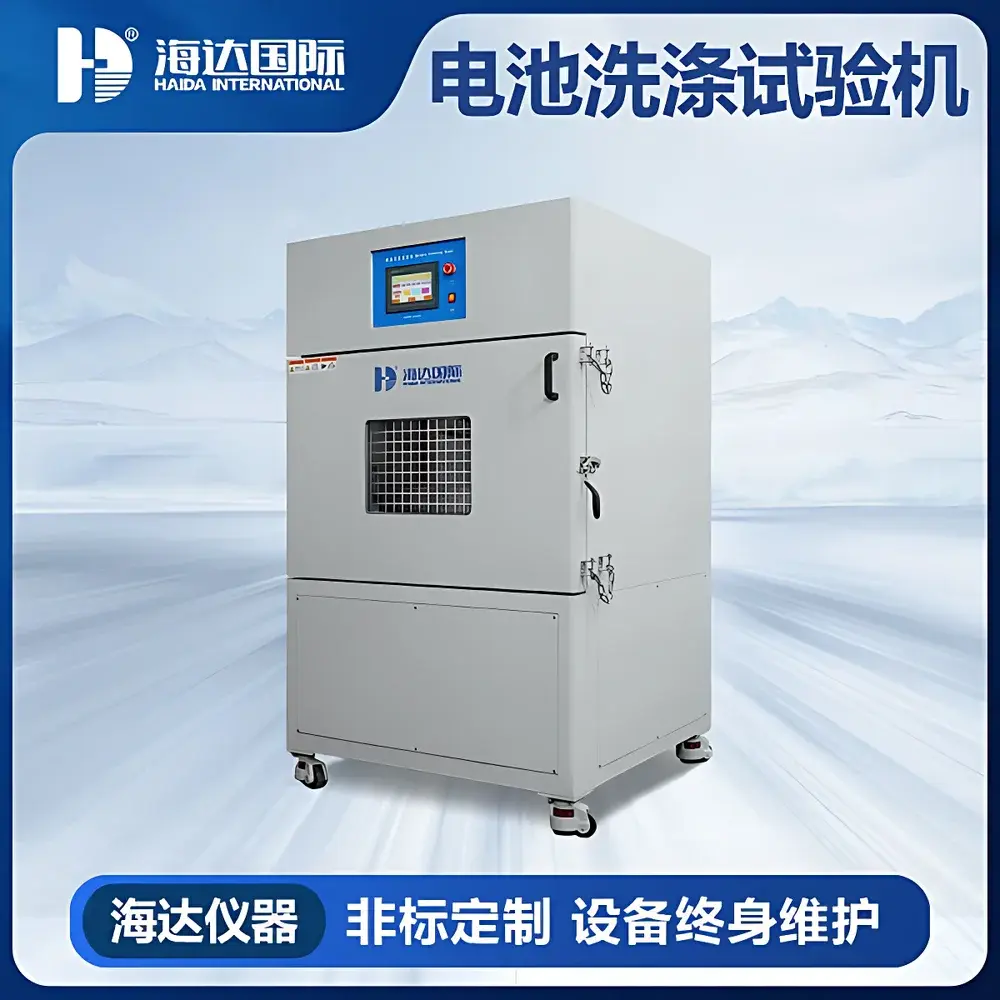

| Model | HD-H211 |
| Quotation | Upon Request |
| Control System | PLC + Touchscreen HMI |
| Drive Mechanism | Servo Motor |
| Solution Temperature Range | Ambient to 80 °C (adjustable) |
| Standard Test Temp | 45 ± 2 °C |
| Test Drum Outer Diameter | Ø500 ± 10 mm |
| Inner Tank Diameter | 650 mm |
| Inner Tank Depth | 600 mm |
| Rotational Speed | 1–999 rpm (adjustable) |
| Inner Chamber Material | SUS#304 Stainless Steel |
| Outer Casing Material | Cold-Rolled Steel with Powder Coating |
| Test Duration Range | 0–9999 h/min/sec (programmable) |
| Temperature Control Method | PID Algorithm |
| Test Solution | pH 11.0 ± 0.1 (e.g., 0.004 wt% NaOH), heated to 45 ± 2 °C |
| Sample Immersion Depth | Battery center positioned at 300 ± 10 mm below liquid surface |
| Inner Chamber Dimensions (W×D×H) | 900 × 900 × 645 mm |
| Overall Dimensions (W×D×H) | 1200 × 1150 × 1880 mm |
| Net Weight | 230 kg |
| Power Supply | AC 220 V, 50/60 Hz |
| Rated Power | 6 kW |
| Operating Environment | Ambient Temp. 0–35 °C |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |

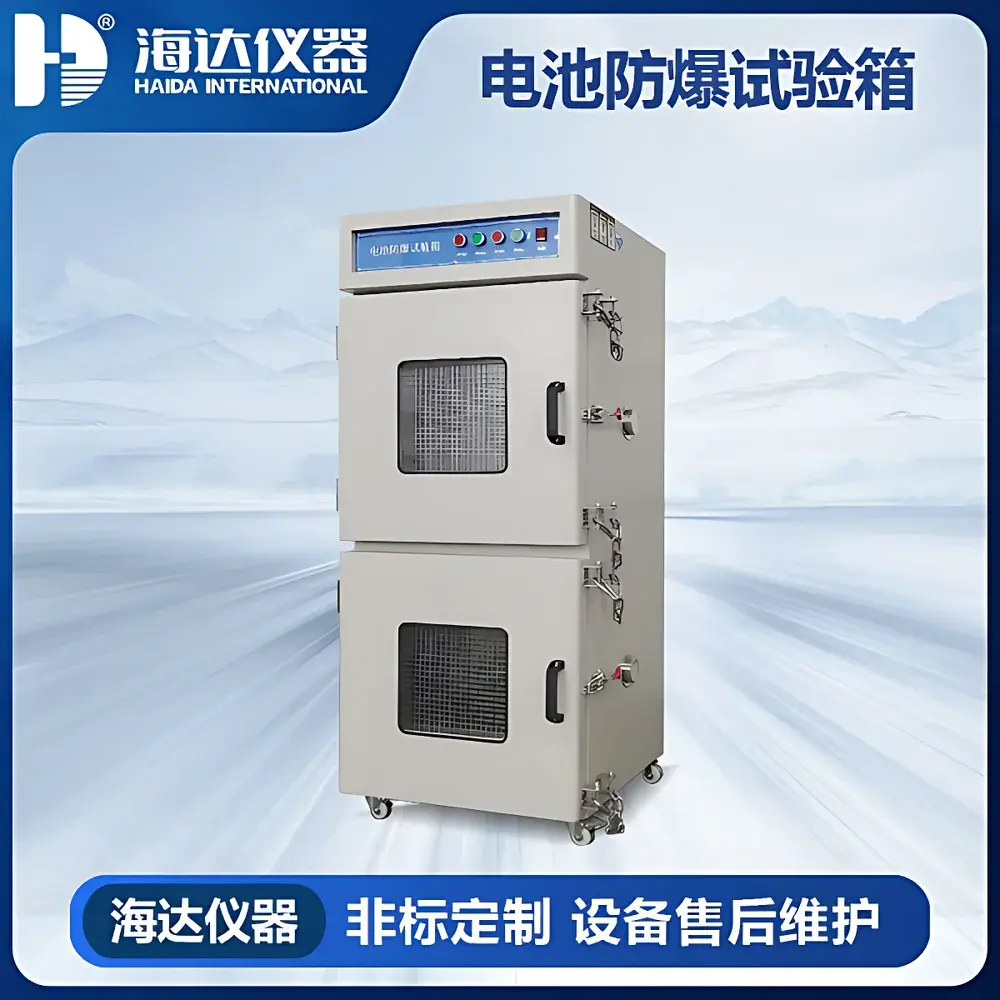

| Model | HD-H203 Battery Explosion-Proof Test Chamber |
| Quotation | Upon Request |
| Internal Dimensions | 500 × 500 × 500 mm (W × D × H) |
| External Dimensions | 680 × 750 × 1375 mm (W × D × H) |
| Inner Chamber Material | 1.2 mm thick SUS304 stainless steel with PTFE lining |
| Outer Enclosure Material | 1.5 mm cold-rolled steel with baked enamel finish |
| Observation Window | 250 × 250 mm dual-layer tempered glass with embedded stainless-steel mesh |
| Exhaust Port | Ø100 mm, rear-mounted |
| Pressure Relief Opening | 200 × 200 mm, rear-mounted, spring-actuated passive venting mechanism |
| Door Configuration | Single left-hinged door with explosion-resistant safety chain |
| Test Port | One Ø50 mm feedthrough on left side for thermocouples, voltage/current probes, and data cables |
| Mobility | Four swivel casters with locking brakes |
| Illumination | Integrated LED interior lighting |
| Control Interface | Push-button panel |
| Power Supply | AC 220 V, 200 W |
| Net Weight | 65 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

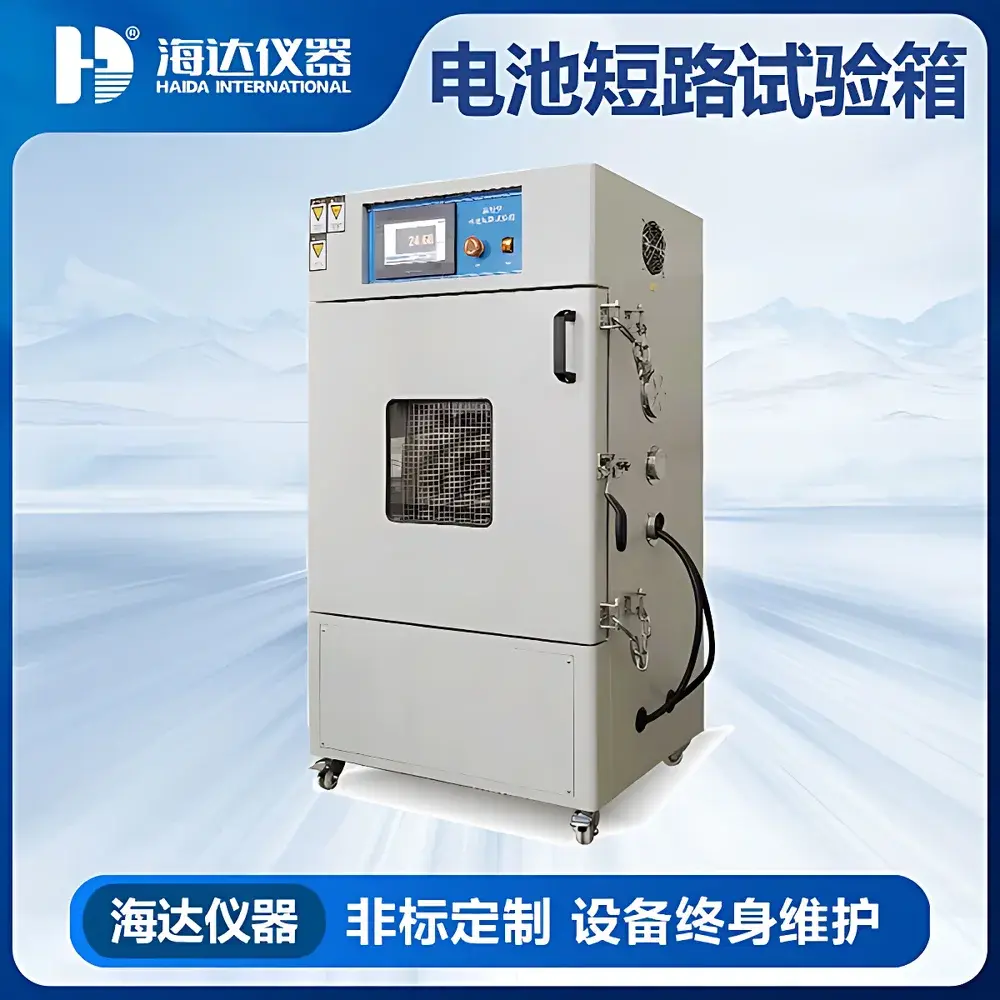

| Model | HAIDA HD-H201 Temperature-Controlled Battery Short-Circuit Test Chamber |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 400 × 400 × 400 mm (W × D × H) |
| Overall Dimensions | 650 × 550 × 1200 mm (W × D × H) |
| Temperature Range | Ambient to 200 °C |
| Temperature Display Resolution | 0.1 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | (5 ± 1) °C/min |
| Inner Chamber Material | 1.2 mm SUS304 Stainless Steel |
| Outer Cabinet Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Chain |
| Test Ports | Two Ø50 mm Penetration Ports on Right Side |
| Insulation Material | High-Efficiency Compressed Glass Wool |
| Safety Protections | Fuseless Circuit Breaker, Over-Temperature Cut-Off Switch, Thermal Fuse |
| Air Circulation | Convection-Based Forced-Air System |
| Control System | PLC + Touchscreen HMI |
| Exhaust Duct | Ø100 mm at Rear Panel |
| Temperature Sensing Range | Ambient to 1000 °C |
| Temp. Channel Count | 1 |
| Temp. Measurement Accuracy | ±0.5 °C |
| Voltage Input Range | 0–100 V |
| Voltage Channel Count | 1 |
| Voltage Accuracy | ±0.5% FS |
| Current Capacity | Up to 1000 A |
| Current Channel Count | 1 |
| Current Accuracy | ±0.5% FS |
| Short-Circuit Loop Resistance | 80 ± 20 mΩ |
| Mobility | Four Swivel Casters with Locks |
| Net Weight | 90 kg |
| Power Supply | AC 220 V |
| Rated Power | 2.5 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

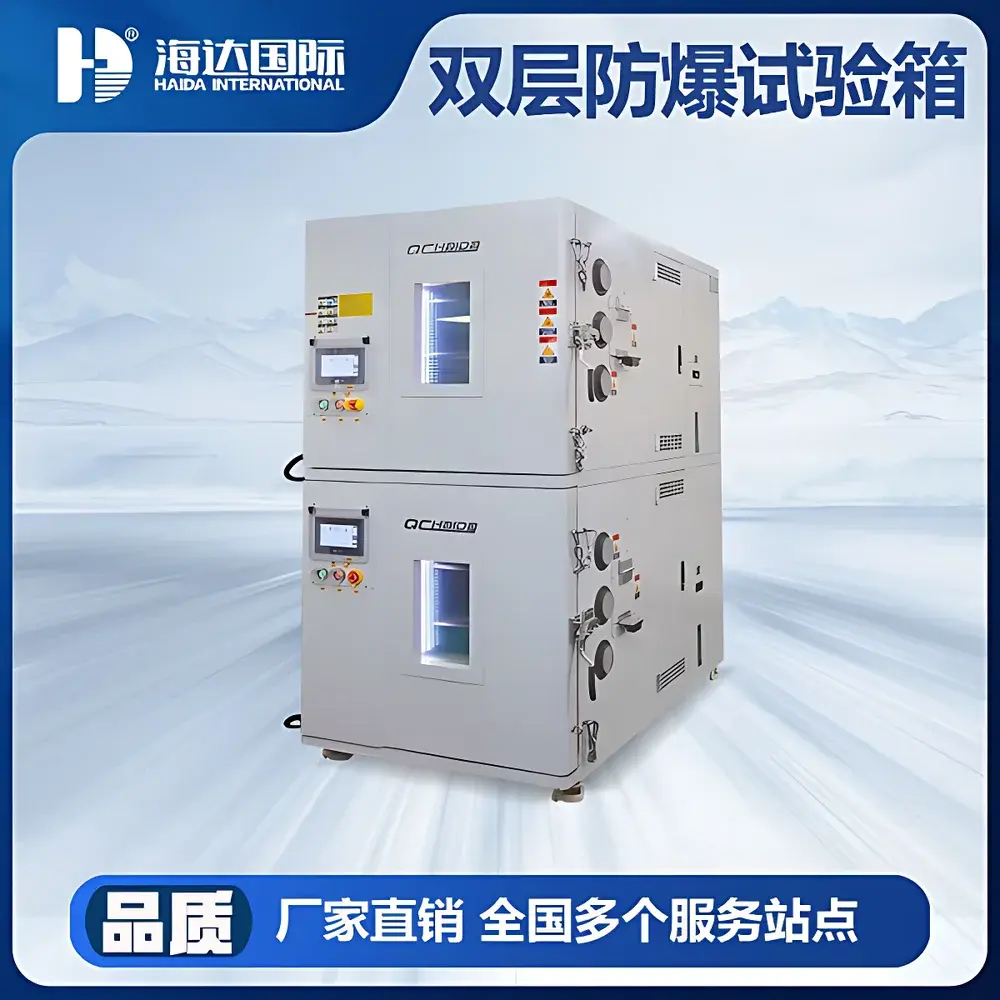

| Model | HD-H203-1 Dual-Layer Explosion-Proof Battery Test Chamber |
| Pricing | Upon Request |
| Internal Chamber Dimensions | 500 × 500 × 500 mm (W × D × H) |
| External Dimensions | 680 × 750 × 1375 mm (W × D × H) |
| Inner Wall Material | 1.2 mm SUS304 Stainless Steel with PTFE Lining |
| Outer Casing | 1.5 mm Powder-Coated Cold-Rolled Steel |
| Observation Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Exhaust Port | Ø100 mm, Rear-Mounted |
| Pressure Relief Opening | 200 × 200 mm, Rear-Mounted, Spring-Loaded Passive Release Mechanism |
| Door Configuration | Single Left-Swing Door with Explosion-Resistant Safety Chain |
| Test Port | One Ø50 mm Penetration Port on Left Side |
| Mobility | Four Swivel Casters with Locks |
| Illumination | Integrated LED Interior Light |
| Control Interface | Push-Button Panel |
| Power Input | AC 220 V, 200 W |
| Net Weight | 65 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

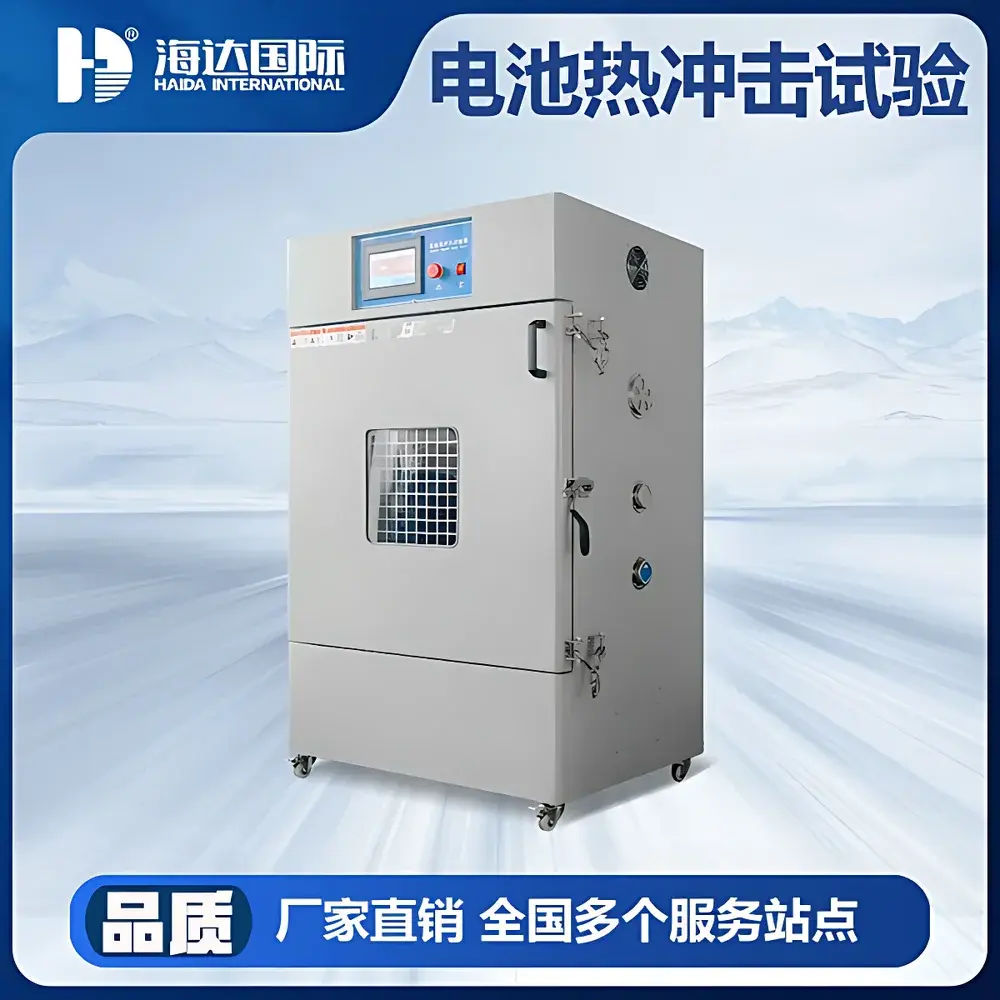

| Model | HD-H210 |
| Temperature Range | RT to 200 °C |
| Internal Dimensions (W×D×H) | 400 × 400 × 400 mm |
| External Dimensions (W×D×H) | 860 × 700 × 1310 mm |
| Temperature Display Resolution | 0.1 °C |
| Temperature Stability | ±1.0 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | (5 ± 1) °C/min |
| Soak Time Range | 0–9999 h |
| Control Interface | Keypad-based Controller |
| Inner Chamber Material | 1.2 mm SUS304 Stainless Steel |
| Outer Cabinet Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Door Configuration | Single Left-Swing Door with Explosion-Proof Chain |
| Test Ports | Two Ø50 mm Penetration Ports (Right Side) |
| Insulation | High-Efficiency Compressed Glass Wool |
| Safety Protections | Non-fuse Breaker, Over-Temperature Cut-off Switch, Thermal Fuse, Audible Alarm on Over-Temp Event |
| Air Circulation | Convection-Based Forced-Air System |
| Net Weight | 75 kg |
| Power Supply | AC 220 V |
| Rated Power | 2 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

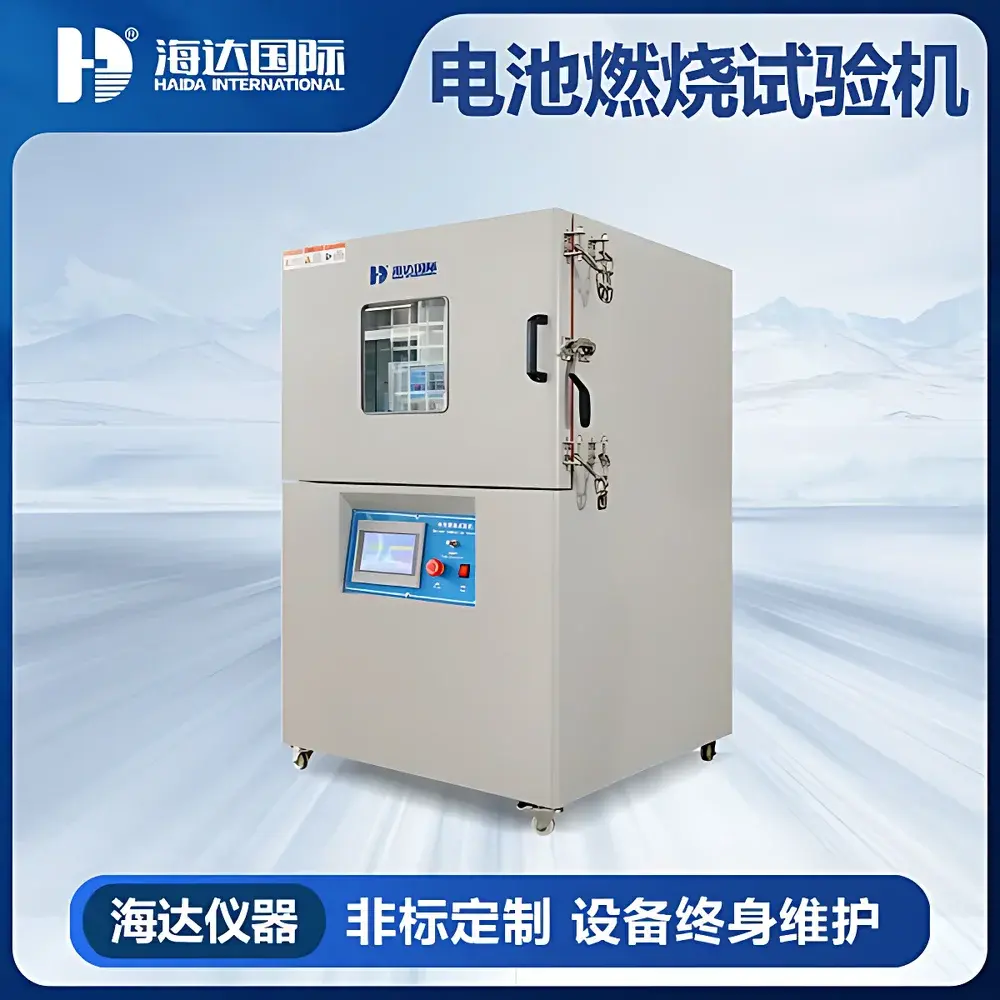

| Model | HAIDA HD-H209 Battery Combustion Test Chamber |
| Quotation | Available upon Request |
| Internal Chamber Dimensions | 750 × 750 × 500 mm (L×W×H) |
| External Dimensions (incl. door lock) | 1000 × 950 × 1310 mm (L×W×H) |
| Internal Material | SUS2304 Stainless Steel, 1.2 mm thickness |
| External Material | 1.5 mm Cold-Rolled Steel with Powder Coating |
| Viewing Window | 250 × 250 mm, Dual-Layer Tempered Glass with Stainless Steel Mesh |
| Exhaust Port Diameter | 100 mm (rear-mounted) |
| Pressure Relief Opening | 200 × 200 mm (rear-mounted, spring-actuated) |
| Door Configuration | Single left-swing door with safety interlock switch and explosion-proof chain |
| Control Interface | Push-button panel |
| Bunsen Burner Tip ID | 10 mm, length ≈ 100 mm |
| Combustion Duration Setting Range | 0–99 h 99 min |
| Test Aperture Diameter | 102 ± 2 mm |
| Test Wire Mesh | Woven stainless steel, 0.43 mm wire diameter, 20 mesh/inch |
| Flame Height Above Mesh | 38 mm |
| Octagonal Aluminum Enclosure | Opposite sides spaced 610 mm (24″), height 305 mm (12″), modular hinged design |
| Fuel Supply | Methane or LPG (user-supplied) |
| Net Weight | 160 kg |
| Power Supply | 1∮ AC 220 V |
| Rated Power | 200 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

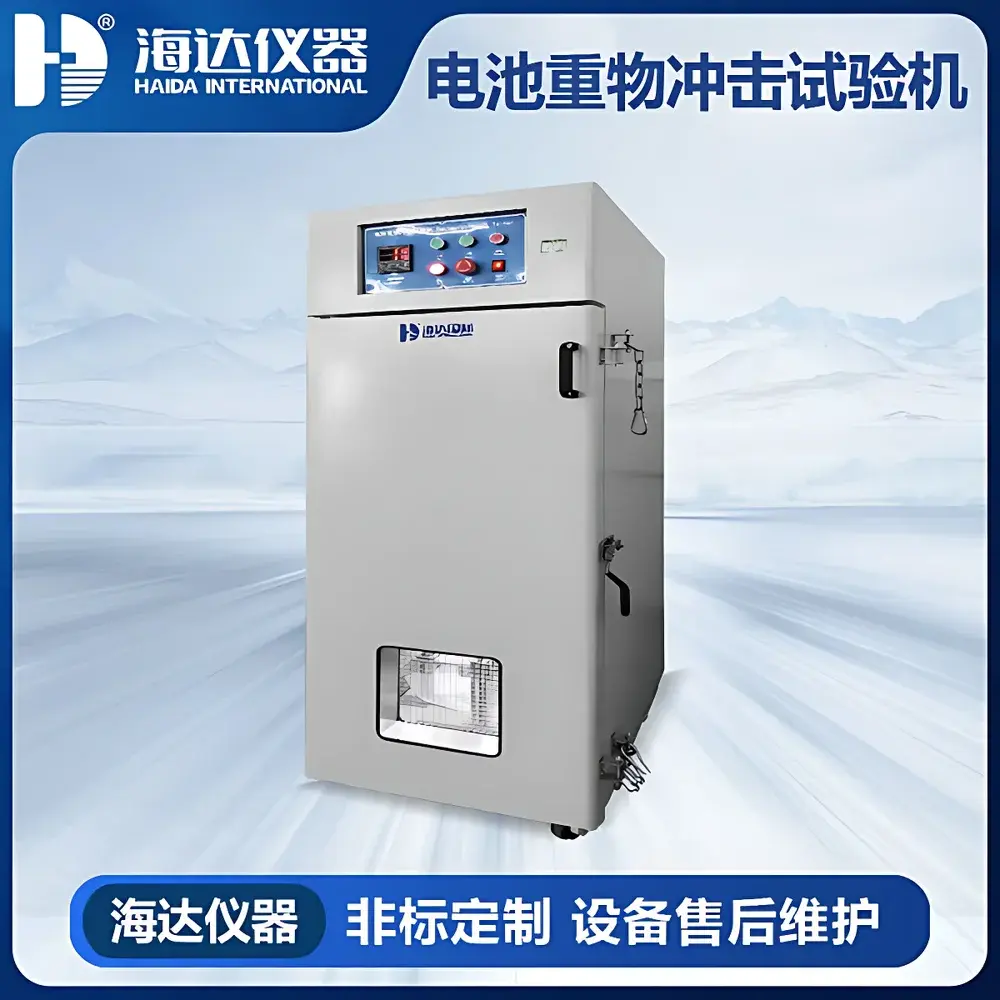

| Model | HAIDA HD-H206 Battery Crush & Impact Tester |
| Quotation | Upon Request |
| Internal Chamber Dimensions | 490 × 520 × 1430 mm (W×D×H) |
| External Dimensions | 700 × 1000 × 1700 mm (W×D×H) |
| Chamber Material | 1.2 mm SUS304 stainless steel with PTFE lining |
| Exterior Enclosure | 1.5 mm cold-rolled steel with powder coating |
| Viewing Window | 250 × 250 mm double-layer tempered glass with stainless steel mesh overlay |
| Exhaust Port | Ø100 mm, rear-mounted |
| Pressure Relief Port | 200 × 200 mm, rear-mounted, spring-actuated |
| Door Configuration | Left-hinged single door with safety interlock switch and explosion-proof chain restraint |
| Drop Mass | 9.1 ± 0.1 kg or 10 kg |
| Impact Height Range | 0–1000 mm (standard test height: 610 ± 25 mm) |
| Height Display | LED digital readout, resolution ±5 mm |
| Impact Rod | Ø15.8 ± 0.2 mm (5/8″) hardened 45# steel rod, horizontally mounted across cell center |
| Maximum Test Specimen Size | 200 × 200 × 200 mm |
| Impact Surface | 45# steel, 30 mm thick, baked enamel finish |
| Illumination | Integrated LED lighting for real-time visual monitoring |
| Net Weight | 270 kg |
| Power Supply | AC 220 V, 600 W, 50/60 Hz |
