| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-B604-S |
| Instrument Type | Electromechanical Tensile Tester |
| Maximum Test Load Options | 2 kN / 5 kN / 10 kN / 20 kN Load Cells |
| Force Measurement Range | Full Scale (FS) matching selected load cell |
| Force Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 1000 mm (excluding grips) |
| Speed Range | 0.1–500 mm/min |
| Load Resolution | 1/250,000 FS |
| Effective Test Width | 400 mm |
| Dimensions (L×W×H) | ≈ 880 × 505 × 1500 mm |
| Weight | ≈ 185 kg |
| Power Supply | 1Ø AC 220 V, ~500 W |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 6892-1, EN ISO 15112 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Simulated Automotive Transportation Vibration Tester |
| Rated Thrust | 100 kg |
| Rated Frequency Range | 60–300 rpm |
| Max Test Load | 100 kg |
| Table Dimensions | 1200 mm × 1000 mm (L×W) |
| Amplitude | 25.4 mm (1 inch) |
| Drive Motor | 550 W Three-Phase AC Motor |
| Power Supply | 1∮ AC / 220 V |
| Total Power Consumption | ~600 W |
| Net Weight | ~200 kg |
| Compliance Standards | EN 71, ANSI, UL, ASTM D999, ISTA 3A/3E/3H, ISO 13355, GB/T 4857.23 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

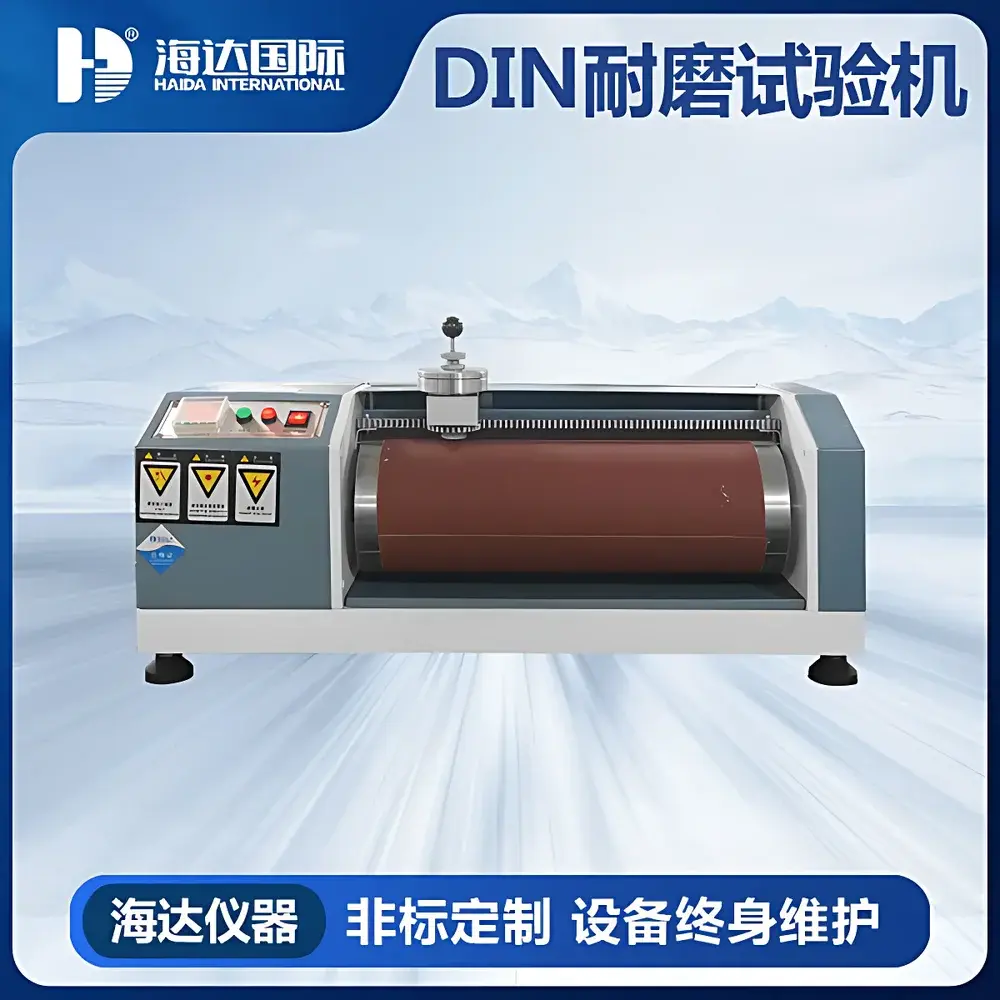

| Model | HAIDA DIN Abrasion Tester |
| Pricing | Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HAIDA HD-F736-A Office Chair Drop Impact Tester |
| Instrument Type | Drop Weight Impact Tester |
| Impact Energies | 57 kg, 102 kg, 136 kg |
| Impact Frequency | 10–30 cycles/min |
| Adjustable Pendulum Moment Arm | 200–600 mm |
| Load Cell Range | 300 mm |
| Maximum Lift Heights | 30 mm, 36 mm, 152 mm |
| Control System | PLC-based |
| Display | Touchscreen HMI |
| Cylinder Stroke | 300 mm |
| Seat Height Adjustment Range | 200–600 mm |
| Test Count Setting Range | 1–999,999 cycles |
| Approx. Weight | 500 kg |
| Power Supply | 1∮ AC 220 V |
| Rated Power | ~200 W |
| Data Output | USB interface |
| Max. Specimen Dimensions | 1000 mm × 1000 mm (L×W) |
| Overall Dimensions | 1200 mm × 1450 mm × 2600 mm (L×W×H) |
| Compliance Standards | BIFMA X5.1-2017, QB/T 2280-2016 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-C529 Coefficient of Friction Tester |
| Instrument Type | Reciprocating Tribological Tester |
| Maximum Friction Force | 0.001–5 N (expandable) |
| Operating Temperature | Ambient (20 ± 10 °C) |
| Control Interface | Touchscreen |
| Test Stroke | 1–200 mm |
| Test Speed | 100 ± 10 mm/min (adjustable) |
| Slider Mass | 200 ± 2 g (customizable) |
| Upper Specimen Size | 63 mm × 63 mm (L × W) |
| Lower Specimen Size | 80 mm × 200 mm (L × W) |
| Force Measurement Accuracy | ±0.02 N |
| Force Range | 0.001–5 N |
| Dimensions (L×W×H) | ≈490 × 320 × 210 mm |
| Weight | ≈18 kg |
| Power Supply | 1Φ AC 220 V |
| Power Consumption | ≈350 W |
| Relative Humidity Limit | <85% RH |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HD-B609C-S |
| Instrument Type | Electronic Tensile Tester |
| Maximum Test Load | 5 kgf (49.05 N) Load Cell |
| Force Measurement Range | 1 g to 5 kgf (0.0098 N to 49.05 N) |
| Force Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 900 mm (excluding fixtures) |
| Speed Range | 0.1–500 mm/min (adjustable) |
| Drive System | Panasonic AC servo motor (400 W) + servo driver + Mutoh planetary gear reducer |
| Transmission | Precision ground ball screw |
| Control Interface | PC-based Windows software (no touchscreen) |
| Compliance Standards | GB/T 16491, GB/T 4851, GB/T 2792, GB/T 8808, GB/T 13022, JIS K 6854, DIN 53357, ISO 8510, ISO 29862 |
| Dimensions (L×W×H) | 515 × 520 × 1250 mm |
| Weight | ~68 kg |
| Power Supply | 1Ø, AC 220 V / 50 Hz, 500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-K918-1 Small Object Drop Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-A520 Single-Arm Drop Tester |
| Quotation | Upon Request |
| Drop Height Range | 300–1500 mm |
| Maximum Specimen Weight | 65 kg |
| Maximum Specimen Dimensions | 800 mm × 800 mm × 800 mm (L×W×H) |
| Drop Area Dimensions | ≈1700 mm × 1200 mm × 2300 mm (L×W×H) |
| Reset Motor Power | 90 W |
| Drive Motor Power | 300 W |
| Control Method | Relay-Based Control |
| Display | Digital Height Indicator |
| Test Modes | Face, Edge, and Corner Drop |
| Drop Method | Free-Fall |
| Lifting Speed | ≈1200 mm/min |
| Height Accuracy | < ±5 mm |
| Leveling Tolerance of Impact Surface | < 2° |
| Drop Clearance | 900 mm × 1200 mm (L×W) |
| Arm Dimensions | 160 mm × 180 mm × 8 mm (L×W×H) |
| Impact Panel Size | 1700 mm × 1200 mm (L×W) |
| Overall Dimensions | ≈1700 mm × 1200 mm × 2300 mm (L×W×H) |
| Net Weight | ≈450 kg |
| Power Supply | 1-Phase AC 220 V, 500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-W812 Fabric Tear Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-F733-1 Office Chair Base Vertical Load Tester |
| Max Test Force | 1–30 kN |
| Speed Range | 0.1–120 mm/min (adjustable) |
| Host Weight | ~300 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

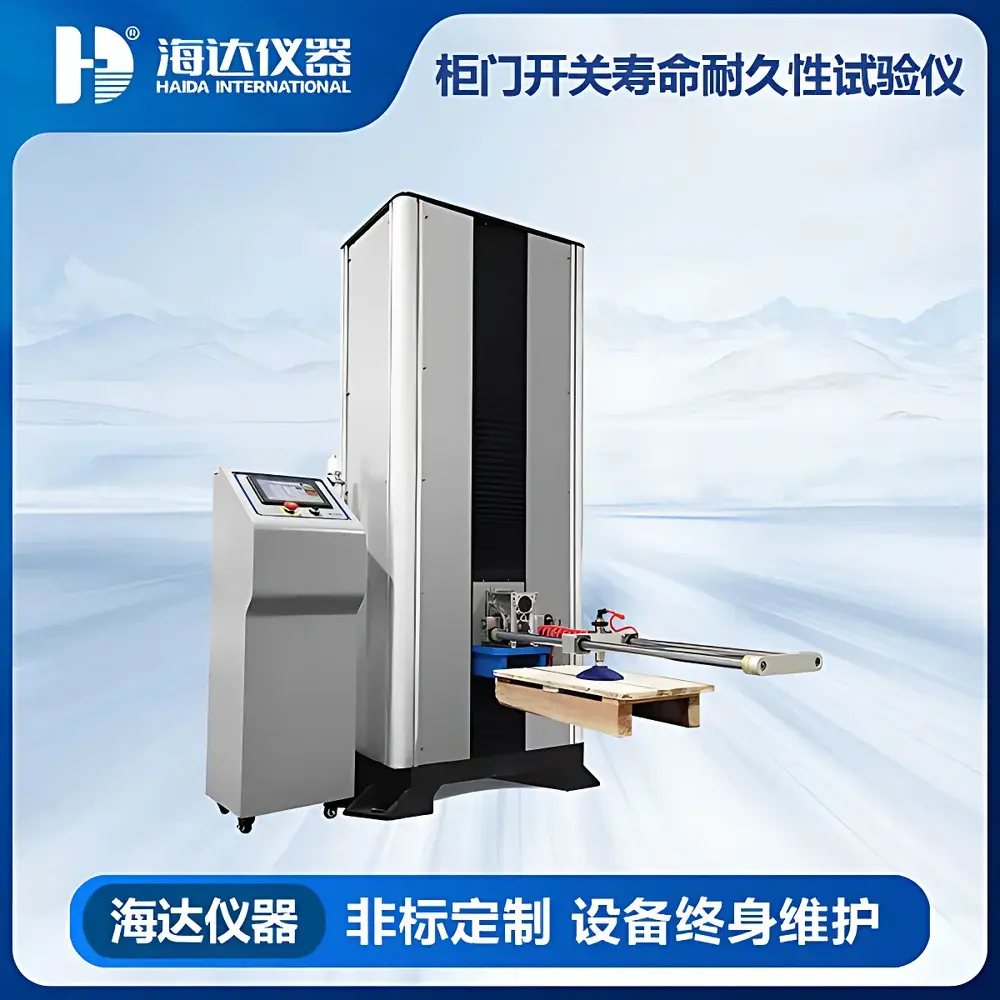

| Model | HAIDA HD-K903 Cabinet Door Latch Durability Tester |
| Pricing | Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-M013 Blade Edge Torque Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-K920 Push Button Switch Life Cycle Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-B612-S Computer-Controlled Universal Testing Machine |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Max Test Load | 100 kN |
| Force Measurement Range | 2–100% FS |
| Force Accuracy Class | Class 1 |
| Test Stroke | 650 mm |
| Displacement Resolution | 0.001 mm |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-T008 |
| Wavelengths | 254 nm & 365 nm (dual-band UV) + incandescent white light |
| UV Filter Size | 200 × 50 mm |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Weight | 3.7 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-B602-S Desktop Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Max Test Load | 2 kN |
| Force Measurement Range | 0.1 N to 2 kN |
| Force Accuracy | ≤ ±0.5% FS |
| Test Stroke | 900 mm (excluding fixtures) |
| Load Resolution | 1/250,000 |
| Speed Range | 1–300 mm/min |
| Effective Depth | 60 mm (from center of coupling to dust cover) |
| Dimensions (L×W×H) | ≈ 450 × 450 × 1330 mm |
| Weight | ≈ 60 kg |
| Power Supply | 1∮ AC 220 V |
| Power Consumption | ≈ 500 W |
| Control Mode | Dual-mode (Windows PC + 7-inch TFT touchscreen) |
| Data Output | USB, Windows-compatible export (Excel/PDF), thermal printer with real-time curve plotting |
| Units Supported | gf, kgf, N, kN, lbf, tonf |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 178, ISO 1133 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

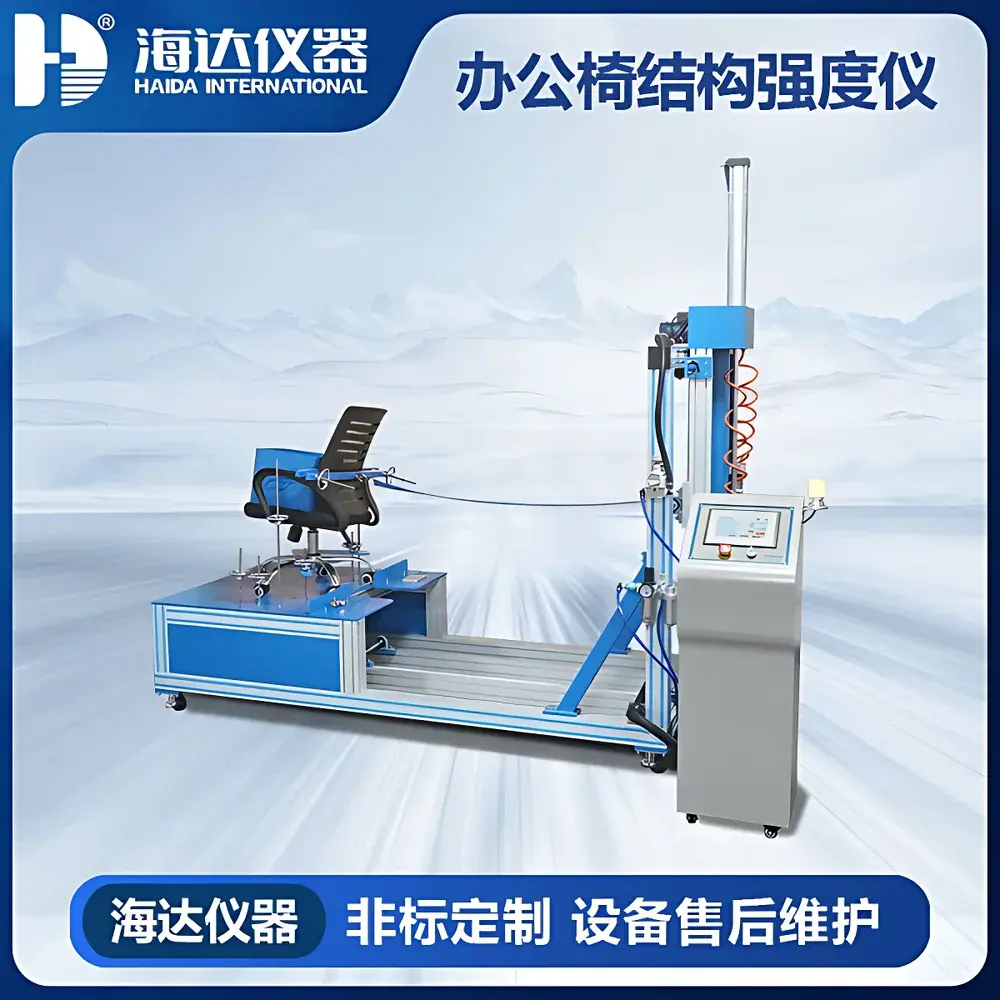

| Model | HAIDA HD-F743 Chair Structural Strength Tester |
| Load Capacity | 2 kN (durability), 5 kN (strength) |
| Force Range | 445 N–1.9 kN |
| Test Speed | 5–20 cycles/min (fatigue), 450 mm/min (static strength) |
| Load Application | Pneumatic cylinder (fatigue), servo motor (static strength) |
| Compliance Standards | QB/T 2280–2016, ANSI/BIFMA X5.1–2017 |
| Fixture Set | Seat base clamp, vertical armrest clamp, backrest pull clamp, foot block, webbing block |
| Weight | ~250 kg |
| Dimensions (L×W×H) | 2450 × 1000 × 2250 mm |
| Power Supply | 1∮ AC 220 V, ~200 W |
| Air Supply | ≥0.6 MPa |
| Control System | PLC + 7-inch HMI touchscreen |
| Data Retention | Power-loss memory with auto-resume |
| Safety Features | Mechanical stroke limiters, electrical leakage protection, emergency stop, overload cutoff |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-F732 Office Chair Caster Abrasion Tester |
| Instrument Type | Reciprocating Tribological Tester |
| Maximum Applied Load | 122 kg |
| Operating Temperature | Ambient (23 ± 5 °C) |
| Control System | PLC-based |
| Display Interface | 7-inch TFT Touchscreen |
| Adjustable Seat Height Range | 260–400 mm |
| Test Frequency | 10 ± 2 cycles/min |
| Programmable Cycle Count | 1–999,999 cycles |
| BIFMA Load Capacity | 122 kg (including chair structural components) |
| QB/T Load Capacity | 113 kg (including chair structural components) |
| Cylinder Stroke | 800 mm (standard stroke: 762 ± 50 mm) |
| Max Base Diameter | ≤ 780 mm |
| Dimensions (L×W×H) | 2950 × 1050 × 1600 mm |
| Net Weight | ~500 kg (including standard weights) |
| Power Supply | 1∮ AC 220 V, 50/60 Hz |
| Rated Power | ~100 W |
| Data Output | USB 2.0 interface |
| Compliance Standards | BIFMA X5.1-2017 (Sections 16.1–16.2.5), QB/T 2280–2016 (Section 6.6.6) |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HD-B615-S |
| Instrument Type | Electronic Tensile Tester |
| Maximum Test Load (Standard) | 50 kN |
| Optional Load Cells | 20 kN / 30 kN |
| Force Measurement Range | 100 N – 50 kN (FS) |
| Force Accuracy | ≤ ±0.5% |
| Test Stroke | 1200 mm (excluding fixtures) |
| Load Resolution | 1/250,000 |
| Crosshead Speed Range | 0.1 – 500 mm/min |
| Effective Width | 450 mm |
| Dimensions (L×W×H) | ≈846 × 600 × 2100 mm |
| Weight | ≈320 kg |
| Power Supply | 1∮ AC 220 V |
| Total Power Consumption | ≈1 kW |
| Drive System | 750 W Servo Motor + Servo Driver |
| Transmission | Precision Ball Screw |
| Control Interface | Windows-based PC Software |
| Data Output | USB, Windows-native export, Office-compatible formats (Excel, PDF) |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1–2008, GB/T 228.1–2010, GB/T 1040–2006, ASTM D4833–2007, ISO 527, ISO 6892-1, ISO 178 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

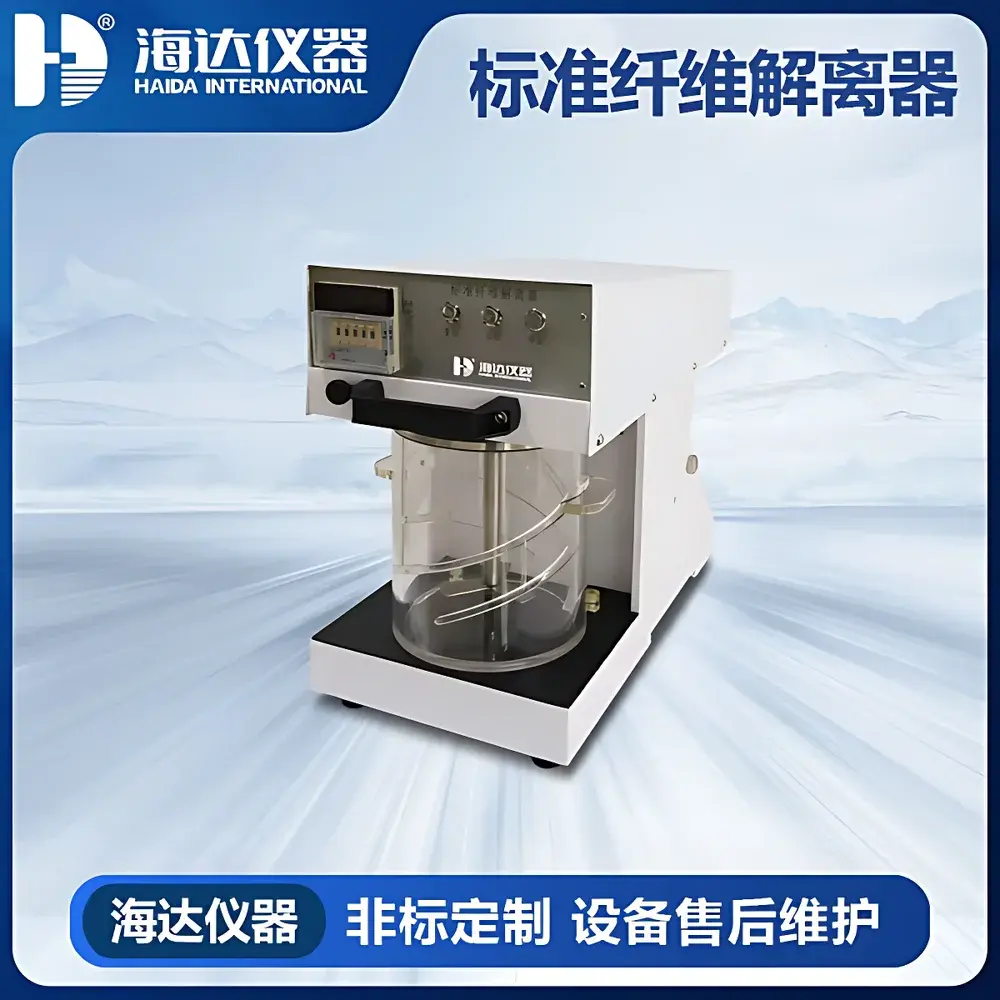

| Model | HAIDA HD-P003 Standard Fiber Disintegrator |
| Pricing | Upon Request |
| Vessel Dimensions | Ø152 × 191 mm |
| Internal Helical Rib Geometry | 6.5 × 6.5 mm, 4-fold symmetric |
| Counting Mechanism | Digital preset counter with auto-stop function |
| Blade Rotational Frequency | 48.3 ± 1.66 Hz (2950+ rpm) |
| Overall Dimensions | 520 × 270 × 360 mm |
| Stainless Steel Vessel Capacity | ≥2 L |
| Power Supply | 220 V, 50 Hz, 400 W |
| Net Weight | ~45 kg |
| Operating Environment | 10–40 °C, ≤75% RH |
| Impeller | Φ90 mm, 3-blade stainless steel |
| Packaging Dimensions | 32 × 59 × 41 cm |
| Compliance | GB/T 24327–2009, ISO 5263, QB/T 1462–1992 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

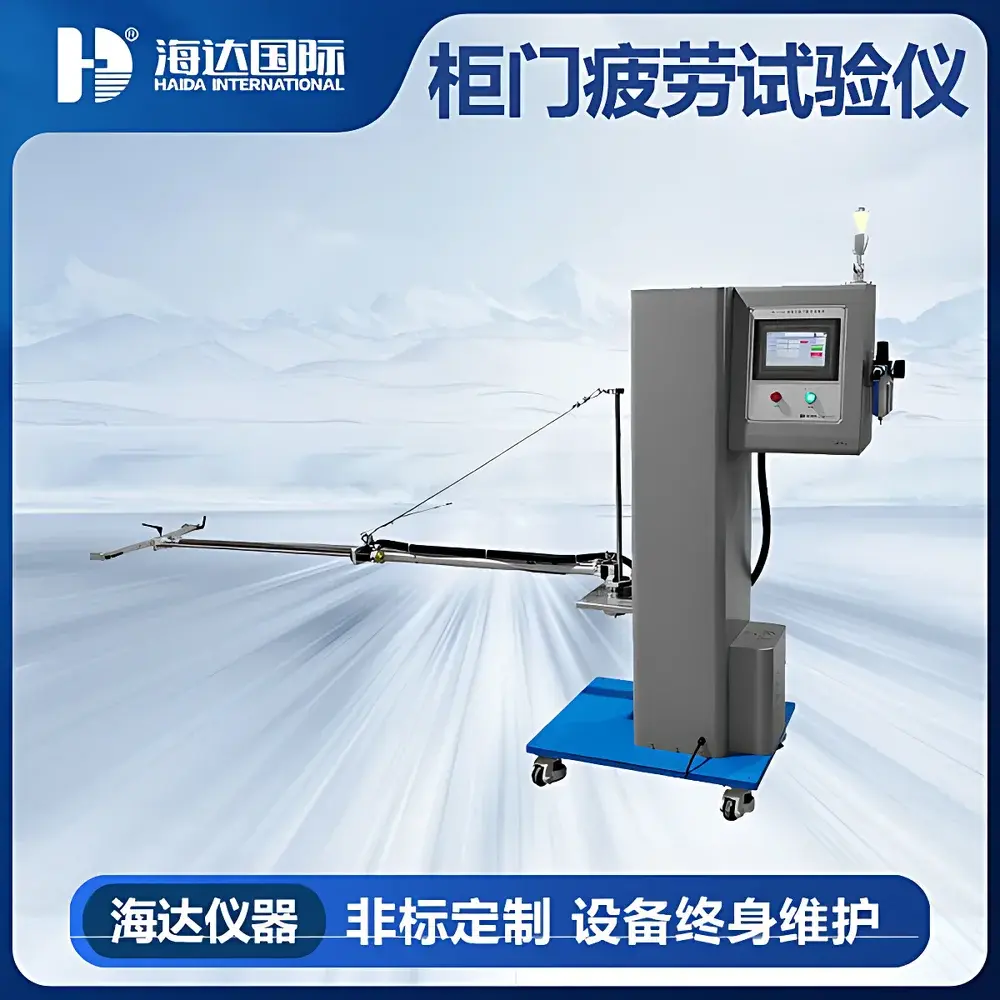

| Model | HAIDA HD-F749 Drawer and Cabinet Door Fatigue Tester (Pneumatic Cylinder) |
| Actuation | Pneumatic cylinder with servo-assisted vertical positioning |
| Motor | 90 W induction motor |
| Control System | PLC-based embedded controller |
| Display | 7-inch color touchscreen HMI |
| Cylinder Stroke | 800 mm |
| Cycle Frequency | Adjustable 5–20 cycles/min |
| Vertical Travel Range | 150–1000 mm (motorized height adjustment) |
| Drawer Extension Limit | 1/3 of internal rail length or ≥100 mm residual insertion |
| Cabinet Door Opening Angle | 0–130° (adjustable via angular stop mechanism) |
| Max Test Cycles | 1–999,999 (programmable) |
| Power Supply | 1∮ AC 220 V, ~120 W |
| Weight | ~200 kg |
| Overall Dimensions (L×W×H) | ~2000 × 600 × 1600 mm |
| Data Interface | USB 2.0 for test log export |
| Compliance | GB/T 10357.5-2013 (Furniture — Strength and Durability Tests — Part 5: Drawers and Sliding Doors) |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-D021 Air Permeability Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

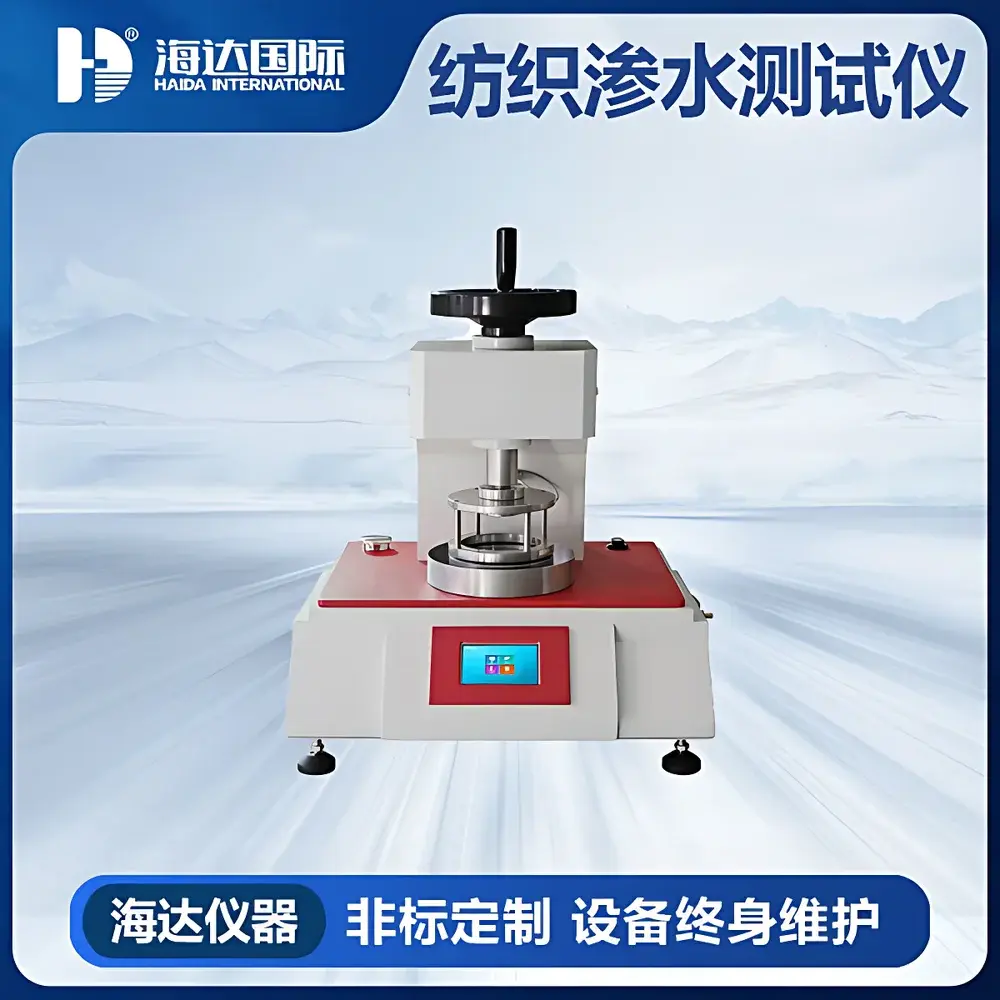

| Model | HAIDA HD-W825 Fabric Hydrostatic Pressure Tester |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

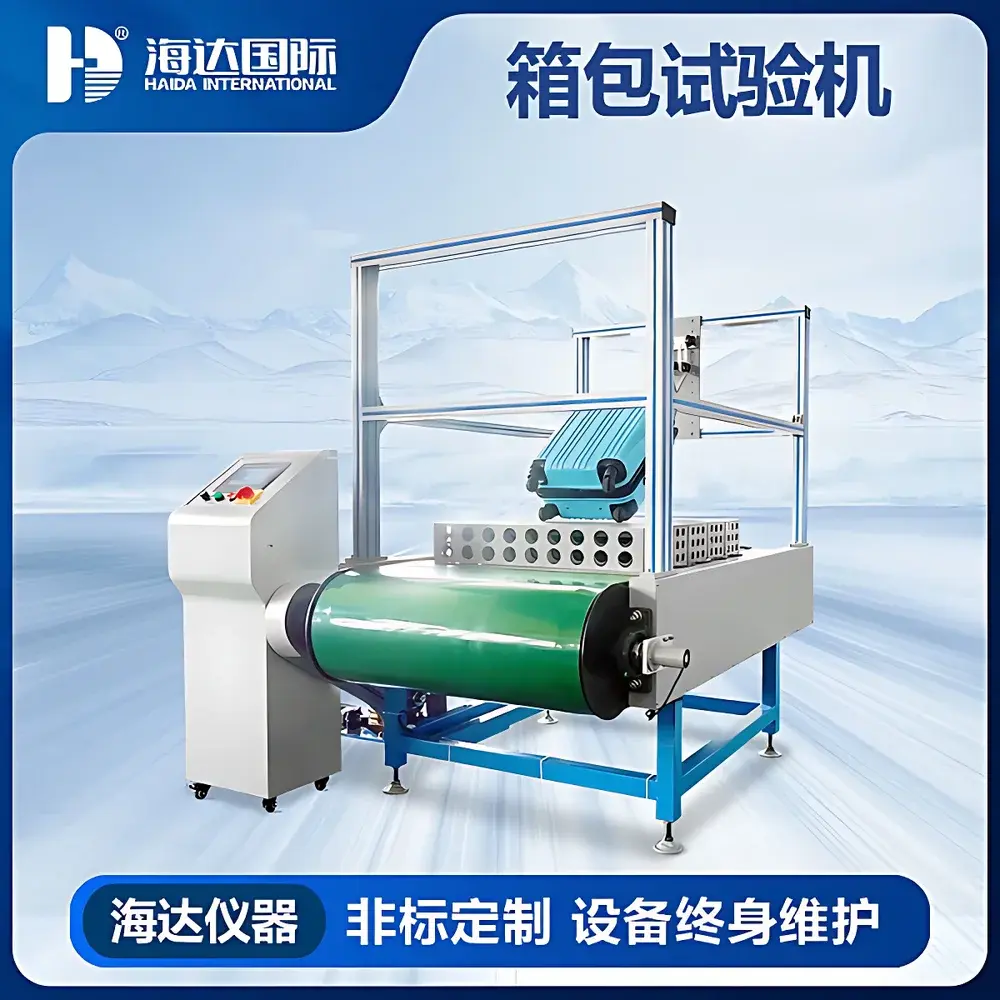

| Model | HD-D128-1 |
| Pricing | Upon Request |
Show next
