| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |

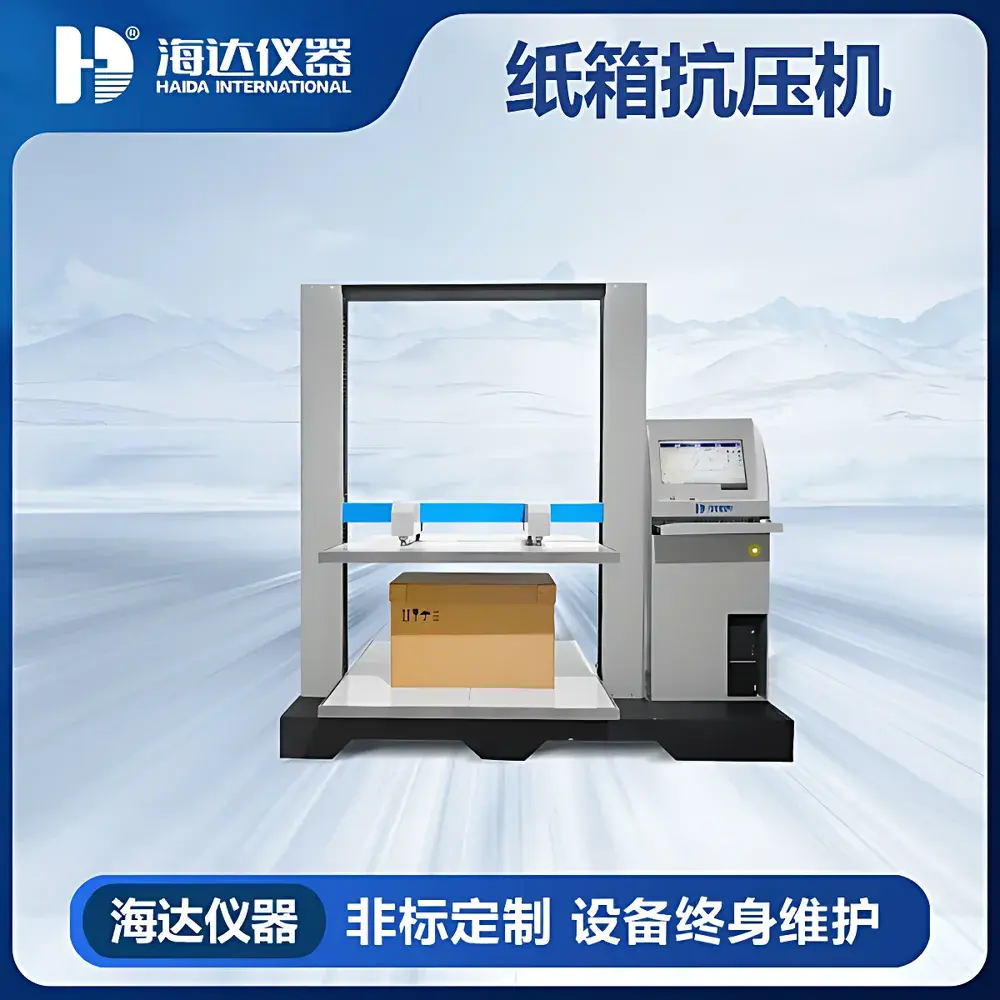

| Model | HD-A505S-1500 |
| Max Test Force | Customizable (Standard Configuration: 50 kN) |
| Compression Speed Range | 0.1–200 mm/min |
| Test Chamber Dimensions (L×W×H) | ≈1300 × 1500 × 1500 mm |
| Machine Footprint (L×W×H) | ≈2450 × 1500 × 2350 mm |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Drive Motor | 750 W AC servo motor with digital servo driver |
| Transmission | Precision ground ball screw |
| Load Cell Options | Up to four 20 kN load cells (standard) |
| Control Interface | Windows-based PC control software |
| Data Output | Native Windows report generation, Office-compatible export (Excel, PDF, Word) |
| Compliance Standards | ISO 12048, ISO 2872, ISO 2874, ASTM D642, ASTM D4169, TAPPI T804, JIS Z0212, GB/T 4857.4, GB/T 4857.16, GB/T 16491 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-A502S-1200 |
| Max. Test Load | 20 kN |
| Load Application Rate | 0.1–200 mm/min |
| Platen Travel Range | 0–1000 mm (H) |
| Platen Dimensions | 1000 mm × 1200 mm |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% FS |
| Drive System | 400 W AC Servo Motor + Ball Screw |
| Control Interface | Windows-based PC + Optional Touchscreen Controller |
| Compliance Standards | ISO 12048:1994, ISO 2872:1985, GB/T 4857.4–2008, ASTM D642–15, TAPPI T804 OM–2010, JIS Z0212:1998 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |

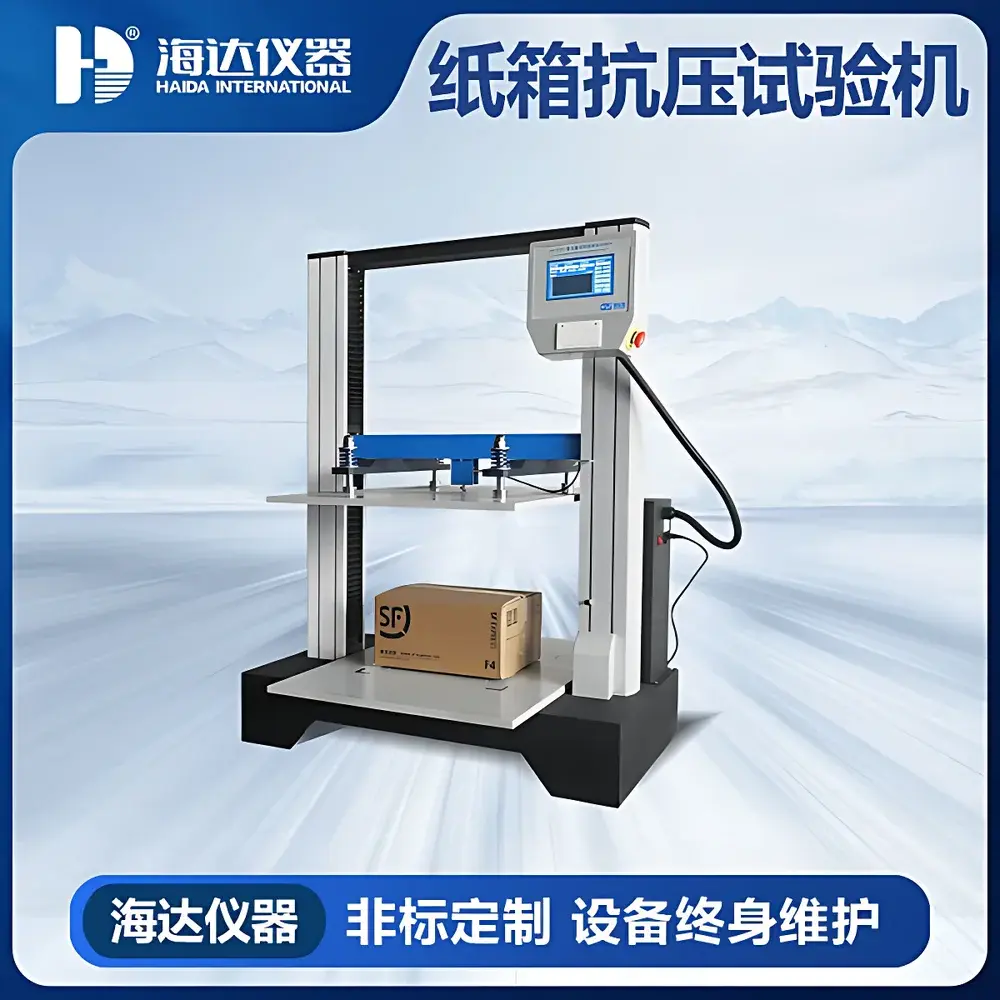

| Model | HD-A501-900 |
| Test Force Loading Rate | 120 mm/min |
| Platen Dimensions (L×W×H) | 1120 mm × 900 mm × 1428 mm |
| Test Chamber Internal Dimensions (L×W×H) | 700 mm × 900 mm × 900 mm |
| Maximum Load Capacity | 10 kN |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Test Speed | 10 ± 3 mm/min |
| Drive System | Precision Ball Screw with Frequency-Controlled AC Motor |
| Control Interface | Touchscreen HMI (English & Simplified Chinese) |
| Data Output | Thermal Printer |
| Compliance Standards | ISO 12048, ISO 2872, ISO 2874, ASTM D642, ASTM D4169, TAPPI T804, JIS Z0212, GB/T 4857.4, GB/T 4857.16, GB/T 16491 |
