| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HD-B604-S |
| Instrument Type | Electromechanical Tensile Tester |
| Maximum Test Load Options | 2 kN / 5 kN / 10 kN / 20 kN Load Cells |
| Force Measurement Range | Full Scale (FS) matching selected load cell |
| Force Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 1000 mm (excluding grips) |
| Speed Range | 0.1–500 mm/min |
| Load Resolution | 1/250,000 FS |
| Effective Test Width | 400 mm |
| Dimensions (L×W×H) | ≈ 880 × 505 × 1500 mm |
| Weight | ≈ 185 kg |
| Power Supply | 1Ø AC 220 V, ~500 W |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 6892-1, EN ISO 15112 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |

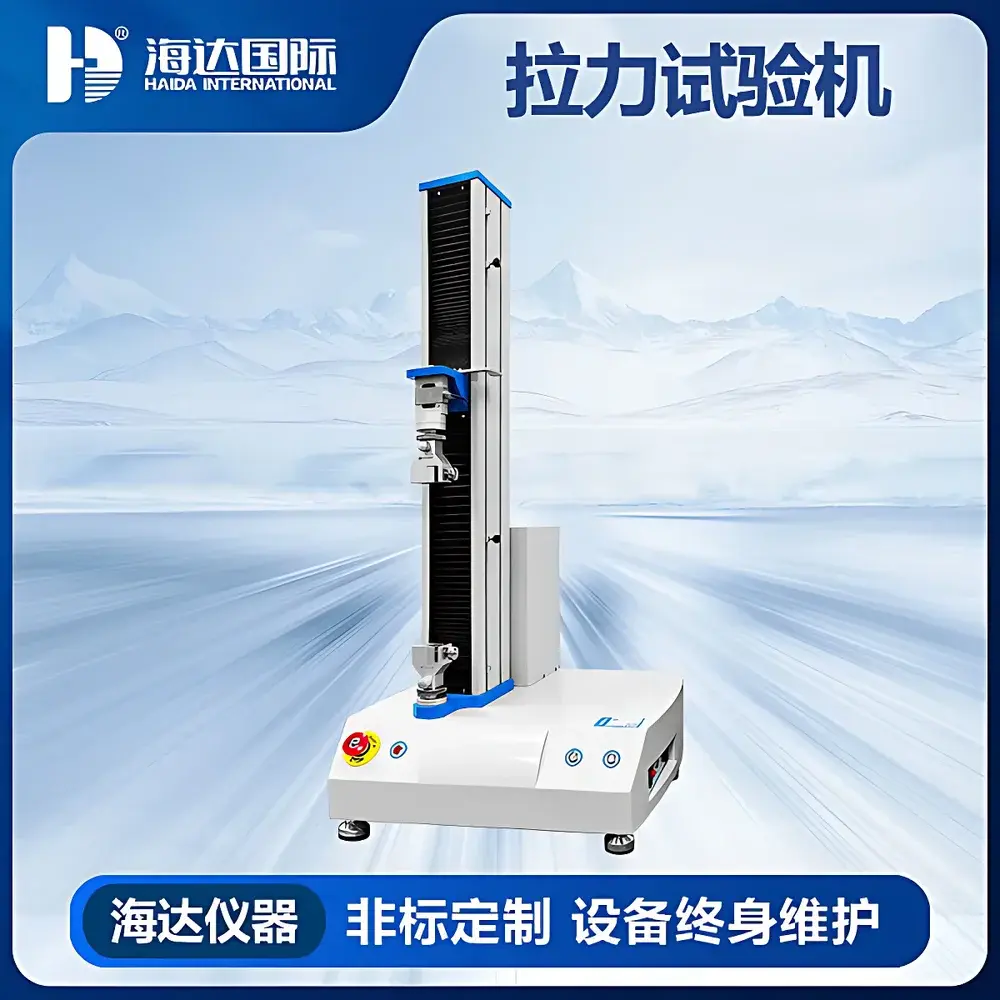

| Model | HD-B609C-S |
| Instrument Type | Electronic Tensile Tester |
| Maximum Test Load | 5 kgf (49.05 N) Load Cell |
| Force Measurement Range | 1 g to 5 kgf (0.0098 N to 49.05 N) |
| Force Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 900 mm (excluding fixtures) |
| Speed Range | 0.1–500 mm/min (adjustable) |
| Drive System | Panasonic AC servo motor (400 W) + servo driver + Mutoh planetary gear reducer |
| Transmission | Precision ground ball screw |
| Control Interface | PC-based Windows software (no touchscreen) |
| Compliance Standards | GB/T 16491, GB/T 4851, GB/T 2792, GB/T 8808, GB/T 13022, JIS K 6854, DIN 53357, ISO 8510, ISO 29862 |
| Dimensions (L×W×H) | 515 × 520 × 1250 mm |
| Weight | ~68 kg |
| Power Supply | 1Ø, AC 220 V / 50 Hz, 500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

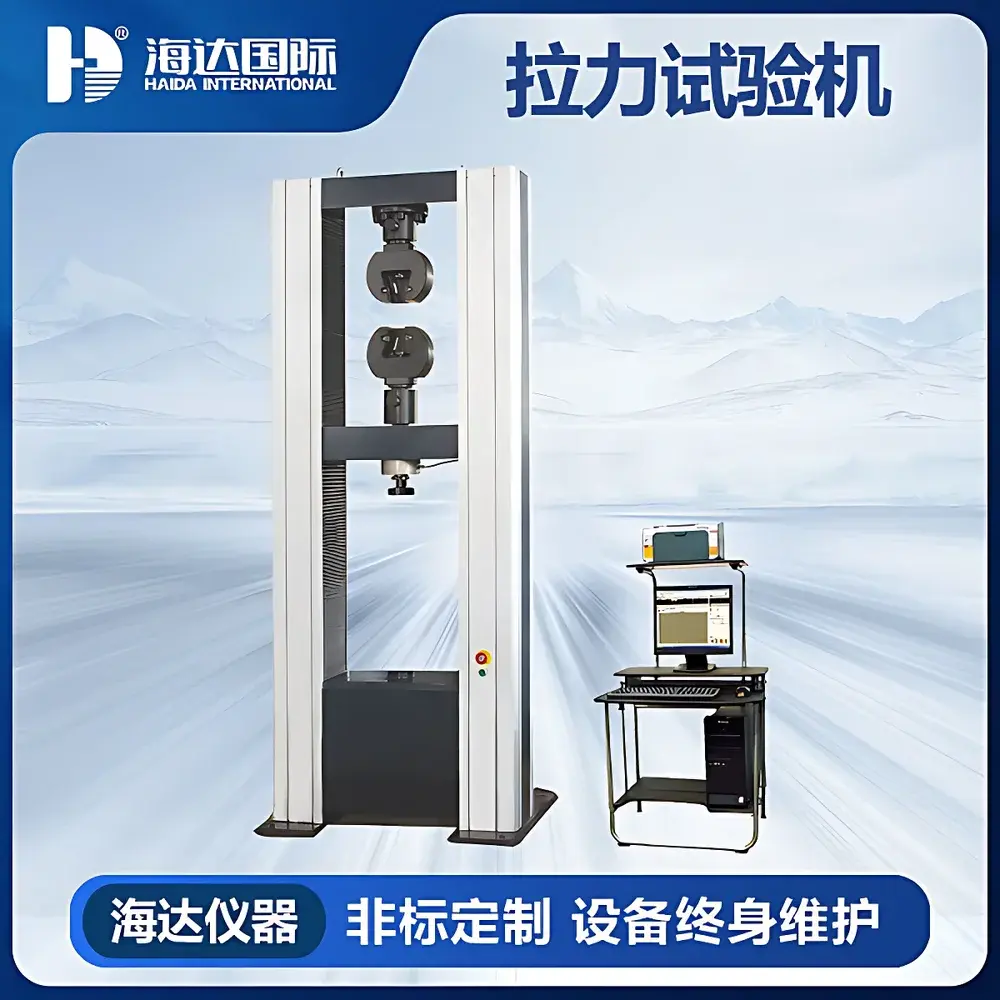

| Model | HAIDA HD-B612-S Computer-Controlled Universal Testing Machine |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Max Test Load | 100 kN |
| Force Measurement Range | 2–100% FS |
| Force Accuracy Class | Class 1 |
| Test Stroke | 650 mm |
| Displacement Resolution | 0.001 mm |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

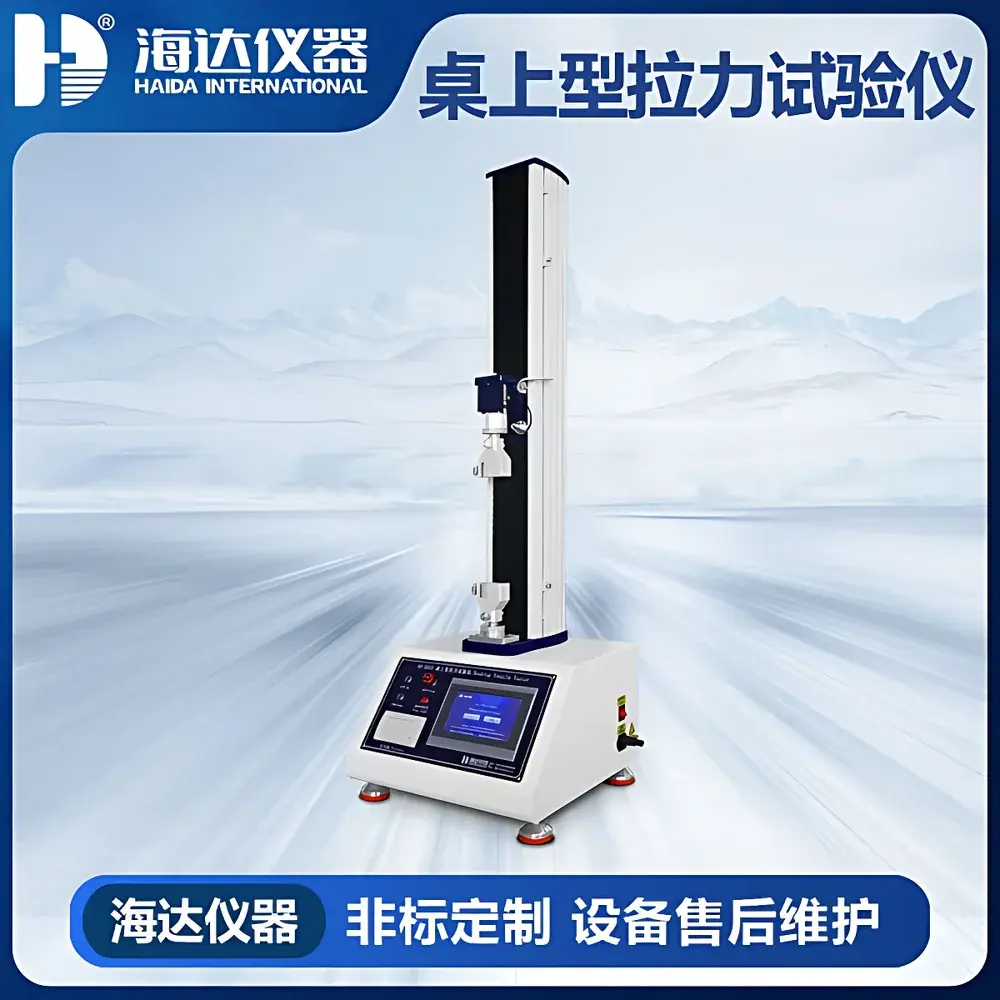

| Model | HAIDA HD-B602-S Desktop Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Max Test Load | 2 kN |
| Force Measurement Range | 0.1 N to 2 kN |
| Force Accuracy | ≤ ±0.5% FS |
| Test Stroke | 900 mm (excluding fixtures) |
| Load Resolution | 1/250,000 |
| Speed Range | 1–300 mm/min |
| Effective Depth | 60 mm (from center of coupling to dust cover) |
| Dimensions (L×W×H) | ≈ 450 × 450 × 1330 mm |
| Weight | ≈ 60 kg |
| Power Supply | 1∮ AC 220 V |
| Power Consumption | ≈ 500 W |
| Control Mode | Dual-mode (Windows PC + 7-inch TFT touchscreen) |
| Data Output | USB, Windows-compatible export (Excel/PDF), thermal printer with real-time curve plotting |
| Units Supported | gf, kgf, N, kN, lbf, tonf |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 178, ISO 1133 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

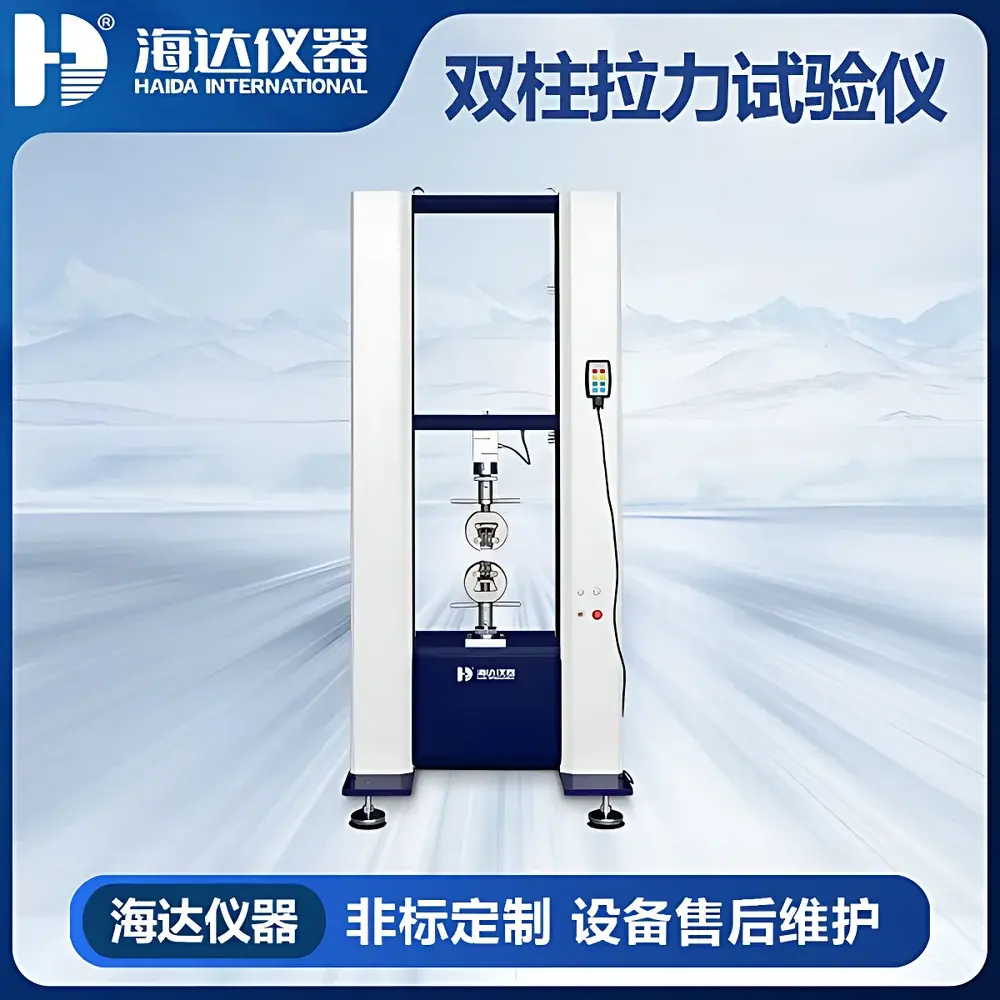

| Model | HD-B615-S |
| Instrument Type | Electronic Tensile Tester |
| Maximum Test Load (Standard) | 50 kN |
| Optional Load Cells | 20 kN / 30 kN |
| Force Measurement Range | 100 N – 50 kN (FS) |
| Force Accuracy | ≤ ±0.5% |
| Test Stroke | 1200 mm (excluding fixtures) |
| Load Resolution | 1/250,000 |
| Crosshead Speed Range | 0.1 – 500 mm/min |
| Effective Width | 450 mm |
| Dimensions (L×W×H) | ≈846 × 600 × 2100 mm |
| Weight | ≈320 kg |
| Power Supply | 1∮ AC 220 V |
| Total Power Consumption | ≈1 kW |
| Drive System | 750 W Servo Motor + Servo Driver |
| Transmission | Precision Ball Screw |
| Control Interface | Windows-based PC Software |
| Data Output | USB, Windows-native export, Office-compatible formats (Excel, PDF) |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1–2008, GB/T 228.1–2010, GB/T 1040–2006, ASTM D4833–2007, ISO 527, ISO 6892-1, ISO 178 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-B618-S Computer-Controlled Dual-Column Servo Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Maximum Test Load | 100 kN (standard sensor) |
| Force Measurement Range | 0.1 N to 5 kN |
| Force Accuracy | ≤0.05% of full scale |
| Test Stroke | ~0.1–600 mm (with wedge grips) or ~0.1–970 mm (without wedge grips) |
| Drive Motor | 2.0 kW servo motor |
| Drive Controller | 2.0 kW servo drive |
| Control Mode | PC-based Windows operation |
| Display & Output | Real-time data on PC |
| Lead Screw | Precision recirculating ball screw |
| Speed Range | 0.1–500 mm/min (adjustable) |
| Load Resolution | 1/250,000 FS |
| Effective Test Width | ~450 mm |
| Dimensions (L×W×H) | ~850 × 600 × 1980 mm |
| Weight | ~550 kg |
| Power Supply | 1-phase AC 220 V |
| Total Power Consumption | ~2.2 kW |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-B609-S Computer-Controlled Servo-Powered Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Maximum Test Load | 50 N / 1 kN / 2 kN (selectable load cell) |
| Force Measurement Range | 0.05 N to 2 kN (full scale) |
| Force Accuracy | ≤ ±0.5% FS |
| Test Stroke | 900 mm (excluding grips) |
| Drive Motor | 400 W servo motor |
| Drive Controller | 400 W servo drive |
| Control Mode | PC-based Windows software |
| Display & Output | Real-time on-screen data visualization |
| Lead Screw | Precision ground ball screw |
| Speed Range | 0.1–500 mm/min (continuously adjustable) |
| Load Resolution | 1/250,000 FS |
| Effective Test Width (center-to-dust-shield) | 60 mm |
| Dimensions (L×W×H) | ≈ 580 × 550 × 1250 mm |
| Weight | ≈ 70 kg |
| Power Supply | 1-phase AC 220 V |
| Total Power Consumption | ≈ 500 W |
| Unit Conversion | gf, kgf, N, kN, lbf, tonf |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 178, ISO 1133 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-B617-S Computer-Controlled Servo-Powered Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester (Not Hydraulic) |
| Maximum Test Force | 50 N / 100 N / 500 N / 1 kN / 2 kN / 5 kN |
| Force Measurement Range | 0.1 N to 5 kN (Full Scale) |
| Force Resolution | 1/250,000 of Full Scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 1200 mm (excluding grips) |
| Speed Range | 0.1–500 mm/min |
| Drive System | 400 W Servo Motor + Servo Driver |
| Transmission | Precision Ball Screw |
| Control Interface | Dual-mode — Windows-based PC software + Integrated Touchscreen HMI |
| Data Output | USB, Windows-compatible export (CSV, Excel), thermal printer support |
| Load Cell Compatibility | Interchangeable single-range load cells (50 N to 5 kN) |
| Dimensions (L×W×H) | ≈ 430 × 550 × 1750 mm |
| Weight | ≈ 80 kg |
| Power Supply | 1Ø AC 220 V, ~500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-B609B-S Computer-Controlled Servo-Powered Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Maximum Test Load | 50 N / 1 kN / 2 kN (selectable load cell) |
| Force Measurement Range | 0.05 N to 2 kN (full scale) |
| Force Accuracy | ≤ ±0.5% FS |
| Crosshead Speed Range | 0.1–500 mm/min |
| Effective Stroke | 900 mm (excluding grips) |
| Load Resolution | 1/250,000 of full scale |
| Horizontal Clearance (grip center to dust cover) | 60 mm |
| Dimensions (L×W×H) | ≈ 580 × 550 × 1250 mm |
| Weight | ≈ 70 kg |
| Power Supply | 1Ø AC 220 V, ~500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Electro-Hydraulic Servo Tensile Tester |
| Maximum Test Load | 50 N / 100 N / 500 N / 1 kN / 2 kN / 5 kN (Interchangeable Load Cells) |
| Force Measurement Range | 0.1 N to 5 kN (Full Scale) |
| Force Resolution | 1/250,000 of Full Scale |
| Force Accuracy | ≤ ±0.5% of Reading |
| Crosshead Travel | 1200 mm (excluding grips) |
| Test Speed Range | 0.1–500 mm/min |
| Drive System | 400 W Servo Motor + Precision Ball Screw |
| Control Interface | Dual-mode — Windows-based PC Software & Integrated Touchscreen HMI |
| Data Output | USB, Windows-native export (CSV/XLS), Office-compatible reporting, thermal printer support |
| Load Cell Resolution | 1/250,000 FS |
| Effective Depth (Center of Grip to Dust Shield) | 60 mm |
| Dimensions (L×W×H) | ≈ 430 × 550 × 1750 mm |
| Weight | ≈ 80 kg |
| Power Supply | 1-phase AC 220 V |
| Total Power Consumption | ≈ 500 W |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |

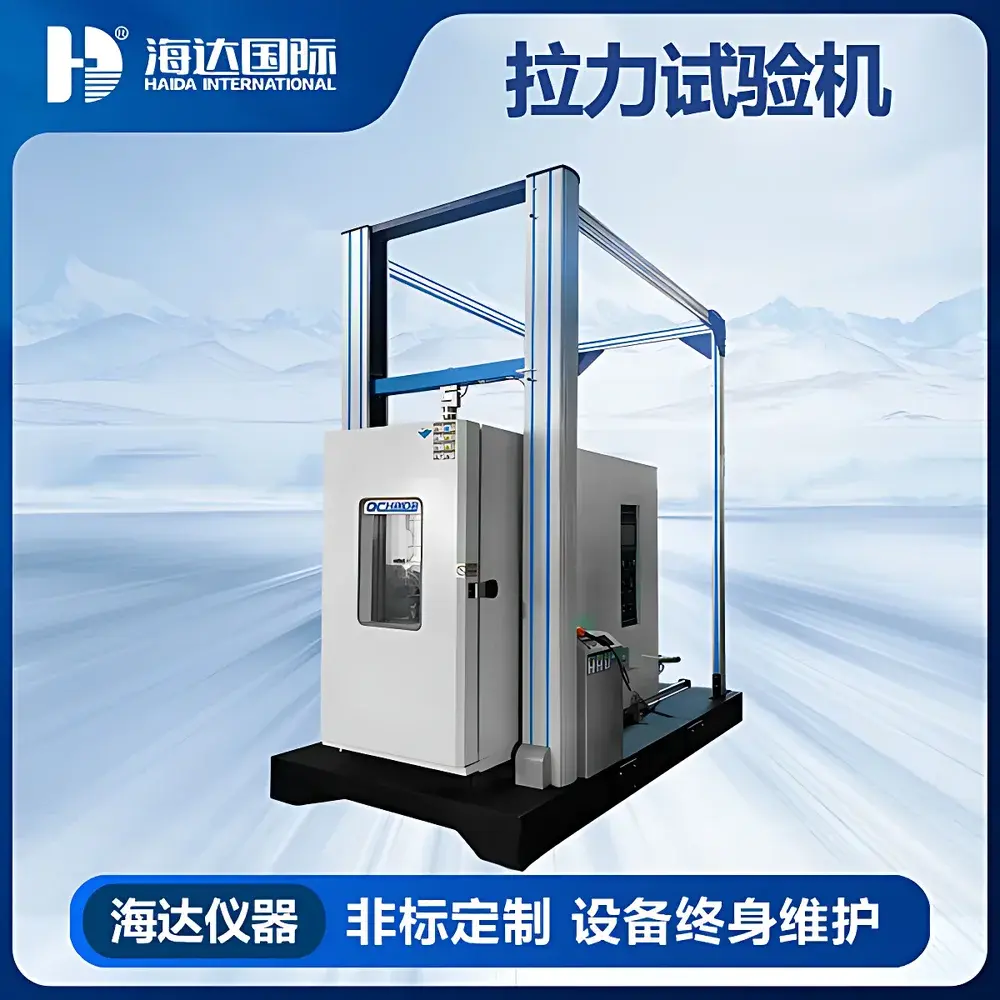

| Model | HAIDA HD-B607-S High-Low Temperature Computer-Controlled Servo Tensile Testing Machine |
| Max. Test Load | 10 kN |
| Force Accuracy | ≤ ±0.5% FS |
| Test Stroke | 1400 mm (excluding grips) |
| Crosshead Speed Range | 0.1–500 mm/min |
| Load Resolution | 1/250,000 |
| Effective Test Force Range | 50 N – 10 kN |
| Temperature Chamber Dimensions | 400 × 400 × 700 mm (L×W×H) |
| Temp. Control Range | −40 °C to +150 °C |
| Temp. Stability | ±1 °C |
| Temp. Uniformity | ±2 °C |
| Heating/Cooling Rate | >2 °C/min / >1 °C/min |
| Power Supply | 3-phase AC 380 V for chamber |
