| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HAIDA HD-C524-12 Ambient-Temperature Tape Holding Power Tester |
| Test Stations | 12 |
| Timing Resolution | Hour-Minute (9999 h 59 min) / Hour-Minute-Second (99 h 59 min 59 s) / Minute-Second-Millisecond (99 min 59 s 59 ms) |
| Standard Load Mass | 1000 g ±5 g (including stainless steel triangular hook and hanging weight) |
| Triangular Hook Dimensions | 45 mm × 5 mm (edge length × wire diameter) |
| Standard Test Plate | 150 mm × 50 mm × 2 mm (L×W×H), SUS304 mirror-finish stainless steel |
| Surface Roughness | 50 nm ±25 nm (Ra) |
| Power Consumption | ~120 W |
| Internal Chamber Dimensions | ~987 mm × 175 mm × 430 mm (L×W×H) |
| Overall Dimensions | ~990 mm × 200 mm × 640 mm (L×W×H) |
| Weight | ~50 kg |
| Power Supply | 1∮ AC 220 V |
| Applicable Standards | GB/T 4851–2014 (Methods A, B, C), CNS 11888, PSTC-107 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

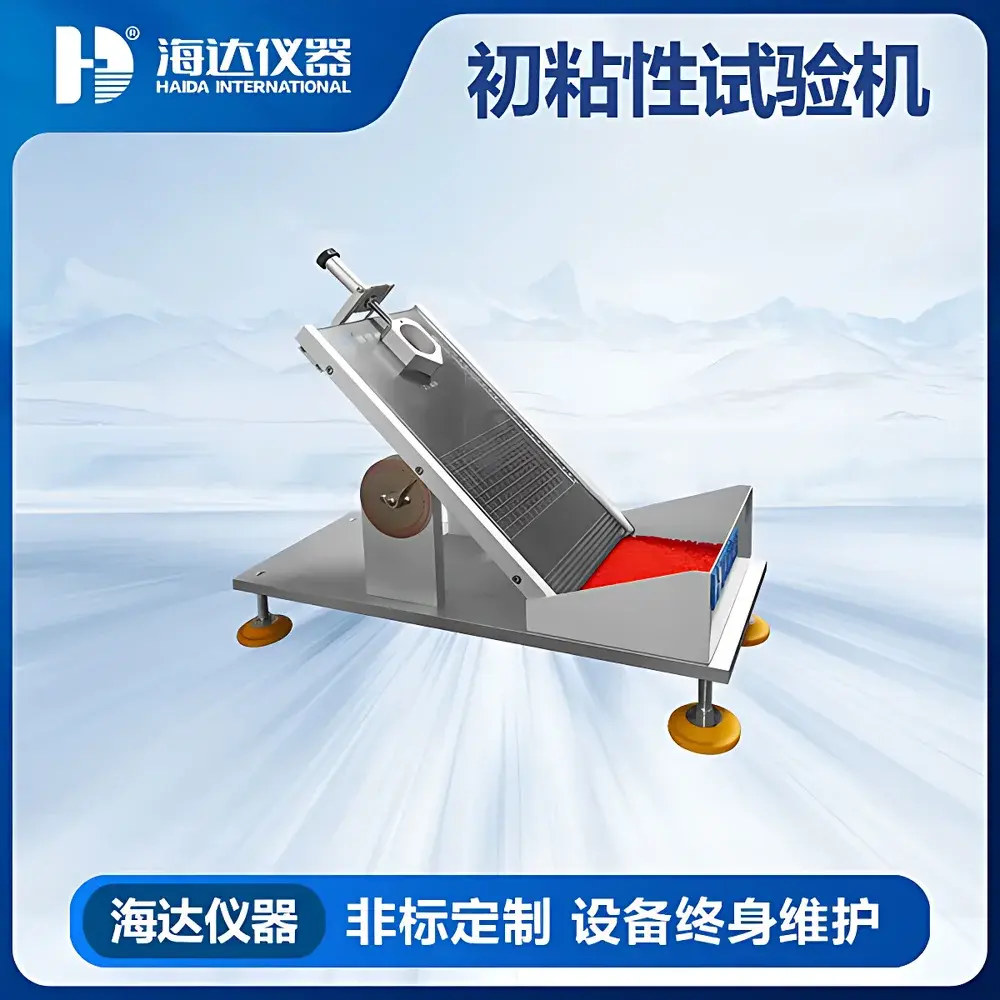

| Model | HD-C525 |
| Pricing | Available Upon Request |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

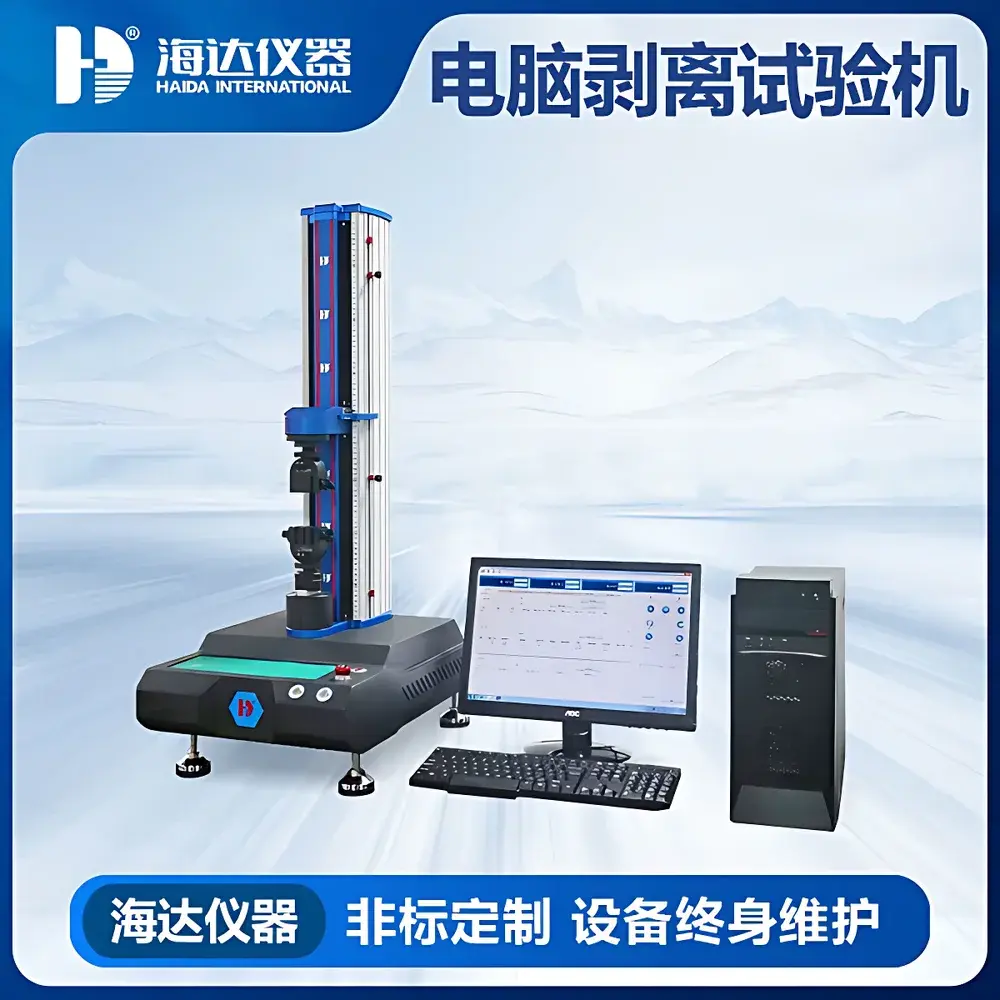

| Model | HAIDA HD-C522 Computer-Controlled Release Force Tester for Pressure-Sensitive Adhesives |
| Sensor Capacity | 10 N / 20 N / 50 N |
| Motor | 400 W Servo Motor |
| Driver | 400 W Servo Drive |
| Lead Screw | Precision Ball Screw |
| Control Mode | PC-Based Windows OS Interface |
| Adjustable Speed Range | 0.1–1000 mm/min |
| Maximum Travel | 500 mm (without fixtures) |
| Load Resolution | 1/250,000 FS |
| Load Accuracy | ≤ ±0.5% of reading |
| Force Measurement Range | 0.01–50 N |
| Unit Options | gf, kgf, N, kN, lbf, tonf |
| Dimensions (L×W×H) | 400 × 600 × 1000 mm |
| Weight | ~68 kg |
| Power Supply | 1∮ AC 220 V |
| Total Power Consumption | ~500 W |
| Standard Test | 180° Peel Release Force |
| Compliance | GB/T 2792–2014, ASTM D3330–22, GB/T 25256–2010, ISO 8510-2:2019 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HAIDA HD-C524-6 Ambient-Temperature Tape Holding Power Tester |
| Price | Upon Request |
| Test Stations | 6 |
| Timer Resolution | 0.01 s (mm:ss:ms mode), 1 s (hh:mm mode), 1 s (hh:mm:ss mode) |
| Standard Load Mass | 1000 g ±5 g (including stainless steel triangular ring and hook weight) |
| Triangular Ring Dimensions | 45 mm × 5 mm (edge length × wire diameter) |
| Standard Test Plate | 150 mm × 50 mm × 2 mm (L×W×H), SUS304 mirror-finish stainless steel |
| Surface Roughness of Test Plate | 50 nm ±25 nm (Ra) |
| Power Consumption | ~72 W |
| Internal Chamber Dimensions | 507 mm × 175 mm × 430 mm (L×W×H) |
| Overall Dimensions | 510 mm × 200 mm × 640 mm (L×W×H) |
| Weight | ~30 kg |
| Power Supply | 1∮ AC 220 V |
| Applicable Standards | GB/T 4851–2014 (Methods A, B, C), CNS 11888, PSTC-107 |
