| Brand | CNOPTEC (Otoscope) |
|---|---|
| Origin | Chongqing, China |
| Model | MDS400 |
| Type | Inverted |
| Total Magnification | 50×–1000× |
| Eyepieces | Wide-field, high-eyepoint plan eyepieces, 10×, field number Φ22 mm |
| Objectives | LMPlan FL 5× (NA 0.15, WD 21.0 mm), 10× (NA 0.30, WD 20.0 mm), 20× (NA 0.40, WD 15.0 mm), 50× (NA 0.55, WD 10.0 mm), LPL 50× (NA 0.75, WD 3.0 mm), LPL 80× (NA 0.80, WD 0.85 mm), LMPlan FL 100× (dry, NA 0.85, WD 3.0 mm) |
| Observation Modes | Brightfield, Darkfield, Polarized Light |
| Optical System | OTICS infinity-corrected achromatic optical path |
| Trinocular Head | Dual-beam split (100% viewing / 20% viewing + 80% imaging), 45° inclination, interpupillary adjustment 48–76 mm |
| Nosepiece | Five-position objective turret |
| Focus Mechanism | Coaxial coarse/fine focus |
| Stage | Triple-layer mechanical stage, 210 × 180 mm surface, 50 × 50 mm travel range, vernier scale 0.1 mm |
| Illumination | 12 V/50 W halogen or 5 W LED (100–240 V AC input) |
| Polarization Accessories | Rotatable polarizer and analyzer |
| Camera Interface | C-mount with 1×/0.75×/0.5× reduction options |
| Image Analysis Software | OPTPro Professional Metallographic Analysis & Rating Software |
| Digital Imaging Compatibility | Canon, Nikon DSLR systems |

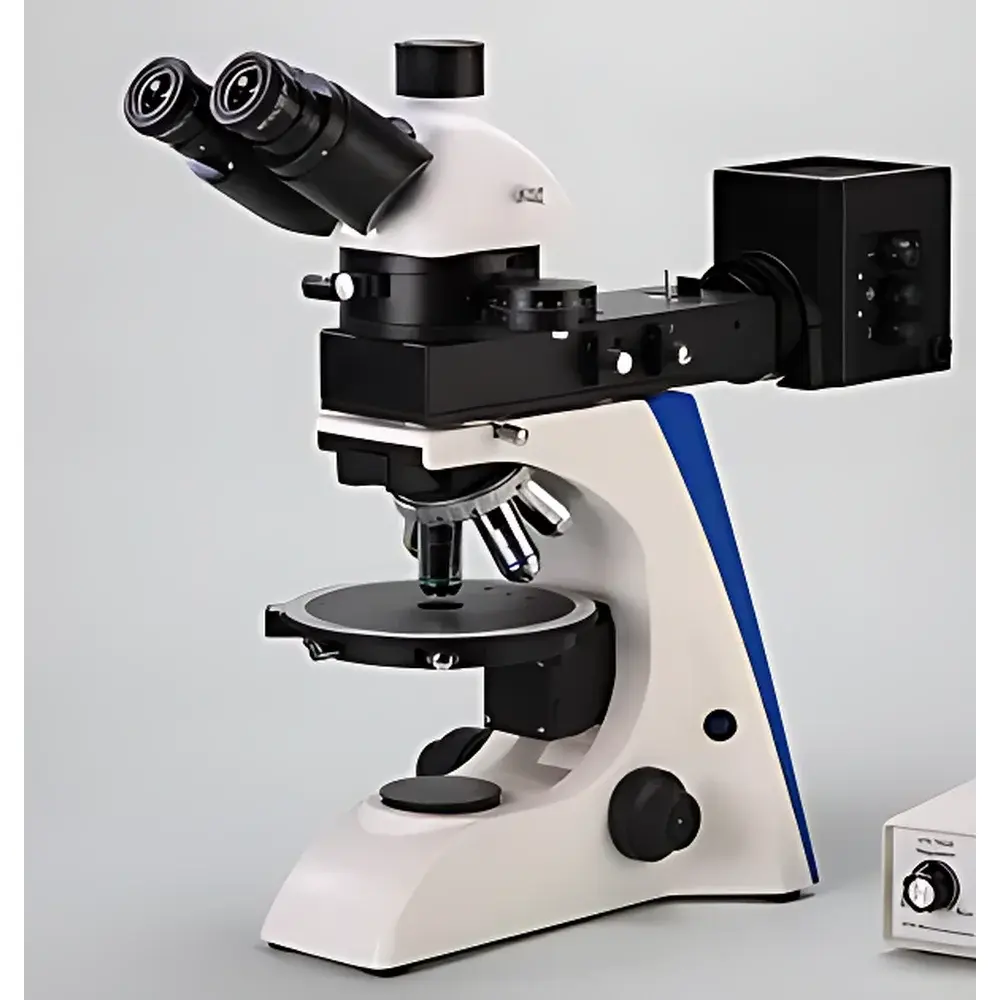

| Brand | CNOPTEC |
|---|---|
| Origin | Chongqing, China |
| Model | BK-POL |
| Optical System | OTICS Infinity-Corrected Achromatic Polarizing System |
| Eyepieces | 10× Widefield High-Eye-Point Plan Eyepieces (Field Number Φ22 mm / Φ20 mm) |
| Objectives | Infinity-Corrected Stress-Free Plan Objectives — Transmitted Light: 4× / 10× / 20×(S) / 40×(S) / 60×(S) |
| Reflected Light | 5× / 10× / 20× / 50×(S) |
| Observation Tube | Hinged Binocular or Trinocular Tube, 30° Inclination, Interpupillary Adjustment 48–76 mm, Right Eyepiece Tube Coupled |
| Nosepiece | Five-Position Inclined, Center-Adjustable Revolving Nosepiece |
| Analyzer Assembly | 360° Rotatable, Lockable, Removable Analyzer Module with Focus-Adjustable Bertrand Lens |
| Polarizer | 360° Rotatable, Graduated, Lockable Polarizer |
| Compensators | λ (First-Order Red), λ/4, and Quartz Wedge (I–IV Order) Insertion Plates |
| Focusing Mechanism | Coaxial Coarse/Fine Focus — Coarse Travel 25 mm, Fine Focus 0.2 mm per Revolution, Graduation 2 µm, Upper Limit Stop, Tension Adjustment |
| Stage | 360° Rotatable Polarizing Stage with Centering Adjustment, Scale Division 1°, Vernier Division 6′, Diameter Φ174 mm |
| Condenser | N.A. 0.9 / 0.13 Swing-Out Condenser |
| Illumination | Transmitted — 6 V / 30 W Halogen or 5 W LED (100–240 V AC Input) |
| Mechanical Stage | Polarization-Specific Translation Stage |
| C-Mount Photo Adapters | 0.5× / 0.75× / 1× |
| Optional Heating Stage | Temperature Range RT–400 °C, Accuracy ≤ ±0.5 °C Full Scale, Touchscreen Control & Data Logging, Response Time ≤ 0.01 s, Max Load 200 g, Working Surface Φ31.5 mm, Compatible with Both Transmission and Reflection Modes |
| Brand | CNOPTEC |
|---|---|
| Origin | Chongqing, China |
| Model | SMARTe |
| Sensor | 3.2 MP or 5 MP 1/2″ Progressive Scan CMOS |
| Max Resolution | 2048×1536 px (3.2 MP) / 2952×1944 px (5 MP) |
| Frame Rate | 15–30 fps |
| Optical Coupling | 0.5× C-mount adapter |
| Interface | USB 2.0 (480 Mbps, bus-powered) |
| OS Compatibility | Windows |
| Software | OPTPro Microscopic Image Analysis Suite |
